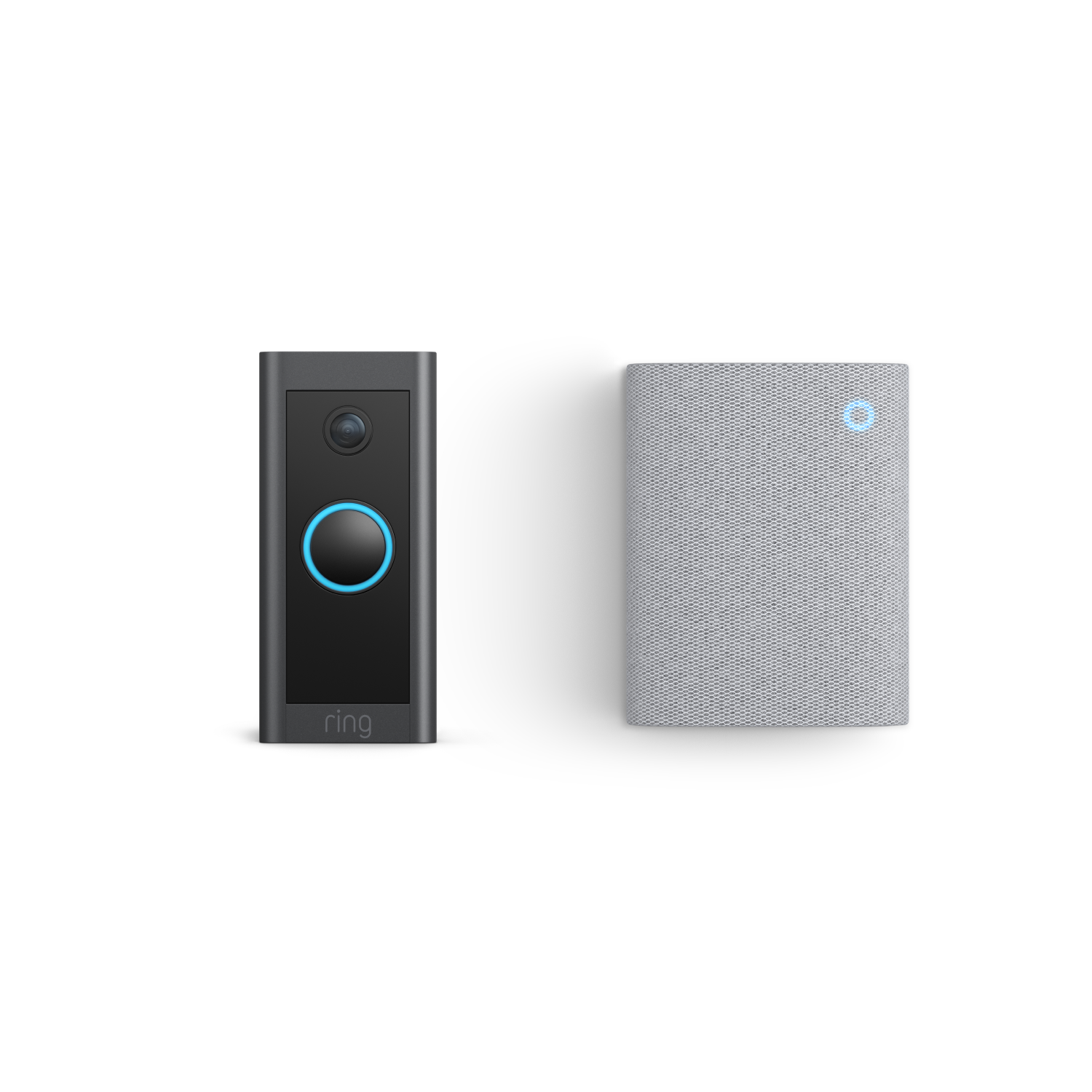

Video Doorbell Wired + Chime 3rd Gen

10.1 cm x 4.57 cm x 2.2 cm

Black, Interchangeable Faceplates sold separately

1080 HD Live Video, Live View, Night Vision, Advanced Pre-Roll³

Advanced Motion Detection with Customisable Motion Zones

155° horizontal, 90° vertical

Two-way communication with noise cancellation

Hardwired.
You can hardwire your doorbell if you have a compatible doorbell system (8-24 VAC, 10-40VA, 50/60Hz ), or you can use Ring DIN Rail Transformer 2nd Gen (24VDC, 0.42A , 10.0W) sold separately. Doorbell chime must be bypassed. For more support in wiring and compatibility see ring.com/hardwired.

Plug-In Adapter.
Use Plug-In adapter (2nd Gen) sold separately (24VDC. 0.5A, 12W). Plug-In Adapter features a 6m cable and comes with cable clips. Plugs into standard indoor electrical socket. Use only Ring DC supplies. Use of 3rd-party DC supplies will result in damage to device.

Recommended minimum upload speed of 2 Mbps per device

802.11 b/g/n wifi connection @2.4GHz

Within a few minutes

-20°C to 50°C, Weather resistant

Video Doorbell Wired
Installation Tools and Screws
Quick Start Guide
Security Sticker

One-year limited warranty, and including theft protection. If you are a consumer, the limited warranty is in addition to your consumer rights, and does not jeopardise these rights in any way. This means you may still have additional rights at law even after the limited warranty has expired. Learn more here.

This Ring device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Ring device, visit Software Security Updates in Ring Control Centre for information specific to your device.

6.15cm x 6.25cm x 7.8cm

White

Provides audible Video Doorbell and motion notifications.

Select from a list of tones in the Ring app.

Enhanced loudness and clarity.

Single band Wi-Fi connection with Wi-Fi 6.

Mains Powered

• 100–240 VAC 50/60Hz.

2.4 GHz, Wi-Fi 6

Wifi + Bluetooth Low Energy

Quick Setup

0°C-45°C

Simply plugs into a standard electrical socket.

Chime (3rd Gen)
Quick Start Guide w/ QR Code
Warranty and Safety Document

One-year limited warranty, and including theft protection. If you are a consumer, the limited warranty is in addition to your consumer rights, and does not jeopardise these rights in any way. This means you may still have additional rights at law even after the limited warranty has expired. Learn more here.

This Ring device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Ring device, visit Software Security Updates in Ring Control Centre for information specific to your device.
