Understanding Smart Lighting light patterns
Learn about light patterns for Smart Lighting.
Smart Lighting Bridge
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Boot up in progress | Alternating blue light flashing top and green light flashing bottom |  |
Ring wifi access point mode | Blue light flashing slowly top |  |
Not connected to wifi | Blue light flashing quickly top |  |
Firmware update in progress | Blue light flashing quickly top | |
Wifi connected | Solid blue light top |  |
Firmware update complete | Solid blue light top and solid red light bottom |  |
Hardware error | Red light flashing quickly bottom |  |
Transformer
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Powering up | Blue circle light flashing |  |
Turned on manually while paired to Ring Bridge | Solid white circle light |  |
Turned on manually while not paired to Ring Bridge | White circle light flashing |  |
Pairing successful | Solid blue circle light |  |
Firmware update in progress | Blue circle light turning on for three seconds and off for three seconds |  |
Reboot complete | Blue circle light flashing twice, then long flash once |  |
Steplight
Battery and solar Steplights share the same light patterns.
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up or reboot complete Firmware update in progress | Light flashing twice |  |
Connected to gateway | Light on for three seconds |  |
Wall Light Solar
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up or reboot complete Firmware update in progress | Light flashing twice |  |

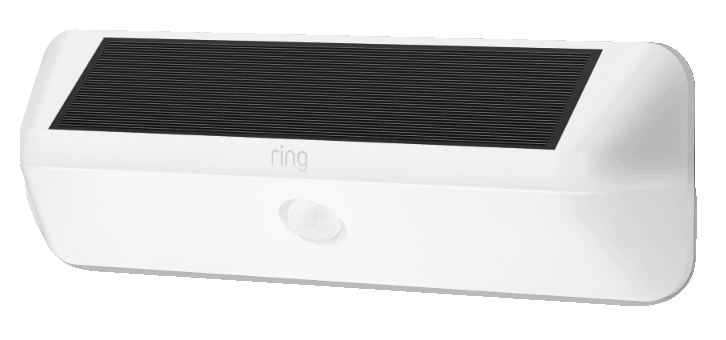

Connected to gateway | Light on for three seconds |  |
Pathlight
Battery and solar Pathlights share the same light patterns.
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|

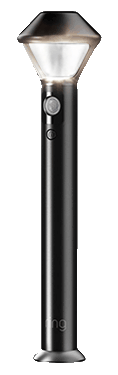

Power up or reboot complete Firmware update in progress | Light flashing twice |  |
Connected to gateway | Light on for three seconds |  |
Spotlight
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up or reboot complete Firmware update in progress | Light flashing twice |  |
Connected to gateway | Light on for three seconds |  |
Floodlight
Battery and solar Floodlights share the same light patterns.
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up or reboot complete Firmware update in progress | Light flashing twice |  |
Connected to gateway | Light on for three seconds |  |
Floodlight Wired
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up or reboot complete Firmware update in progress | Light flashing once |  |
A19 Bulb
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up complete
Pairing in progress
Pairing successful

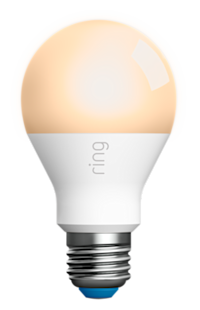

Reboot complete | Solid light |  |

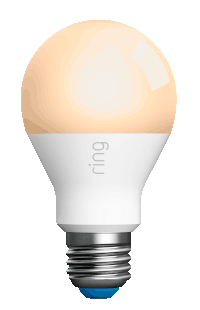

Firmware update in progress | Solid light, turns off briefly |  |

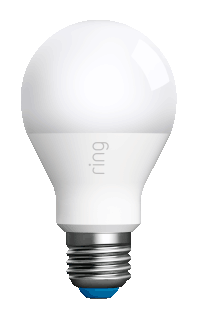

Reboot command received | Light flashing twice |  |
Par38 Bulb
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Power up complete Pairing in progress Pairing successful Reboot complete | Solid light |  |
Firmware update in progress | Solid light, turns off briefly |  |
Reboot command received | Light flashing twice |  |
Outdoor Smart Plug
Activity | Flashing Light Pattern | Flashing Light Image |
|---|---|---|
Boot up Not paired Pairing in progress Reboot complete | Blue circle light flashing |  |
Power up complete Reboot command received Update complete | Right and left small white lights and center blue circle light flash once |  |
Pairing successful | Blue circle light flashing fast, then solid blue circle light |  |

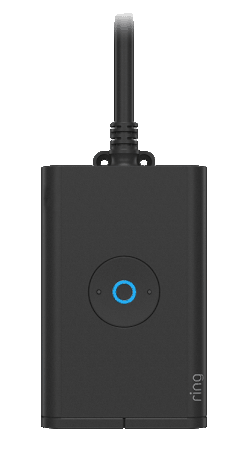

Firmware update in progress | Blue circle light flashing every three seconds |  |

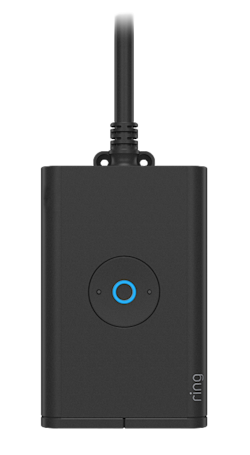

Connected to gateway | Solid blue circle light |  |
Socket A is turned on | Left solid small white light and center solid blue circle light |  |

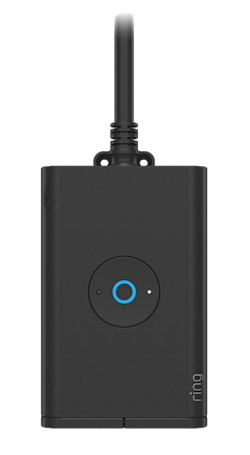

Socket B is turned on | Solid white light right and solid blue circle light center |  |
