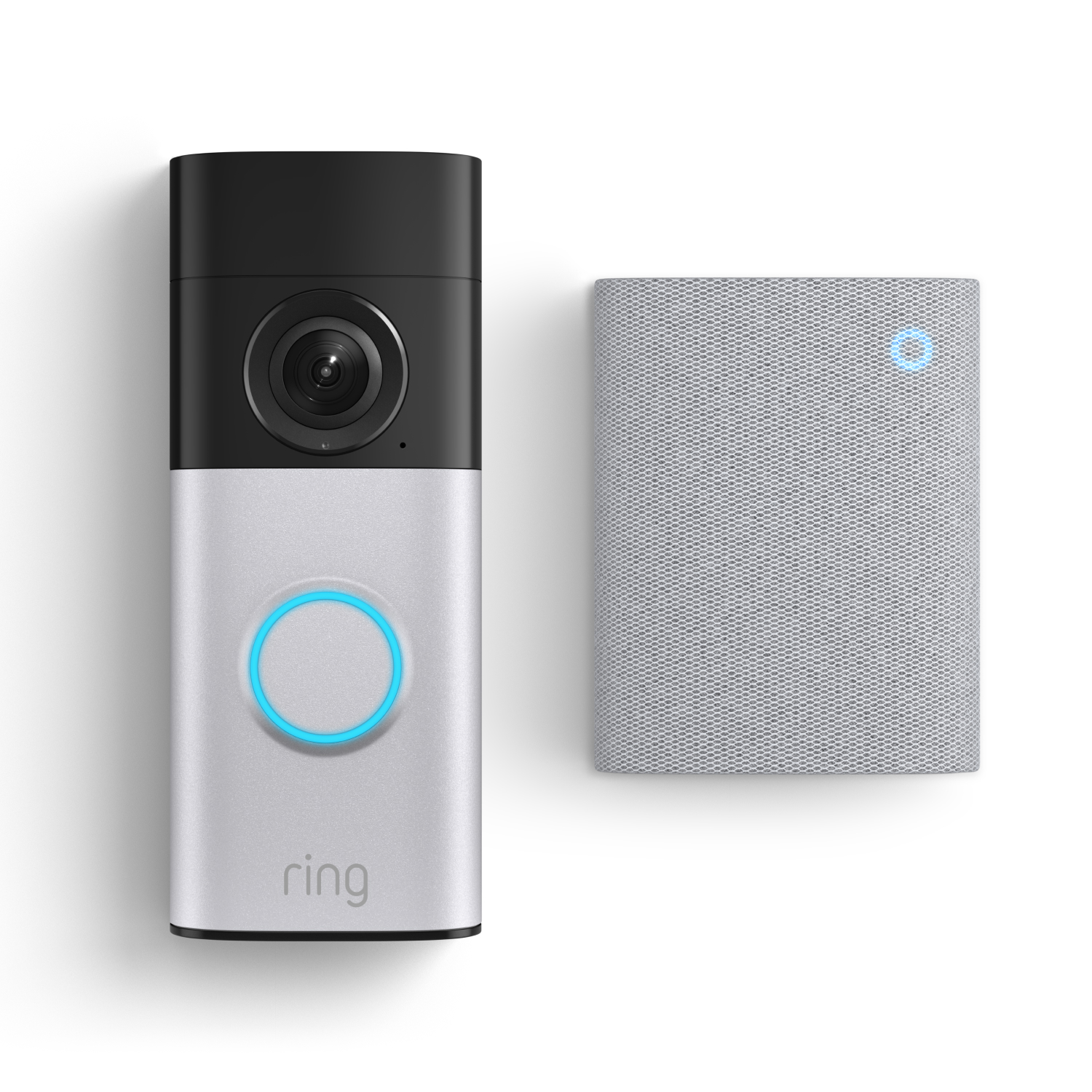

Wired Video Doorbell Plus + Chime 3rd Gen

5.36 cm x 3.00 cm (without wall mount) x 13.26 cm

Nickel Silver

2K video resolution, Low-Light Sight with Adaptive Night Vision

3D Motion Detection with Customisable Motion Zones

140° Horizontal x 140° Vertical, 1:1 Aspect Ratio

Two-Way Talk

Hardwire with included DIN Rail Transformer 3rd Gen (24V DC, 0.5A, 12W), or existing doorbell system 16 to 24 VAC 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.
No halogen or garden-lighting transformers.

A minimum upload speed of 10 Mbps is recommended for Ring 2K devices.

Wifi 6 (802.11ax), dual-band 2.4GHz/5GHz

Professional installation recommended
The installation must be done according to local electrical regulations, which may require that the installation has to be carried out by a professional.

-20°C to 48.5°C , Weather Resistant
Prolonged exposure to direct sunlight and other conditions may increase the temperature of your device and affect performance.

Hardwire with included DIN Rail Transformer 3rd Gen (24V DC, 0.5A, 12W), or existing doorbell system 16 to 24 VAC 10 to 40VA (with 30 to 40VA recommended for optimal performance), 50/60Hz or 24VDC 12W.

Wired Video Doorbell Plus
Din Rail Transformer (3rd Gen)
Corner Kit
Mounting Plate
Installation Tools and Hardware
Setup Guide
Security Sticker

One-year limited warranty, and including theft protection. If you are a consumer, the limited warranty is in addition to your consumer rights, and does not jeopardise these rights in any way. This means you may still have additional rights at law even after the limited warranty has expired. Learn more here.

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Ring device, visit Software Security Updates in Ring Control Centre for information specific to your device.

6.15cm x 6.25cm x 7.8cm

White

Provides audible Video Doorbell and motion notifications.

Select from a list of tones in the Ring app.

Enhanced loudness and clarity.

Single band Wi-Fi connection with Wi-Fi 6.

Mains Powered

• 100–240 VAC 50/60Hz.

2.4 GHz, Wi-Fi 6

Wifi + Bluetooth Low Energy

Quick Setup

0°C-45°C

Simply plugs into a standard electrical socket.

Chime (3rd Gen)
Quick Start Guide w/ QR Code
Warranty and Safety Document

One-year limited warranty, and including theft protection. If you are a consumer, the limited warranty is in addition to your consumer rights, and does not jeopardise these rights in any way. This means you may still have additional rights at law even after the limited warranty has expired. Learn more here.

This device receives guaranteed software security updates until at least four years after the device is last available for purchase as a new unit on our websites. Learn more. If you already own a Ring device, visit Software Security Updates in Ring Control Centre for information specific to your device.
