Installing your Battery Doorbell
View/download PDF manual (English, Français, Deutsch, Italiano, Español, Nederlands, Dansk, Svenska, Suomi, Norsk, العربية)Hardware included
Tools included
Tools needed
PH2
6 mm (¼ in)
1. Download the Ring app.
2. Scan the QR code.
3. Remove protective film.

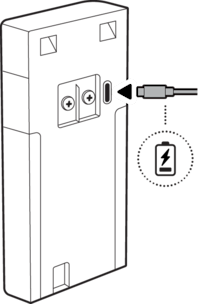

4. Fully charge the battery.

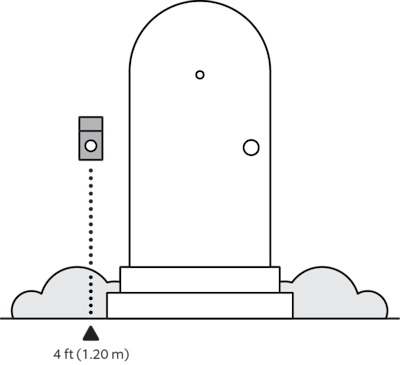

5. Choose a location for your doorbell.
Learn how to install a Wedge Kit or Corner Kit to angle your doorbell
Install your doorbell without connecting to an existing chime
6a. Install the mounting bracket. Then, attach your doorbell to the bracket.
On stucco, brick, or concrete, use a 6 mm (¼ in) masonry bit to drill holes for the included wall anchors.
7a. Press until you hear a click to secure.
Install your doorbell and connect to an existing chime
6b. Shut off power at the breaker.
CAUTION! You’ll be working with electrical wires during the install process. If you are uncomfortable or inexperienced with doing so, consult with a licensed electrician. Do not wire your Ring Doorbell to a DC-powered intercom system.
For your safety, only use an existing doorbell transformer within the range specified below or compatible Ring accessories to power your device.
For connecting to an existing doorbell system: - Hardwired transformer (8 to 24 VAC, 50/60Hz, 5VA to 40VA)
Ring accessories are sold separately and may include: - Din Rail Transformer (24Vdc, 420mA) - Plug-In Adapter (24Vdc, 500mA)- Solar Charger (5.2Vdc, 100mA or 109mA) - Solar Panel (5Vdc, 380mA/480mA/800mA)
Using incompatible power sources can damage your device and cause electric shock.
7b. Install the mounting bracket. Then, connect your doorbell to existing wires and attach.
On stucco, brick, or concrete, use a 6 mm (¼ in) masonry bit to drill holes for the included wall anchors.
8b. Press until you hear a click to secure.
Remove your doorbell
Insert the removal tool to release the doorbell from the bracket.
