Understanding your Indoor Cam's LED light patterns

Your Indoor Cam has an LED light located on the front to show you the status of your unit. The meaning of the light flashes is in the chart below.

If you want to learn more general information about Ring Security Cameras, click here.

Activity
Flashing light pattern
Flashing light image
Camera is idle
LEDs off
Camera is in setup mode
Slow blinking pattern, blue light
Camera is starting up
Solid light, blue
Firmware update in progress
Light blinks on and off, then is on for two seconds, blue
Camera is recording
Solid light, blue

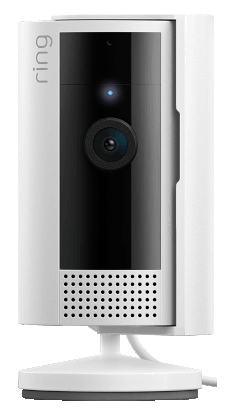

Two-way talk/speaker enabled
Very slow, pulsing light, blue
Setup is successful
Light blinks on for five seconds, blue

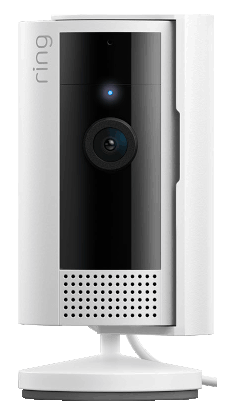

Setup has failed, incorrect password
Light flashes on and off, red
Setup failed to connect to wifi
Light flashes on/off, red/blue
Camera is booting up
Solid light until bootup is complete, blue

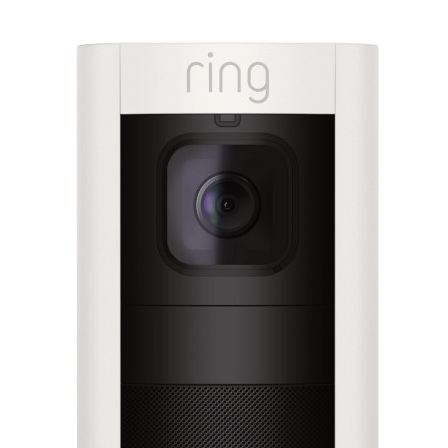

Factory restore
Light blinks on and off for five seconds then reboot, blue
