Installing Your Ring Video Doorbell (2nd Generation) Without an Existing Doorbell

Follow these steps to install your Ring Video Doorbell (2nd Generation) without an existing doorbell system.

You should set up your Ring Video Doorbell in the Ring app before mounting it to your home.

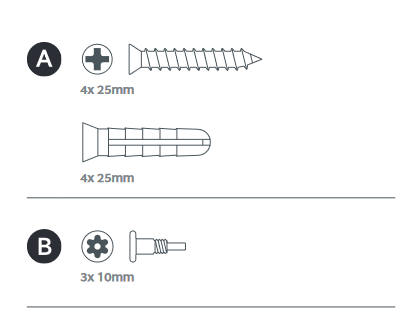

Included installation hardware

Ring Video Doorbell (2nd Generation) installation hardware.

1. Charge the built-in battery.

  • Fully charge the built-in battery by plugging it into a USB power source using the provided orange cable.
  • When only one of the two LEDs on the battery is lit, the battery is fully charged.

Click here for more information on charging your Ring battery.

Charging Ring Video Doorbell (2nd Generation) battery with micro-USB charging cable.

2. Set up your Ring Doorbell near your wifi router.

In the Ring app, select Set Up a Device and follow the in-app instructions.

3. Try it out.

After setup, push the button on the front of your Ring Doorbell to see video from the camera in the Ring app.

Testing Ring Video Doorbell (2nd Generation) camera using Live View in the Ring app.

4. Install your Ring Doorbell.

For the best results, mount it around 1.2 metres above the ground.

If you're connecting to existing doorbell wiring that's higher than four feet and want to angle your Ring Doorbell down for a better view, you can purchase a Wedge Kit online at ring.com/accessories.

Recommended installation height for Ring Video Doorbell (2nd Generation).

5. Mark the screw holes.

Use the bracket as a template to mark the four corner holes.

Using mounting bracket a template for Ring Video Doorbell (2nd Generation) screw placement.

6. Optional: Install the wall anchors.

You'll need to install wall anchors when installing on stucco, brick or concrete.

Masonry and wood installation using wall anchors.

Grab 4 of the wall anchors from Bag A. Using your Ring Doorbell as a template, mark 4 drill holes on the wall. Use a 1/4" masonry drill bit (not included) to drill the holes, then insert the 4 wall anchors.

Wall anchor installation in masonry.

7. Install the mounting bracket.

Feed the wires through the hole in the mounting bracket.

Using a Philips head screwdriver, drive the mounting screws from Bag A into your wall (or into the anchors, if installed) until they are flush with the mounting bracket.

Installing Ring Video Doorbell (2nd Generation) mounting bracket on wall.

8. Attach your Ring Doorbell to the mounting bracket.

Hook the slot on the rear of your Ring Doorbell onto the tab near the top of the mounting bracket.

Then, let the Doorbell pivot down to sit flush on its bracket.

Installing Ring Video Doorbell (2nd Generation) to mounting bracket.

9. Secure the doorbell.

CAUTION! If you use the wrong screws to secure the doorbell, you could damage the battery during installation, create a fire hazard, and be seriously injured.

DO NOT USE any screw other than the included short security screws when securing your Ring Doorbell to the bracket.

Use the star-shaped end of the included screwdriver to insert and tighten two of the security screws from Bag B into the bottom of your Ring Doorbell.

Securing Ring Video Doorbell (2nd Generation) with security screw.
