Testing Ring Alarm Smoke and CO Listener

Train your Ring Smoke & CO Listener1 to work with your Ring Alarm system to identify smoke and carbon monoxide (CO) during a fire or CO event.

Important: Follow every step in this test process to avoid false alarms or missed events.

Step One - Press the Finish Listener Test button

You can complete this test using the Ring app during the Smoke & CO Listener1 setup process. If you skip this test, you can also start it by:

  1. Open the Ring app.
  2. Tap the
    Menu (☰)
    .
  3. Tap
    Devices
    .
  4. Tap
    Alarm Base Station.
  5. Tap
    Smoke & CO Listener.
  6. Tap the
    Finish Listener Test
    .

Step Two - Put the Smoke & CO Listener in test mode

Tap the small Setup button on the side of the Smoke & CO Listener.1 This will wake up the device and tell it to begin listening for the alarm sound for 15 minutes without dispatching the authorities.2

Step Three - Press the Test Button on the smoke or CO detector

This will trigger the smoke or CO detector to sound an alarm. Your Listener should be close enough to hear the sound and detect the sounds.

You should see the notification on your app screen.

Note: If you are testing only a smoke detector or a carbon monoxide detector, you will only see one notification. If you are testing a dual smoke and CO detector, you should see both notifications on the screen if the test has completed successfully.

If you’re not seeing the correct notifications on the screen, you may need to reinstall the Smoke & CO Listener closer to the actual smoke and/or CO detector. You can press the smoke detector test button multiple times to ensure that the Listener is detecting every signal.

When you’re satisfied that the test has worked properly, you can press the Continue button.

Step Four - Press the Setup Button again

This will end the Listener’s test mode. Your Listener¹ is now actively listening for sirens and will dispatch the authorities.2

Note: If you don’t press the Setup button again, your Listener¹ will automatically revert back to active mode after 15 minutes.

Your test is complete.

Replacing Your Smoke & CO Listener Battery

Always insert replacement batteries correctly, matching the + (positive) and - (negative) symbols on the battery with the symbols on your Smoke and CO Listener.¹

1. Disarm
3
your Ring Alarm.
2. Carefully remove the cover from the device by turning the lid counter-clockwise. Lift to remove.

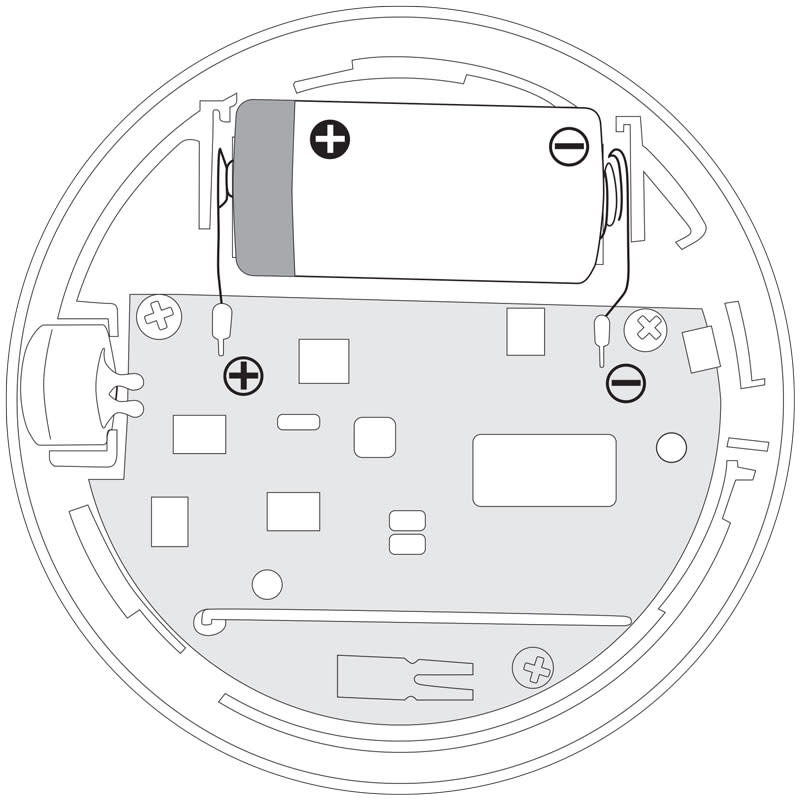

3. Remove the old battery from the base and insert a new CR123A battery.
Take care to match + and - symbols with the markings on your sensor. Confirm that the + and - symbols show on top when inserted.
4. Place the lid back on the device, making sure to line up the semi-circle on the lid with the “open” semi-circle on the base. Lock the lid back on by turning it clockwise.
5. Check your Smoke & CO Listener¹ by pressing the test button on your smoke or CO2 detector. If working, you’ll receive a notification from your Ring app.

Ring Alarm and all Ring Alarm accessories require a compatible Ring subscription (sold separately) for digital arming/disarming and certain other in-app features.

IMPORTANT WARNING - AVOID FALSE ALARMS

In the future, if you need to test your smoke and/or CO detectors, you may accidentally trigger the Smoke & CO Listener¹ and send a signal that will dispatch authorities2 that is actually a false alarm.

WARNING: To prevent false alarms, we recommend that you remove the battery from the Smoke & CO Listener¹ before testing any smoke detectors in your home.

This is especially important if you use battery-powered smoke or CO detectors in your home. Before changing the batteries in your smoke and CO detectors, first remove the Listener¹ battery to power it down, then change all batteries, and then replace the Listener battery to avoid triggering a false alarm.

Note: If you have a home with hardwired smoke and CO detectors, you only need one Smoke & CO Listener.¹ If you choose to have more than one, know that testing the second Listener may trigger the first Listener to send a false alarm, unless you remove the battery from the first Listener before beginning the test.

Learn more about professional monitoring emergency response plans.2

¹ Requires the Ring Alarm Security Kit.
²
Professional Monitoring is an add-on plan that first requires a compatible Ring Home subscription. Both sold separately. Service available within the U.S. (all 50 states, but not U.S. territories) and in Canada (excluding Quebec). Ring does not own its monitoring center. Smoke and carbon monoxide monitoring is not available for business or commercially zoned addresses. See Ring Alarm licenses at: ring.com/licenses. Additional fees may be required for permits, false alarms, or Alarm Verified Guard Response, depending on your local jurisdiction.
³
Ring Alarm and all Ring Alarm accessories require a compatible Ring subscription (sold separately) for digital arming/disarming and certain other in-app features.
Improper installation may interfere with the performance of this device and or the Smoke/CO detector. Refer to the user manual for this device and the detector. Only use the Listener in a manner that is consistent with the detector manufacturer’s recommendations. Failure to do so may negatively affect the detector’s functionality, including delayed detection or failure to detect smoke or CO.
This device does not detect fire, smoke or carbon monoxide. For best performance, use with detectors that are 10 years old or less and comply with all applicable standards
