Understanding light patterns for Ring Power Pack

Your Ring Power Pack will display different light patterns according to its status. This article will teach you about the light patterns for Power Pack. Learn more about troubleshooting Power Pack.

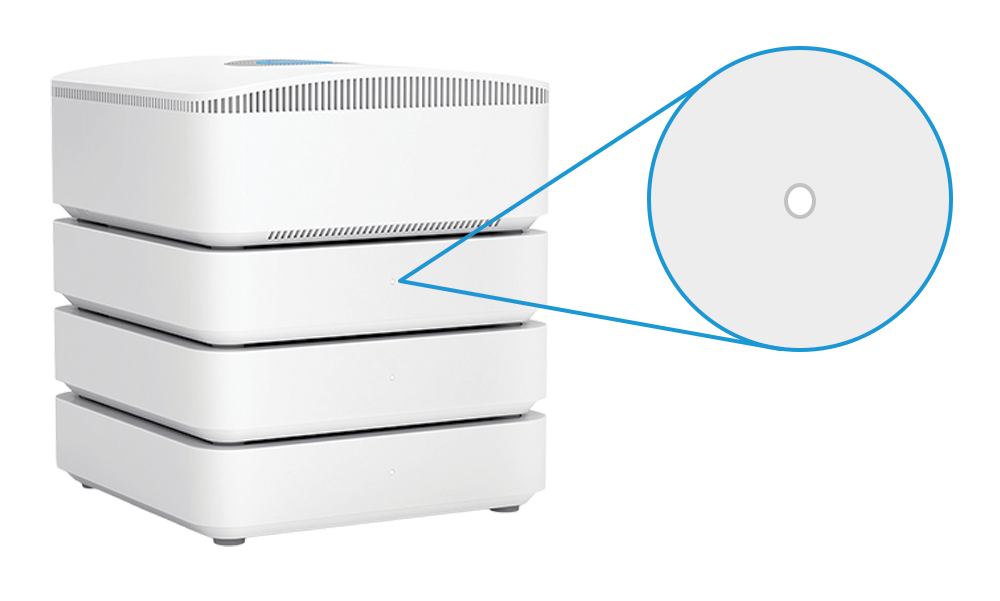

Stacked Ring Power Packs blue arrows to point towards the LED power indicators under a Ring Base Station.

Green light on for five seconds: Connected to power

  • Power Pack has been plugged into AC power.
  • Power Pack has been connected to another Power Pack or Ring Alarm Pro.
A square white power pack with a small green LED light on the side panel on for five seconds and the word "ring" in the top corner.

Solid orange light: Charging

The Ring Power Pack has a solid orange light indicating that it is charging.

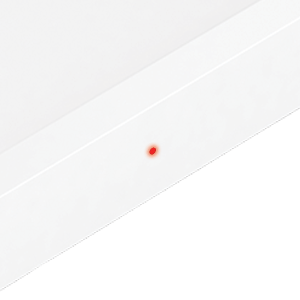

Solid red light on for five seconds: Not receiving power

A white square power pack with a small red LED light illuminated on the front panel and the word "ring" in the top corner.

No light: Not in use or out of power

  • Power Pack is fully charged and not in use.
  • Power Pack is out of power and needs to be charged.
The Ring Power Pack has no light indicating that it is either fully charged and not in use, or that it is out of power.

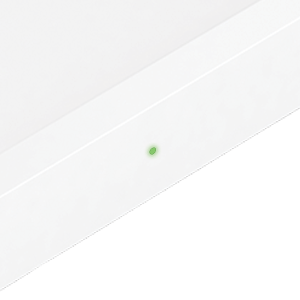

Green light flashing: Providing power to Alarm Pro

Power Pack is connected to Alarm Pro and providing it with power.

A white square power pack with a small green LED light flashing on the front panel and the word "ring" in the top corner.

Orange light flashing slowly: Battery low

Power Pack has a low battery and should be charged soon.

A square white power pack with a small orange LED light flashing on the side panel and the word "ring" on the top.

Red light flashing slowly: Battery very low

Power Pack has a very low battery and needs to be charged now.

A square white power pack with a red light flashing slowly on the front panel and the word "ring" in the top corner.

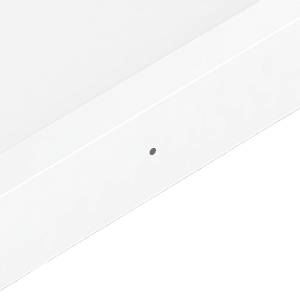

Alternating red and orange lights flashing: Power cable not inserted

The USB-C power cable is not plugged in correctly. Connect the orange rounded USB-C adapter to the "Power In" port and the blue square USB-C adapter to the "Power Out" port.

A square white power pack with a small LED light alternating between flashing red and orange and the word "ring" in the top corner.

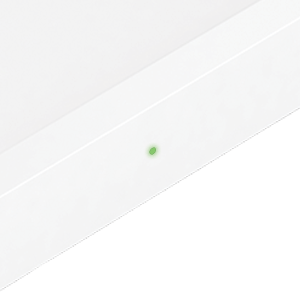

Alternating green and orange lights flashing: Installing an update

Power Pack is downloading and installing an update.

A square white power pack with a small LED light on the side panel alternating between flashing green and orange and the word "ring" in the top corner.

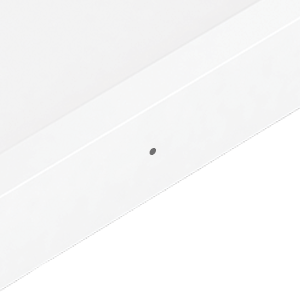

Green light flashing ten times: Power Pack was selected for use

A user has selected the Power Pack from the Battery Health section of the Alarm Pro's page in the Ring app.

A white square power pack with a small green LED light flashing 10 times on the side panel and the word "ring" in the top corner.
