Installing Plug-In Mount for Floodlight Cams (2nd gen)

Download the user manual for the Plug-in Mount for Cams (2nd Gen).

Safety and Compliance Information for the Plug-in Mount for Cams (2nd Gen)

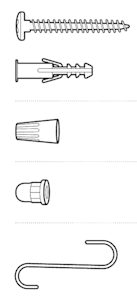

Hardware included

Illustration showing the hardware included with the Plug-In mount for Cameras (2nd Gen).

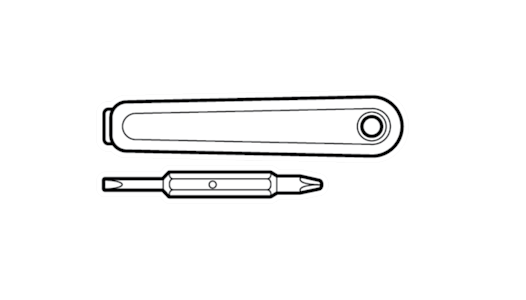

Tools included

Phillips and flathead screwdriver included with Floodlight Cam 2K.

Converting a Floodlight Cam to plug-in power

WARNING! Risk of electrical shock. Do not plug in your Floodlight Cam until it is fully secured and sealed (step 10).

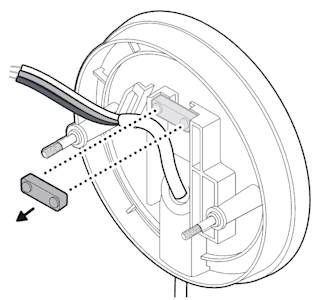

1. (Optional) Adjust power cable length. Unscrew and remove the cable clamp.

Illustration showing to unscrew and remove the cable clamp if you are adjusting the power cable length.

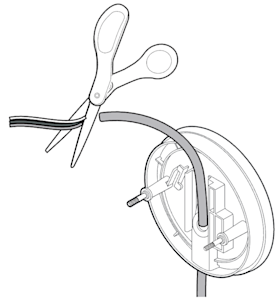

2. Pull the power cable through the plate to adjust the distance to the plug, then cut the cable 6 in from the plate.

Illustration showing to pull the power cable through the plate to adjust cable length. Then take scissors to cut the cable leaving 6 inches from the wiring plate.

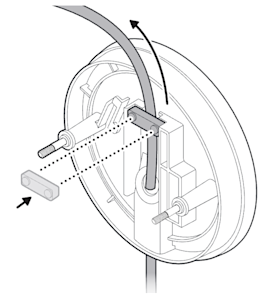

3. Re-attach the cable clamp to secure the cable.

Illustration showing to re-attach the cable clamp to secure the cable.

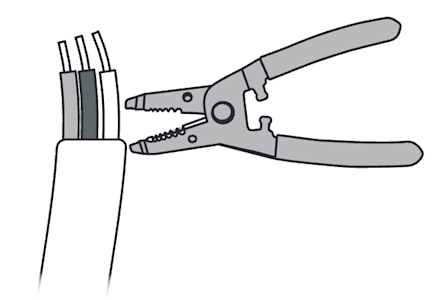

4. Strip 3 inches of the outer jacket from the remaining cable, then strip 1/2” inch of insulation from each inner wire.

Illustration showing to strip 3 inches of the outer jacket from the remaining 6 inches of cable then strip 1/2 inch or insulation from each inner wire.

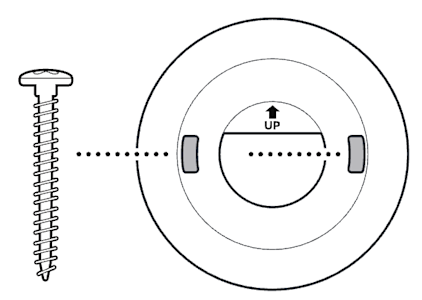

5. Secure the mounting plate to your wall with the included screws.

Illustration showing to secure the mounting plate to the wall using the included screws.

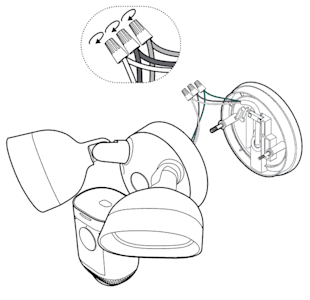

6. Connect the wires from your Floodlight Cam to the wiring adapter plate.

Note: Be sure to match each pair of wires by color before securing with the included wire nuts.

Illustration showing to connect the wires from the Cam to the wiring adapter plate.

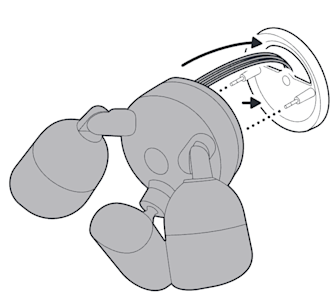

7. Slide your Floodlight Cam onto the wiring adapter plate.

Illustration showing to attach the Camera by sliding it onto the wiring adapter plate.

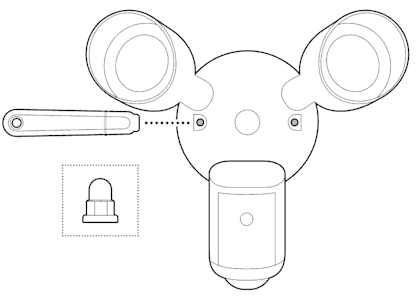

8. Secure the two halves with the included cap nuts.

Remove the bit from the included screwdriver, and use the handle to tighten the nuts.

Illustration showing to secure the included cap nuts using the handle from the screw driver with the bit removed.

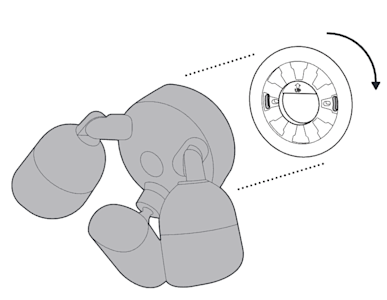

9. Slot your Floodlight Cam onto the mounting plate, and turn clockwise to lock.

Illustration showing to slot the camera to the mounting plate and then turn clockwise to lock into place.

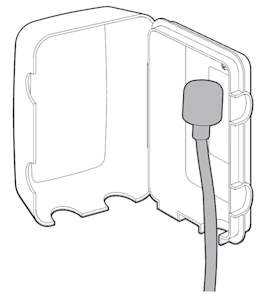

10. Plug the power cable into an outdoor-rated power outlet.

Illustration showing the power cable being plugged into an outdoor-rated power outlet.
