Installing Hardwired Kit for Outdoor Cam Pro and Spotlight Cam Pro (2nd Gen)

Safety and compliance information for the Hardwired Kit for Outdoor Cam Pro and Spotlight Cam Pro (2nd Gen)

View or download the user manual for Hardwired Kit for Outdoor Cam Pro and Spotlight Cam Pro (2nd Gen)Consultez ou téléchargez le guide d'utilisation pour du kit de raccordement pour l'Outdoor Cam Pro et le Spotlight Cam Pro (2e génération)Ver o descargar el manual de usuario para el Kit Cableado de la Outdoor Cam Pro y la Spotlight Cam Pro (2.ª gen.)

Hardware included

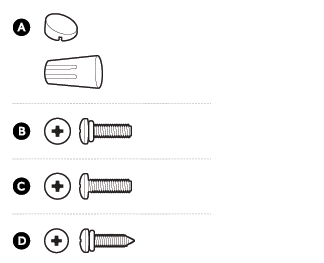

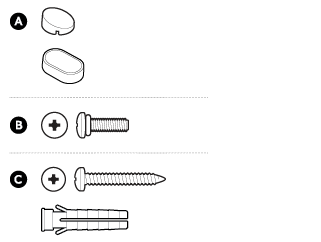

Diagram showing different screw types of included hardware

Tools needed

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

Line drawing of a Caulk Gun

Caulk gun

WARNING: Electrical shock hazard. Disconnect power to installation area at your circuit breaker or fuse box before beginning installation. Always use caution when handling electrical wiring. Installation by a qualified electrician may be required in your area. Refer to your local laws and building codes before performing electrical work; permits plus professional installation may be required by law. Your Hardwire Kit must be installed on a 4“ round UL listed weatherproof electrical box when installed outdoors.

Note: If your power system is classified as OVC III, please check the building “Distribution Panel”, Ex switch panel has installed Surge Protectors. Ensure that the surge protector is a UL 1449 certified Surge Protector to reduce Mains Transient Voltage to Overvoltage Category II (2500 V pk or lower) before connecting to all AC Inputs. If there is no Surge Protector, do not install Hardwired Kit without one. Before you begin installing your Hardwired Kit, make sure that you’re following safety code standards.

1. Shut off power at the breaker.

Illustration on breaker box with one grey switch showing toggled off.

Junction boxes

For installing out-of-wall, 4-inch metal and plastic junction boxes:

Inspect your junction box before installing your Hardwired Kit. If you notice any signs of water ingress, pooling water, visible condensation, or rusted or corroded metal components, consult a qualified electrician in your area before proceeding with installation.

Requires a minimum 14AWG or higher 3-core cable.

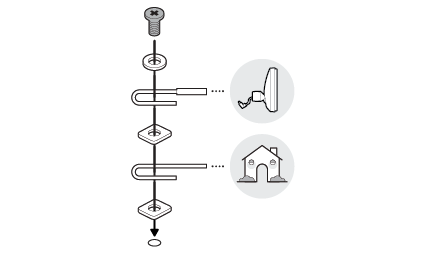

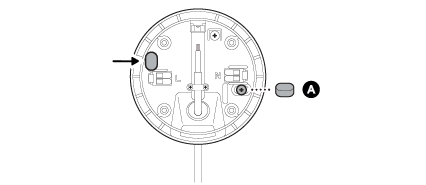

Optional: Temporarily install a machine screw to hold the S-hook for help connecting the wires. Remove the temporary screw after wires are connected.

1.

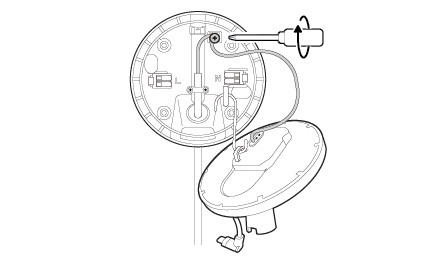

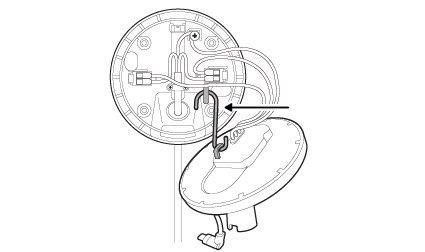

For metal: Connect the green earth wires with junction box earth screw. (Home protective earthing and wired mount bonding conductor wires) See connection diagram. Then, connect the white (N) and black (L) wires with wire nuts.

If you can’t easily identify the wires coming out of your junction box, or have difficulty with or are uncomfortable connecting them, consult a licensed electrician.

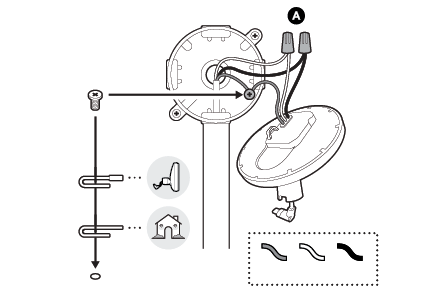

Technical assembly diagram showing step-by-step mounting instructions

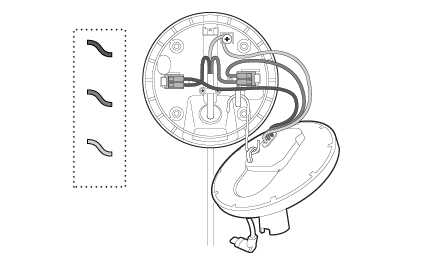

For plastic: Connect the green earth wires with a wire nut. (Home protective earthing and wired mount bonding conductor wires) See connection diagram. Then, connect the white (N) and black (L) wires with wire nuts.

If you can’t easily identify the wires coming out of your junction box, or have difficulty with or are uncomfortable connecting them, consult a licensed electrician.

Note: If you ever need to remove wires: Remove the white (N) and black (L) wires. Then, remove the wired mount bonding conductor wire and the home protective earthing conductor wire.

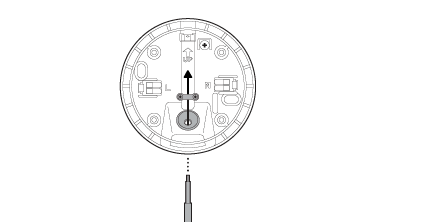

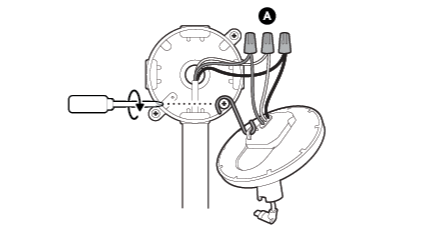

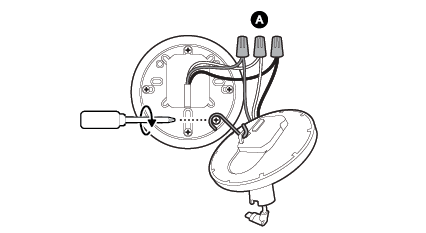

Technical diagram showing a screwdriver with rotating arrows and three wire connections labelled A

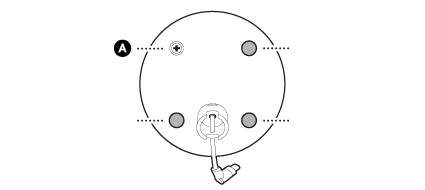

2. For metal and plastic: Gently put the wires in the junction box and secure the wired mount to the junction box with 4 machine or tapping screws with O-rings.

Diagram showing wall mount installation steps with three wires, anchors, and screws

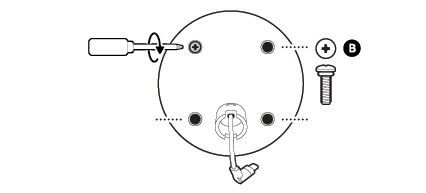

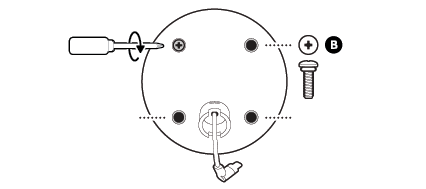

3a. For metal: Then, tighten the screws into the wired mount until the foam backing fully seals the junction box to prevent water from entering.

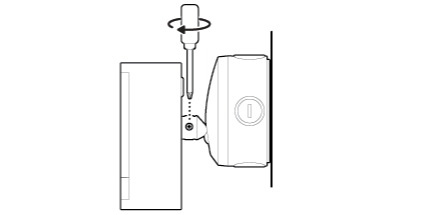

Technical diagram showing screw and bolt assembly steps

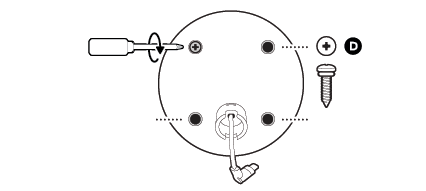

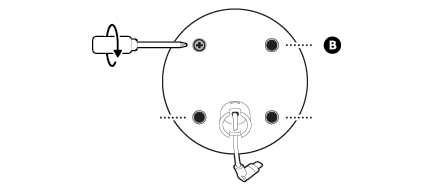

3b. For plastic: Tighten the screws into the wired mount until the foam backing fully seals the junction box to prevent water from entering.

Technical diagram showing screw and bolt assembly steps

For in-wall and out-of-wall junction boxes:

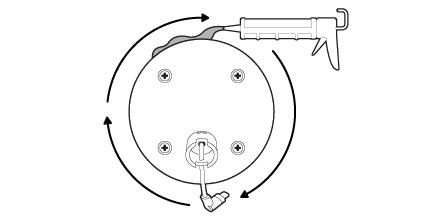

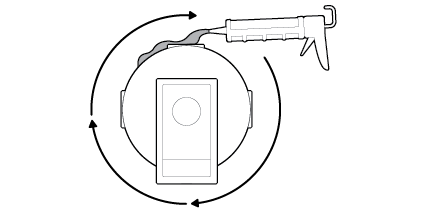

4. Apply a weatherproof silicone caulk or sealant around the outside where the wired mount and junction box or wall meet to prevent water from entering the junction box.

Hardwired kit with rotation arrows for the caulking gun.

5. Apply cosmetic screw plugs.

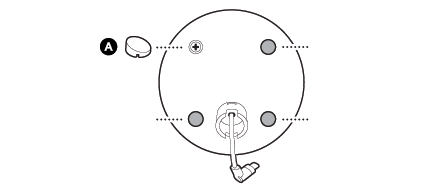

Technical diagram with lines pointing to cosmetic plug locations

For installing in-wall, 3.5-inch plastic junction box and switch box:

1.

For junction and switch box: Attach the adapter plate to junction box with 2 tapping screws.

Requires a minimum 14AWG or higher 3-core cable.

NOTE: If using a metal junction box, use screw C.

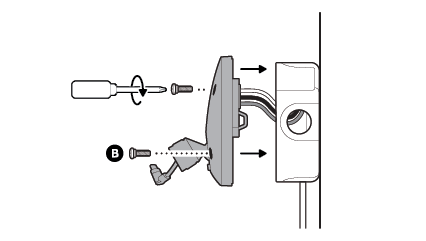

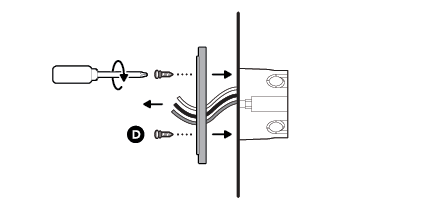

Diagram showing wall mount installation steps with three wires, anchors, and screws

2a.

For junction and switch box: Connect the green earth wires with a wire nut. Then, connect the white (N) and black (L) wires with wire nuts. If you can’t easily identify the wires coming out of your junction box, or have difficulty with or are uncomfortable connecting them, consult a licensed electrician.

Optional: Temporarily install a machine screw to hold the S-hook for help connecting the wires. Remove the temporary screw after wires are connected.

Note: If you ever need to remove wires: Remove the white (N) and black (L) wires. Then, remove the wired mount bonding conductor wire and the home protective earthing conductor wire.

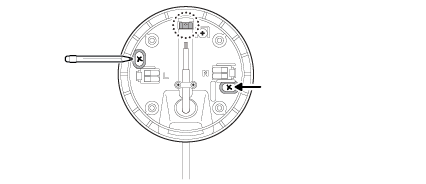

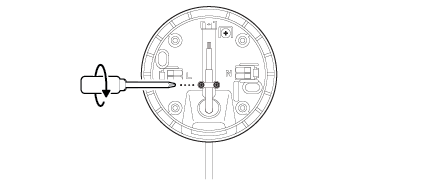

Technical diagram showing a screwdriver with rotating arrows and three wire connections labelled A

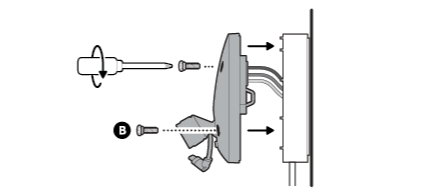

3. For junction and switch box: Stuff the wires gently into the junction box and screw the wired mount to the adapter plate with 4 machine screws with O-rings.

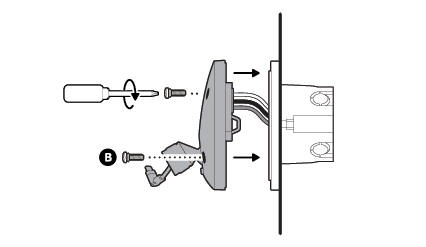

Assembly diagram showing hardware installation steps

4. For junction and switch box: Then, tighten the screws into the wired mount until the foam backing fully seals the junction box to prevent water from entering. (1.37-1.47N/m of torque force)

Technical diagram showing screw and bolt assembly steps

For in-wall and out-of-wall junction boxes:

5. Apply a weatherproof silicone caulk or sealant around the outside where the wired mount and junction box or wall meet to prevent water from entering the junction box.

Hardwired kit with rotation arrows for the caulking gun.

6. Apply cosmetic screw plugs.

Technical diagram with lines pointing to cosmetic plug locations

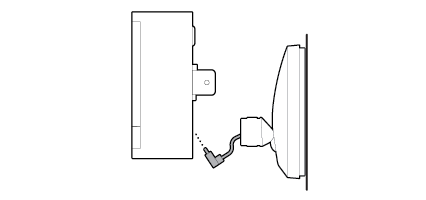

Camera installation

1. Refer to your camera’s setup guide to remove the native mount and rubber cap.

Information icon with open book design

2. Tighten the included hex joint onto the back of your camera, ensuring the UP arrow is pointing up.

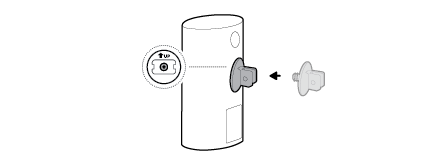

Diagram with arrow that points toward the hex joint on the camera.

3. Refer to your camera setup guide to remove the rubber plug from your camera’s power port, if necessary.

Information icon with open book design

4. Plug the USB-C cable on the Hardwired Mount into your camera, ensuring it is fully inserted.

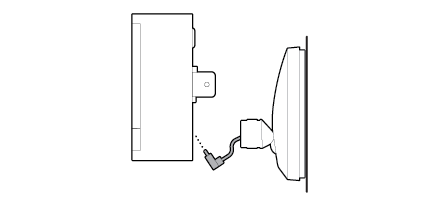

Diagram showing the usb-c plug being inserted to the camera

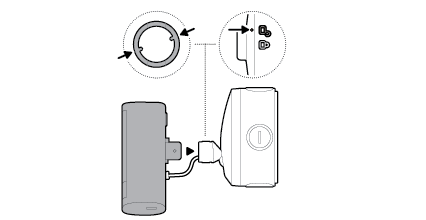

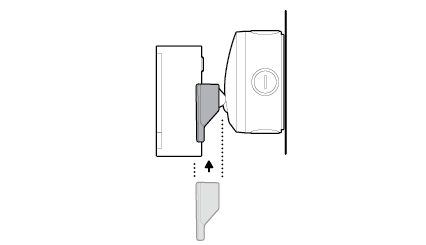

5. Align the locking indicators on the hex joint and the Hardwired Mount and insert.

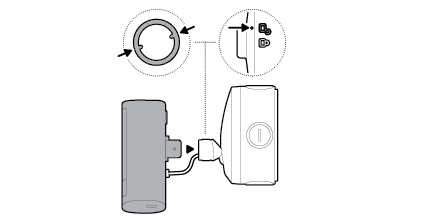

Line drawing instructions for the camera's locking indicators

6. Turn until your camera locks in place.

Rotating camera showing different angles and positions

7. Tighten the security screw.

Line drawings showing a screwdriver tightening the security screw

8. Install your camera’s decorative cover by sliding until you hear a click to secure.

Technical diagram showing assembly steps for a decorative cover

9.

If installing Outdoor Cam Plus, use decorative cover 1.

If installing Outdoor Cam Pro, use decorative cover 2.

If installing Spotlight Cam Pro (2nd Gen), use decorative cover 3.

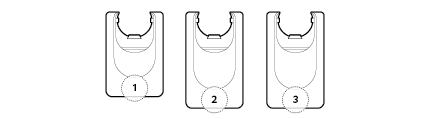

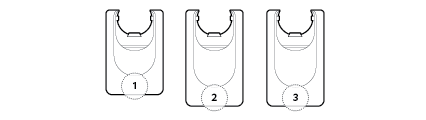

Three numbered decorative cover options

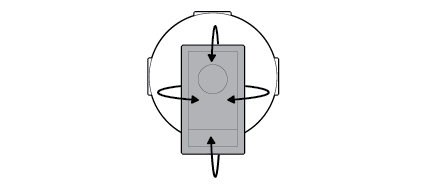

10. Adjust your camera’s position, if necessary.

Directional arrows showing rotation and movement patterns

11. Must apply proper silicone or caulk around the junction box knockouts, between the junction box and Hardwired Mount, and between the junction box and mounting surface to seal any gaps.

Line drawing showing rotation arrows of the caulk gun going around the hardwired kit
