Install your Stick Up Cam Pro Battery using this step-by-step process.

Quick Start

1. Download and open the Ring app.

2. Select Set Up a Device.

3. Scan QR code with the Ring app.

Hardware included

Stick Up Cam Pro hardware.PNG

Tools needed

Stick Up Cam pro tools.PNG

Remove protective film from device. This ensures your device works properly.

Remove the battery.

Twist the battery compartment counterclockwise to unlock and remove the cover. Then, remove the battery and discard the orange battery insulator.

https://support.help.ring.com/hc/article_attachments/13641819651604

Charge the battery.

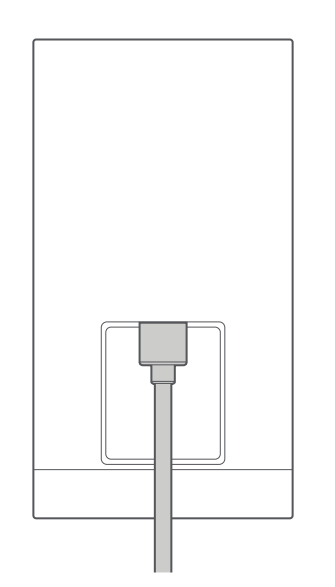

Plug it into a power source using the provided USB cable. Once the battery’s fully charged, only one light on top will glow green.

https://support.help.ring.com/hc/article_attachments/13641819619348

Re-insert the battery.

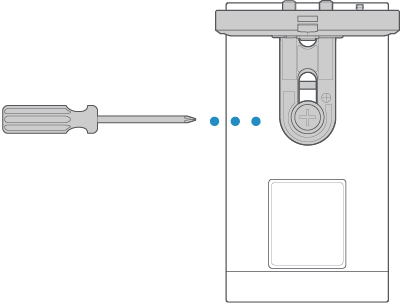

Slide the battery back into the camera until it clicks into place. Twist the battery compartment cover clockwise to lock it and tighten the security screw.

https://support.help.ring.com/hc/article_attachments/13641805281812https://support.help.ring.com/hc/article_attachments/13641819609492

Choose a location with the view you want.

Your camera can be used both indoors and outside. It can sit freestanding on a tabletop, or be mounted on a wall or ceiling.

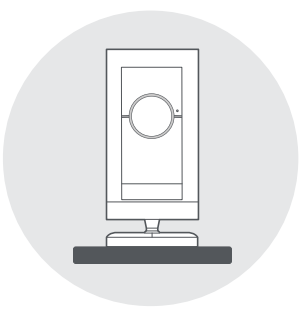

Freestanding installation

Place your camera on a tabletop or shelf and look at Live View in the Ring app to make sure it’s positioned correctly.

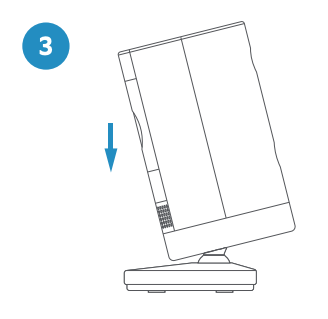

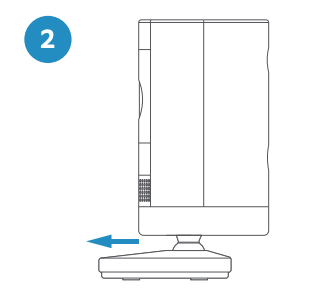

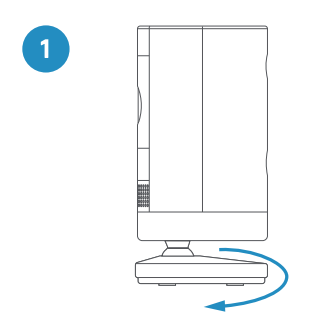

If you’d like your camera to have a downward angle, swivel the base around so that the longer side of the base is facing the front and tilt your camera so it points downward.

Wall installation

Remove the decorative cover from the camera mount.

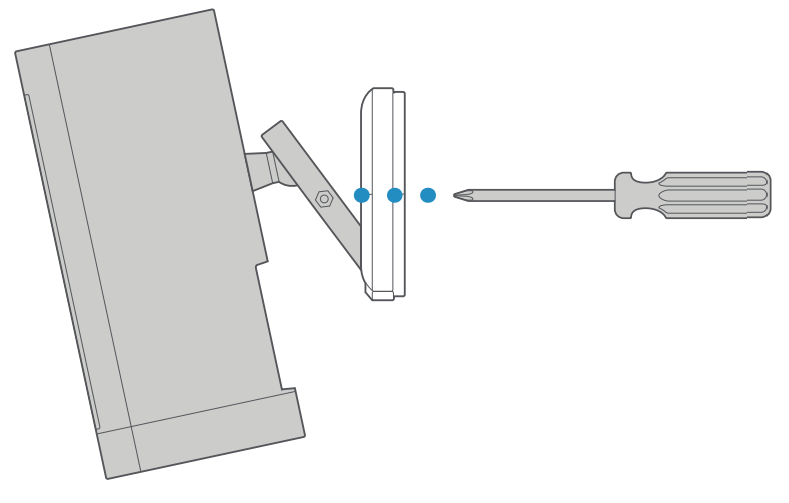

Use a standard Phillips-head screwdriver (not included) to unscrew the mount and detach it from the rest of the camera.

Install the mounting plate.

Slide the mounting plate off of the camera mount.

https://support.help.ring.com/hc/article_attachments/13641805263764

Place the mounting plate on the wall with the UP arrow pointing up.

https://support.help.ring.com/hc/article_attachments/13641819650196

If installing on a wood surface or drywall, screw the plate directly into the wall.

If installing on a masonry surface, mark four screw holes using the plate as a guide.

Drill pilot holes using a 6mm drill bit. Insert the included wall anchors, then drive the four mounting screws through the mounting plate into the wall anchors.

https://support.help.ring.com/hc/article_attachments/13641819650580

WARNING! Only use the included mounting screws when securing the mounting plate.

CAUTION! DO NOT drill into your home’s electrical wiring.

Mount your camera to the wall.

Screw the mount onto the back of the camera.


Slide the camera with its mount onto the mounting plate.

Tighten the security screw on the camera mount so that it’s firmly attached to the mounting plate.


Slide the decorative cover back onto the camera mount and click it into place.

https://support.help.ring.com/hc/article_attachments/13641805257364

Adjust the camera angle.

Rotate the camera to focus on the area of your choice. Look at Live View in the Ring app to make sure it’s positioned at your desired angle.


Ceiling installation

Remove the decorative cover from the camera mount.


Use a standard Phillips-head screwdriver (not included) to unscrew the mount and detach it from the rest of the camera.

Install the mounting plate.

Slide the mounting plate off of the camera mount.

https://support.help.ring.com/hc/article_attachments/13641805263764

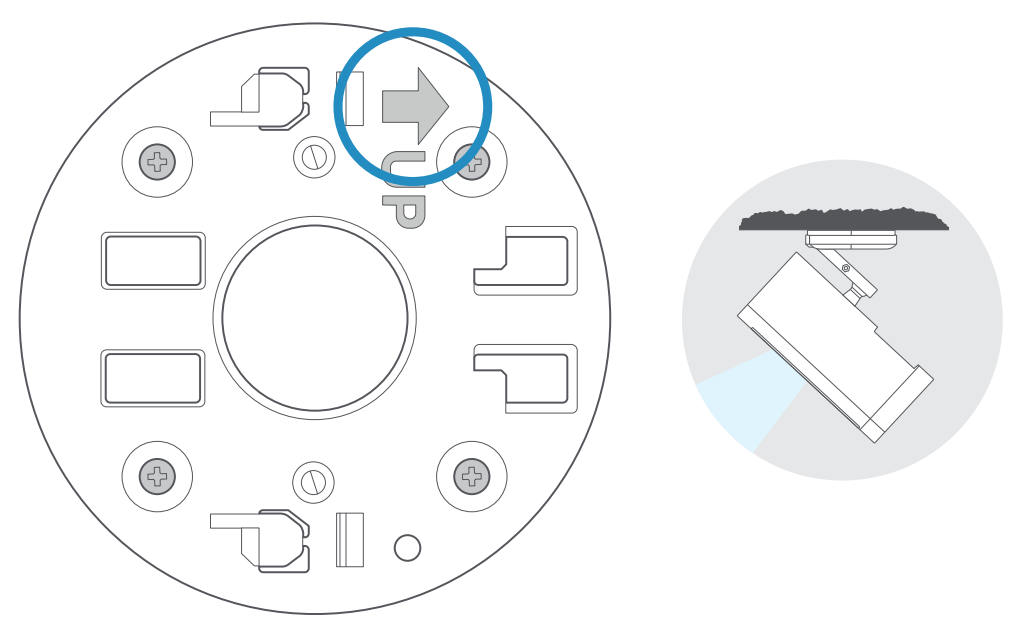

Place the mounting plate on the ceiling with the UP arrow pointing in the opposite direction from where your camera will face.

https://support.help.ring.com/hc/article_attachments/13641805276052

If installing on a wood surface or drywall, screw the plate directly into the ceiling.

If installing on a masonry surface, mark four screw holes using the plate as a guide.

Drill pilot holes using a 6mm drill bit. Insert the included wall anchors, then drive the four mounting screws through the mounting plate into the wall anchors.

https://support.help.ring.com/hc/article_attachments/13641819650580

WARNING! Only use the included mounting screws when securing the mounting plate.

CAUTION! DO NOT drill into your home’s electrical wiring.

Mount your camera to the ceiling.

Screw the mount onto the back of the camera. Align the mount arm with the top of the camera.


Slide the camera with its mount onto the mounting plate.

https://support.help.ring.com/hc/article_attachments/13641819670676

Tighten the security screw on the camera mount so that it’s firmly attached to the mounting plate. Slide the decorative cover back onto the camera mount and click it into place.

https://support.help.ring.com/hc/article_attachments/13641805284500

Adjust the camera angle.

Rotate the camera to focus on the area of your choice. Look at Live View in the Ring app to make sure it’s positioned at your desired angle.
