Installing Wired Video Doorbell (2nd Gen)

Safety and compliance information for Wired Video Doorbell (2nd Gen).

Learn how to hardwire Wired Video Doorbell (2nd Gen) to your existing doorbell system.

Download the user manual for Wired Video Doorbell (2nd Gen).Download the user manual for Wired Video Doorbell (2nd Gen) (Svenska)Download the user manual for Wired Video Doorbell (2nd Gen) (Norsk)Download the user manual for Wired Video Doorbell (2nd Gen) (Suomi)Download the user manual for Wired Video Doorbell (2nd Gen) (Dansk)Download the user manual for Wired Video Doorbell (2nd Gen) plug-in (العربية)

Hardware included

Illustration to show installation hardware and screws included.

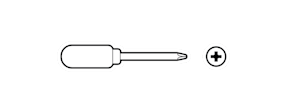

Tools needed

Phillips-head screwdriver

Illustration of a power drill to use as an installation tool.

Drill with a 1/4 in (6 mm) masonry bit (optional)

1. Remove the protective wrap.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

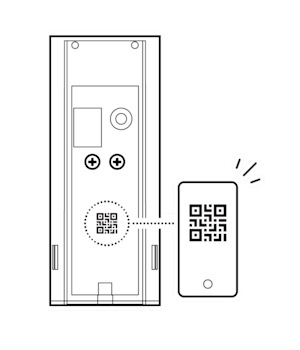

3. Scan the QR code on your device.

Illustration to show the location of the QR code on the back of the device.

Doorbell installation

1. Shut off power at the breaker.

Illustration showing to shut off power at the breaker prior to installation.

NOTE: If you are unsure which breaker to flip, turn off the master breaker or contact an electrician.

CAUTION!

You'll be working with electrical wires during the install process. If you are uncomfortable or inexperienced with doing so, consult with a licensed electrician.

Do not wire your Ring Doorbell to a DC-powered intercom system.

WARNING!

If your home has multiple chimes, you will need to ensure any additional chimes are bypassed by connecting the wires connected to Front and Trans together with a wire nut.

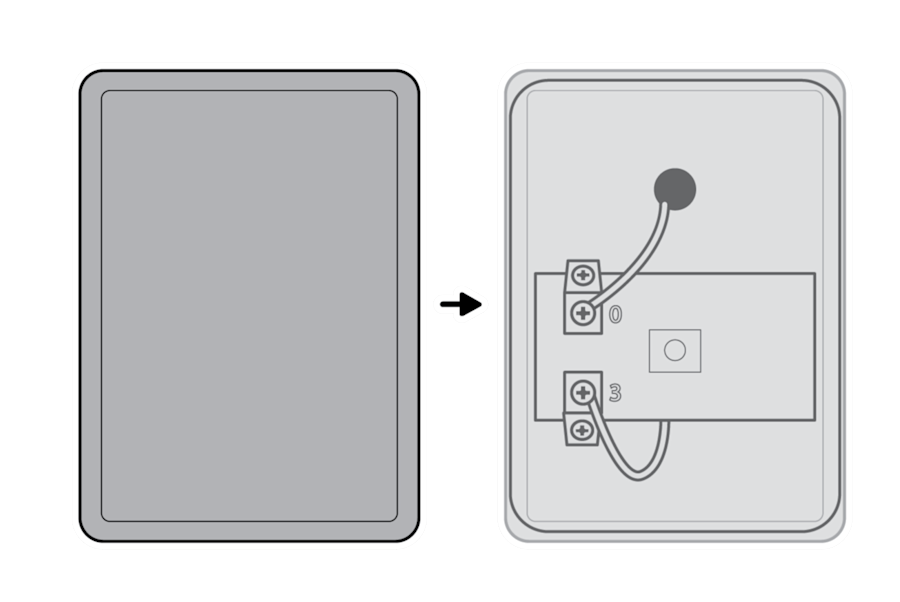

2. Remove your doorbell chime's cover.

Illustration to show removal of the chime cover from your existing doorbell system.

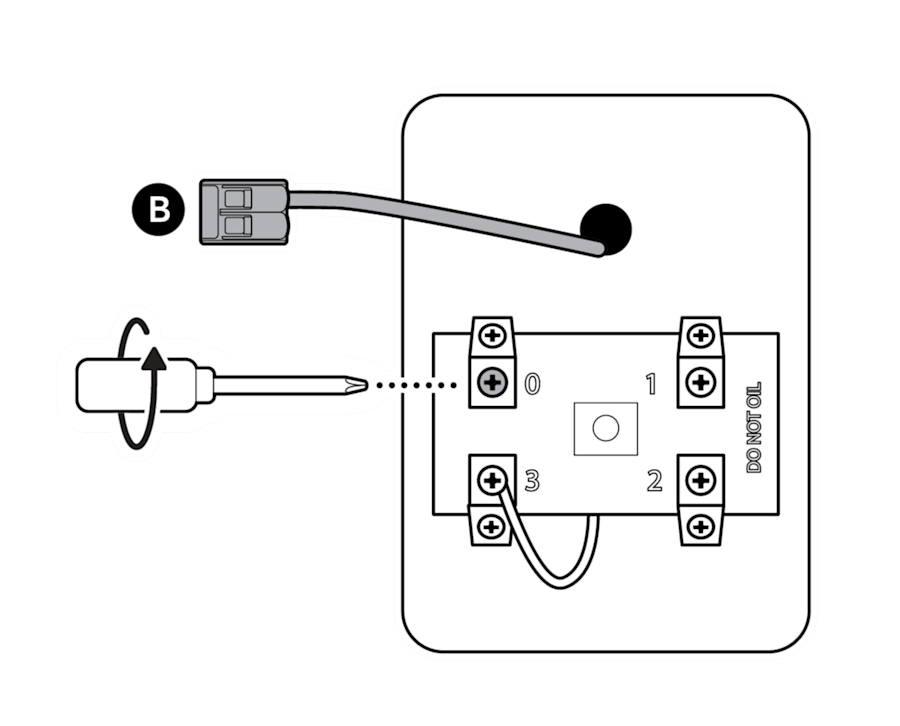

3. Disconnect the terminal wire marked "0".

Loosen the terminal screw marked "0" and disconnect its wire. Insert the wire into a wago connector.

Illustration to show loosening the terminal screw marked “0, disconnecting its wire, and inserting the wire into a wago connector.

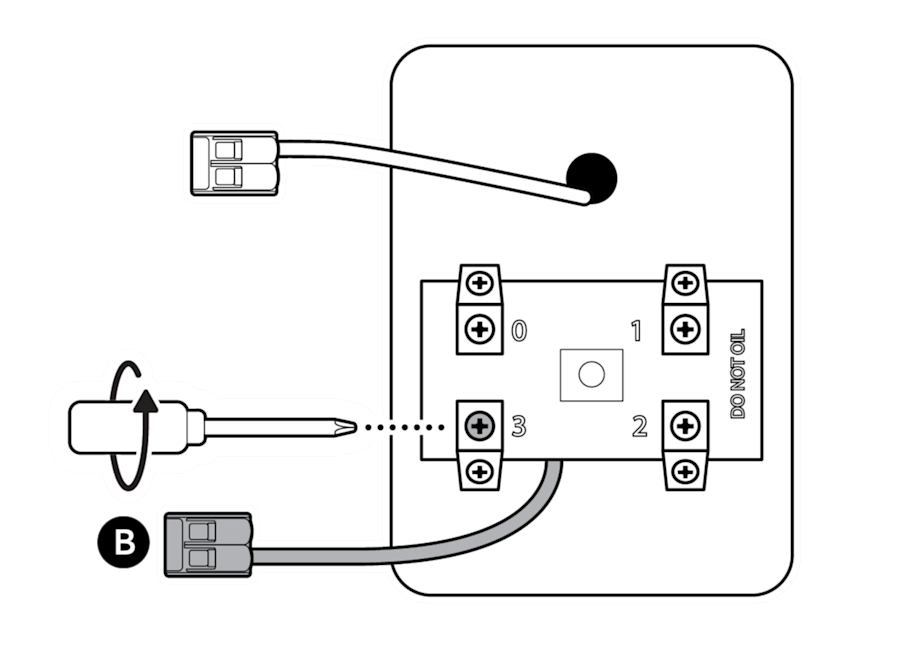

4. Disconnect the terminal wire marked "2" or "3".

Loosen the terminal screw marked "2" or "3" and disconnect its wire. Insert the wire into the other wago connector.

Illustration to show loosening the terminal screw marked “2” or “3”, disconnect its wire, and inserting the wire into the other wago connector.

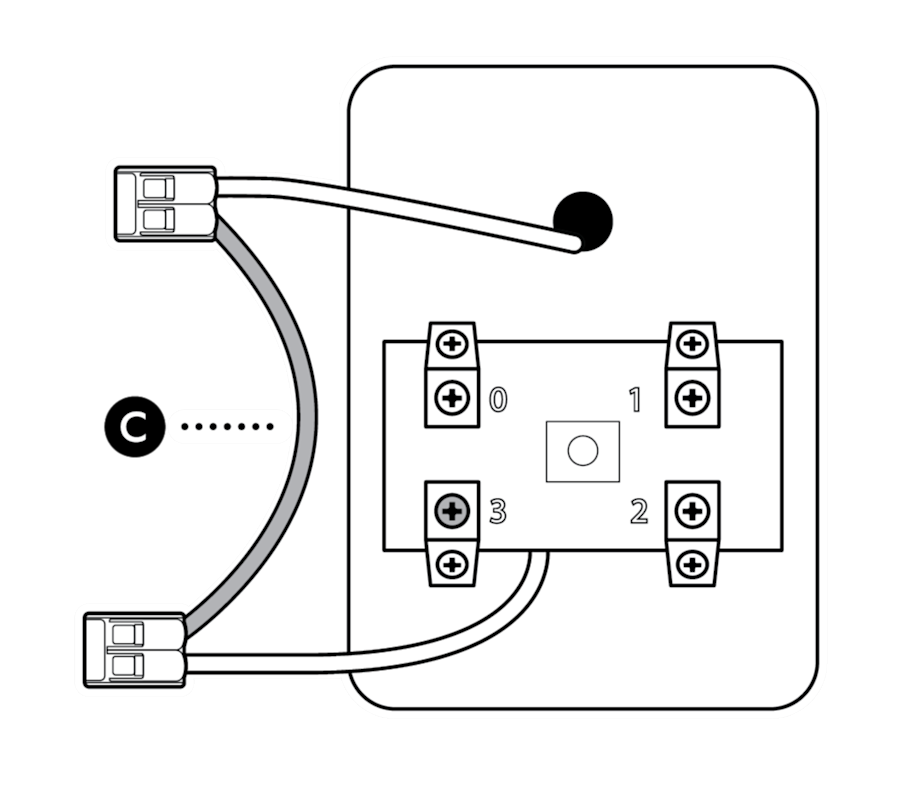

5. Connect the wago connectors together with the bypass wire.

Illustration to show connecting the wago connectors together using the bypass cable.

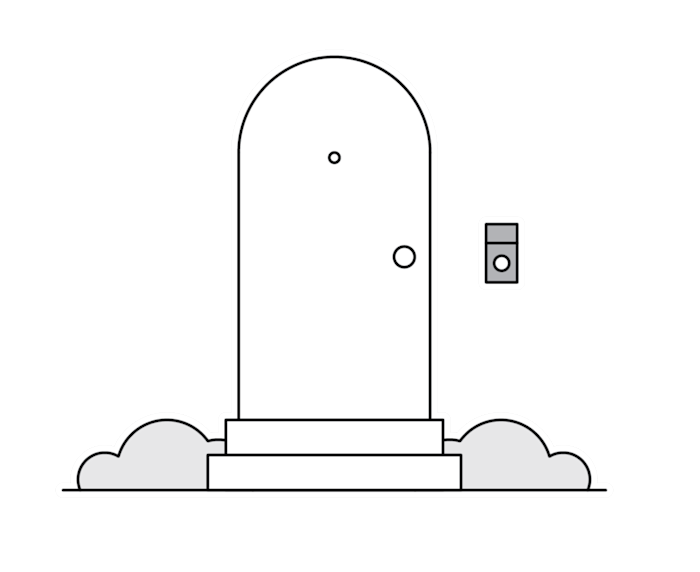

6. Locate your existing doorbell and remove.

Illustration to show existing doorbell on the front of the house.

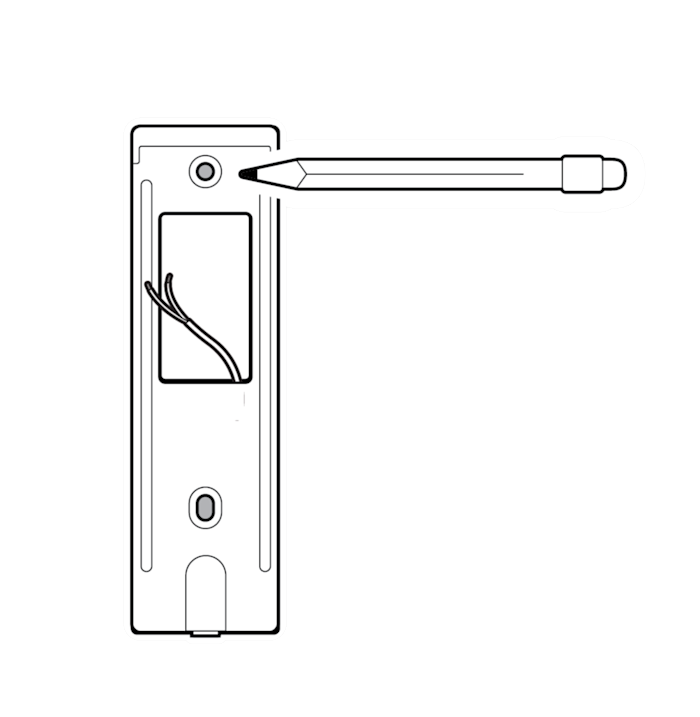

7. Use the mounting bracket as a guide to mark screw holes on the wall.

Illustration to show using the mounting bracket as a guide to mark screw holes on the wall.

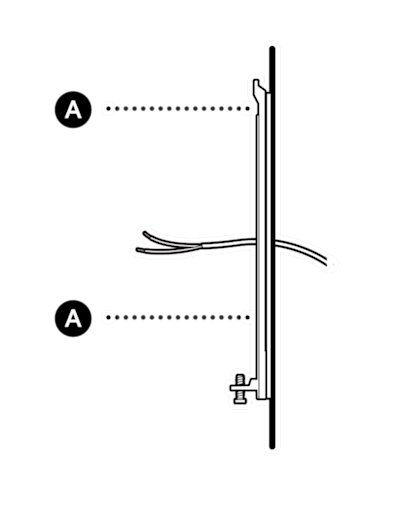

8. Install the mounting bracket directly over your doorbell wiring with the included screws.

Illustration to show installation of the mounting bracket directly over your doorbell wiring with the included screws.

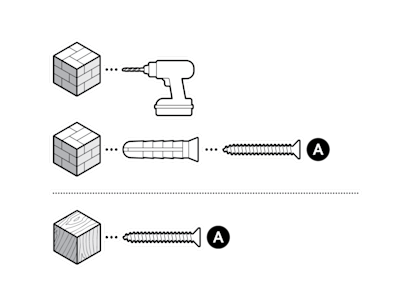

Note: On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

Illustration to show using a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors for stucco, brick, or concrete, and use just screws for wood installation.

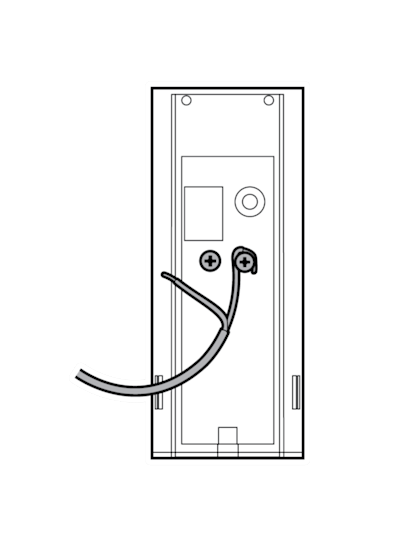

9. Connect the doorbell wiring to your doorbell's wire terminals.

Illustration to show connecting the doorbell wiring to your doorbell’s wire terminals.

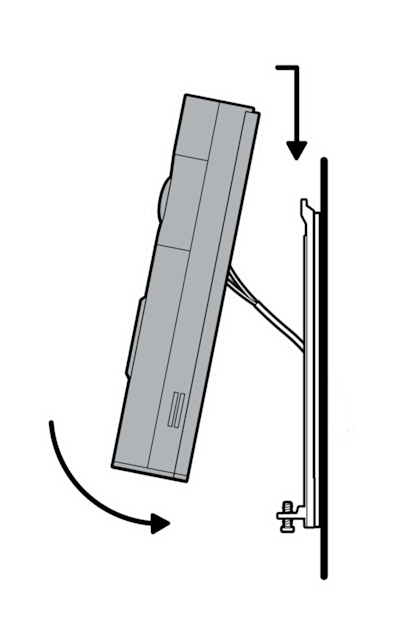

10. Mount your doorbell by hooking it over the bracket.

Illustration to show mounting the doorbell by hooking it over the bracket.

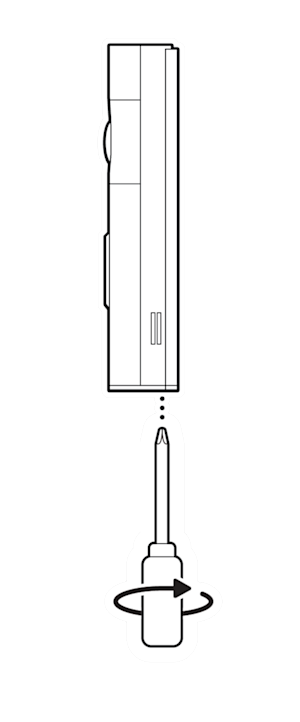

11. Tighten the security screw.

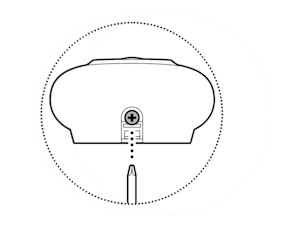

Illustration to show tightening the security screw on the bottom of the doorbell using a Phillips screwdriver.Illustration to show the underside of the doorbell with the security screw visible.

12. Restore power at the breaker.

Simple line drawing of a circuit breaker with power on
