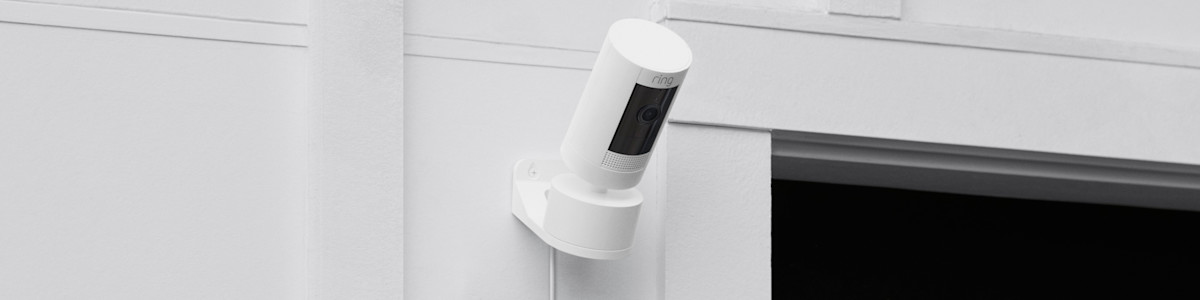

White Ring security camera mounted on exterior wall with the Pant-Tilt Mount.

Ring Pan-Tilt Mount Installation Guide

This installation guide is for the Pan-Tilt Mount for Stick Up Cam.

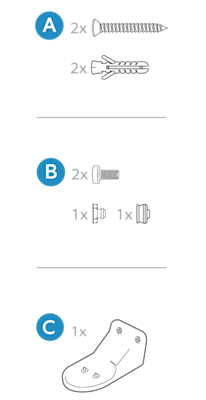

Included wall mounting hardware kit with screws, anchors and brackets.

1.

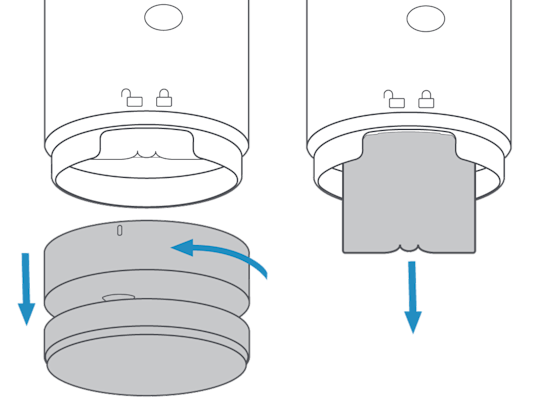

A Stick Up Cam with a curved arrow indicating turning the cover counterclockwise to remove it and a downward arrow showing pulling the battery out.

2.

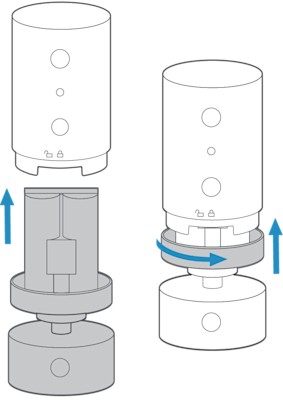

Technical diagram with blue arrows showing how to access the battery compartment for the Pan-tilt mount on the Outdoor Cam

3. For table mount:

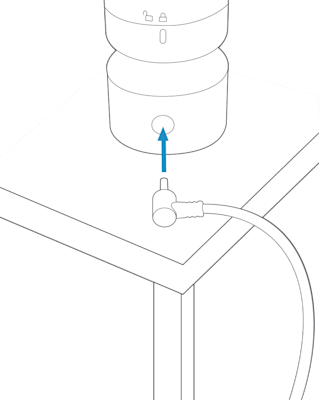

Plugging power cable into back of Outdoor Pan-Tilt Cam installed on a flat surface.

Adapter not included.

For wall mount:

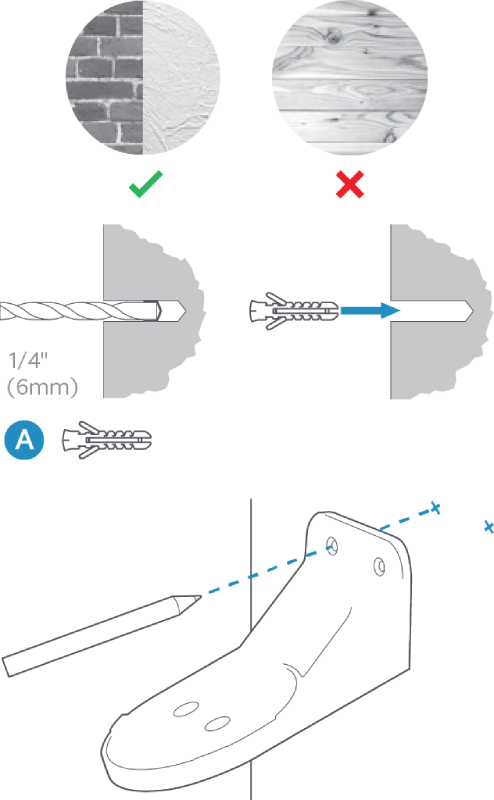

Installation diagram showing correct and incorrect wall anchor placement.

4.

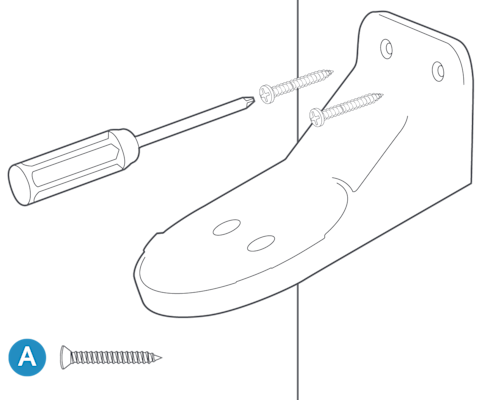

Screwdriver inserting screws into wall mount bracket.

5.

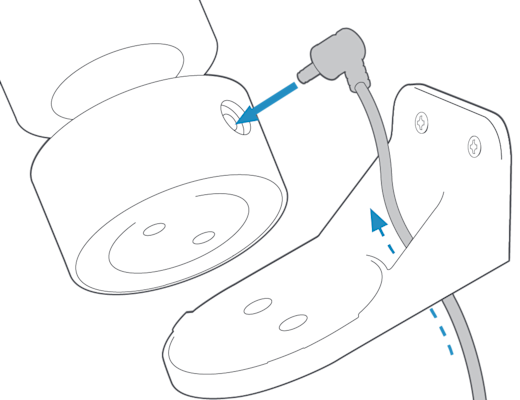

The power cable for the Pan-Tilt mount with an arrow leading it through the hole on the wall mount and into the port on the back of the Stick Up Cam.

Adapter not included.

6.

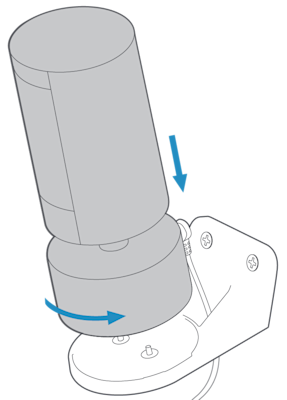

Technical diagram with arrows showing how to attach Outdoor Cam to Pan-Tilt Mount.

7.

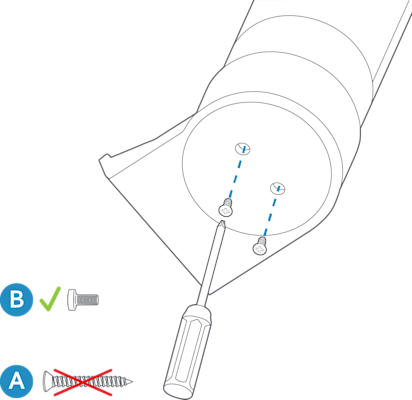

Illustration showing the correct short screw and incorrect long screw to attach camera to base.

8.

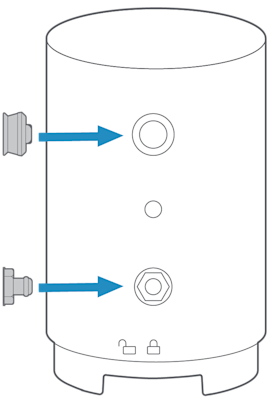

Arrows indicating where to insert plugs on back of Outdoor Cam.
