Peephole Cam 2K Installation Guide

Download the user manual for Peephole Cam 2K

Peephole Cam 2K

Tools included

Removal tool

Illustration of the removal tool for the Peephole Cam 2K.

Peephole key

Illustration of the peephole key for the Peephole Cam 2K.

Setup

1. Remove the cover.

Illustration of removing the cover on the Peephole Cam 2K.

2. Remove and charge the battery.

Illustration of removing and charging the battery on the Peephole Cam 2K.

3. Download the Ring Always Home app.

Illustration of downloading the Ring Always Home app.

4. Scan the QR code on your device.

Illustration of scanning the QR code on the Peephole Cam 2K.

Peephole installation

This product is compatible with fire-rated doors under the following conditions:

Wood construction

Peephole diameter: 12.7 mm to 14.3 mm

1. If you have a previously installed Peephole Cam, remove it.

NOTE: For instructions on how to remove your previously installed Peephole Cam, visit ring.com/manuals.

Illustration of removing a previously installed Peephole Cam.

2. Use the included peephole key to scrape away any paint covering the edges of the viewer's lens or rear side.

Illustration of using the included peephole key to scrape away paint covering the edges of the viewer's lens or rear side on the Peephole Cam 2K.

3. Use the peephole key to unscrew the slotted side, then slide both halves of the viewer out.

Illustration of using the peephole key to unscrew the slotted side, then sliding both halves of the viewer out on the Peephole Cam 2K.

4. Use the peephole key to smooth any sharp or jagged edges on the hole.

Illustration of using the peephole key to smooth any sharp or jagged edges on the hole for the Peephole Cam 2K.

5. Insert the outdoor half of your camera through the hole, ensuring the cable reaches the other side.

Illustration of inserting the outdoor half of the Peephole Cam 2K through the hole, ensuring the cable reaches the other side.

6. If your camera does not fit, insert the included adapter tube.

NOTE: DO NOT use an adapter from previous Peephole Cam.

Illustration of inserting the outdoor half of the Peephole Cam 2K through the hole, ensuring the cable reaches the other side.

7. Slide the indoor half of your camera onto the tube.

NOTE: Do not install the indoor half outdoors or where it can be exposed to water.

Illustration of sliding the indoor half of the Peephole Cam 2K onto the tube.

8. Pull the connector cable until there is no more slack, then remove the connector cap.

Illustration of pulling the connector cable until there is no more slack, then removing the connector cap on the Peephole Cam 2K.

9. Place the included nut over the tube, ensuring the threads are aligned.

Illustration of placing the included nut over the tube, ensuring the threads are aligned on the Peephole Cam 2K.

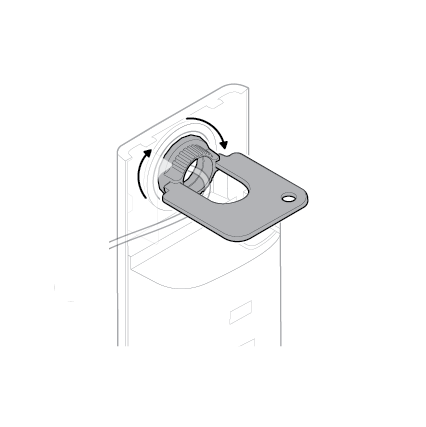

10. Turn the nut clockwise with your hand or the peephole key until your camera is fully secure.

NOTE: Hold onto the outdoor half to ensure both halves stay straight and level.

Illustration of turning the nut clockwise with your hand or the peephole key until the Peephole Cam 2K is fully secure.

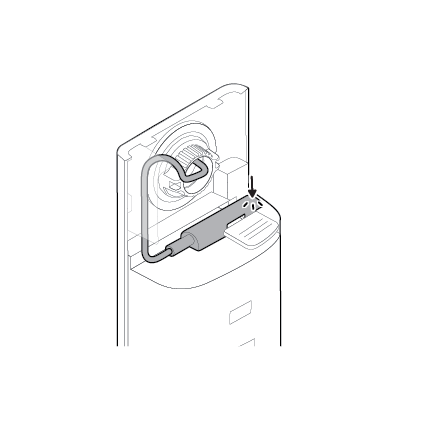

11. Plug the connector cable into the back of your camera.

NOTE: Once fully inserted, you should feel a click.

Illustration of plugging the connector cable into the back of the Peephole Cam 2K.

12. Re-insert the battery.

Illustration of re-inserting the battery into the Peephole Cam 2K.

13. Attach the back cover.

Illustration of attaching the back cover on the Peephole Cam 2K.
