Wiring diagrams for Ring Video Doorbell 2 setup
If you're in the process of setting up multiple Ring Video Doorbell 2 units, internal doorbells and transformers, the following wiring diagrams may help.
![1RVD_2chimes_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/2HlBo6pFiQbPZ4wpbjSLhn/f16be88dfb8227ab46fb14042c80bc8b/image.jpg?w=601)
![2RVDS_1Chime_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/3nnlWhFBt5IsJmVgZuTgUo/8fd0f950e41cbda5496ea6d2929d09da/image.jpg?w=600)

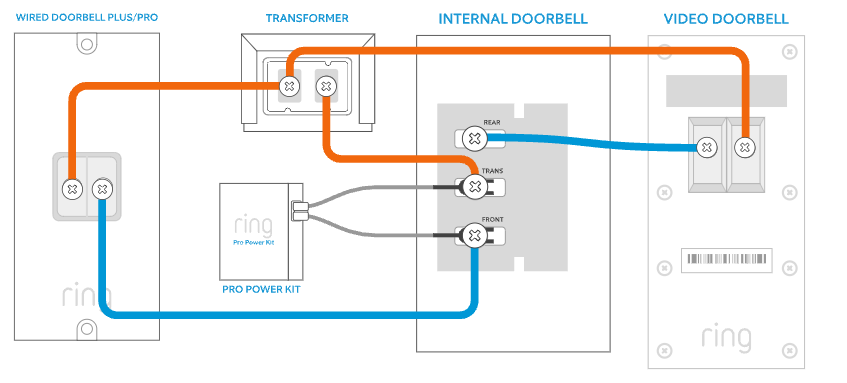

![1Pro_1RVD_to_1Chime_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/6EG0JqfqummeI7XfmQCN9Z/47ccd78e362c2066c26206da8166d4d7/image.jpg?w=595)
![1Pro_1RVD_2Chimes_1trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/3jAPbDrLeP59fQwyjVz7nL/975a31488363157bc4e413a0bc1616de/image.jpg?w=766)
