Installing Indoor Cam 2K

Download the user manual for the Indoor Cam 2K

Learn how to install Indoor Cam 2K by following these steps.

Hardware Included

Illustration of the included hardware with mounting screw and wall anchor.

Tools Needed

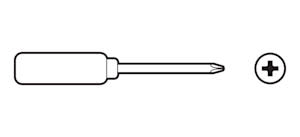

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

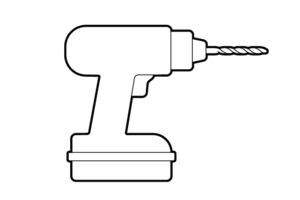

Illustration of a battery powered drill, recommended for installation.

Drill with 3/16 in (5 mm) masonry bit (optional)

  1. Remove the protective wrap.
Illustration indicating to remove the protective wrap from the Ring Camera.
  1. Download the Ring app.
Illustration showing to download the Ring App on the mobile device.
  1. Scan the QR code on your device.
Illustration showing to scan the QR code that is on the device to start the setup.
  1. Choose a location.
Indoor Cam 2K placed upright on its stand on a flat surface, showing the completed freestanding setup position.Illustration of the Indoor Cam 2K mounted on a wall.Illustration of the Indoor Cam 2K mounted on the ceiling.

Flat Installation

  1. Place your camera on a level surface.
Illustration of the camera being set on a flat surface.
  1. Plug the power cable into your camera.
Illustration showing to plug the power cord into the camera.

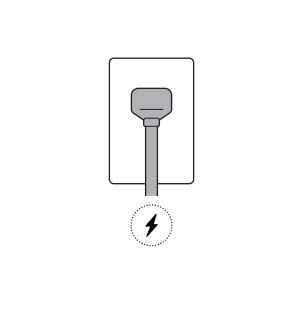

  1. Connect the power cable to the power adapter and plug it into an outlet.
  1. Secure the power cable with the base clip.
Illustration showing to secure the power cable with the base clip.

Note: For an upward angle, swivel the base toward the back and tilt your camera up accordingly.

Illustration showing how to tilt the camera to adjust the angle.

Wall Installation

  1. Slide the mounting plate in the opposite direction of the UP arrow to remove.
Illustration showing how to remove the mounting plate.
  1. Use the mounting plate as a guide to mark screw holes on the wall.
Illustration showing to use the mounting plate as a guide to mark the screw holes.
  1. Install the mounting plate with the UP arrow pointing up.

On stucco, brick, or concrete, use a 3/16 in (5 mm) masonry bit to drill holes for the included wall anchors.

Illustration showing how to install the mounting plate.
  1. Plug the power cable into your camera.

Note: For best results, use the base clip on your camera to secure your cable.

Illustration showing to secure the power cable into the clip on the base of the camera.
  1. Swivel your camera's mount toward the back.
Illustration showing to swivel the camera's mount to the back for mounting.
  1. Secure your camera to the mounting plate by sliding until you feel a click.
Illustration showing to connect the camera with mounting bracket onto the mounting plate.
  1. Connect the power cable to the power adapter and plug it into an outlet.

Ceiling installation

  1. Slide the mounting plate in the opposite direction of the UP arrow to remove.
Illustration showing how to remove the mounting plate.
  1. Use the mounting plate as a guide to mark screw holes on the ceiling.
Illustration showing to use the mounting plate as a guide to mark the screw holes.
  1. Install the mounting plate with the UP arrow pointing toward your desired viewing direction.

On stucco, brick, or concrete, use a 3/16 in (5 mm) masonry bit to drill holes for the included wall anchors.

Illustration showing how to install the mounting plate.
  1. Plug the power cable into your camera.

Note: For best results, use the base clip on your camera to secure your cable.

Illustration showing to secure the power cable into the clip on the base of the camera.
  1. Secure your camera to the mounting plate by sliding until you feel a click.
Illustration showing to secure the camera with the mounting bracket on the mounting plate.
  1. Connect the power bale to the power adapter and plug it into an outlet.

Attaching the lens cover

  1. Align the dotted line on your lens cover with the dotted line on top of your camera.
Illustration showing how to align the dotted line on your lens cover with the dotted line on top of your camera.
  1. Push the cover onto your camera until you hear a click.
Illustration showing how to push the cover onto your camera until you hear a click.
  1. Push the peg at the bottom of your cover into the notch at the bottom of your camera.
Illustration showing how to push the peg at the bottom of your cover into the notch at the bottom of your camera.
  1. Pull the tabs to remove.
Illustration showing how to pull the tabs to remove the plastic cover off of the lens cover.Illustration showing the proper alignment of the lens cover.

Using the lens cover

  1. To cover your camera, slide the lens cover to the locked position until you hear a click.
  1. To uncover your camera, slide the lens cover to the unlocked position until you hear a click.
Illustration showing how to uncover your camera, slide the lens cover to the unlocked position until you hear a click.

Removing the lens cover

  1. Slide to unlock the lens cover.
Illustration showing how to slide to unlock the lens cover.
  1. Lift from the top to detach.
Illustration of how to lift from the top to detach.
  1. Push down and detach from the bottom.
Illustration showing how to push down and detach from the bottom.
