Installing Spotlight Cam 2K Battery

Download the user manual for Spotlight Cam 2K Battery

Hardware included

An example of the included screws, labeled A, and washers, labeled B, provided to install the device.

Tools needed

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

Illustration of a power drill to use as an installation tool.

Drill with 1/4 in (6 mm) masonry bit (optional)

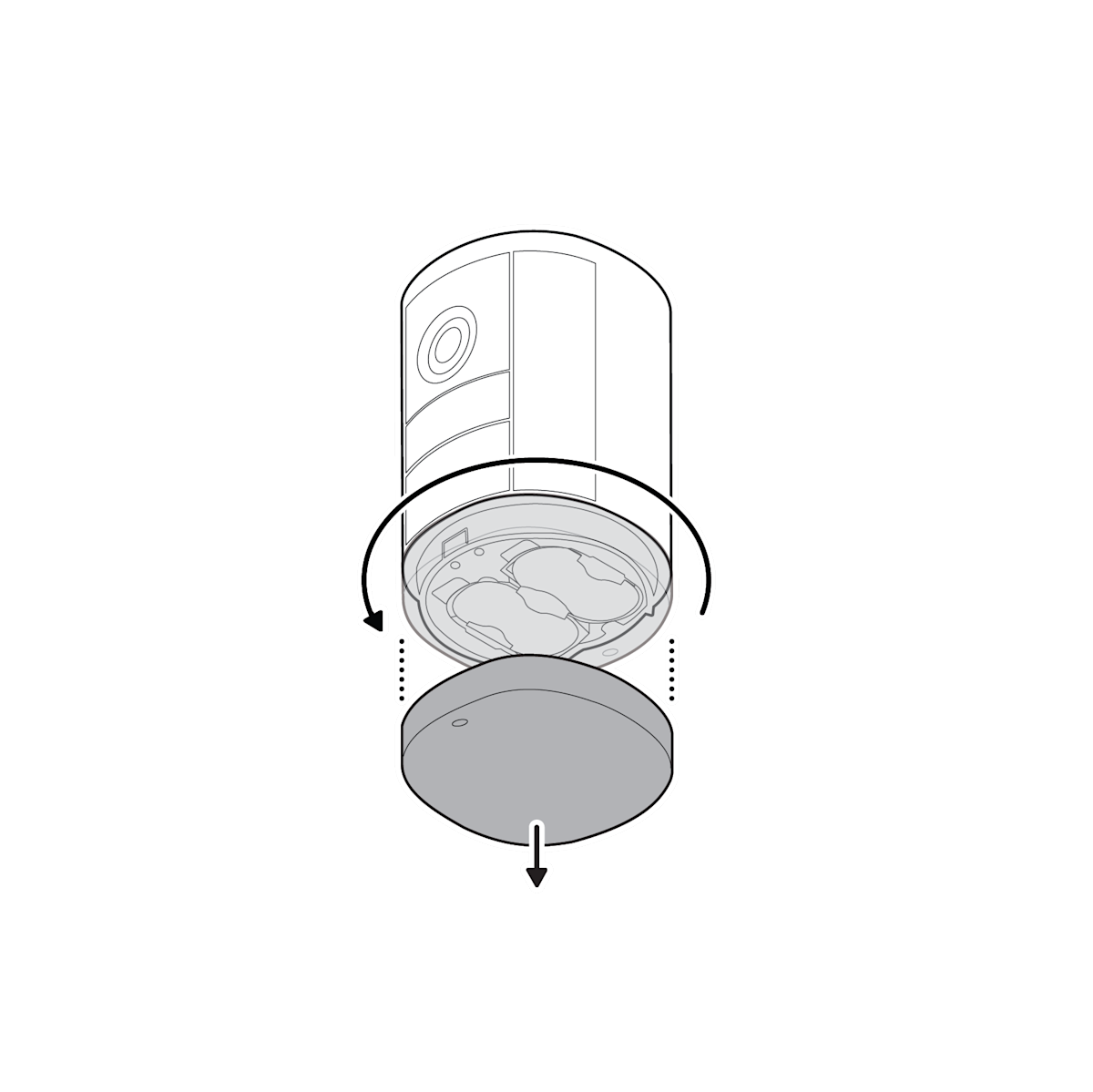

  1. Twist the battery cover counterclockwise to open the battery cover.
Illustration of Spotlight Cam 2K with an arrow circled around pointing left to remove the battery cover.

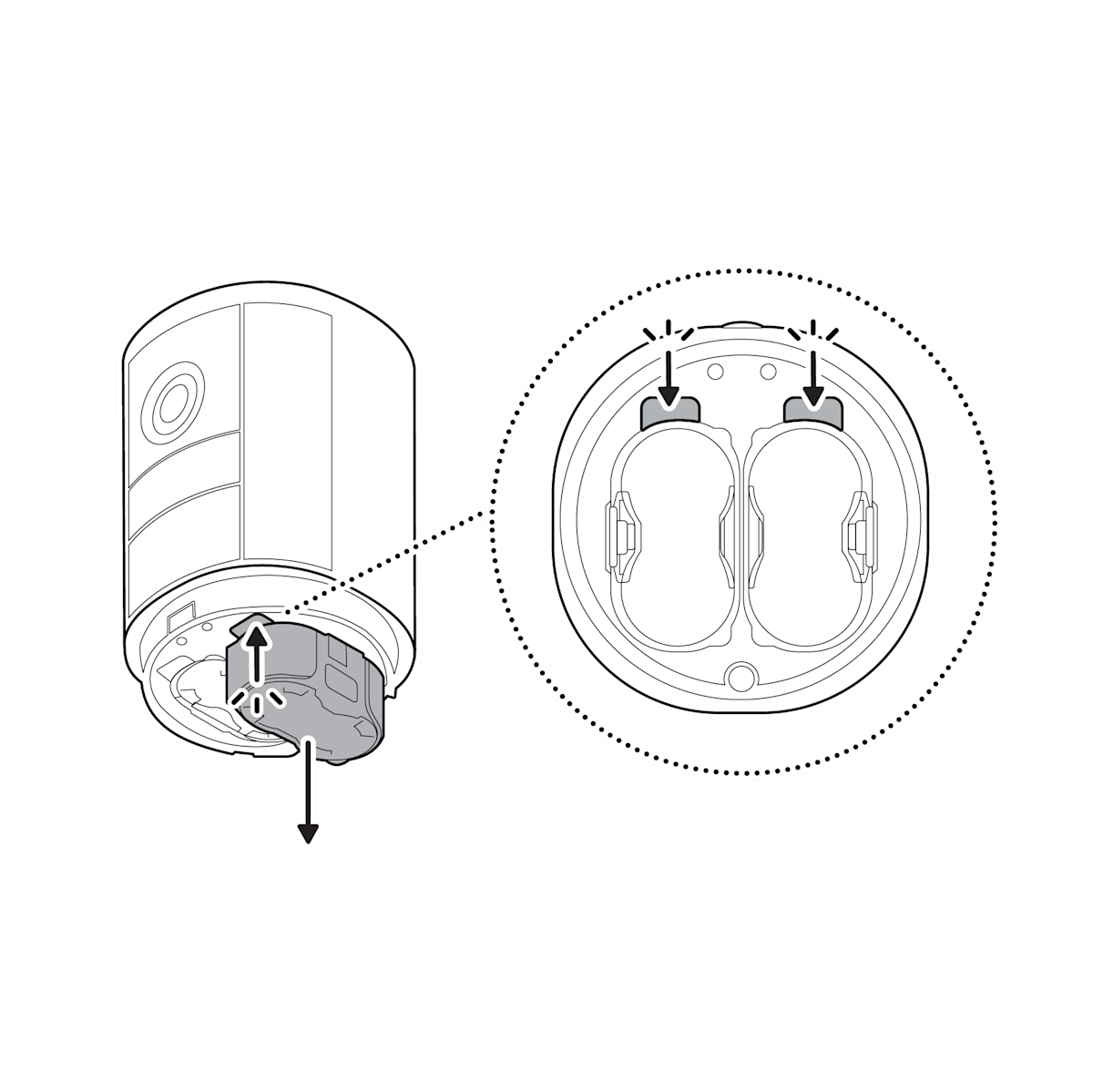

  1. Click the ejector button to eject the battery housing.
Battery compartment with arrow pointing to eject button and an arrow pointing down releasing the quick release battery pack.

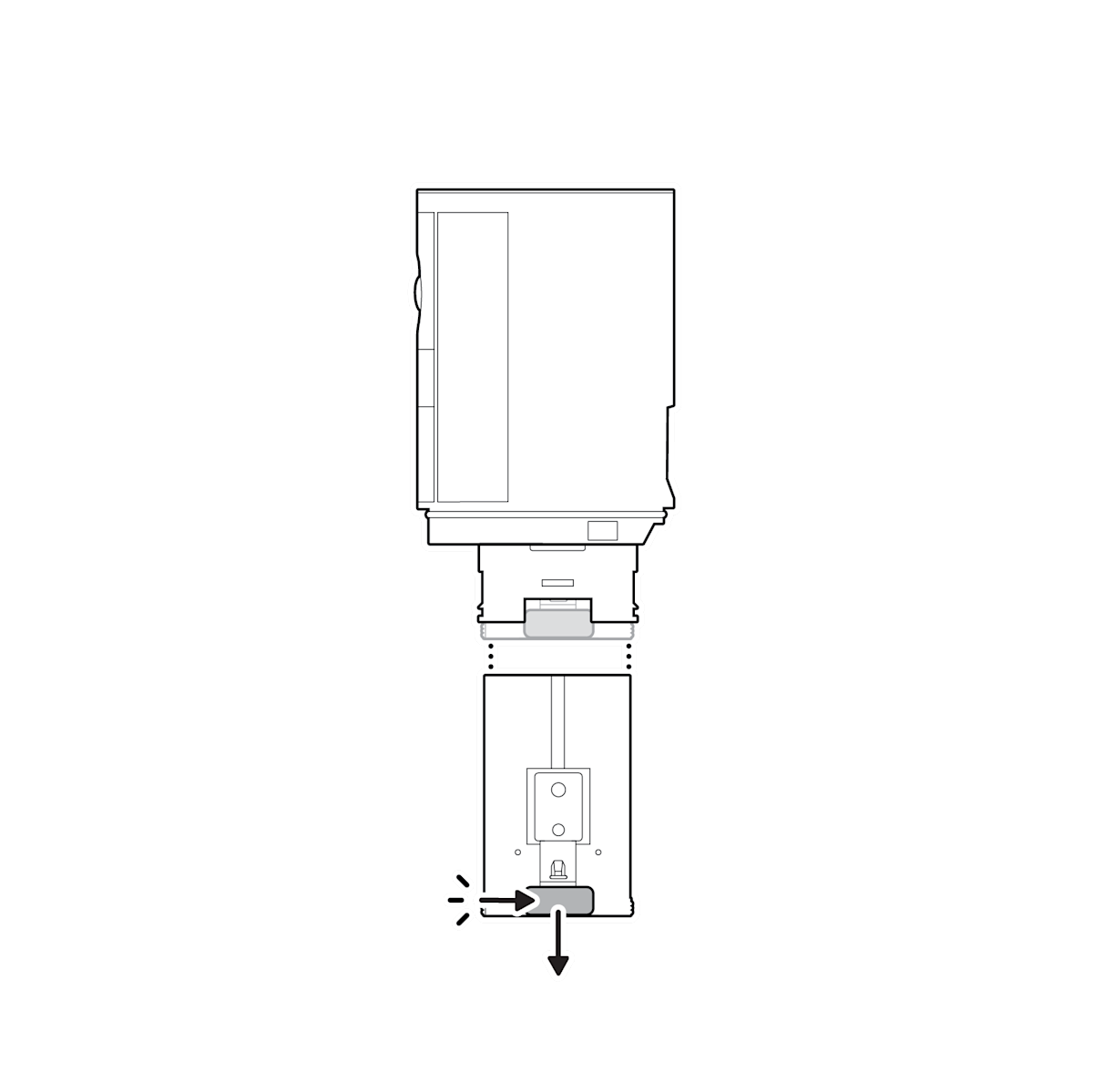

  1. Push the tab to remove the battery.
Battery with arrow pointing toward tab to press to release battery.

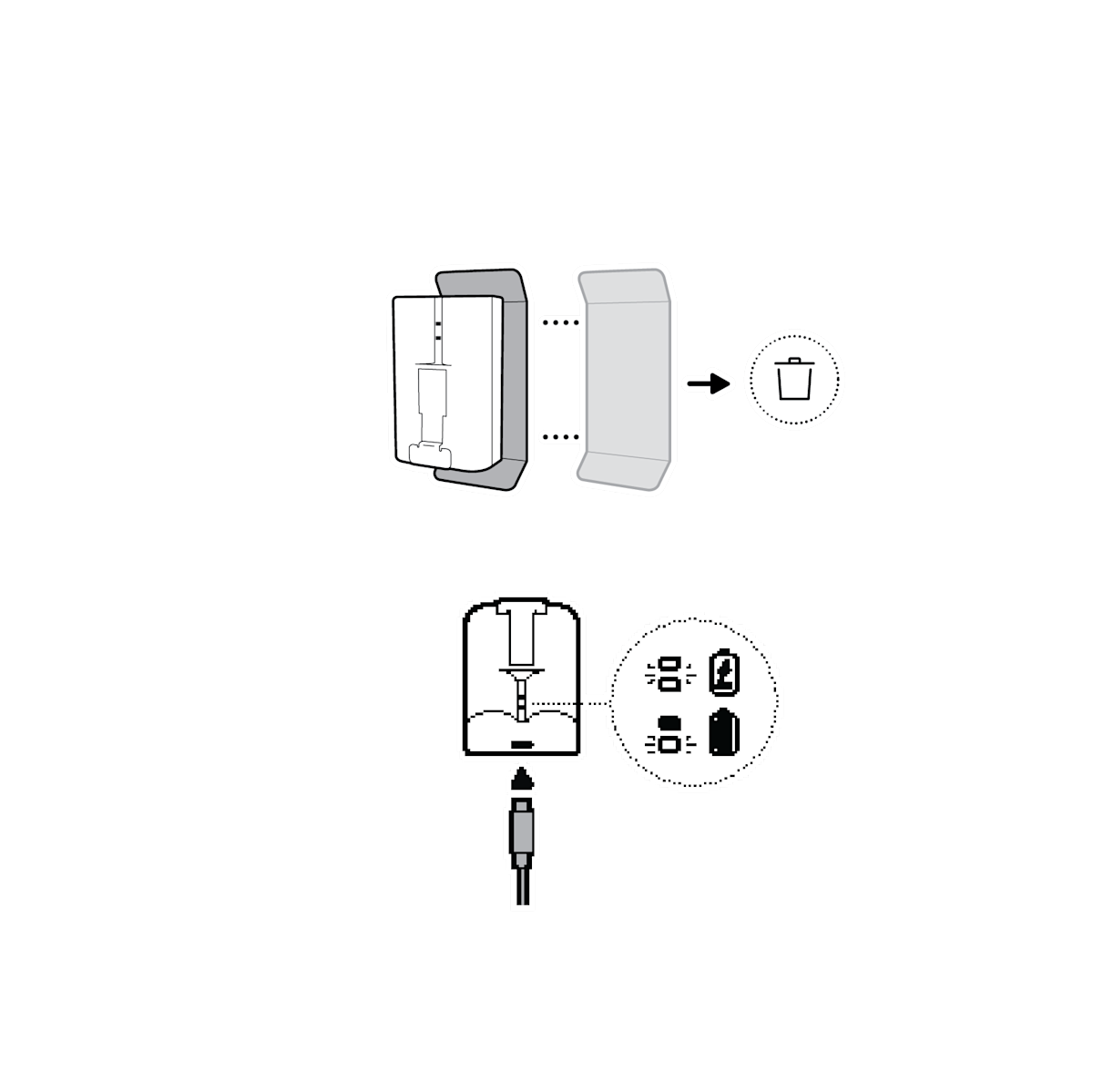

  1. Discard the battery insulator and fully charge the battery.
Illustration of discarding the battery insulator and fully charging the battery.

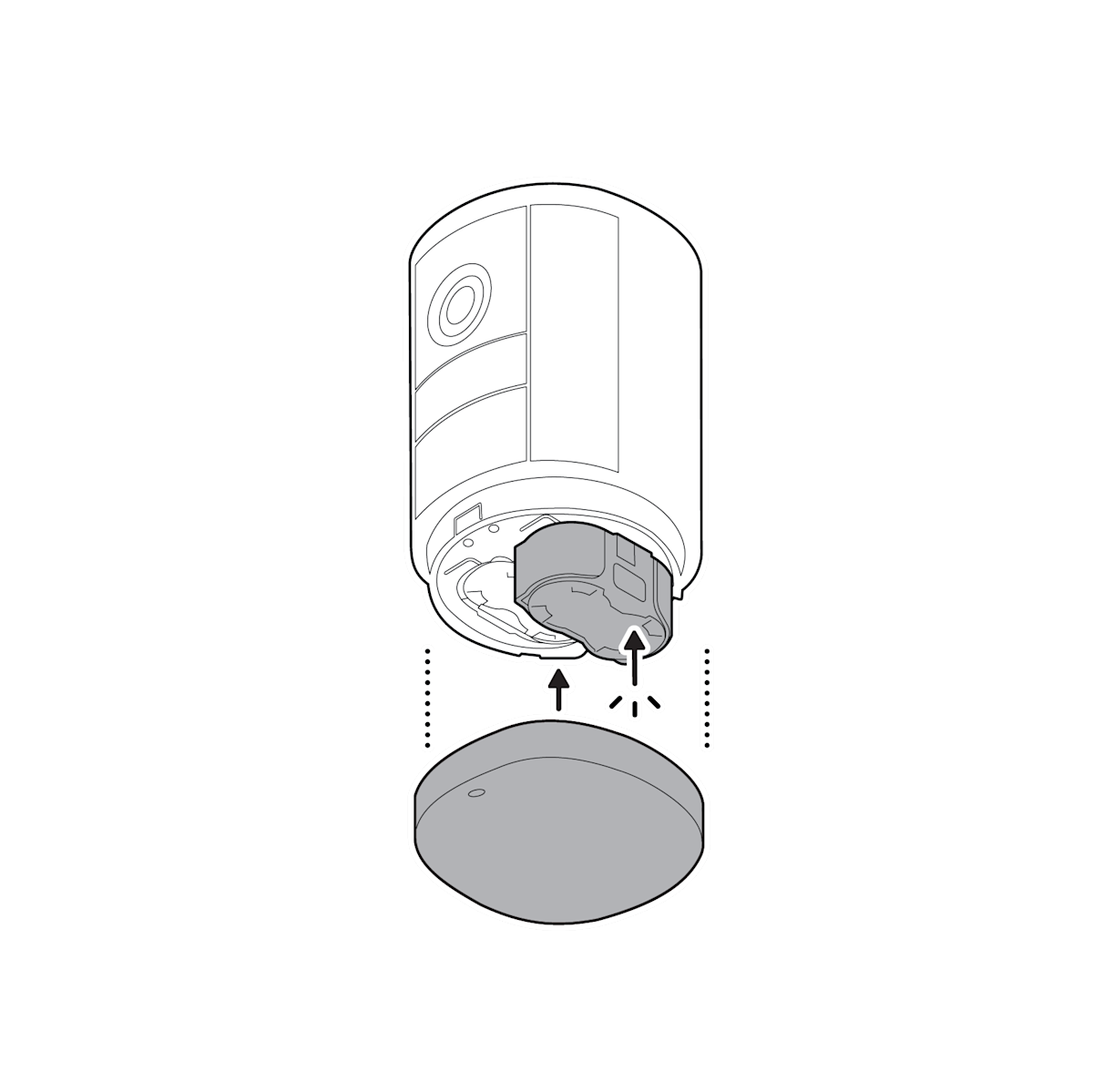

  1. Insert the battery and twist to close the battery cover to the locked position.
Battery compartment with the battery inside and dots to indicate replace and then twist to close the battery cover to lock it in.

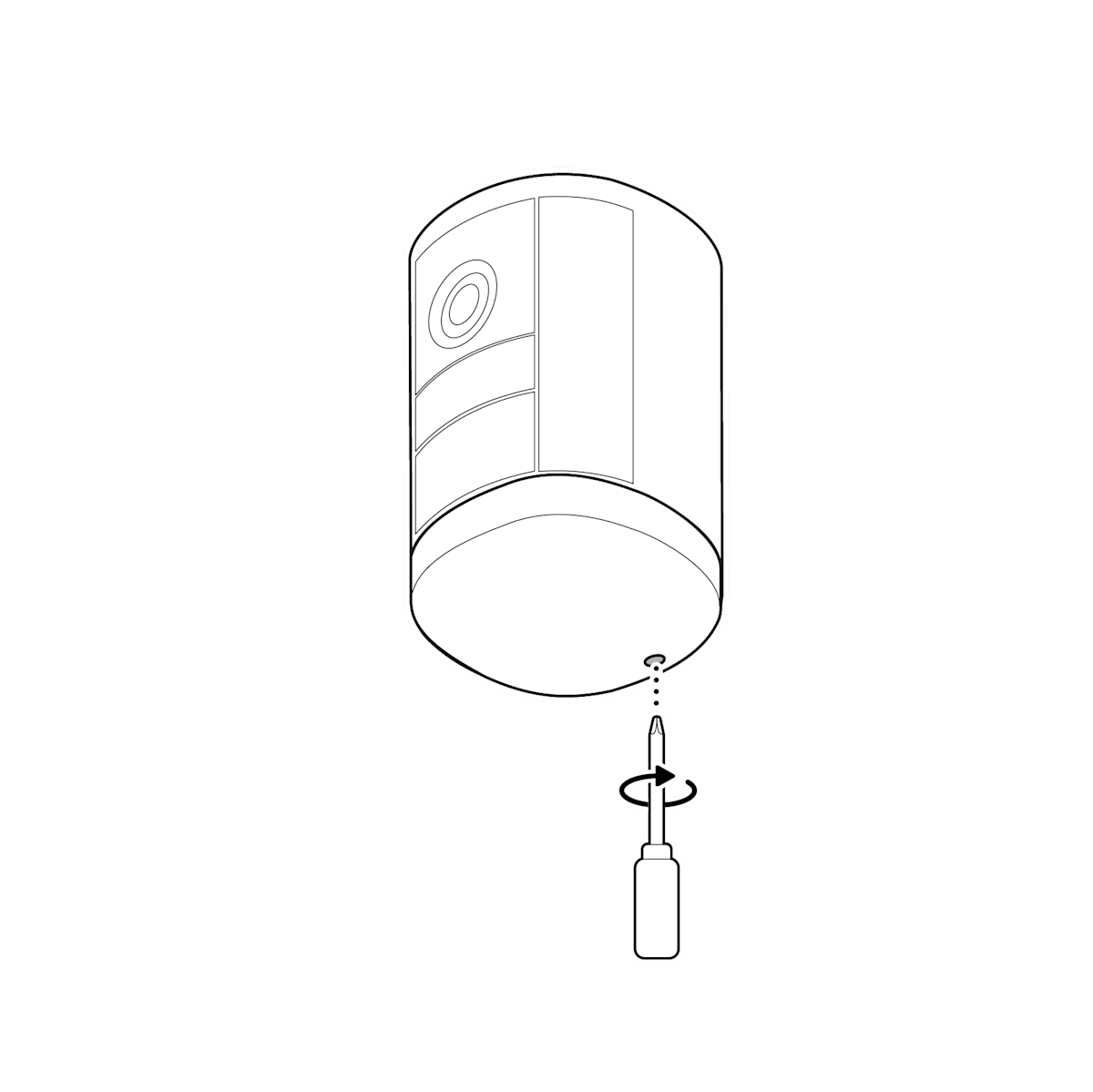

  1. Tighten the security screw on the battery cover.

CAUTION! The security screw creates a seal to prevent damage from rain or humidity. Always tighten it when replacing the battery.

Screwdriver being used to tighten the screw and secure the battery compartment.
  1. Download the Ring Always Home app.
Illustration showing to download the Ring App on the mobile device.
  1. Scan the QR code on your device
An illustration of a QR code being scanned on a smartphone.
  1. Choose a location.

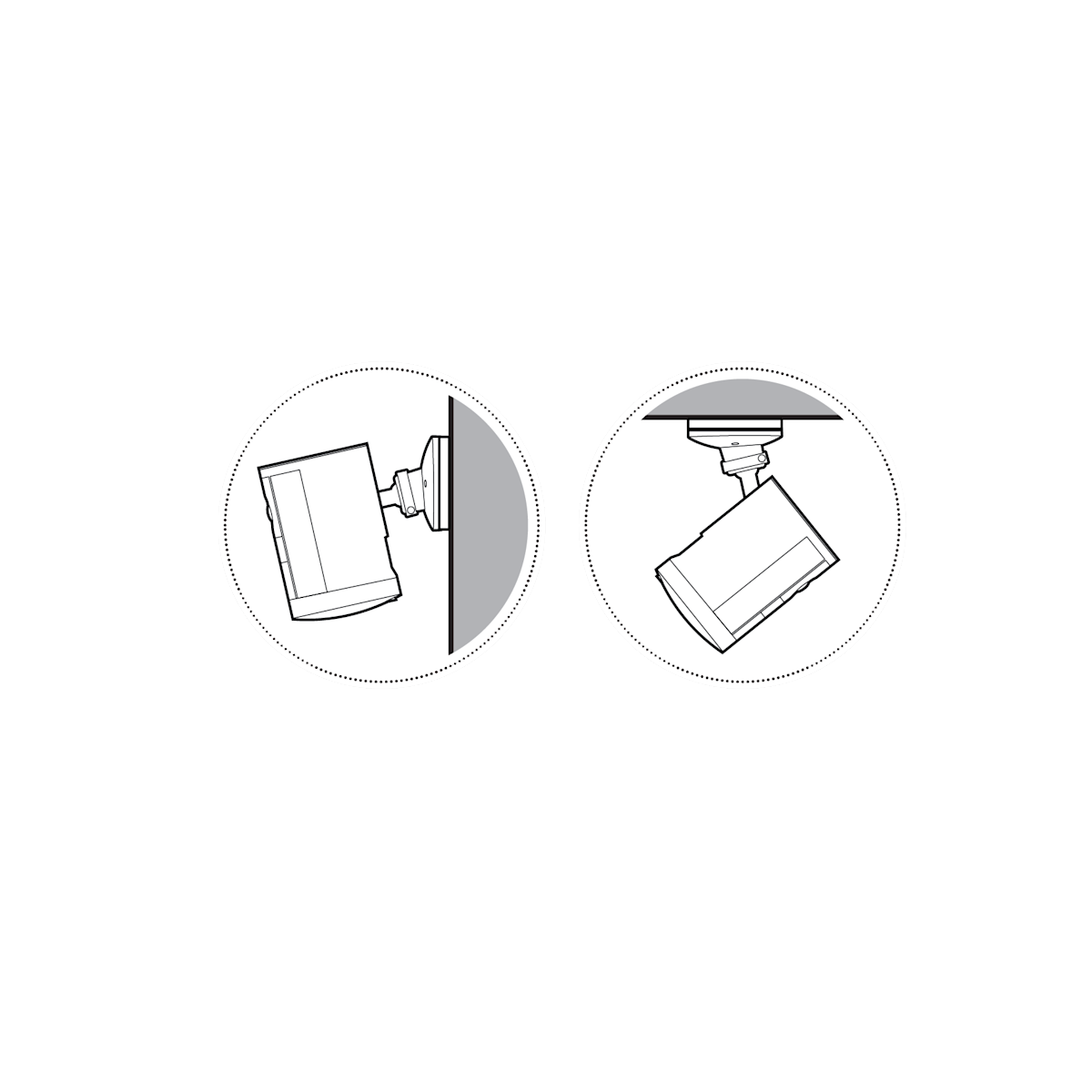

Spotlight Cam 2K mounted on wall or ceiling.

Wall installation

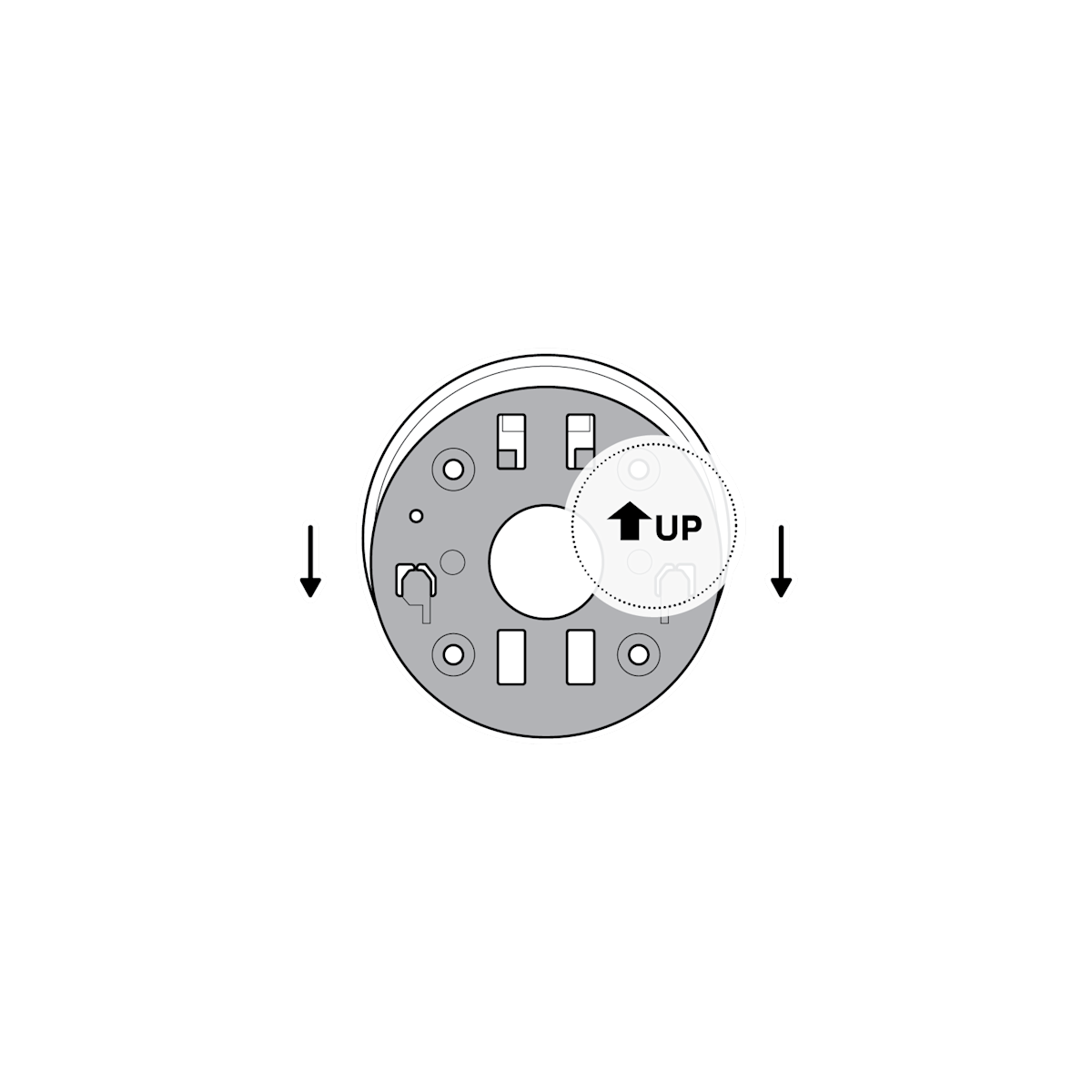

  1. Slide the mounting plate in the direction opposite to the UP arrow to remove.
Mounting plate with arrows pointing down, opposite of the up arrow.
  1. Use the mounting plate as a guide to mark screw holes on the wall with 14 cm of space in every direction.
Pencil to mount with arrows and 14cm measurements to show template for mount installation

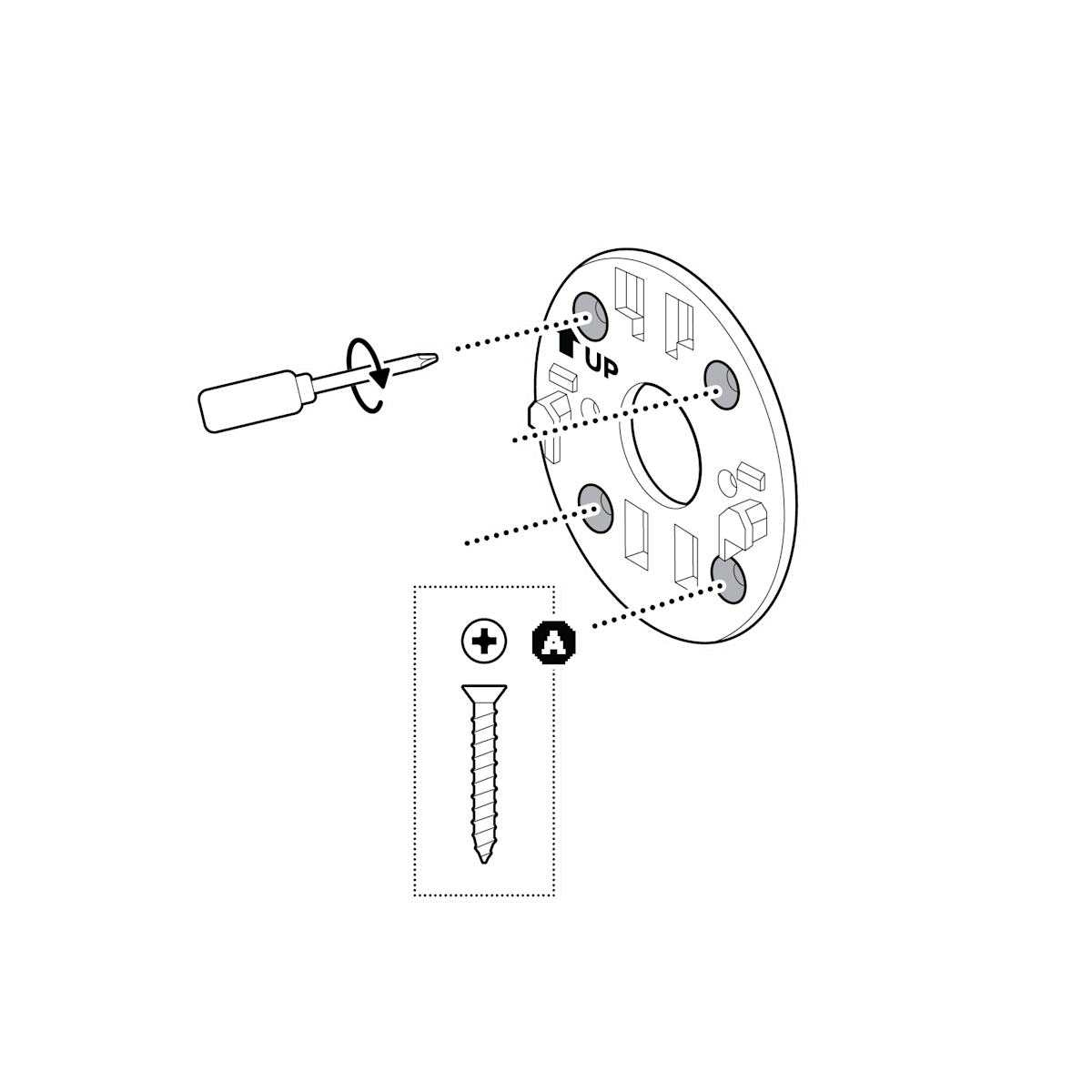

  1. Install the mounting plate with the UP arrow pointing up.
Screwdriver and screw with arrows to install mounting bracket pointing up with the up arrow.

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

Drill with screws and dashed line showing how to install the installation hardware.

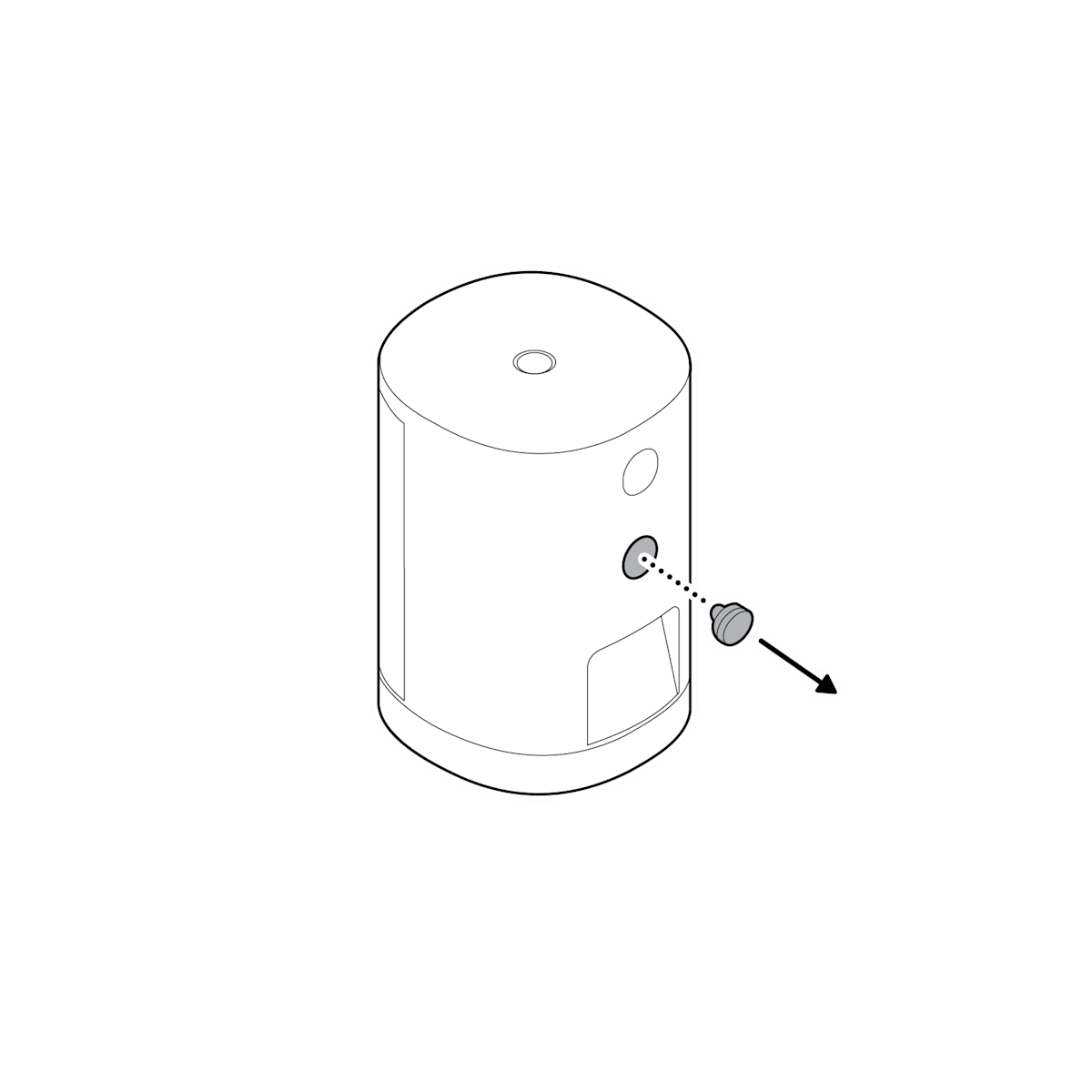

  1. Remove the middle rubber cap on the back of your camera.
Rubber cap removed from back of Spotlight Cam 2K.

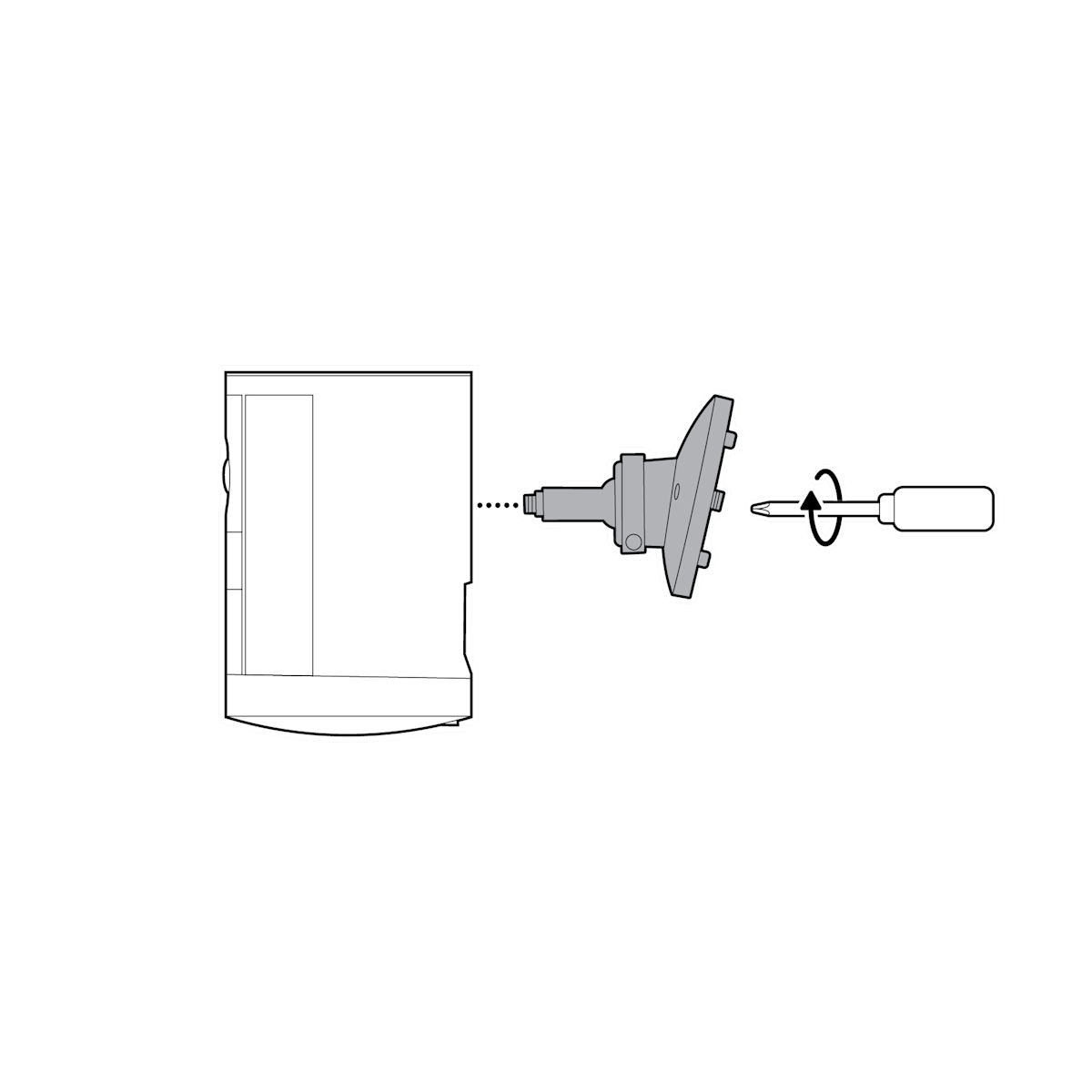

  1. Attach the camera mount to the back of your camera with its screw.
Mount and screwdriver with dots to attach the mount to the Spotlight Cam 2K.

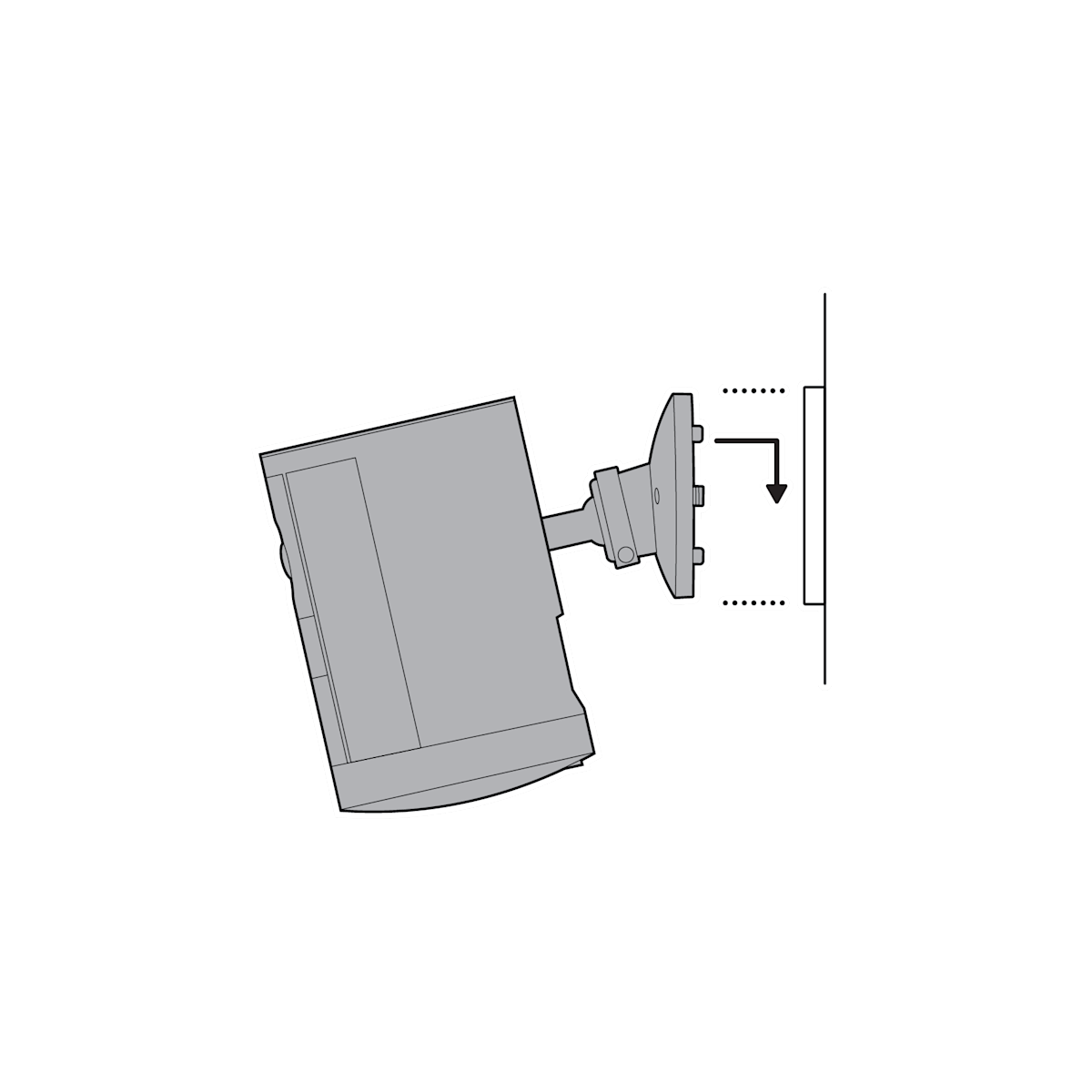

  1. Secure your camera to the mounting plate by sliding until you feel a click.
Spotlight Cam 2K with an arrow pointing down to slide down and click and mount.

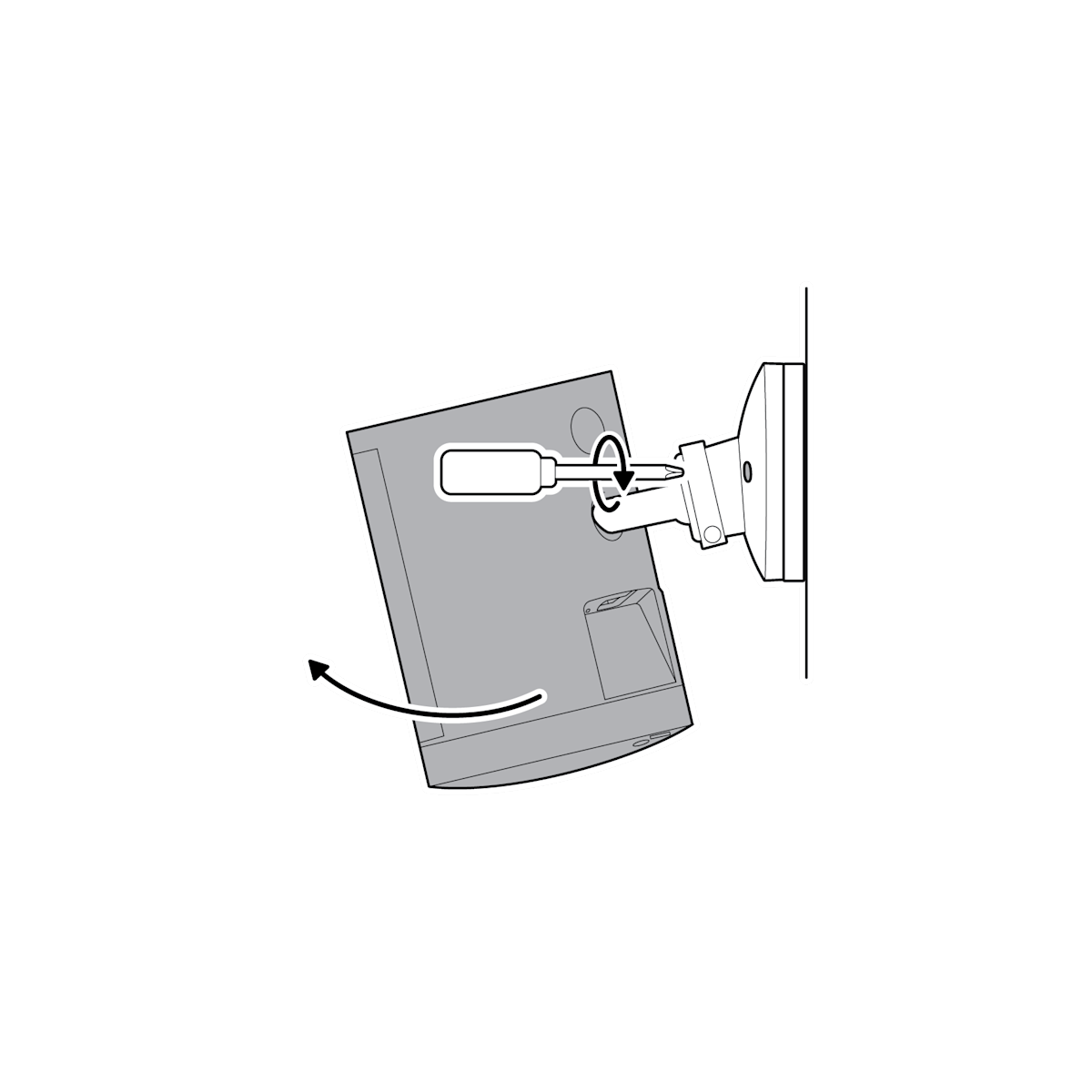

  1. Rotate your camera and tighten the security screw.
Screwdriver and arrow turning to rotate camera and tighten screw.

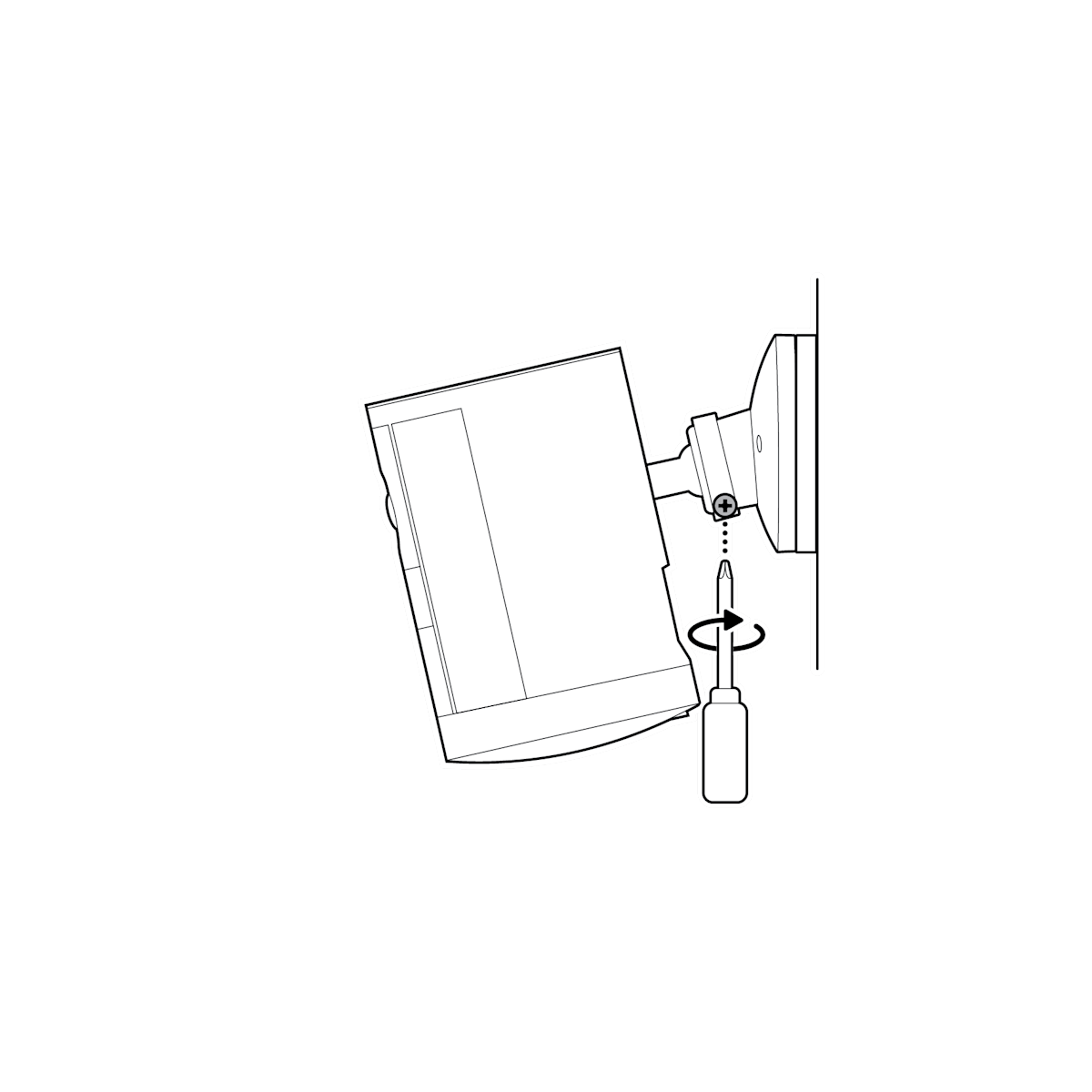

  1. Adjust your camera's position and tighten the ball joint to secure in place.
Screw driver with arrow turning to left to tighten and secure the Spotlight Cam 2K.

Ceiling installation

  1. Slide the mounting plate in the direction opposite to the UP arrow to remove.
Ceiling mount with arrow and the word up.
  1. Use the mounting plate as a guide to mark screw holes on the ceiling with 14 cm of space in every direction.

NOTE: For best results, avoid locations with nearby objects that can interfere with your camera's field of view.

Pencil to mount with arrows and 14cm measurements to show template for mount installation

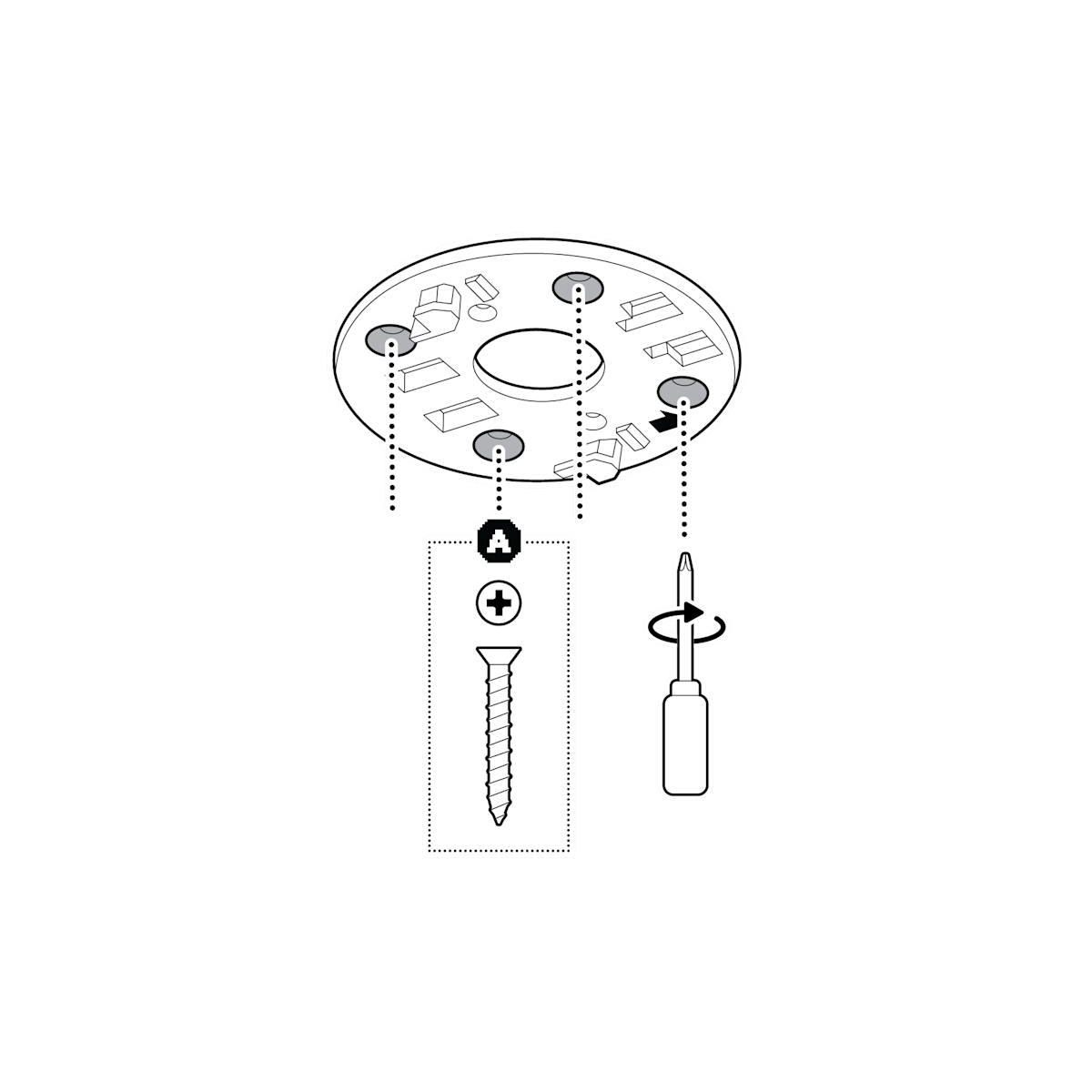

  1. Install the mounting plate with the UP arrow pointing toward your desired viewing direction.
Mounting plate with the UP arrow pointing toward the viewing direction.

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

Drill with screws and dashed line showing how to install the installation hardware.

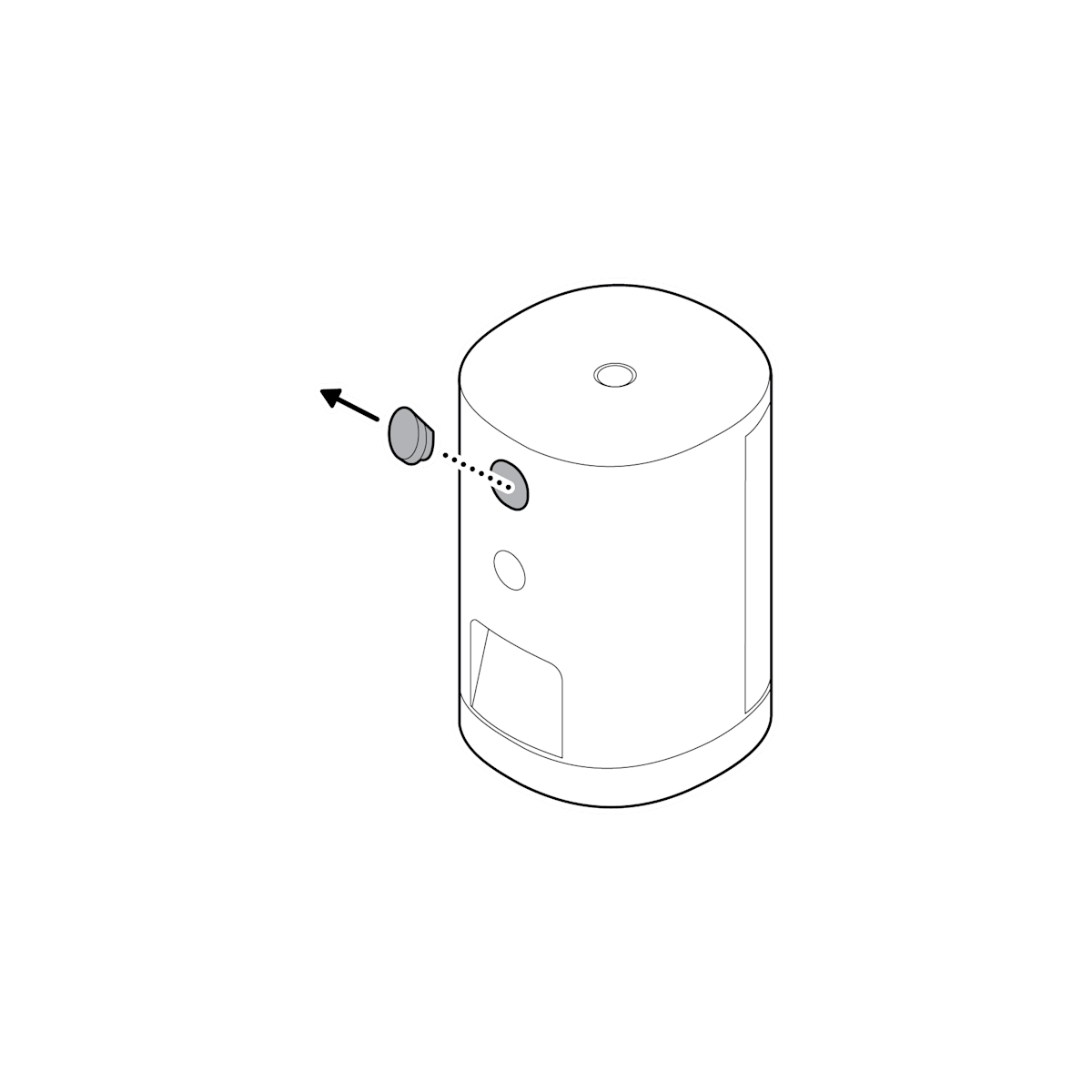

  1. Remove the top rubber cap on the back of your camera.
Removal of the top rubber cap on the back of the Spotlight Cam 2K.

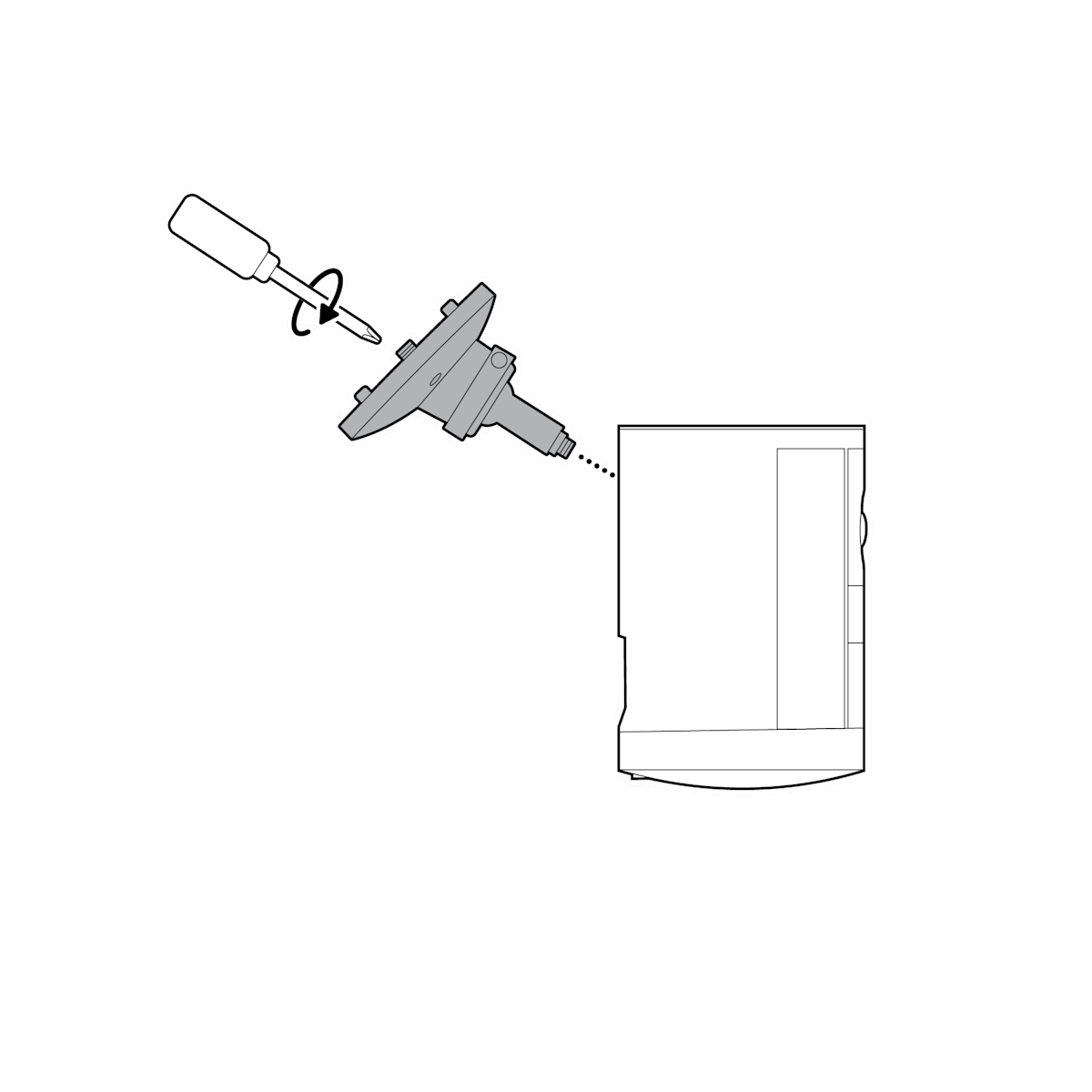

  1. Attach the camera mount to the back of your camera with its screw.
Screwdriver with arrows to the right tightening the mount to the Spotlight Cam 2K.

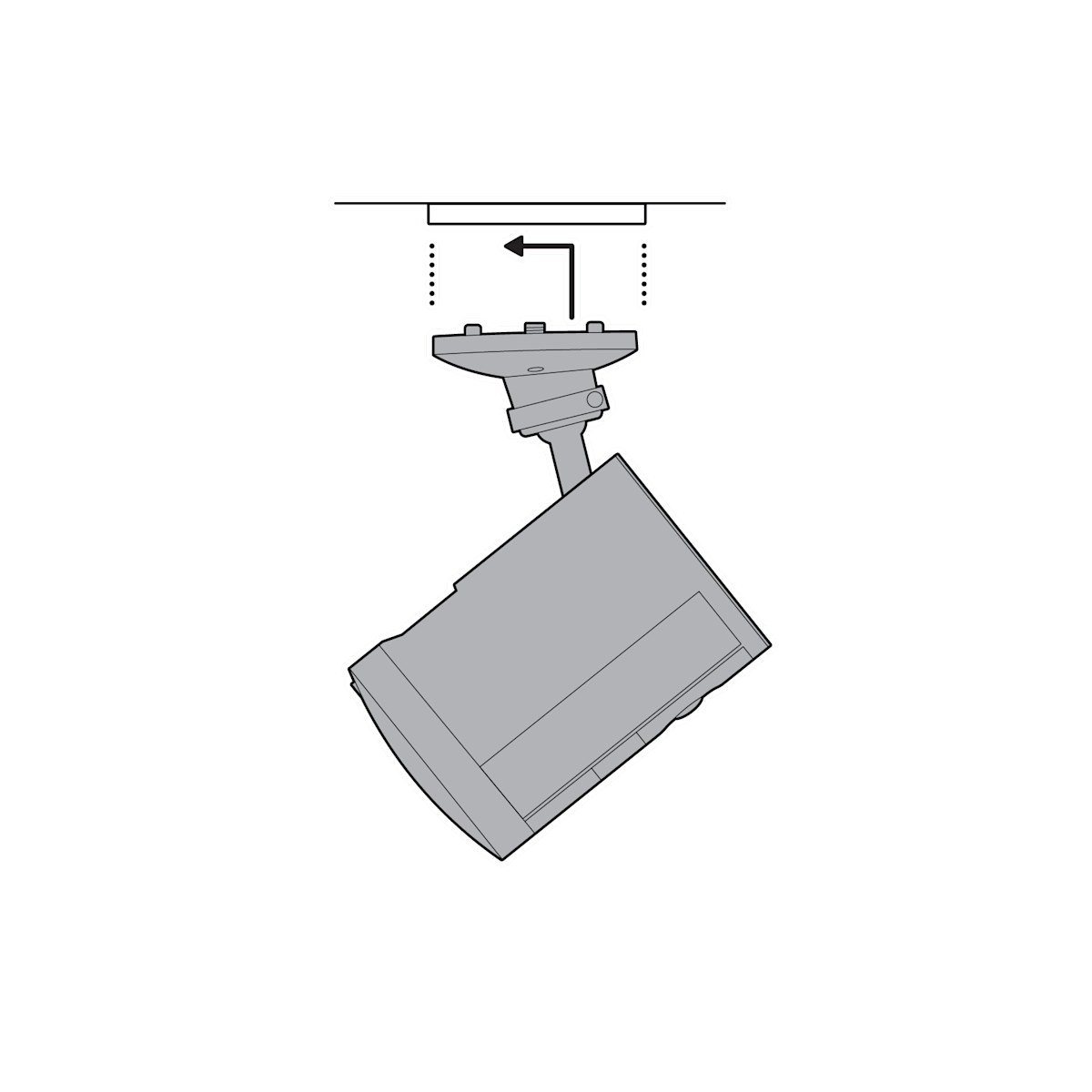

  1. Secure your camera to the mounting plate by sliding until you feel a click.

NOTE: Your camera should be in an upright position.

L shaped arrow pointing back to slide mounting plate until it clicks.

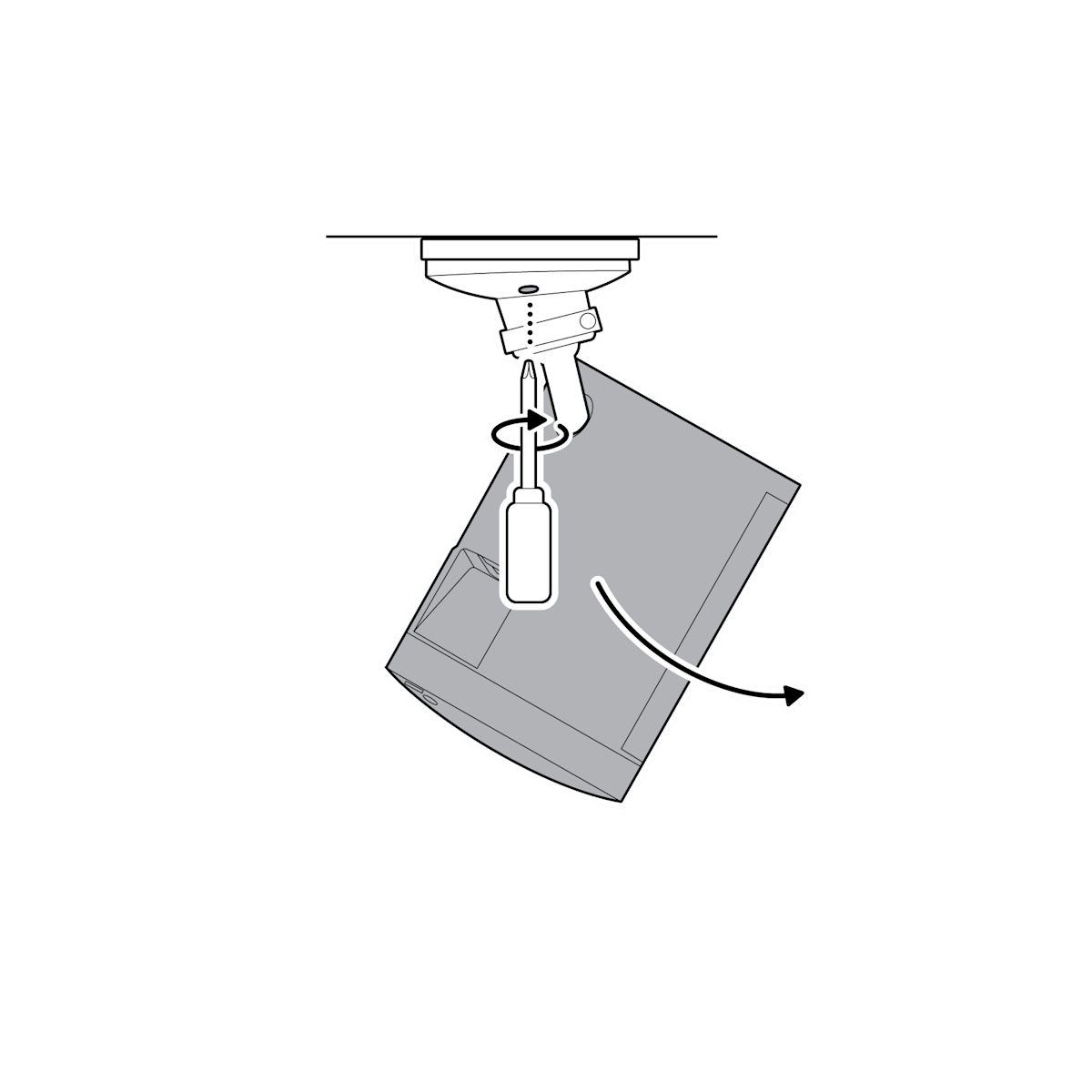

  1. Rotate your camera and tighten the security screw.
Arrow pointing away from the Spotlight Cam 2K to rotate the camera with a screwdriver to tighten the security screw.

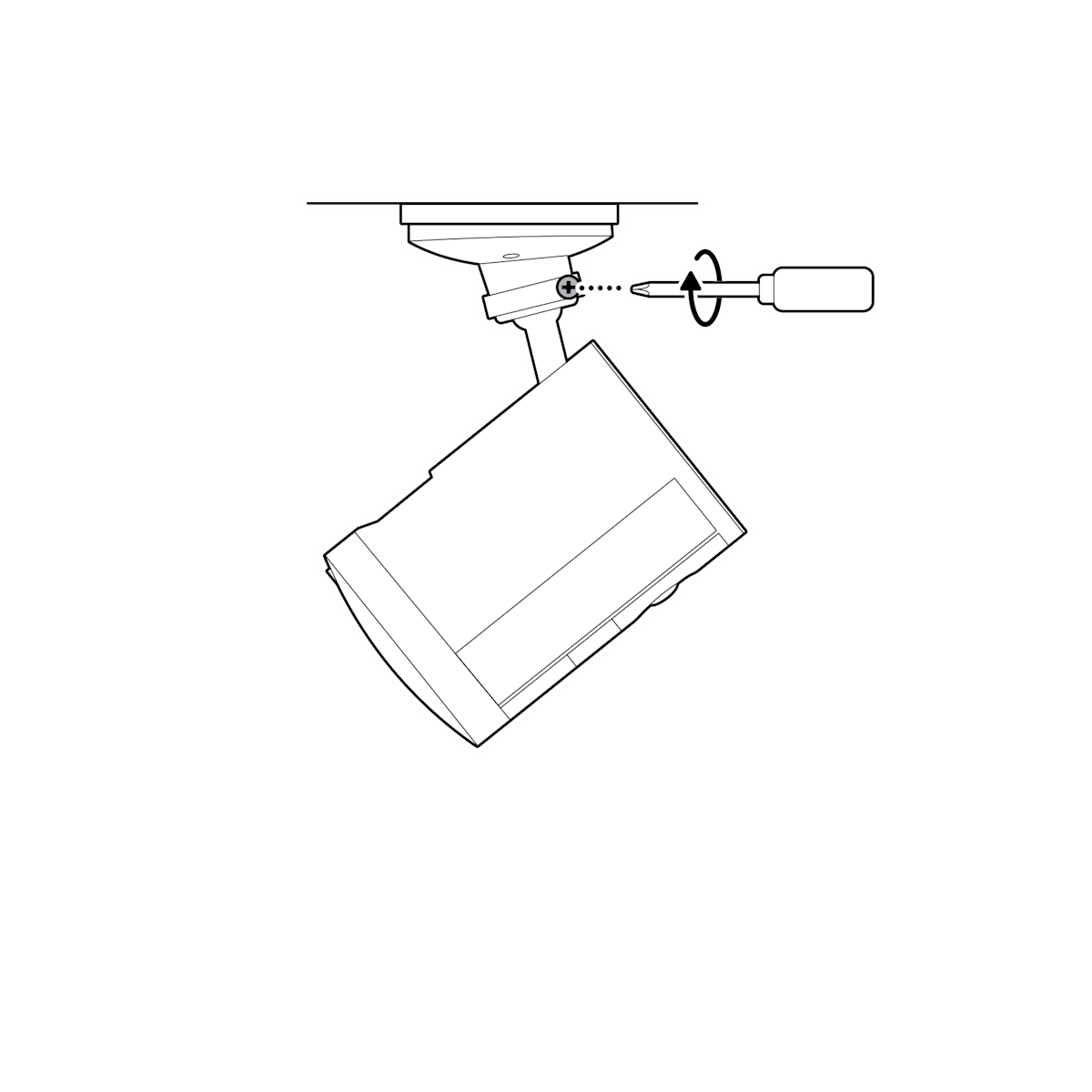

  1. Adjust your camera's position and tighten the ball joint to secure in place
Screw driver with arrows pointing to the right to tighten the ball joint to secure Spotlight Cam 2K in place.
