Installing Wedge Kit for Wired Doorbell 4K Pro

Follow these step-by-step installation instructions for your Wedge Kit for Wired Doorbell 4K Pro.

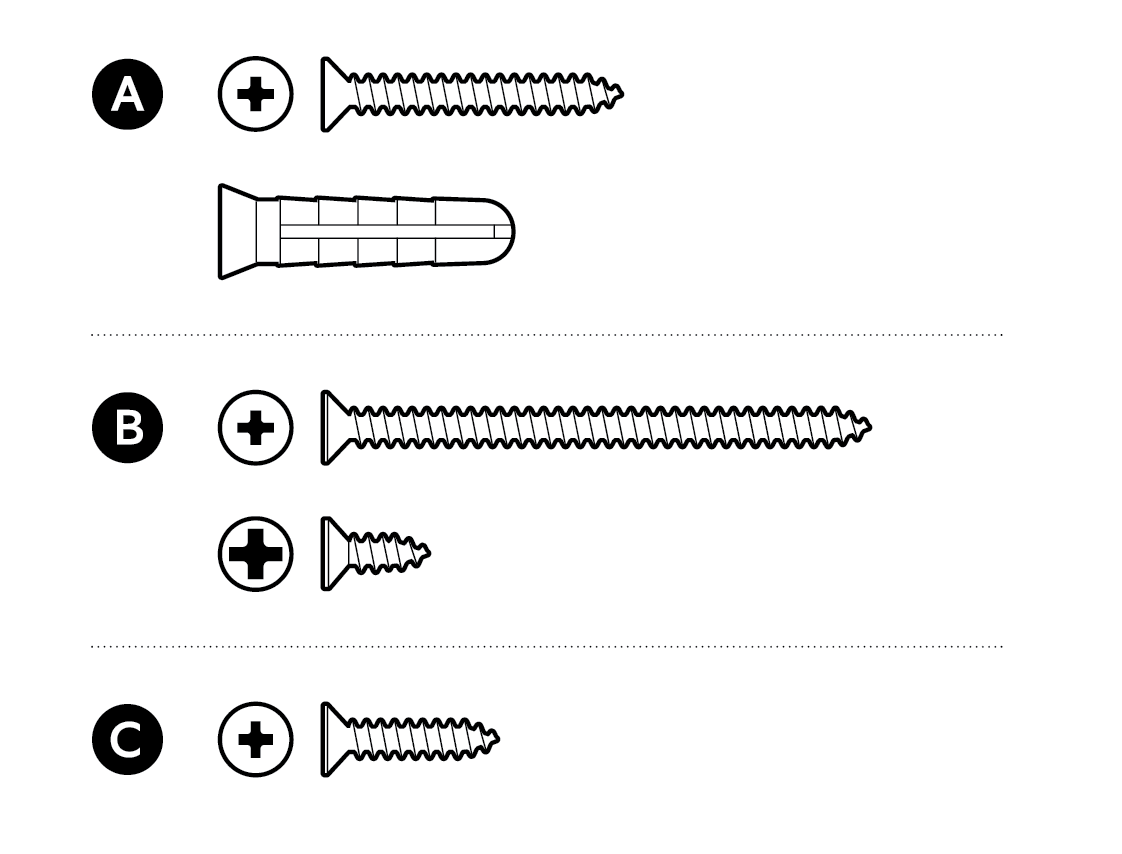

Hardware Included

Tools Included

Removal tool

Tools Needed

Phillips-head screwdriver

Drill with a 6 mm masonry bit (optional)

1. Refer to your doorbell setup guide to prepare your install location.

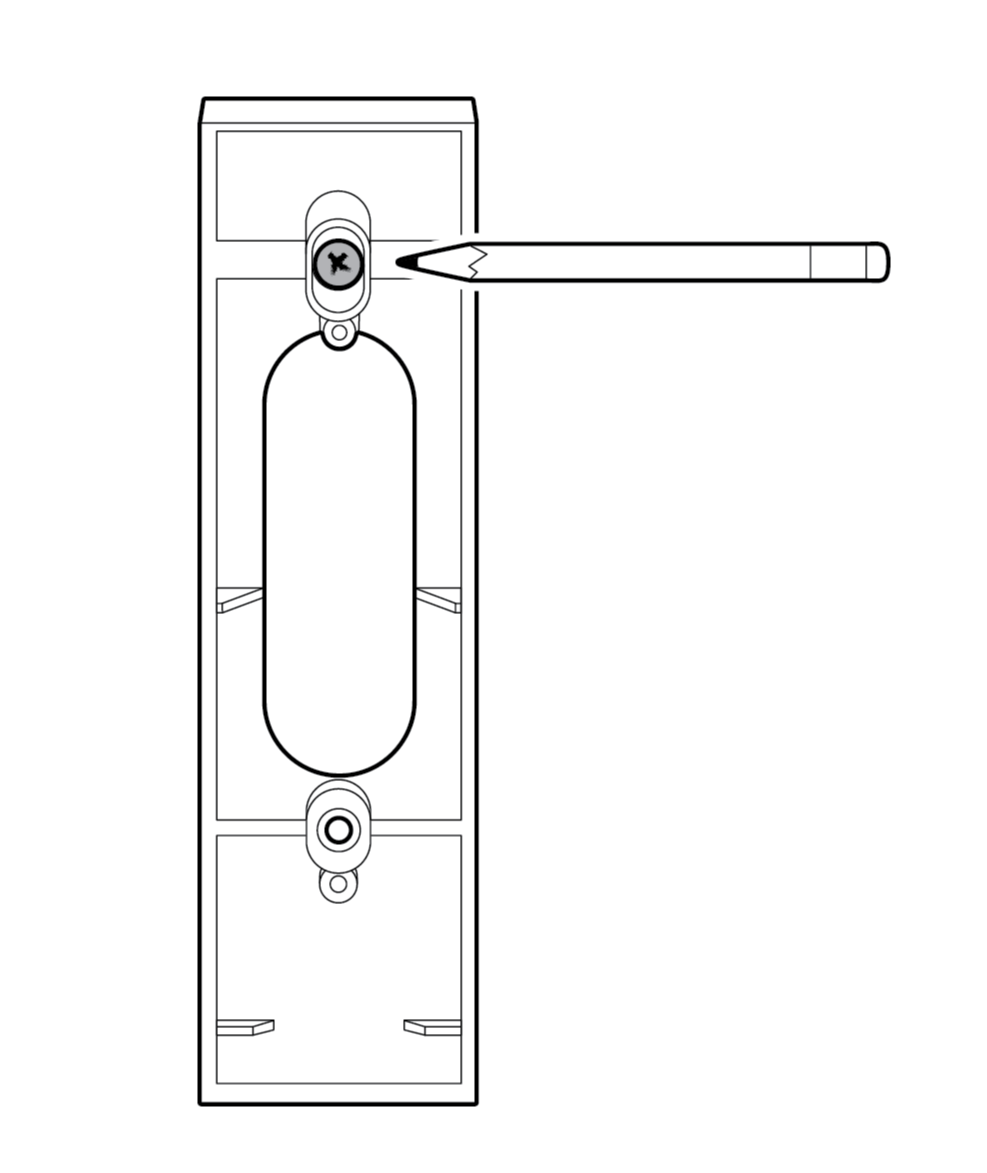

2. Use the wedge mount as a guide to mark screw holes on the wall, if necessary.

NOTE: Mark the both top holes or both bottom holes, depending on your desired installation location.

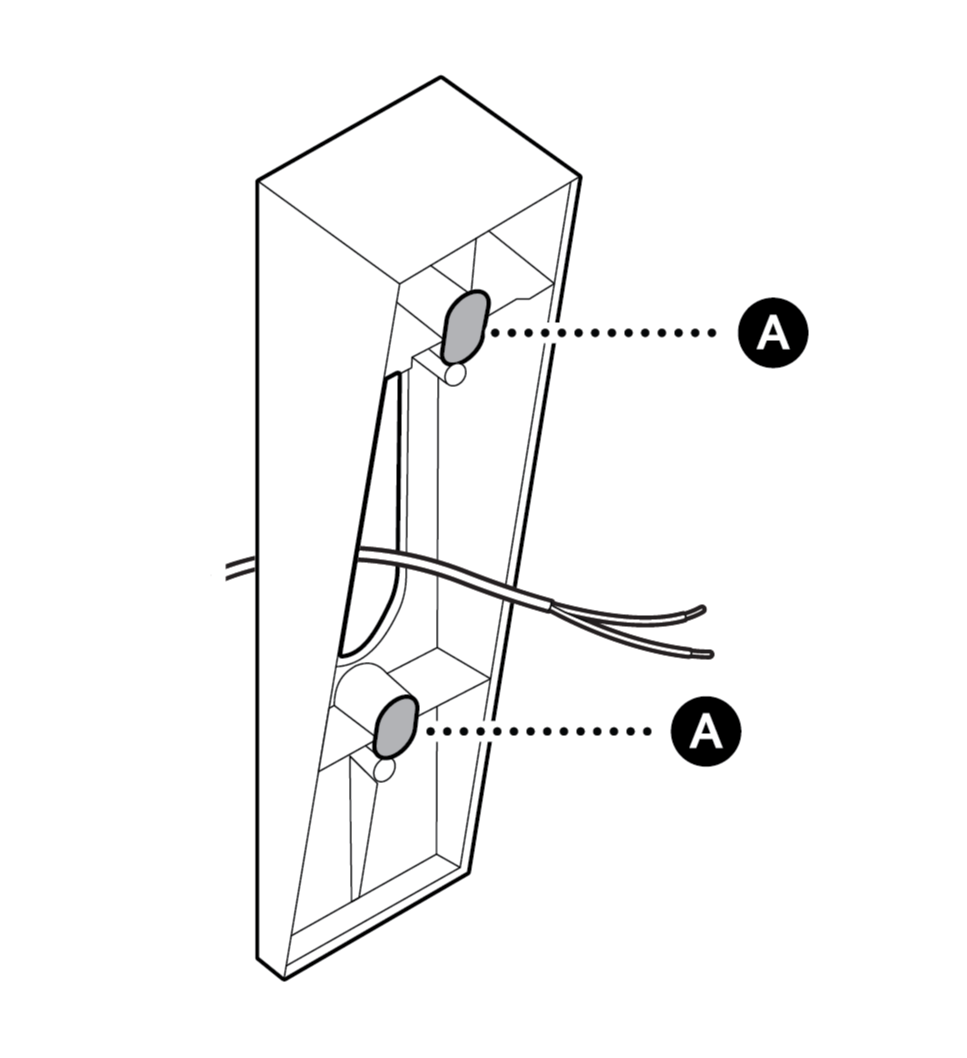

1. Install the mount over your doorbell wires or on the wall with the included screws, ensuring it is facing down.

On stucco, brick, or concrete, use a 6 mm masonry bit to drill holes for the included wall anchors.

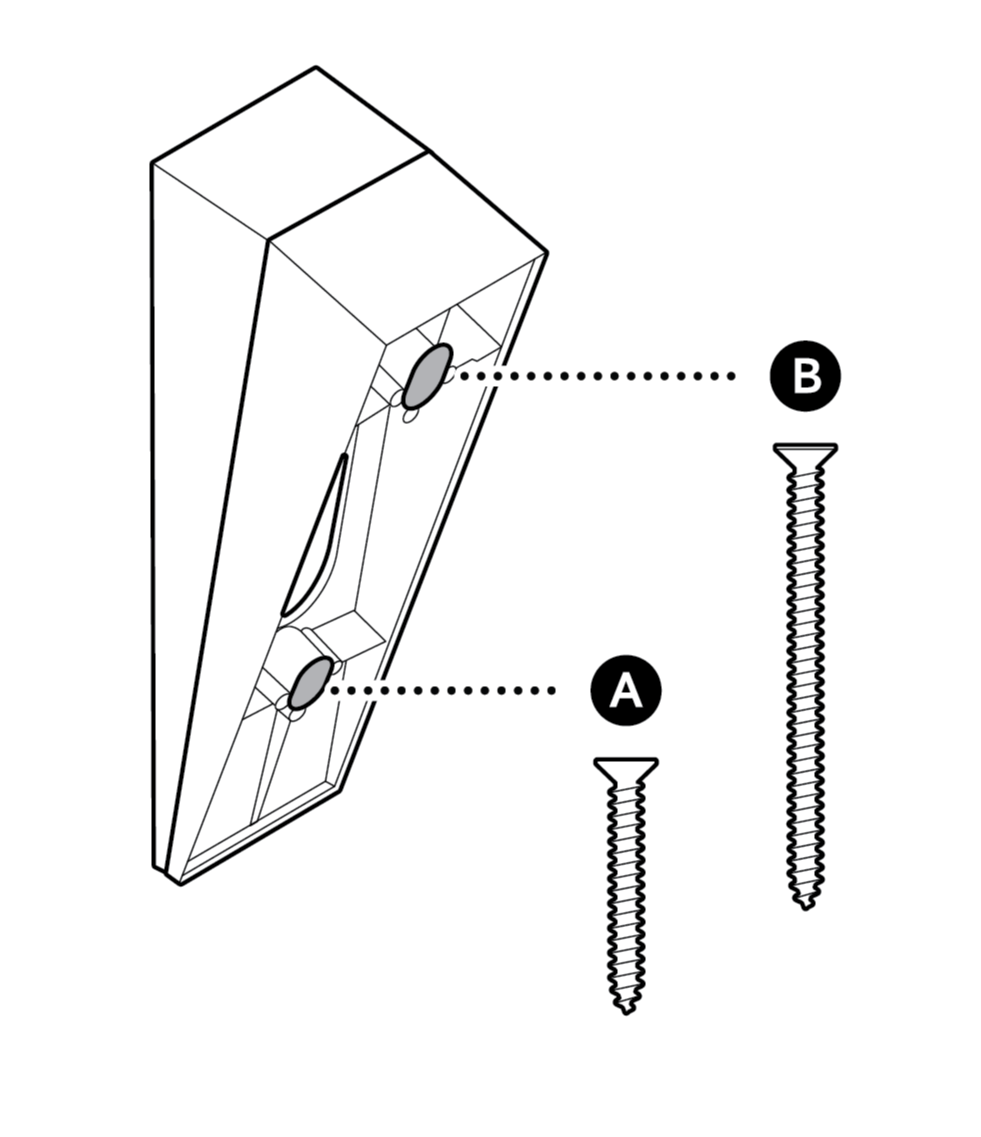

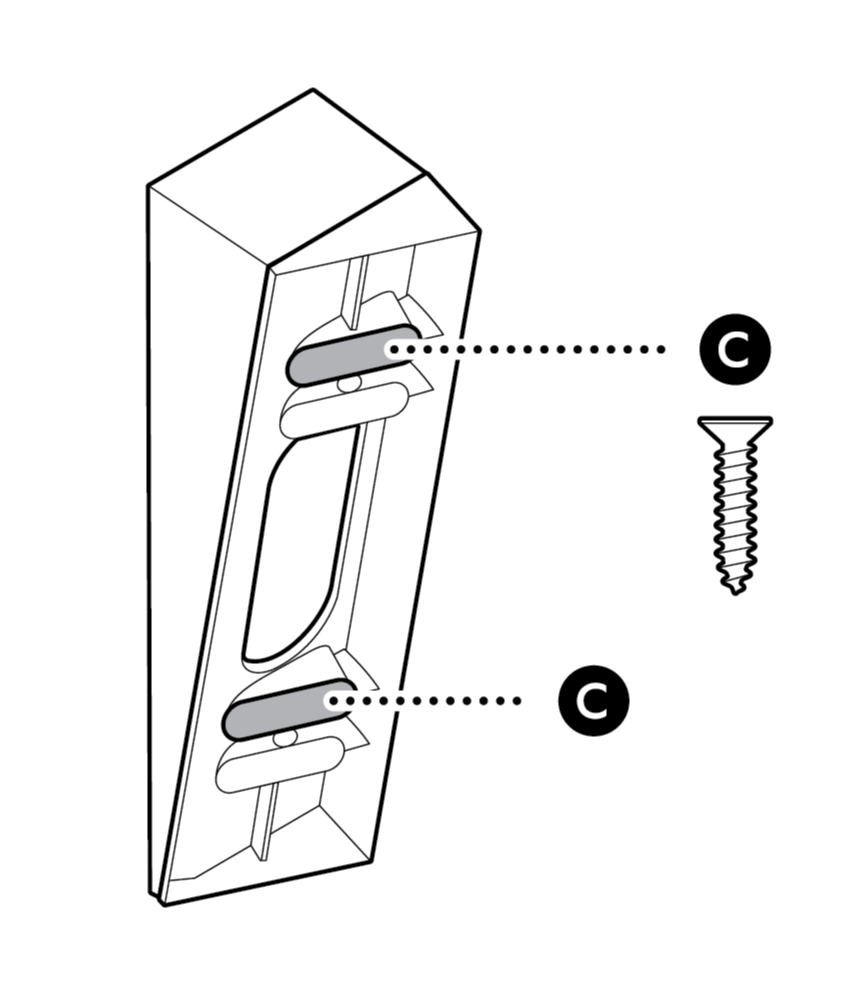

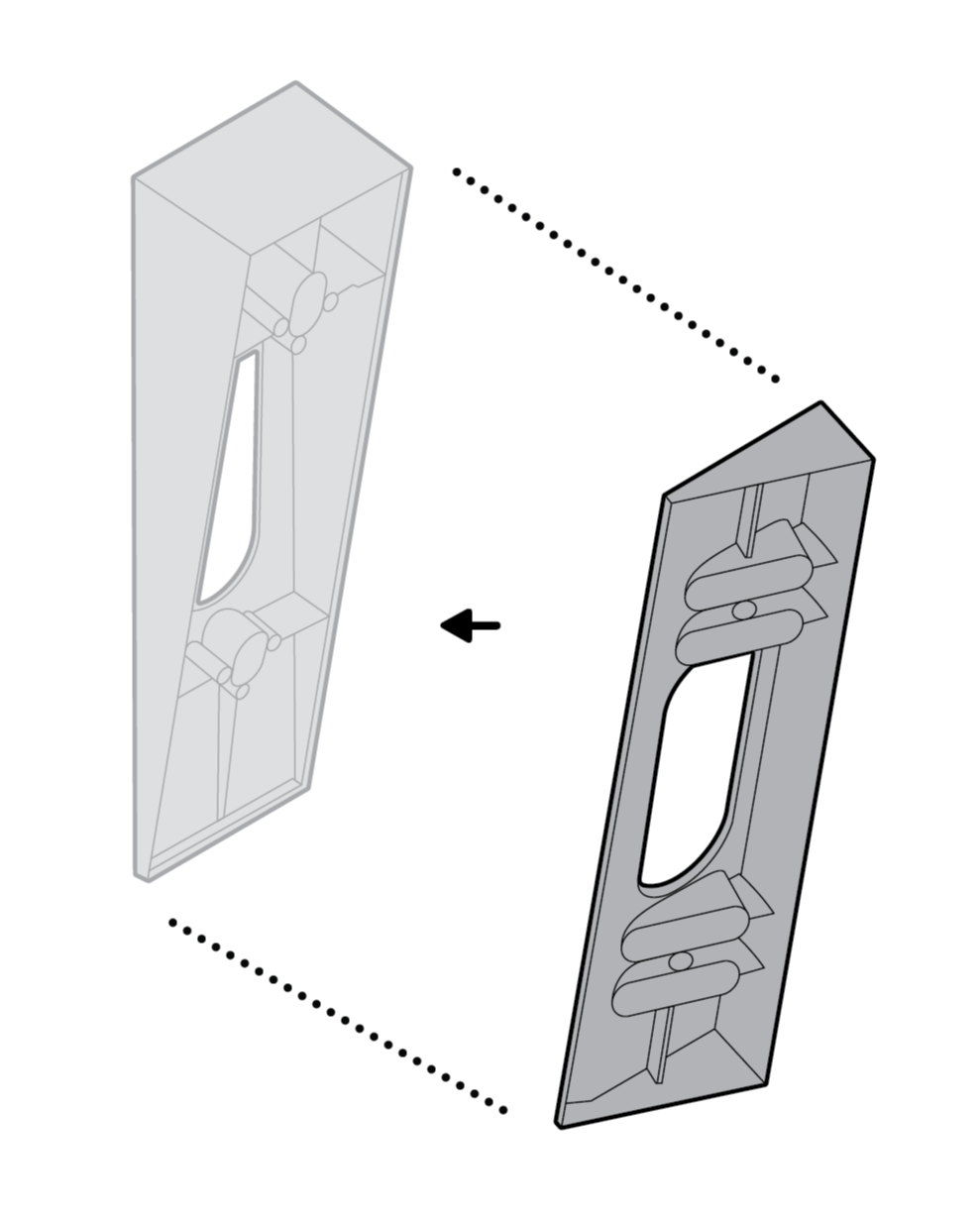

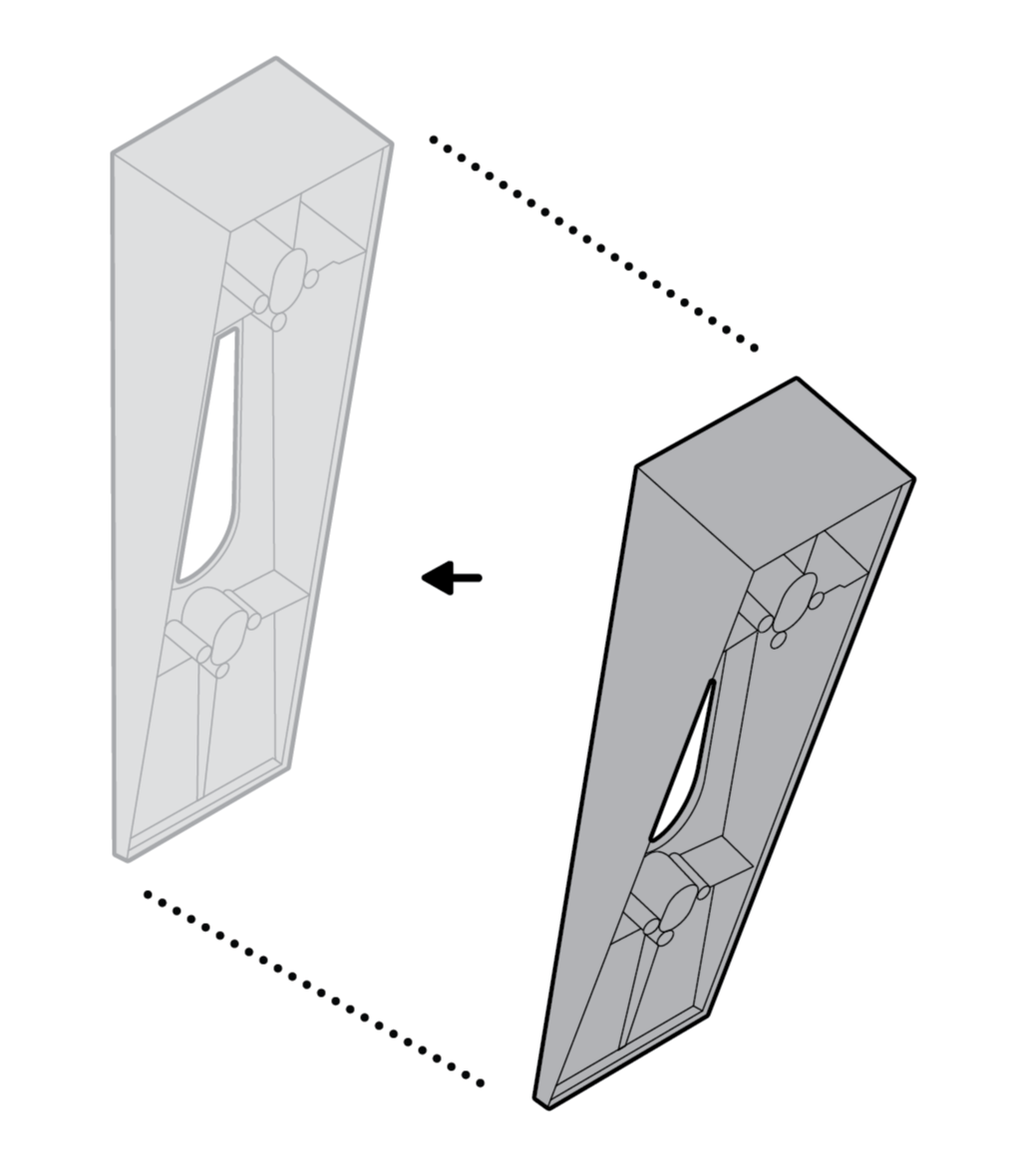

1. If installing multiple wedge or corner mounts, insert the included screws through both mounts to hold them together.

NOTE: We do not recommend using more than two.

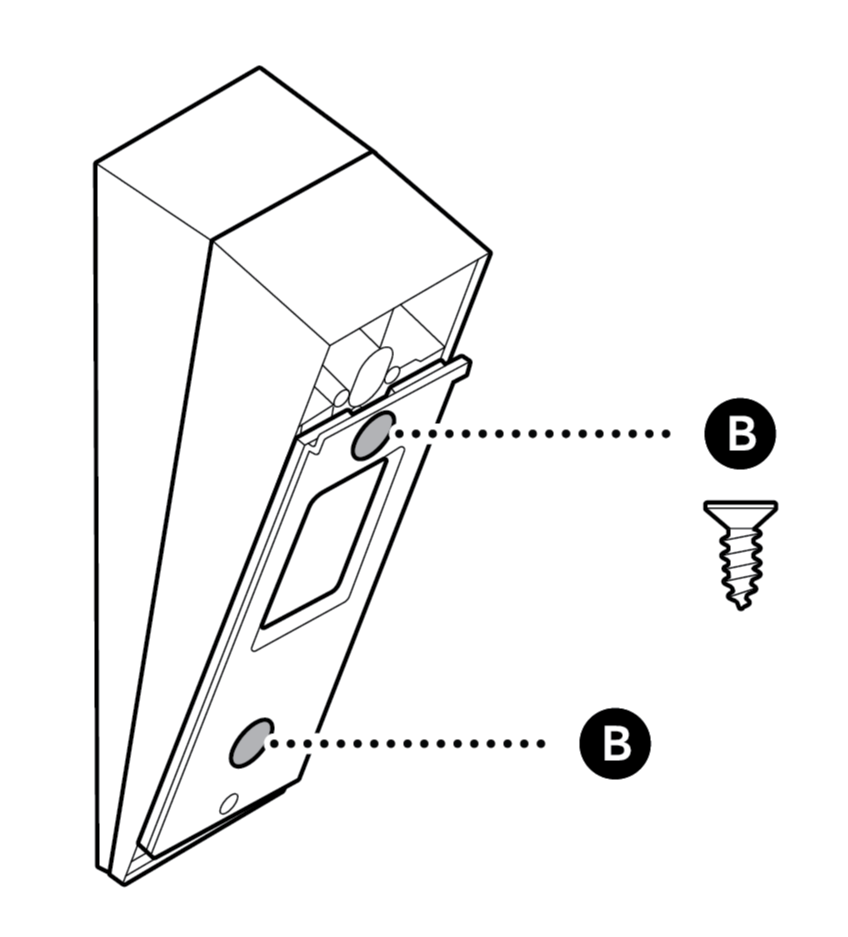

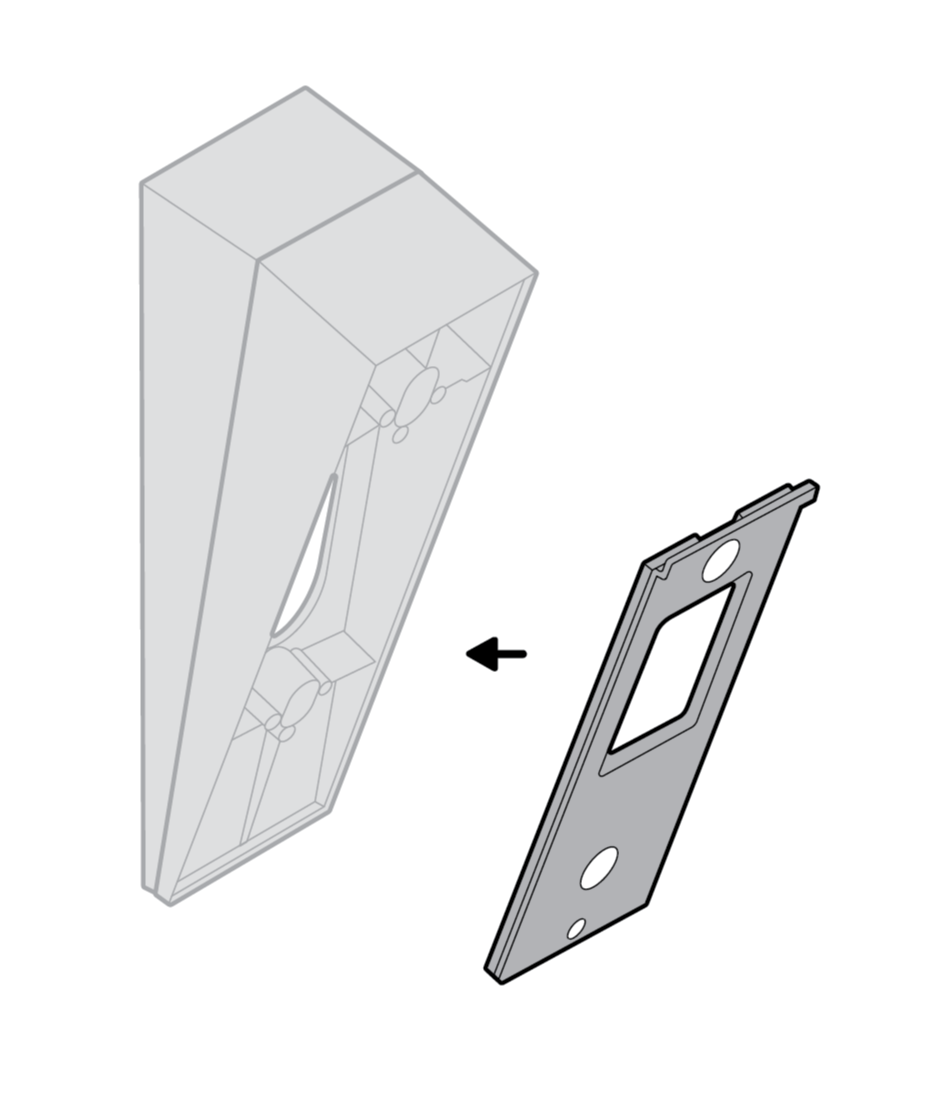

1. Attach your doorbell's mounting bracket over the mount.

1. Refer to your doorbell setup guide to complete setup.
