Installing Wired Video Doorbell Elite (2nd Gen)


Safety and compliance information for Wired Doorbell Elite (2nd Gen)

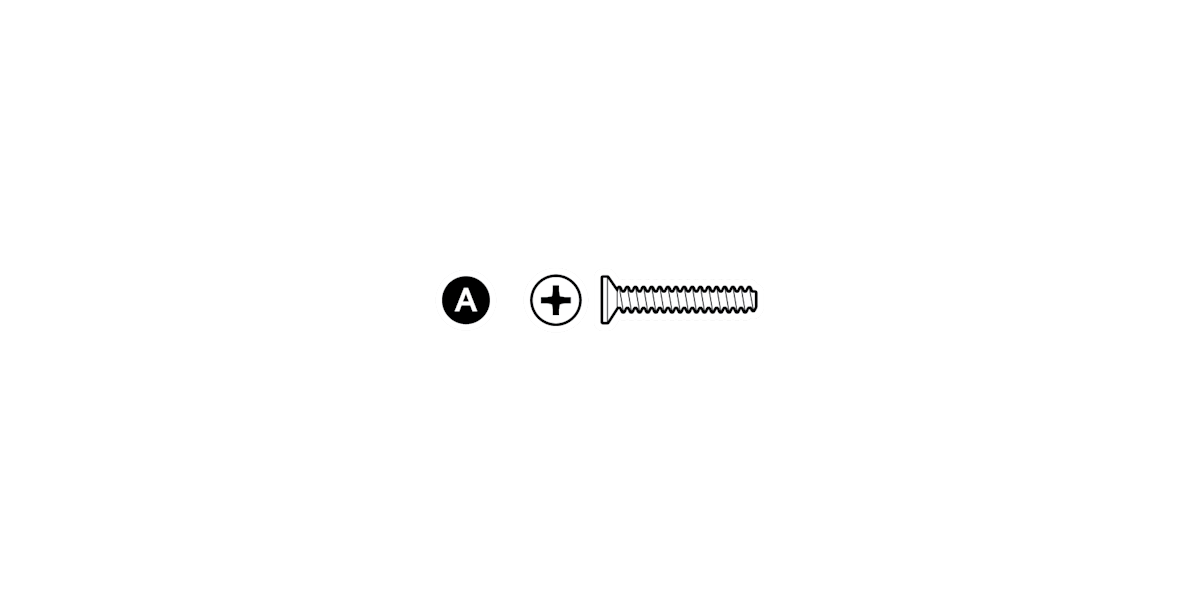

Hardware included

Three icons: letter A, plus sign, and screw illustration

Tools needed

Simple line drawing of a flathead screwdriver

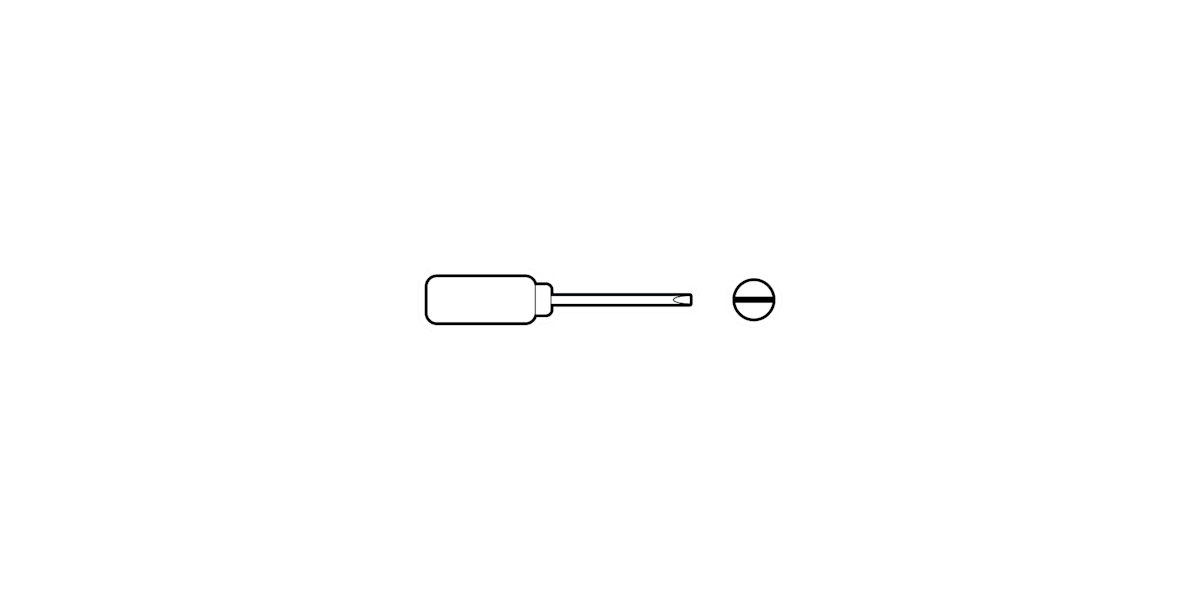

Flathead screwdriver

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

Tools included

Included Removal tool

Removal tool


1. Remove the protective wrap.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Ring logo with downward arrow in black outline

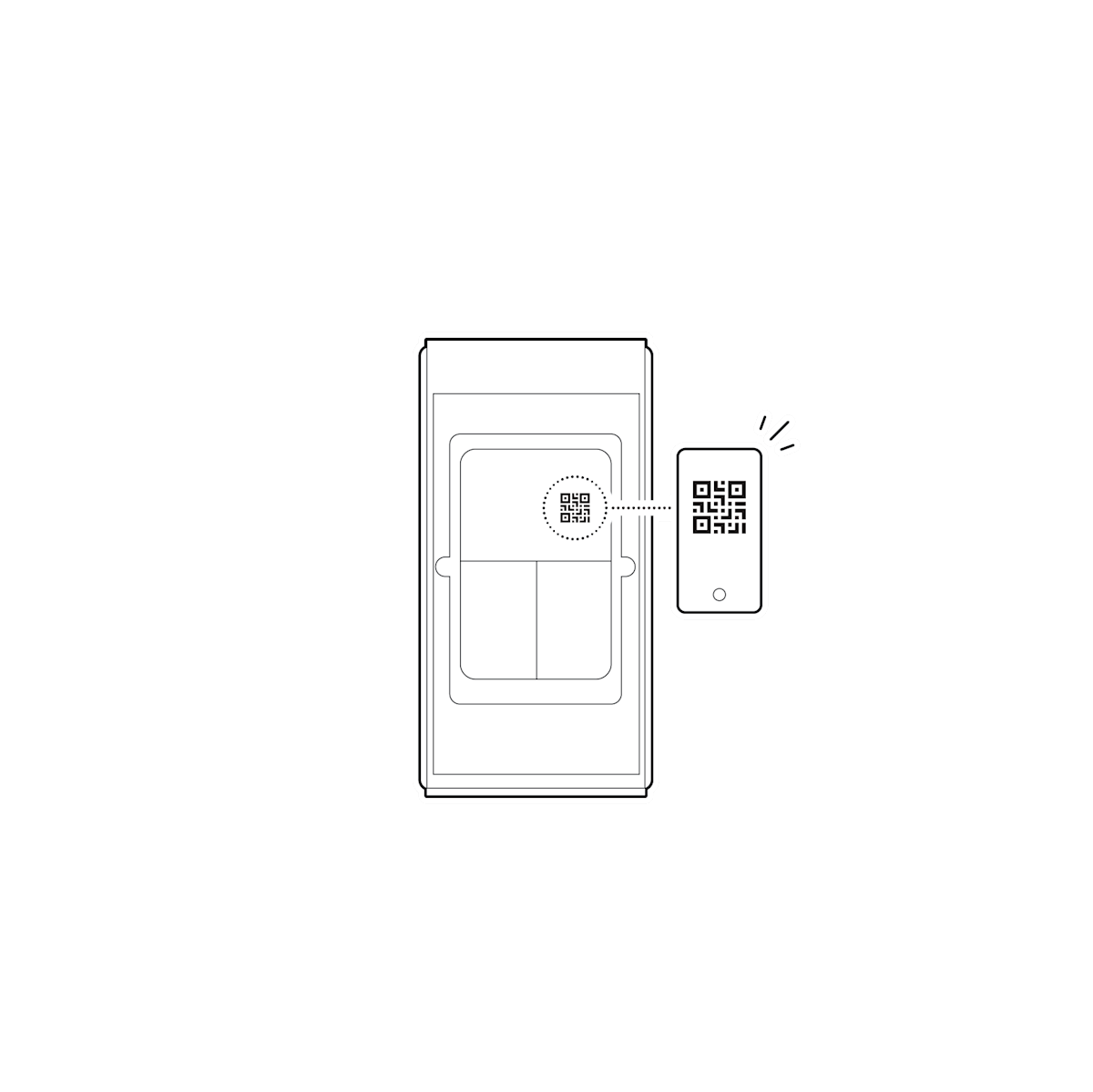

3. Scan the QR code on your device.

Mobile phone scanning QR code from document

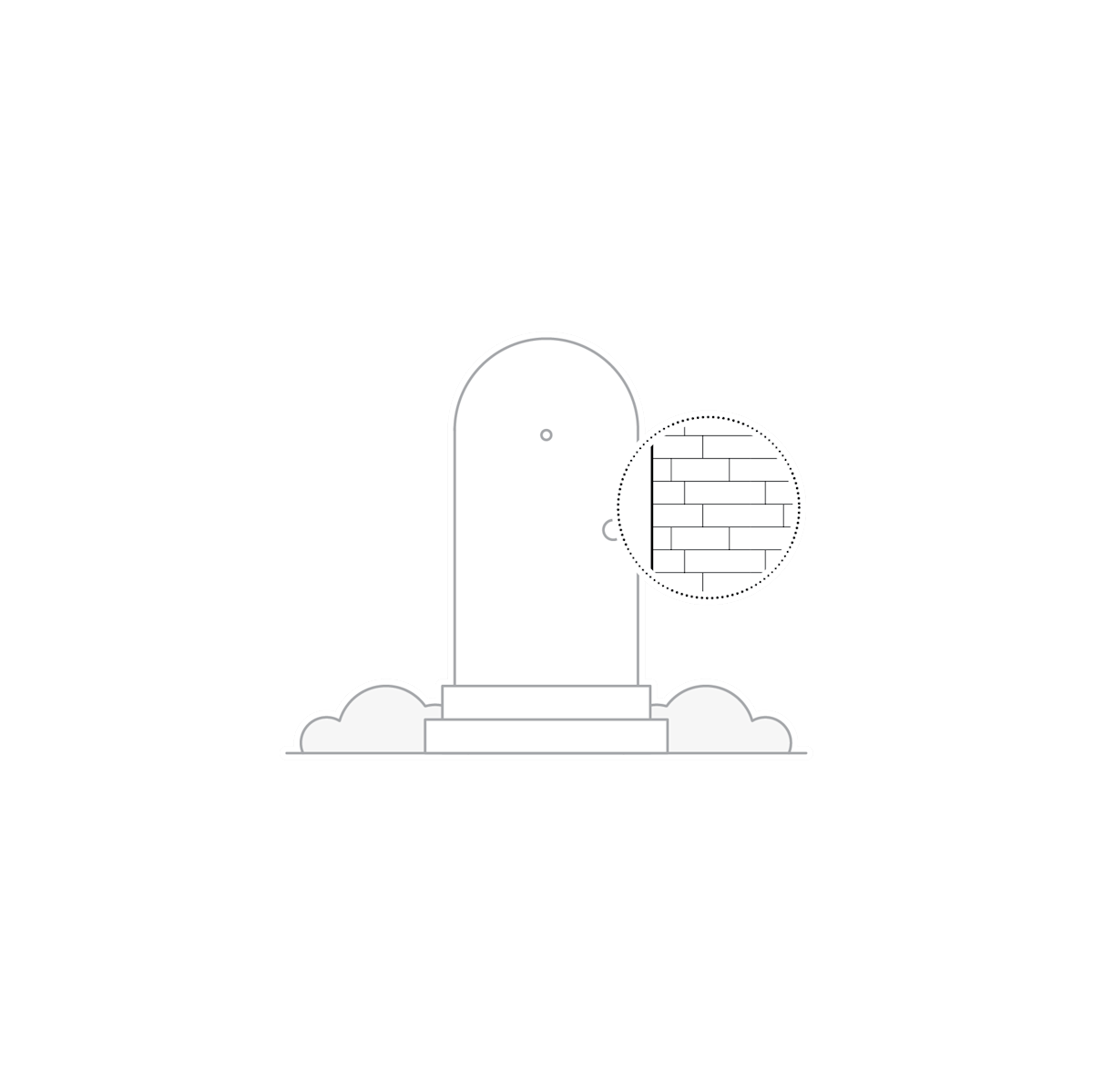

4. Assess your wall’s construction.

Important note: Depending on your wall’s construction, you may be required to install the included electrical box or another suitable electrical box. If connecting your doorbell to an in-home chime or access controller, installation by a low-voltage contractor is recommended.

Line drawing of a brick wall detail with architectural base

Electrical box installation

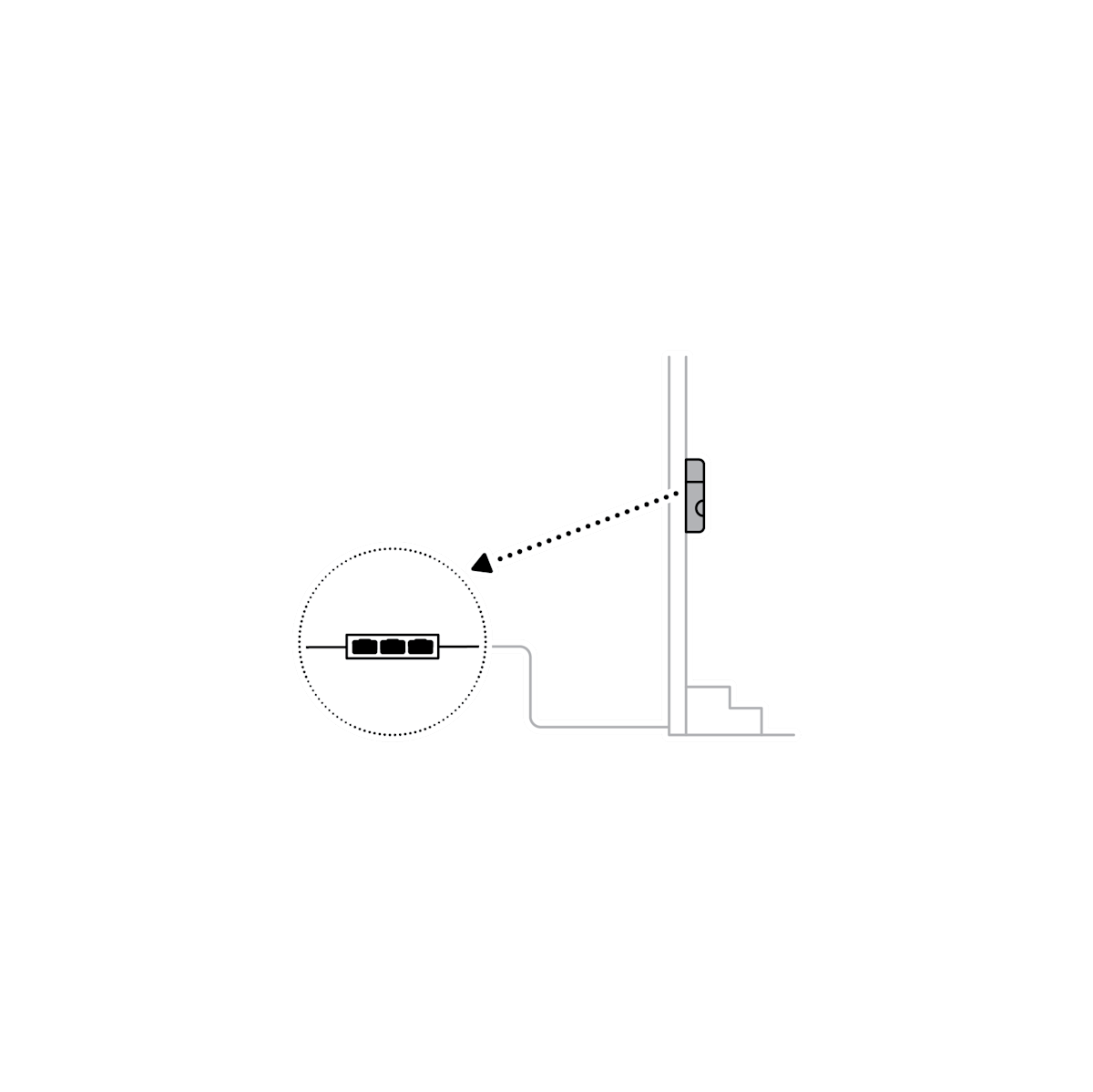

1. Choose a location less than 100 m from your PoE switch or injector.

Important note: Before installation, ensure your Power over Ethernet (PoE) switch or injector capable of PoE+ (802.03at) is active and connected to a functioning Category 5e or higher Ethernet cable.

Diagram showing network switch installation with mounting points and cable routing

2. (Optional) If connecting your doorbell to an existing in-home chime or access controller system, shut off power at the breaker.

Illustration showing to shut off power at the breaker prior to installation.

3. (Optional) Depending on your wall’s construction, you may need to replace your existing electrical box with an enclosed electrical box (not included).

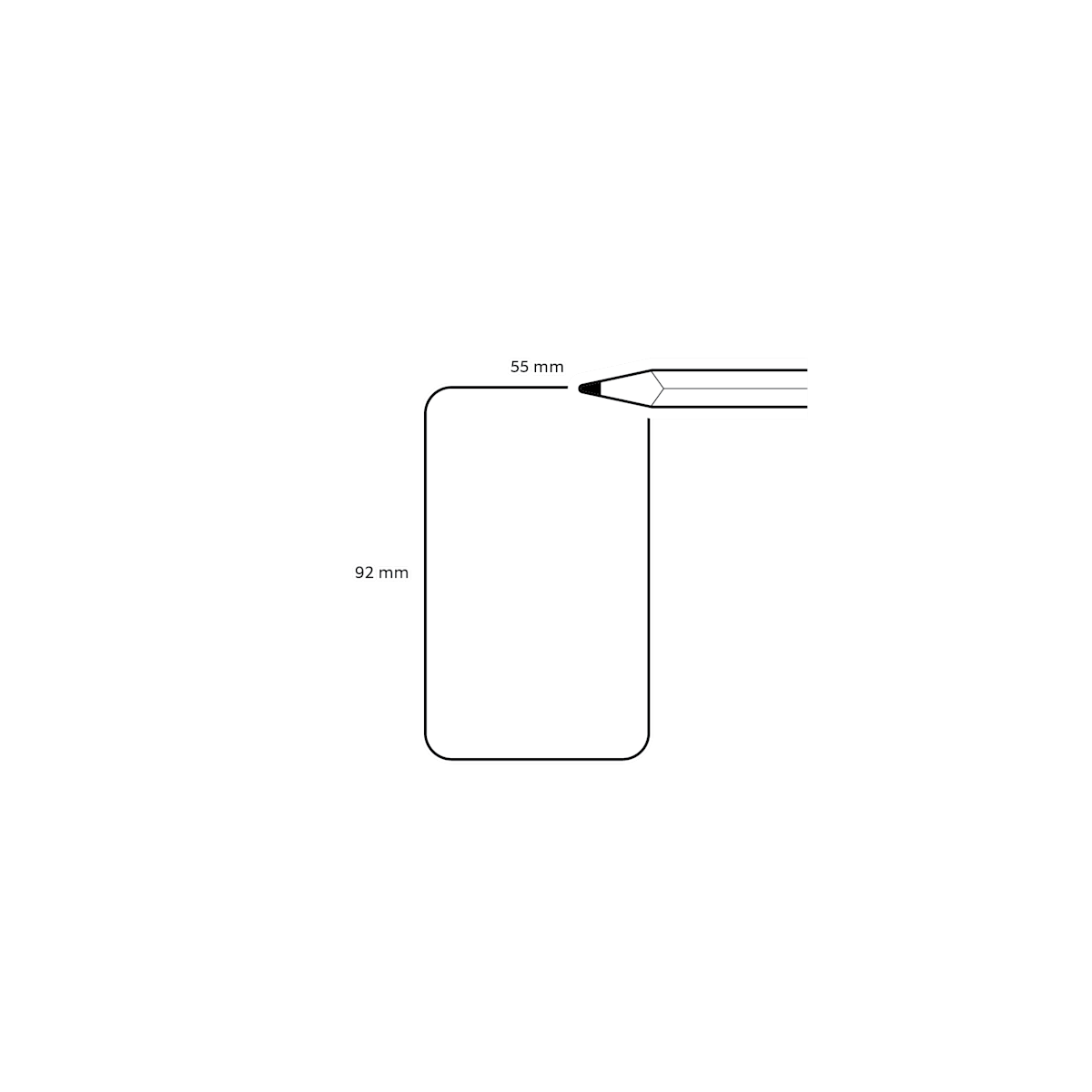

Important note: Use the included template to trace and cut a rectangular hole in the wall at your desire installation location for an enclosed electrical box, if necessary.

Technical diagram showing the template dimensions of 92mm height and 55mm width

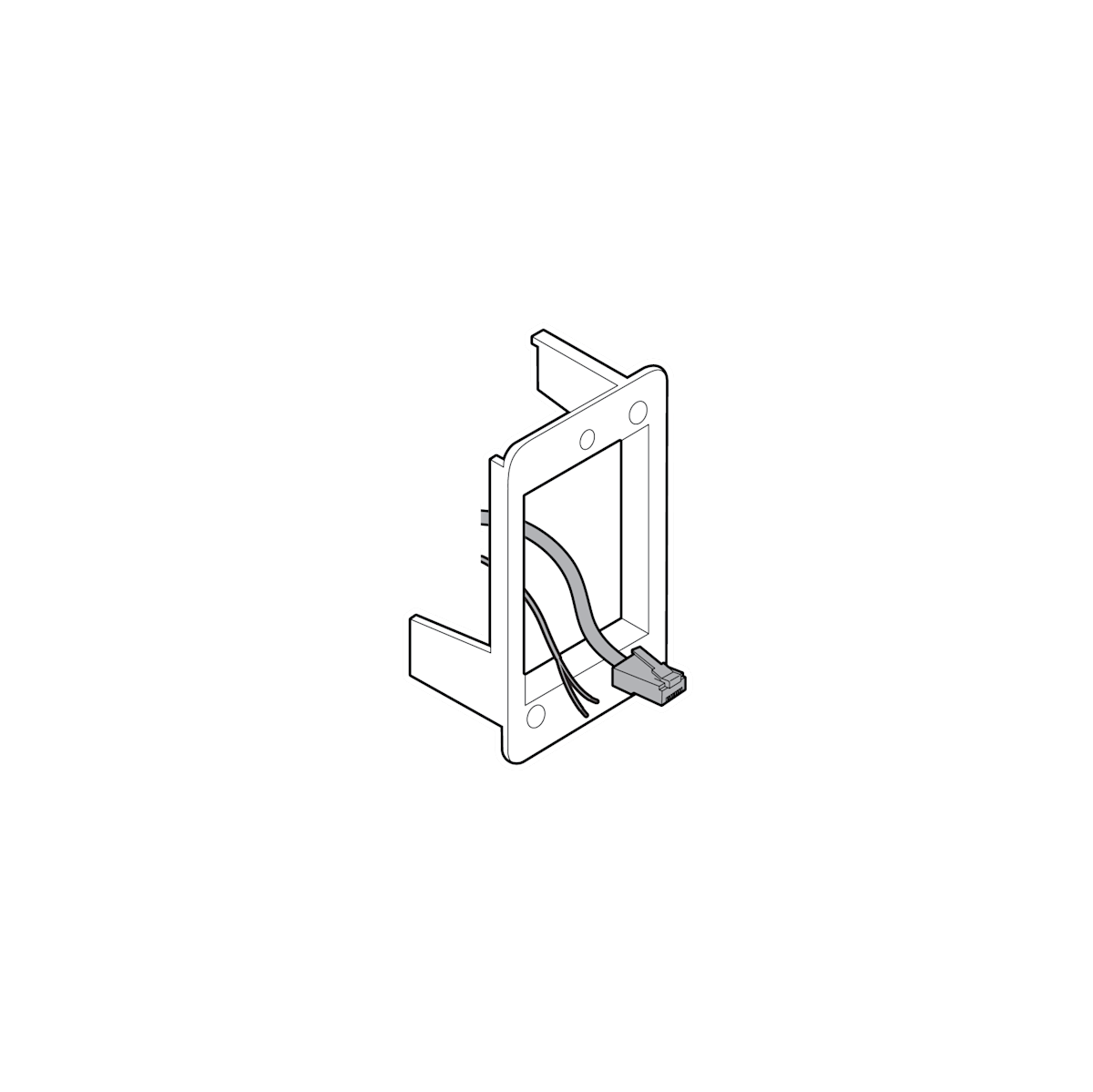

4. Route your Ethernet cable and any existing wires to the opening and through the center of the electrical box.

Important note: The cable and wiring must be routed from inside your wall.

Technical diagram of electrical wiring in wall cavity

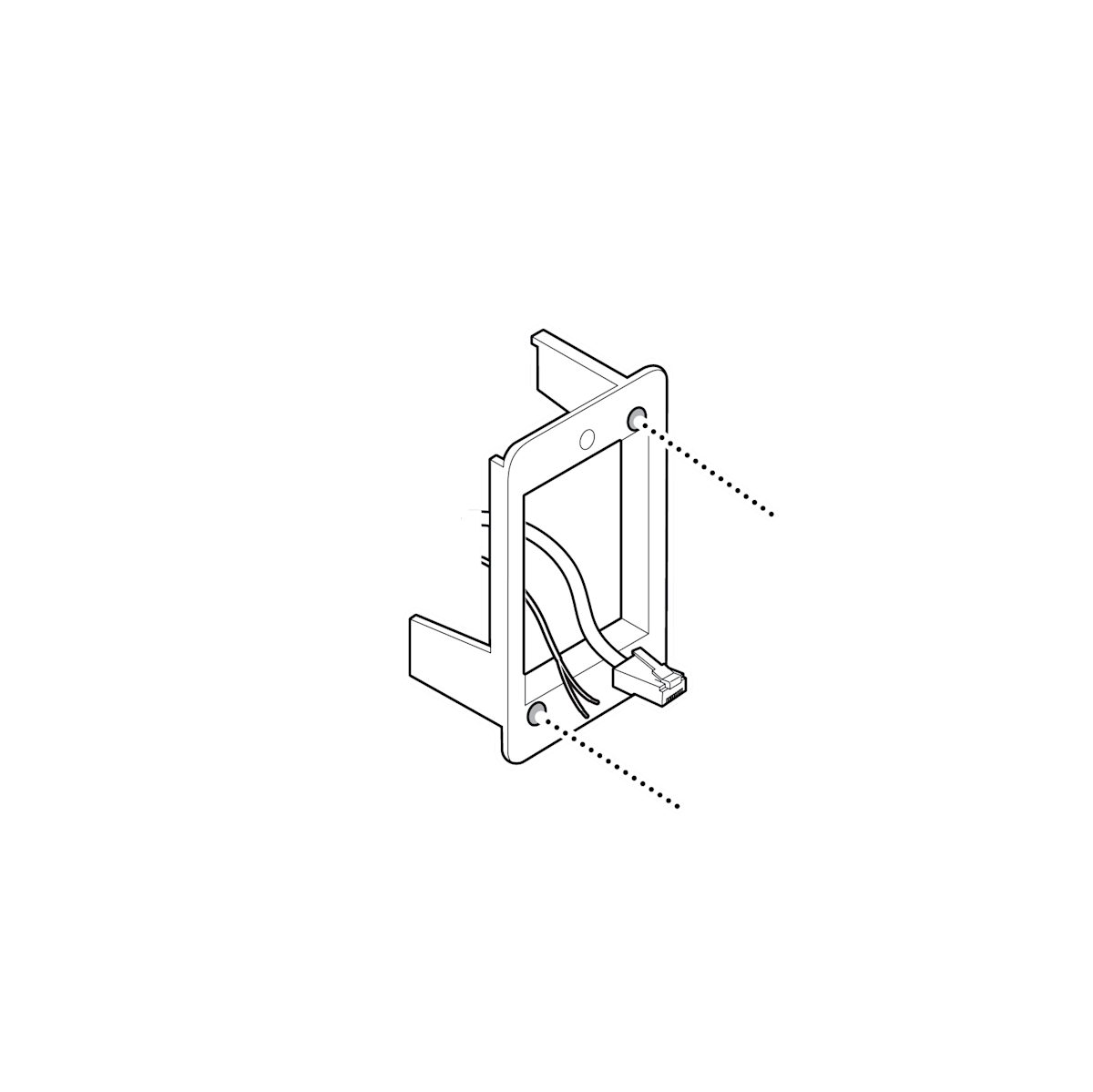

5. Use the included screws to install the electrical box.

Important note: The wing clamps will rotate as the screws turn to secure the electrical box in place.

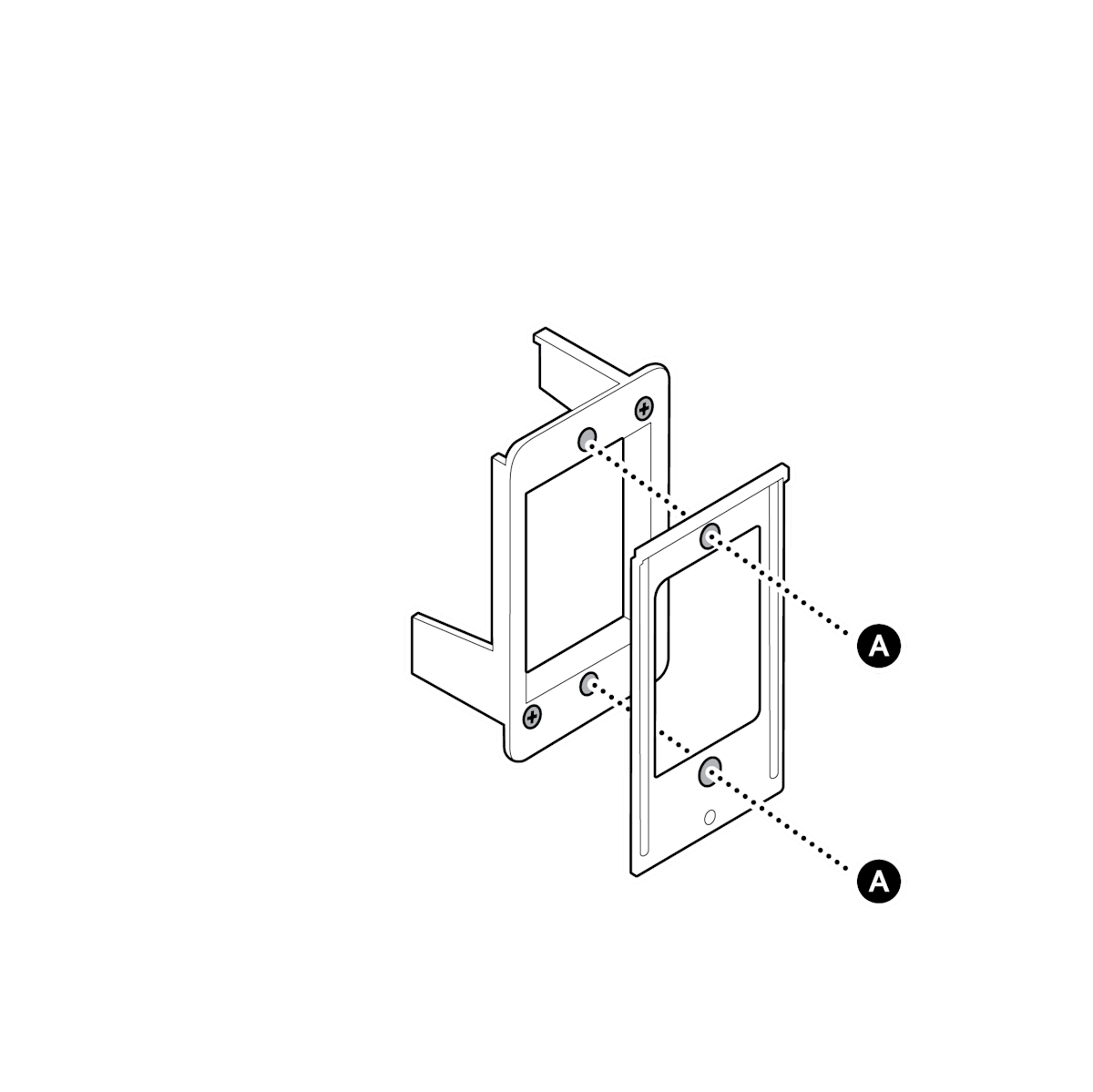

6. Install the mounting bracket onto the electrical box.

Wall bracket with marked screw points A and B

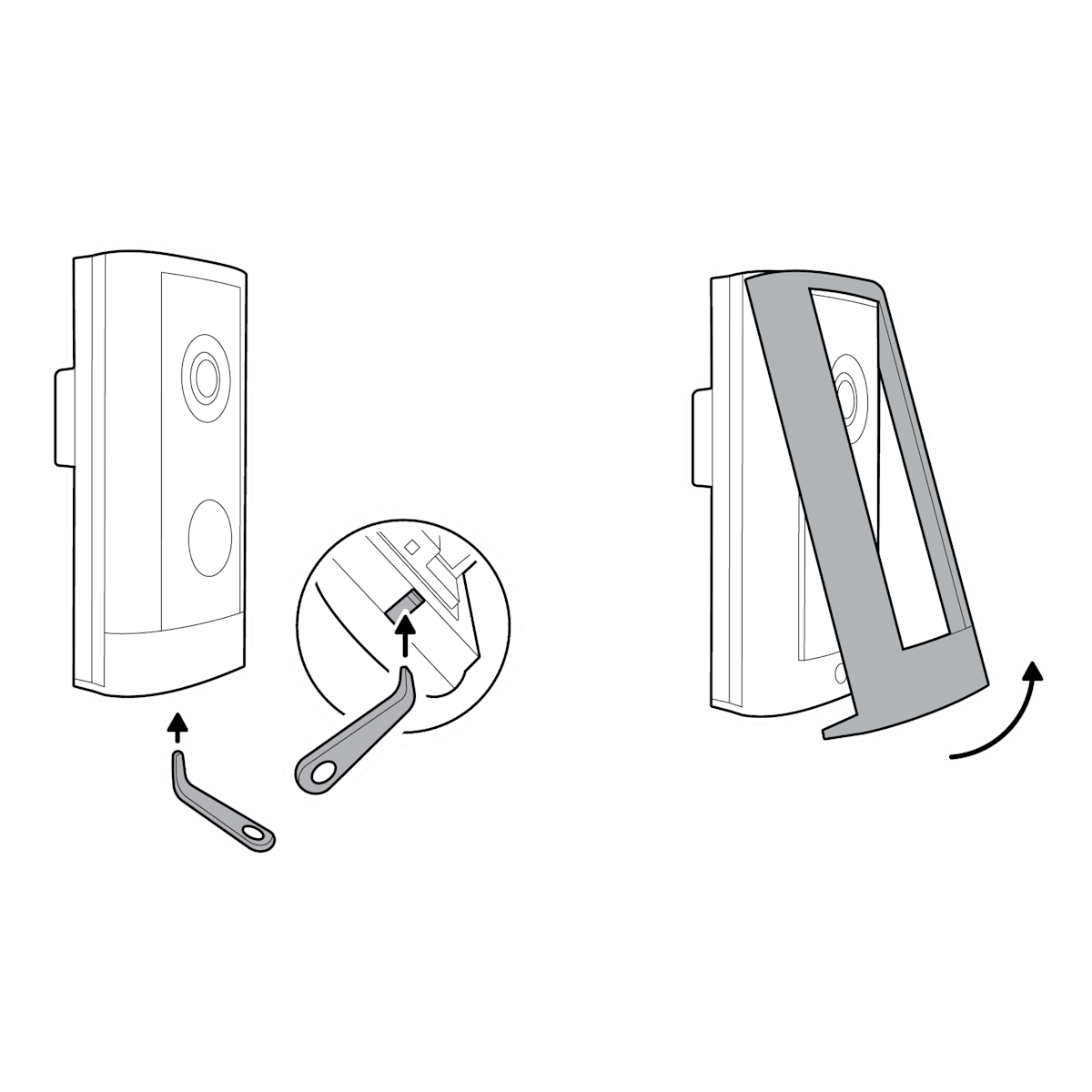

7. Use the removal tool to remove your doorbell’s faceplate.

Technical diagram showing the use of the removal tool to remove the faceplate to the ring device.

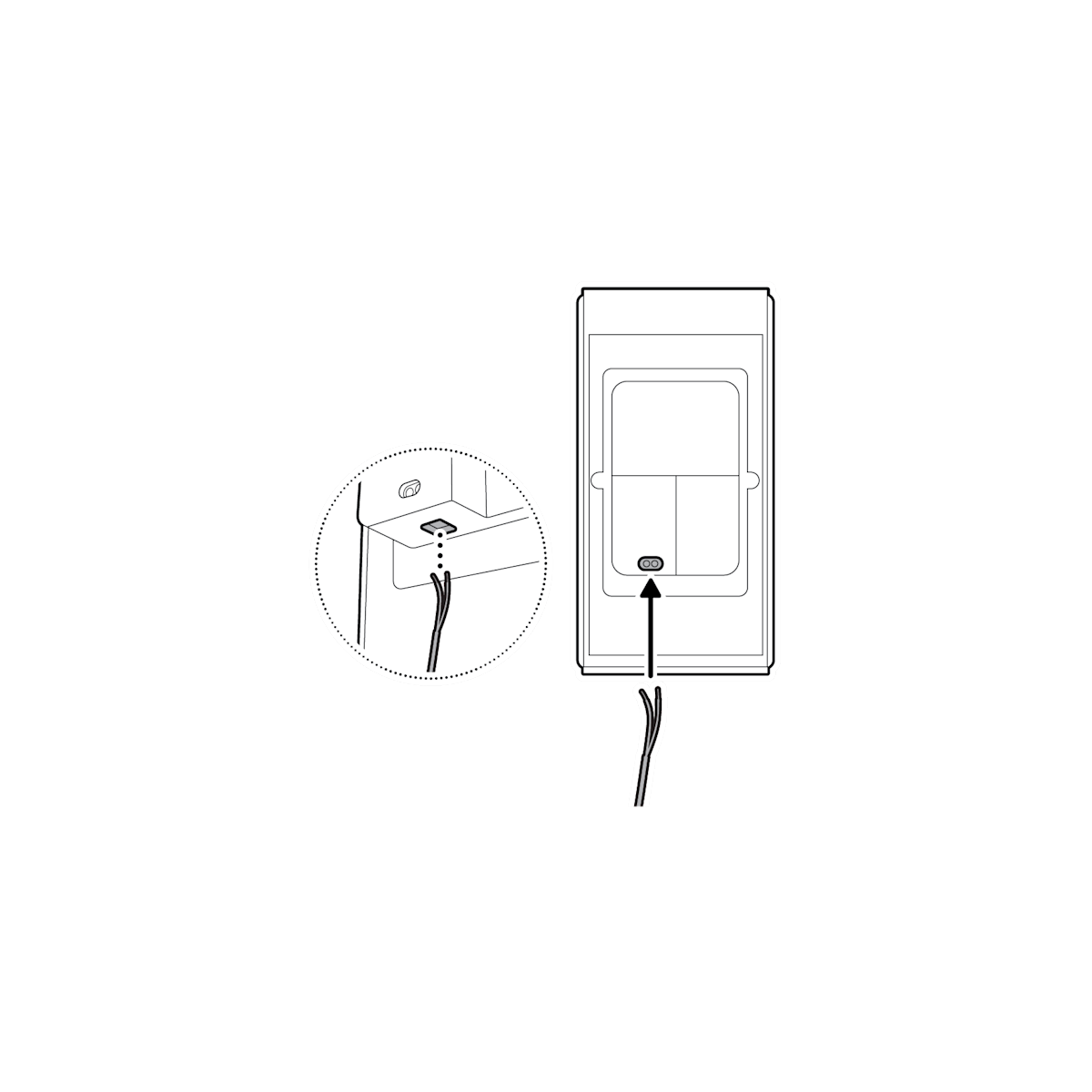

8. (Optional) If connecting to an existing chime, ensure it is compatible (8 to 24 VAC or 8 to 40 VAC) before using a flathead screwdriver to connect the wiring to your doorbell’s wire terminals.

Important note: Do not connect existing doorbell wiring if connecting to an existing access control system.

Line drawing of a ring camera indicating where hardwires connect

(Optional) If connecting to an existing access control system, ensure it is compatible (24V 2A) before using a flathead screwdriver to secure the wiring to your doorbell’s wire terminals.

Important note: Do not connect existing access control system wiring if connecting to an existing in-home chime.

Line drawing of a ring camera indicating where hardwires connect

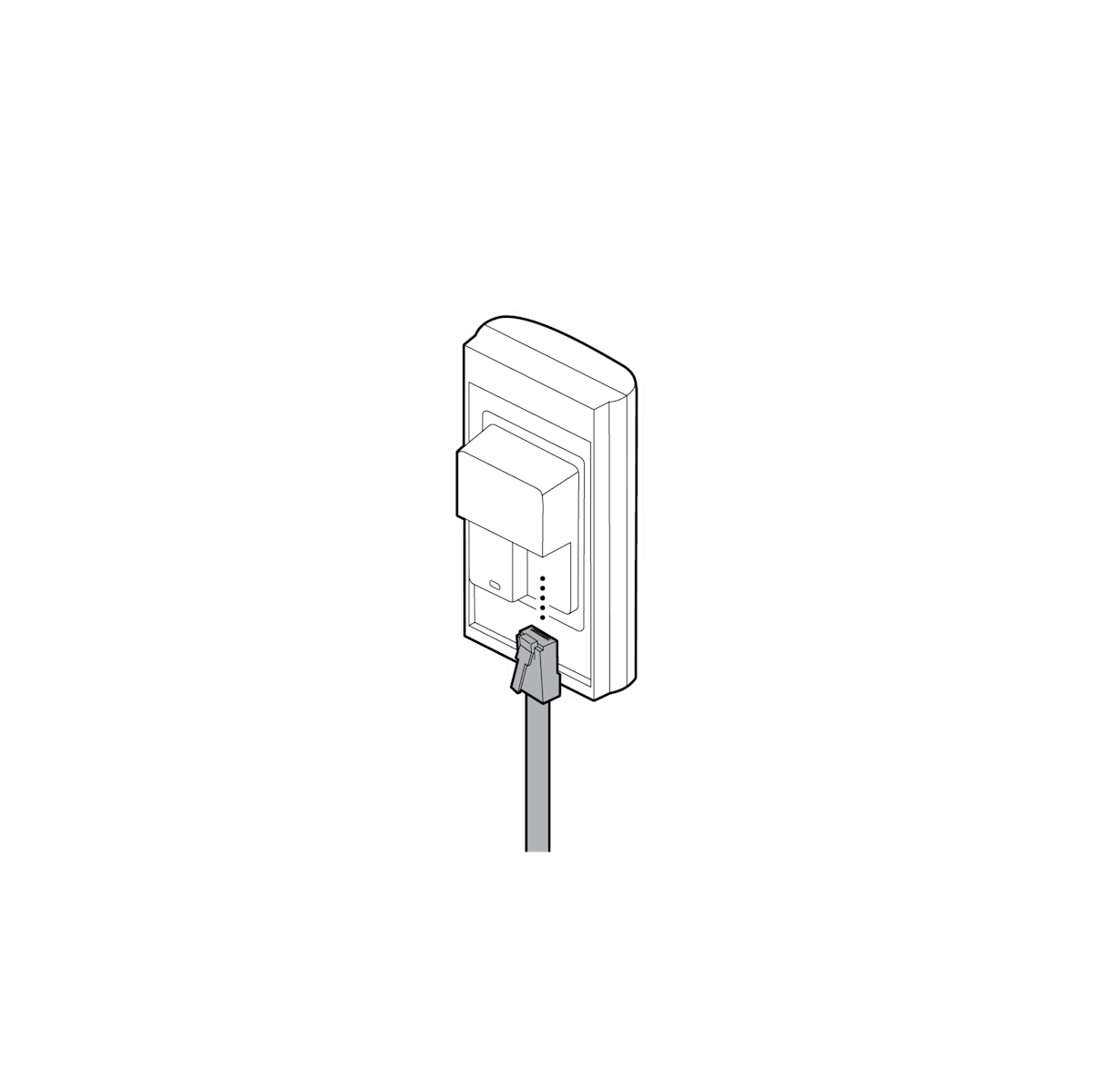

9. Plug the Ethernet cable into the back of your doorbell.

Important note: When properly connected, the front light will begin spinning.

Simple line drawing of the back of the ring camera with a dotted line from the Ethernet cable to the Ethernet port.

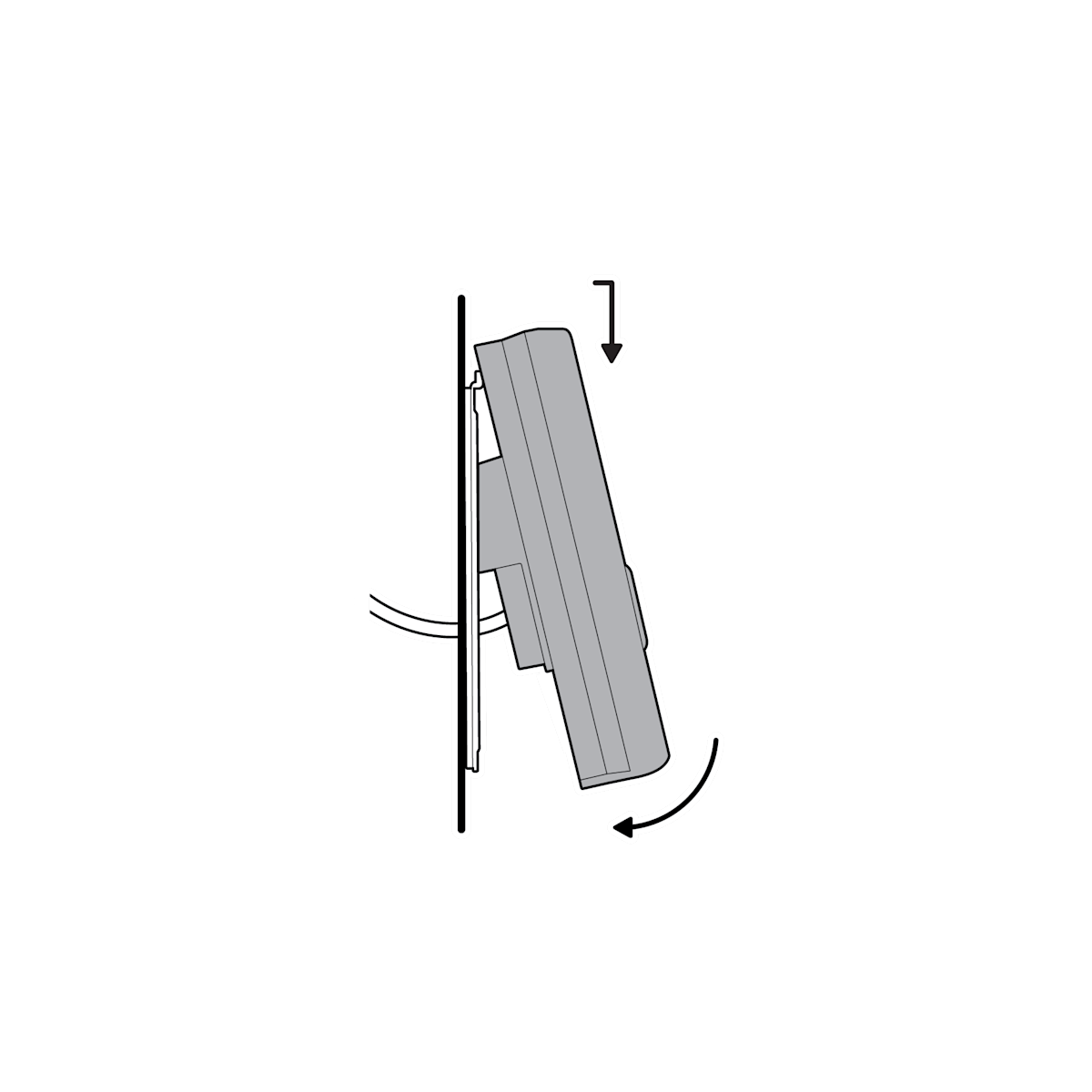

10. Tuck the wires into the wall, then hook your doorbell over the mounting bracket to attach.

Diagram showing camera being secured to the wall with directional arrows

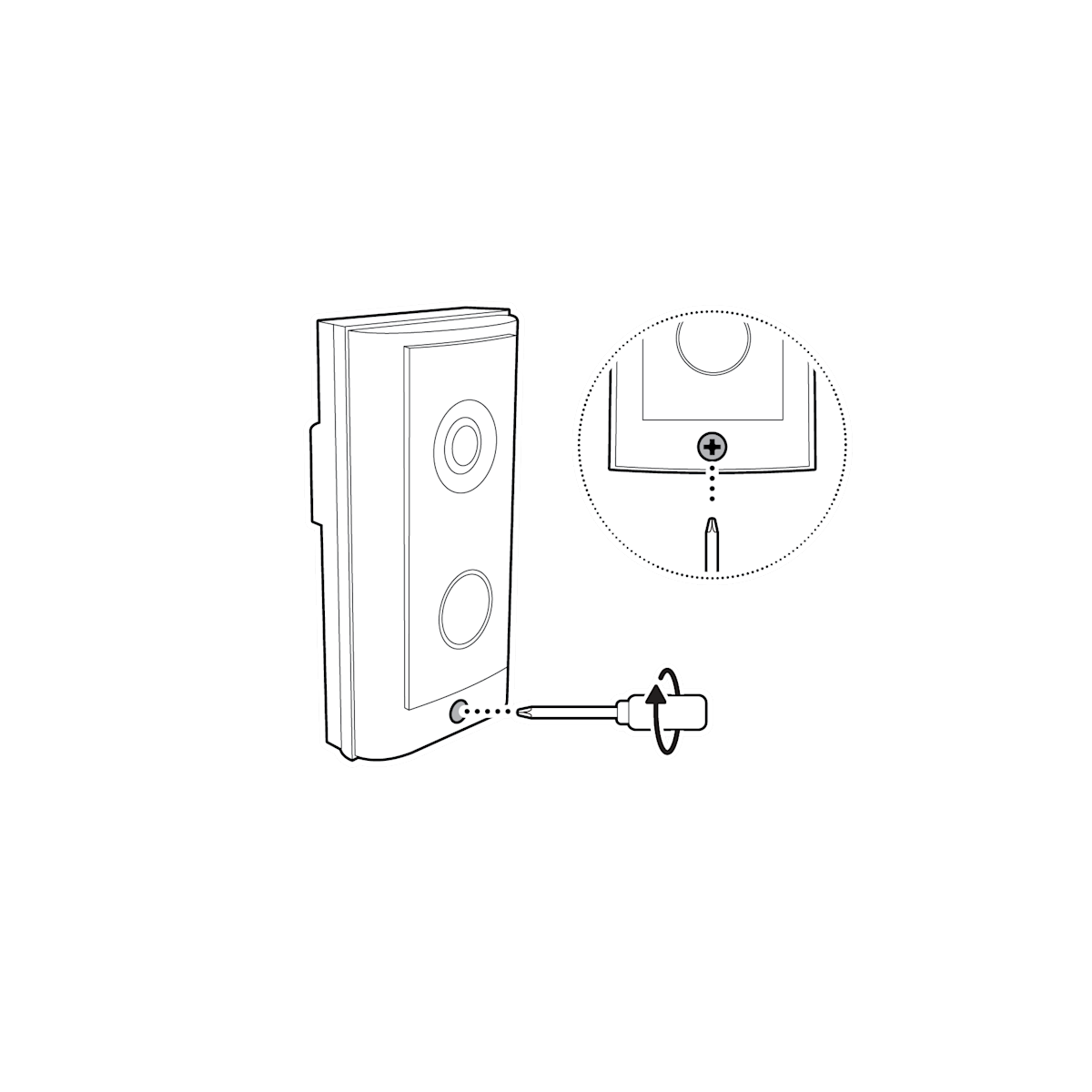

11. Tighten the security screws.

Line drawing of a wall-mounted device with connecting elements

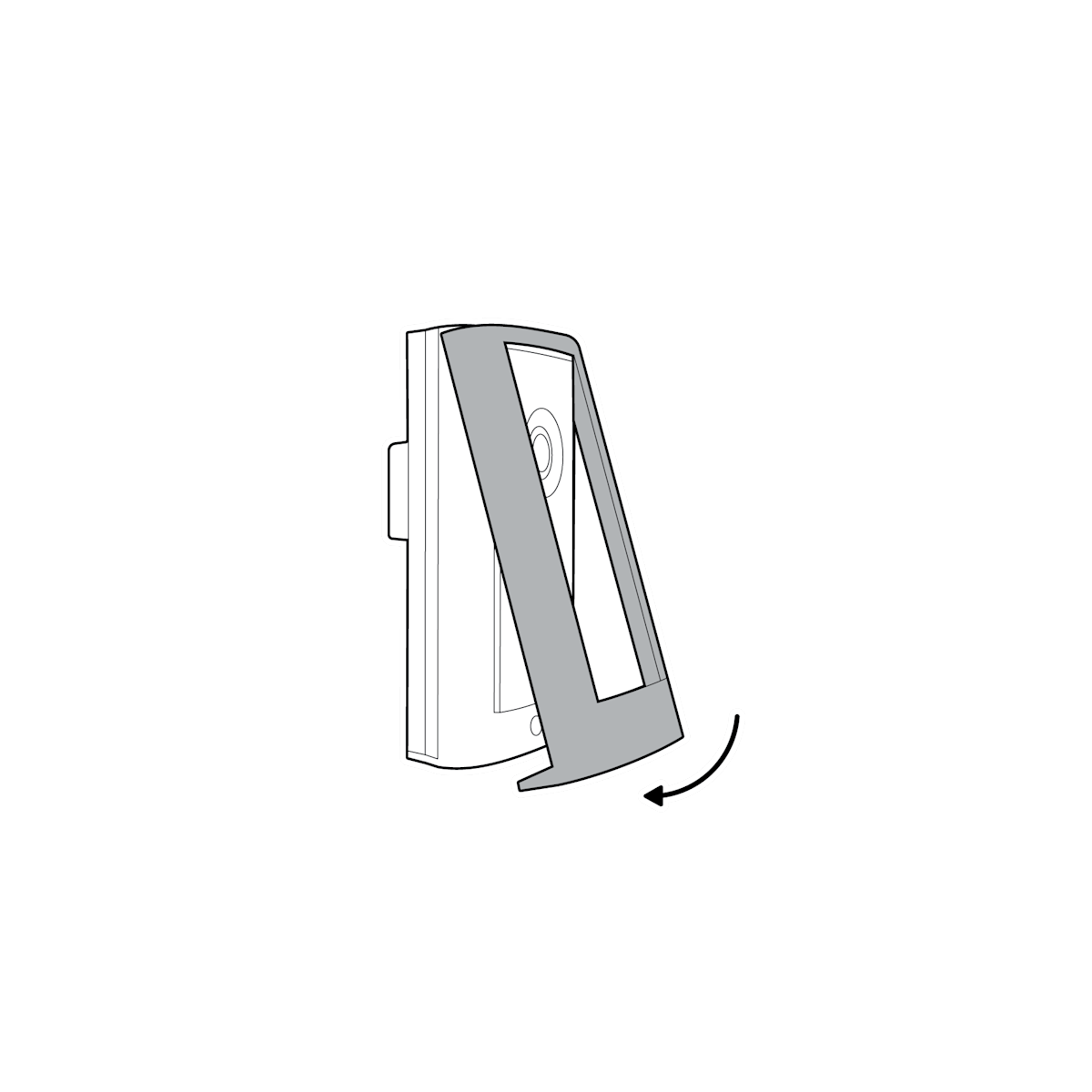

12. Reattach your doorbell’s faceplate.

Line drawing of a diagonal arrow pointing downward to indicate the reattachment of the faceplate

Surface mount installation

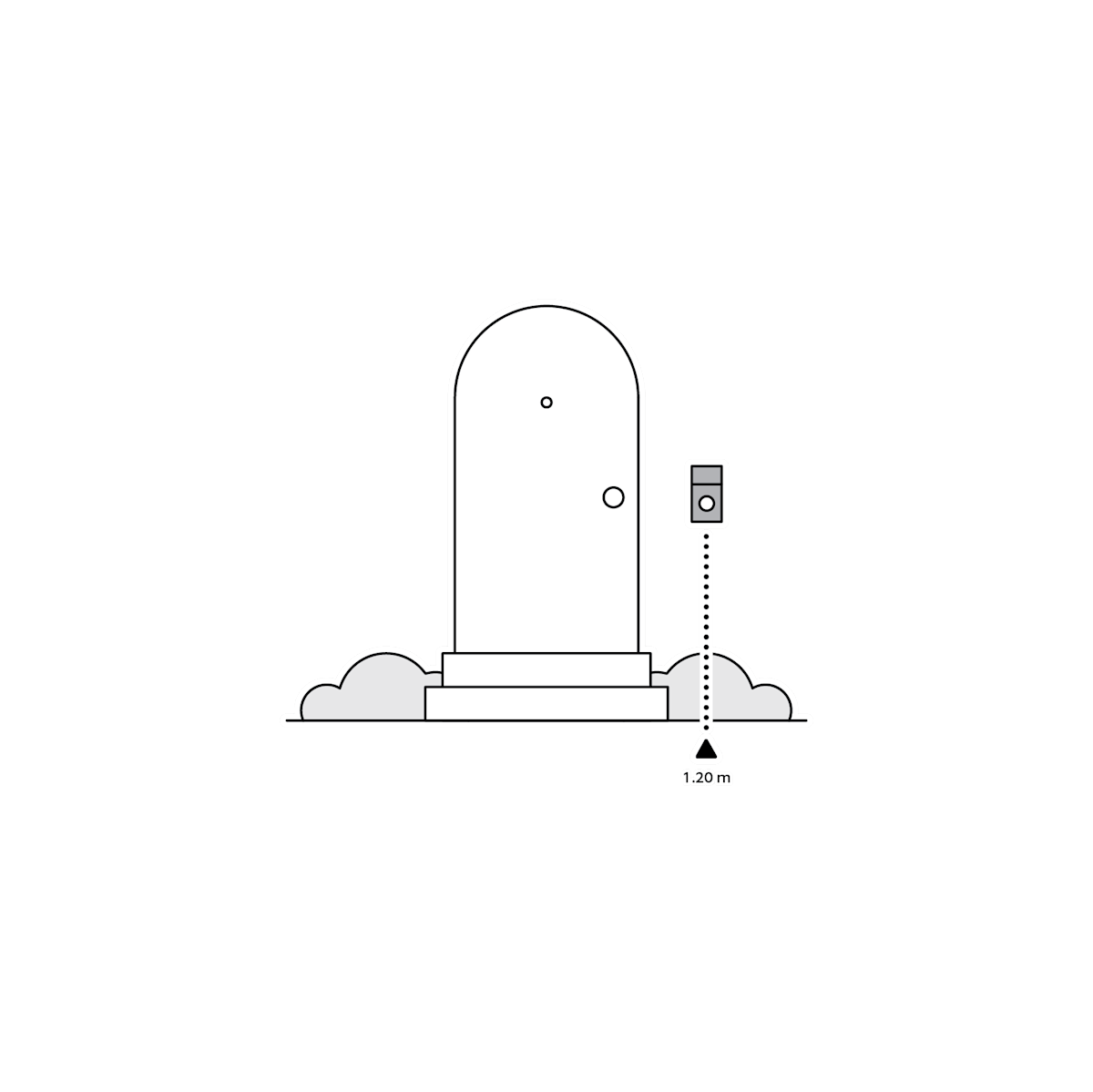

1. Choose a location.

Important note: The surface mount can be installed on a flat surface or directly over existing wiring.

Illustration of Wired Doorbell Elite (2nd Gen) installation -  Choose a location.

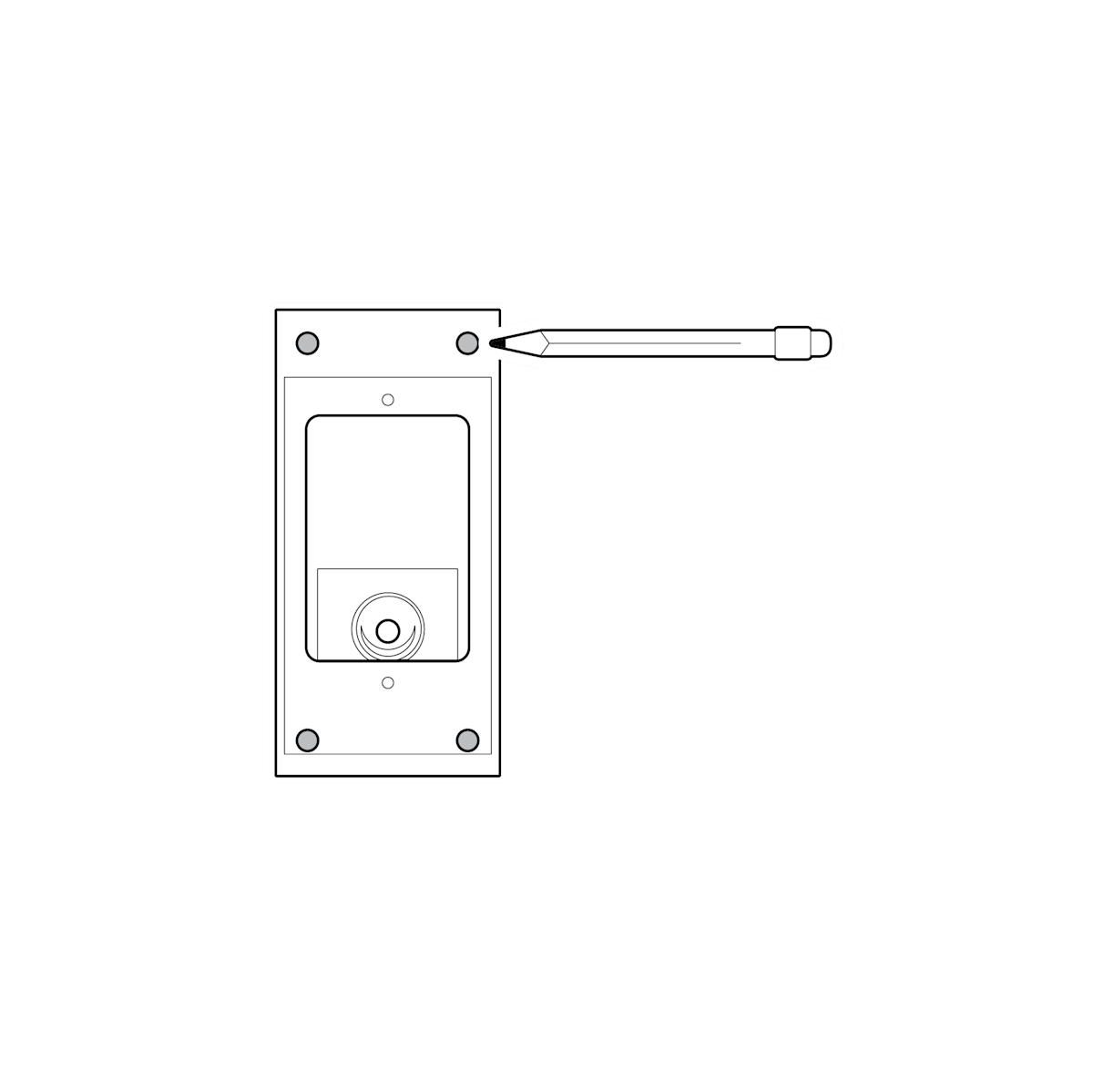

2. Use the surface mount as a guide to mark screw holes on the wall.

Illustration of Wired Doorbell Elite (2nd Gen) installation -  Use the surface mount as a guide to mark screw holes on the wall.

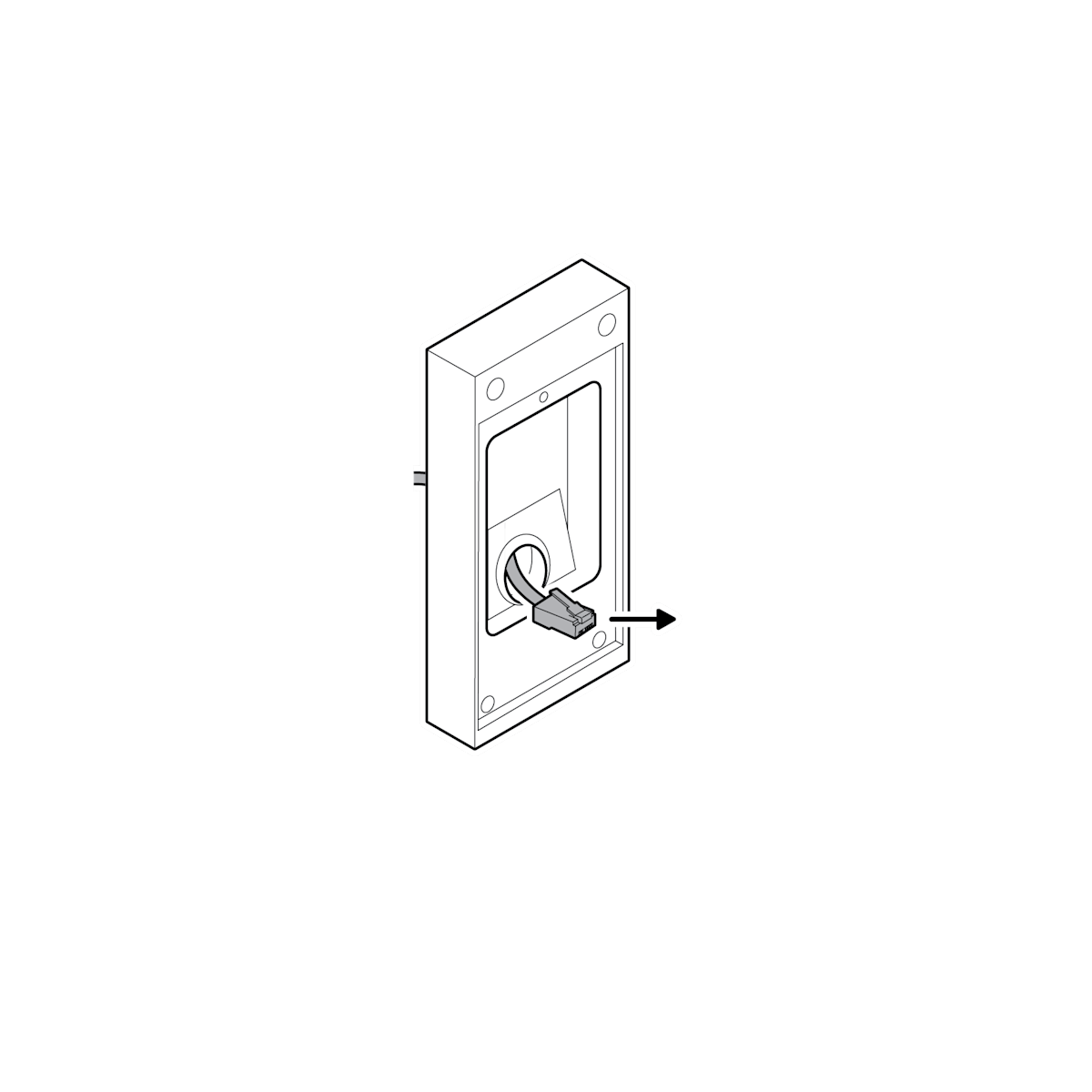

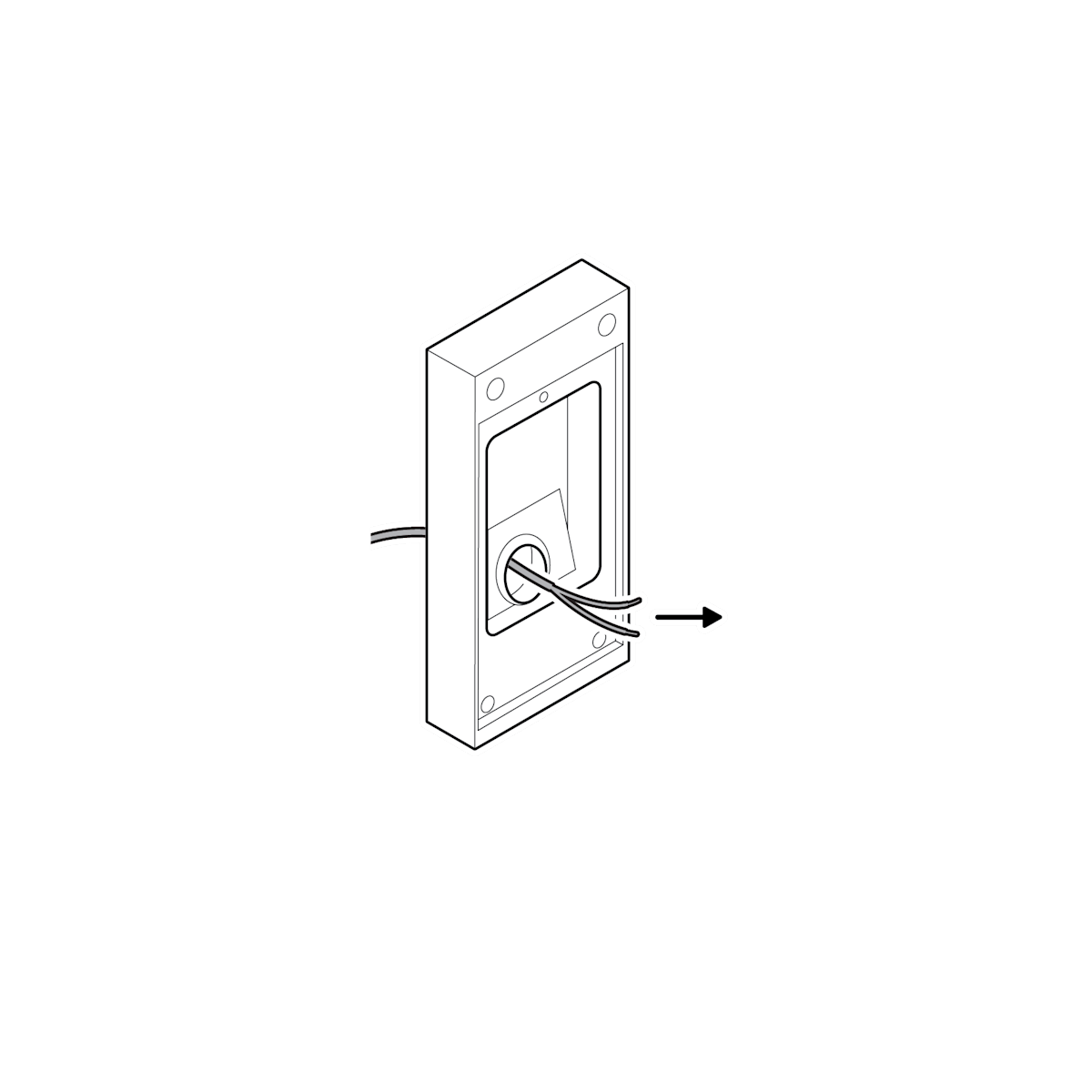

3. Route the wiring through the center hole, ensuring cables are not pinched or kinked.

Illustration of Wired Doorbell Elite (2nd Gen) installation -  Route the wiring through the center hole, ensuring cables are not pinched or kinked. Part one.Illustration of Wired Doorbell Elite (2nd Gen) installation -  Route the wiring through the center hole, ensuring cables are not pinched or kinked. Part two.

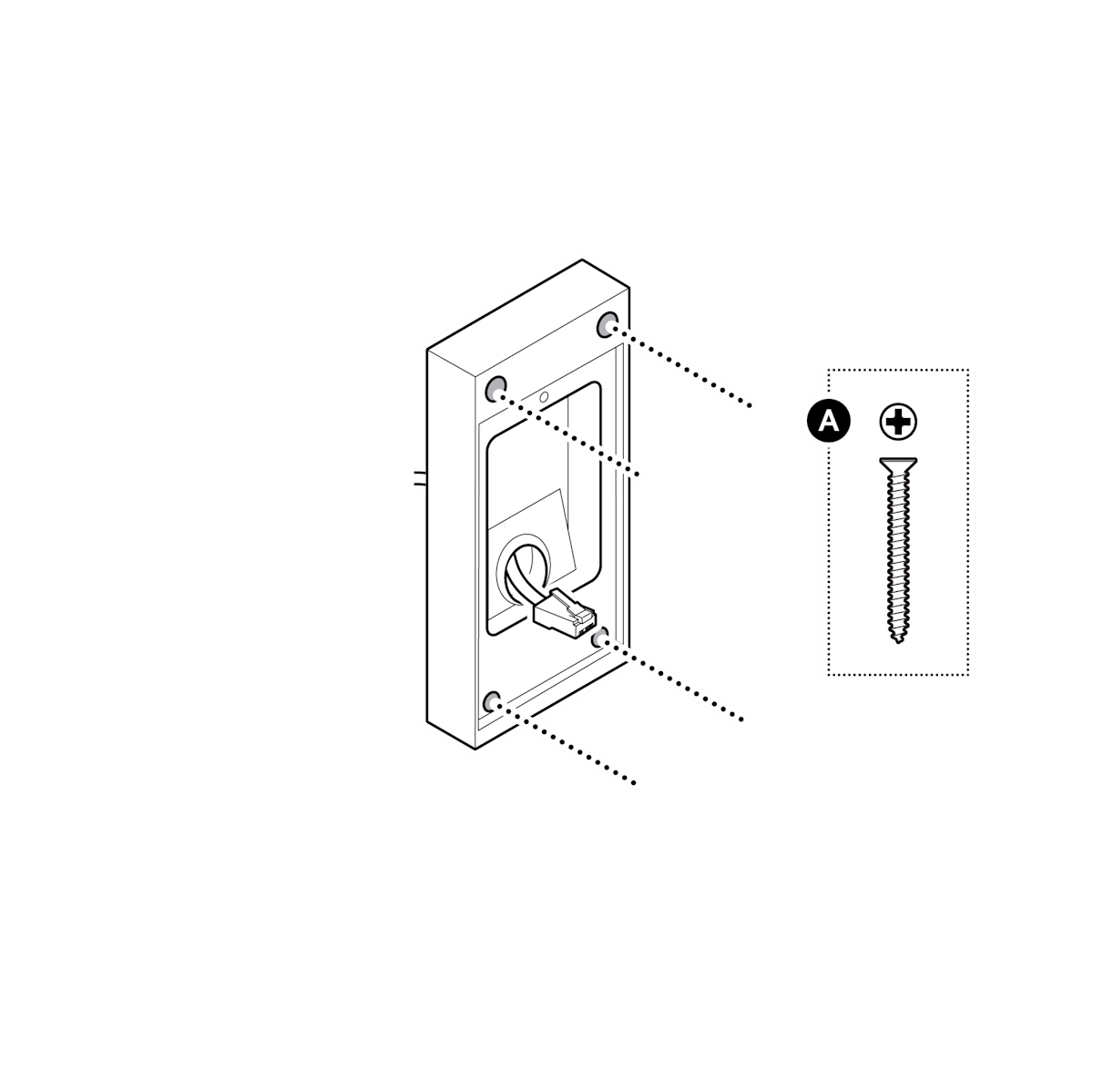

4. Install the surface mount with the included screws.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Install the surface mount with the included screws.

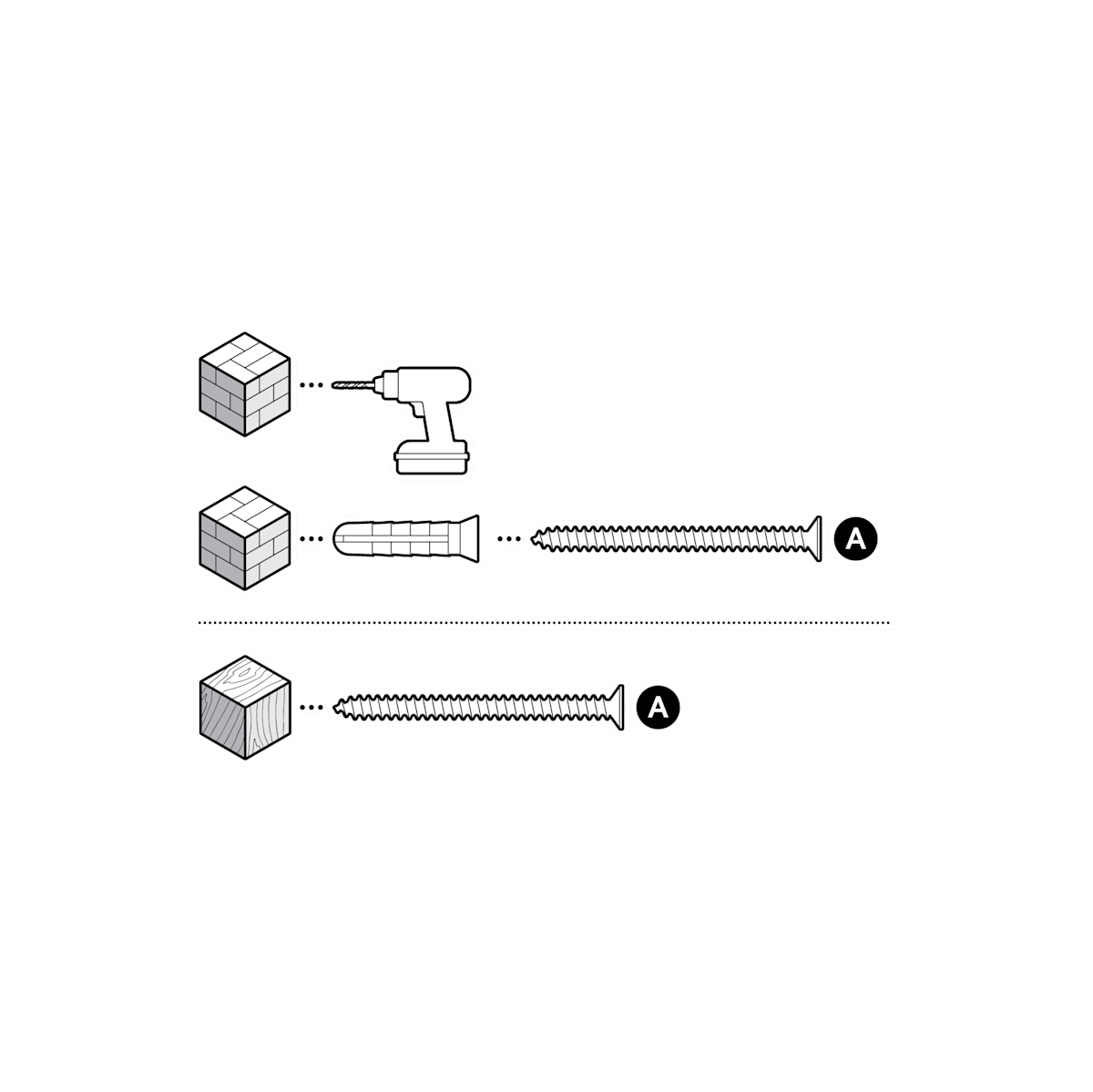

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

Illustration of Wired Doorbell Elite (2nd Gen) installation - On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

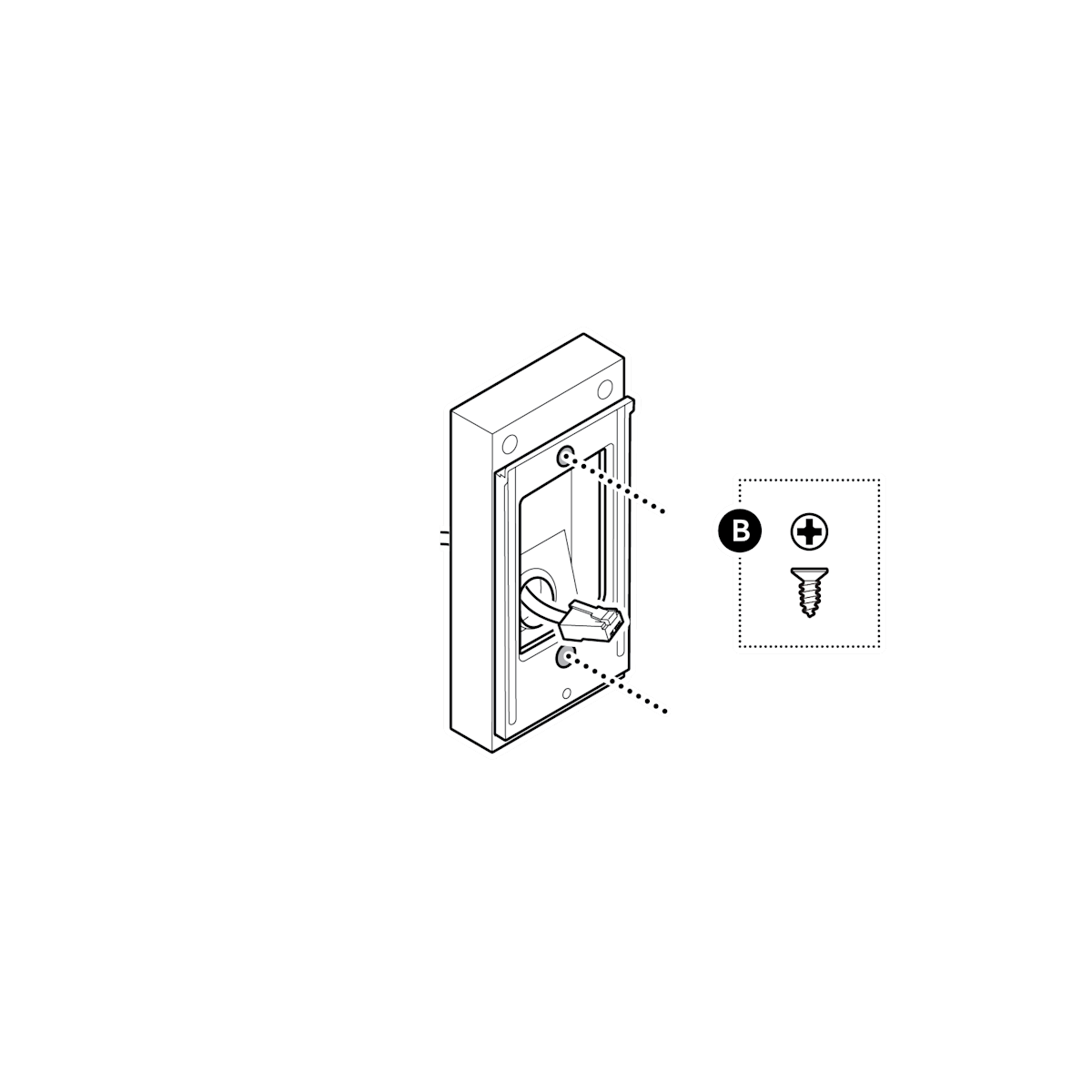

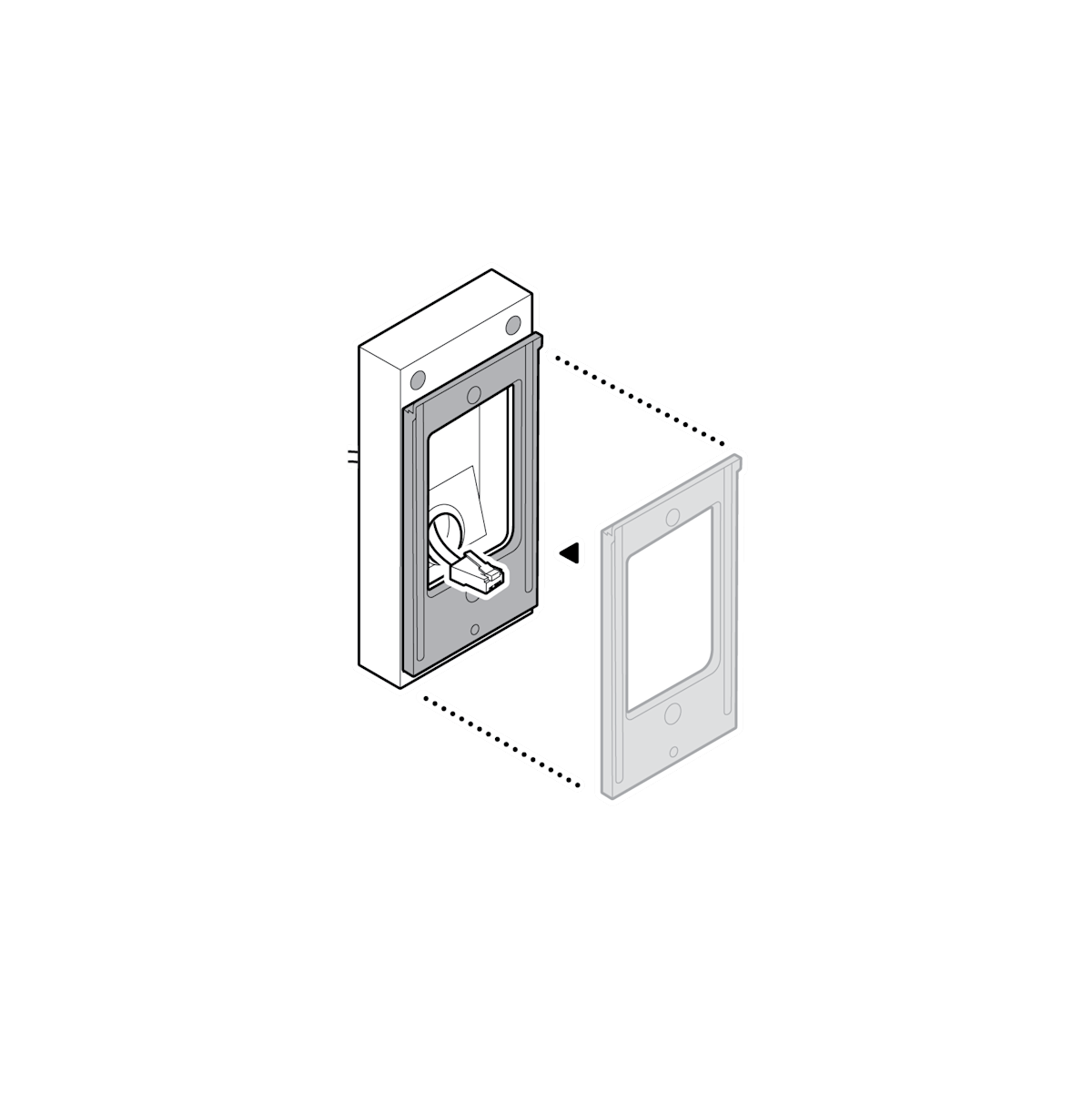

5. Attach your doorbell’s mounting bracket to the surface mount with the included screws.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Attach your doorbell’s mounting bracket to the surface mount with the included screws.  Part one.Illustration of Wired Doorbell Elite (2nd Gen) installation - Attach your doorbell’s mounting bracket to the surface mount with the included screws. Part two.

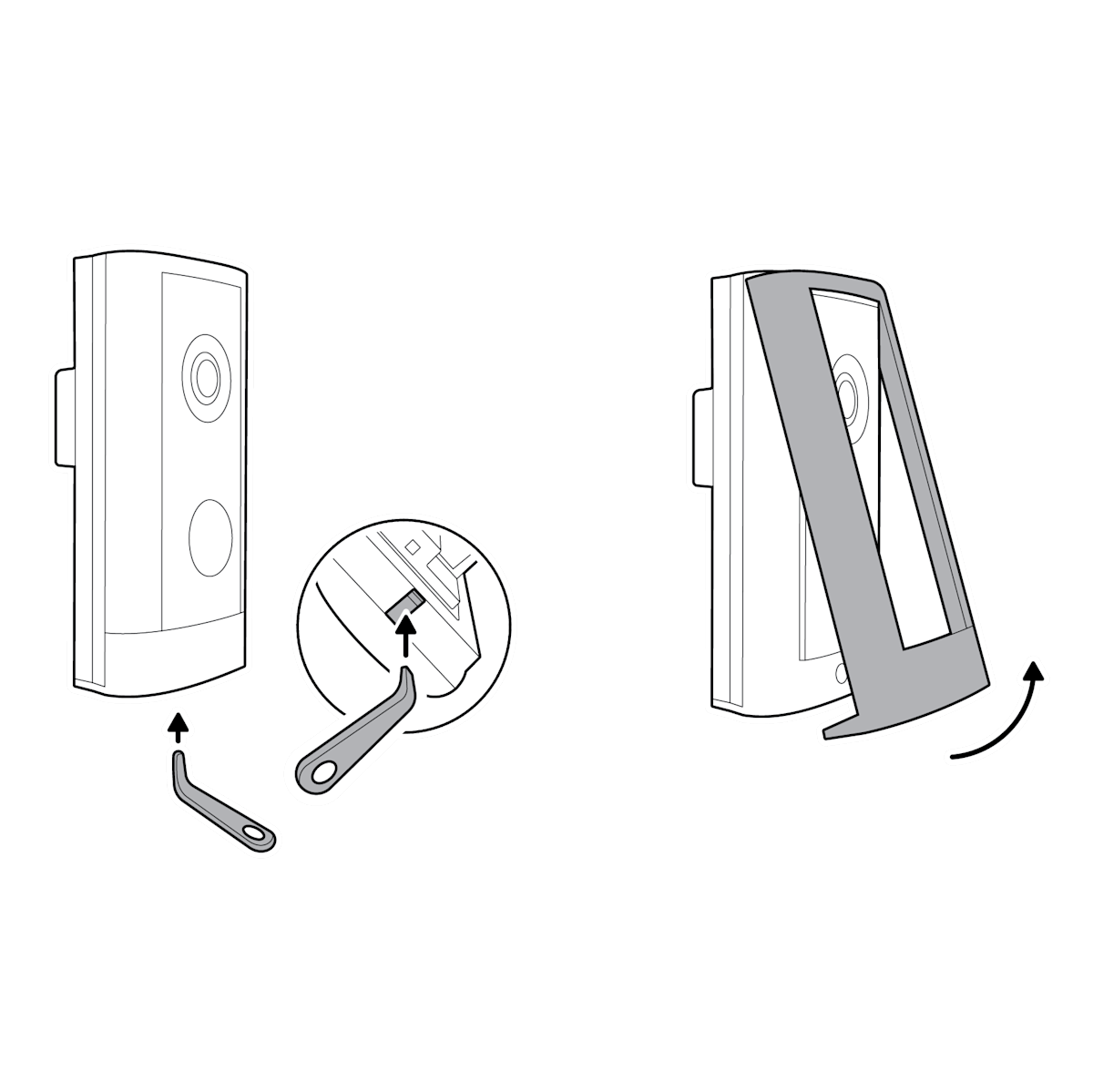

6. Use the removal tool to remove your doorbell’s faceplate.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Use the removal tool to remove your doorbell’s faceplate.

7. (Optional) If connecting to an existing chime, ensure it is compatible (8 to 24VAC 8 to 40VA) before using a flathead screwdriver to connect the wiring to your doorbell’s wire terminals.

Important note: Do not connect existing doorbell wiring if connecting to an existing access control system.

Illustration of Wired Doorbell Elite (2nd Gen) installation - (Optional) If connecting to an existing chime, ensure it is compatible (8 to 24VAC 8 to 40VA) before using a flathead screwdriver to connect the wiring to your doorbell’s wire terminals.

(Optional) If connecting to an existing access control system, ensure it is compatible (24V 2A) before using a flathead screwdriver to secure the wiring to your doorbell’s wire terminals. Important note: Do not connect existing access control system wiring if connecting to an existing in-home chime.

Illustration of Wired Doorbell Elite (2nd Gen) installation - (Optional) If connecting to an existing access control system, ensure it is compatible (24V 2A) before using a flathead screwdriver to secure the wiring to your doorbell’s wire terminals.

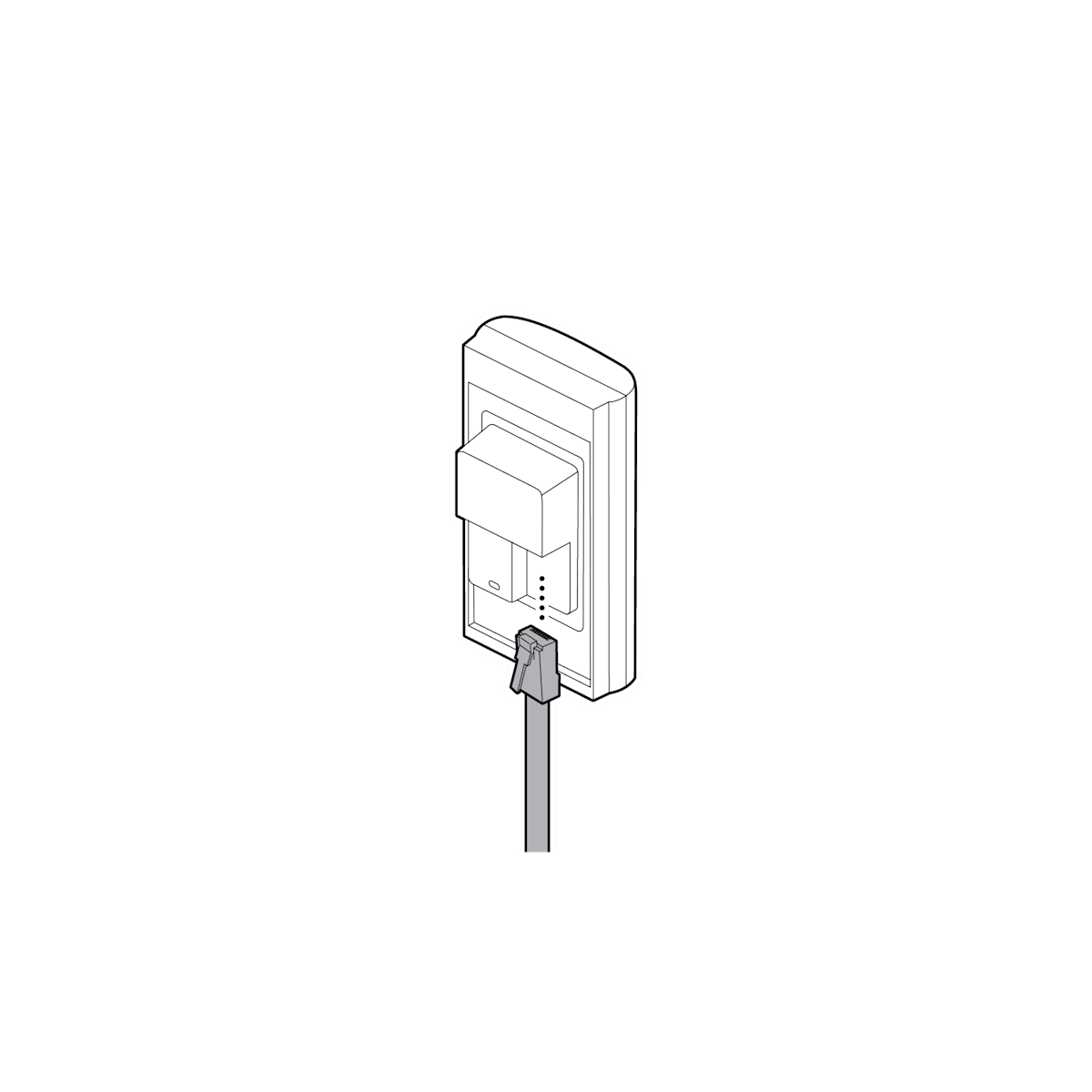

8. Plug the Ethernet cable into the back of your doorbell.

Important note: When properly connected, the front light will begin spinning.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Plug the Ethernet cable into the back of your doorbell.

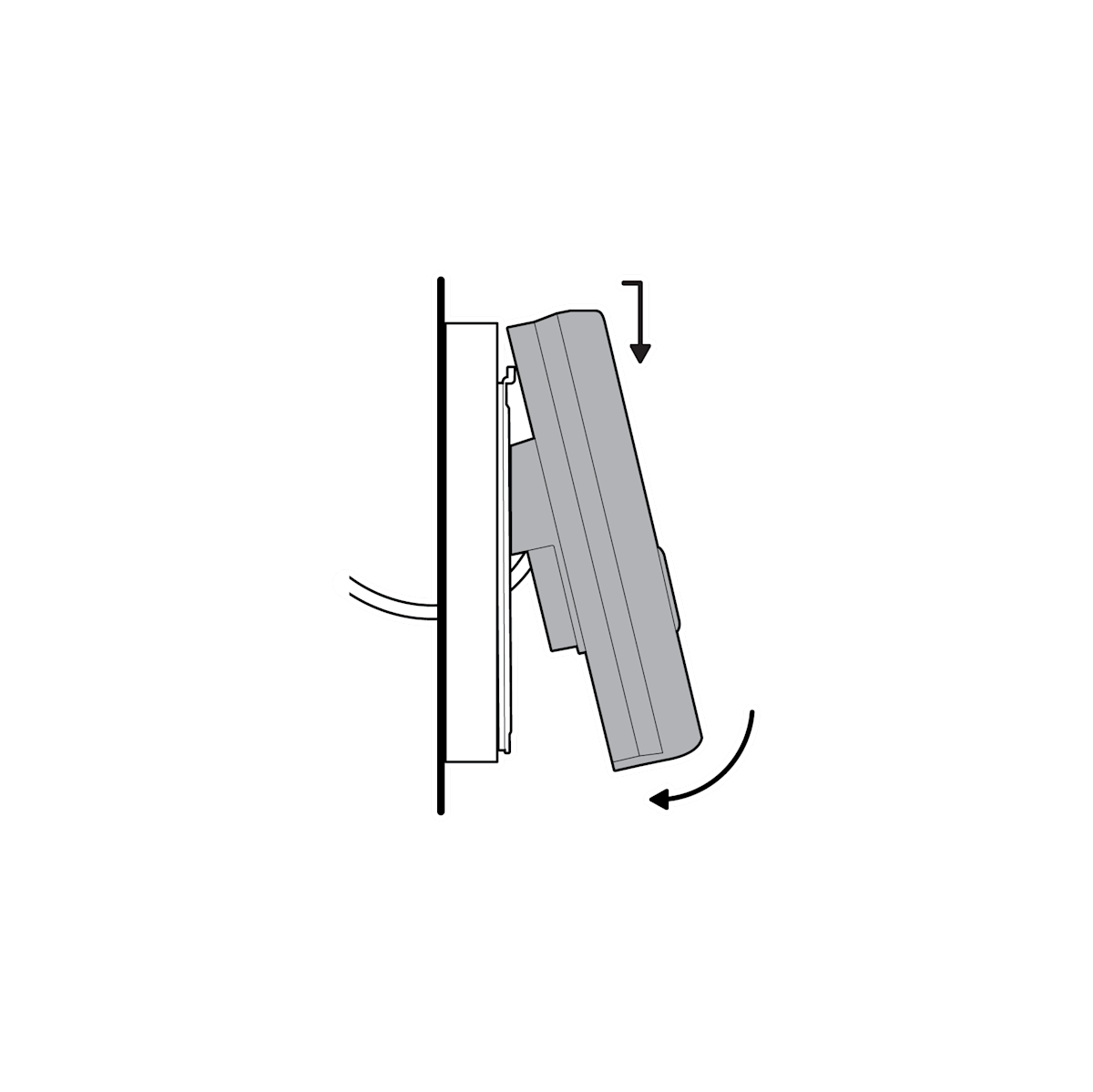

9. Tuck the wires into the wall, then hook your doorbell over the mounting bracket to attach.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Tuck the wires into the wall, then hook your doorbell over the mounting bracket to attach.

10. Tighten the security screws

Illustration of Wired Doorbell Elite (2nd Gen) installation - Tighten the security screws.

11. Reattach your doorbell’s faceplate.

Illustration of Wired Doorbell Elite (2nd Gen) installation - Reattach your doorbell’s faceplate.
