Installing Wired Doorbell Plus (2nd Gen)

Safety and compliance information for Wired Doorbell Plus (2nd Gen)

View or download the user manual for Wired Doorbell Plus (2nd Gen) Hardwired.Consulter ou télécharger le manuel de la Sonnette câblée Pro (2e gén) en français canadienVer o descargar el manual del Wired Doorbell Plus (2nd Gen) en Español Latinoamericano

Follow these step-by-step instructions to install your Wired Doorbell Plus (2nd Gen).

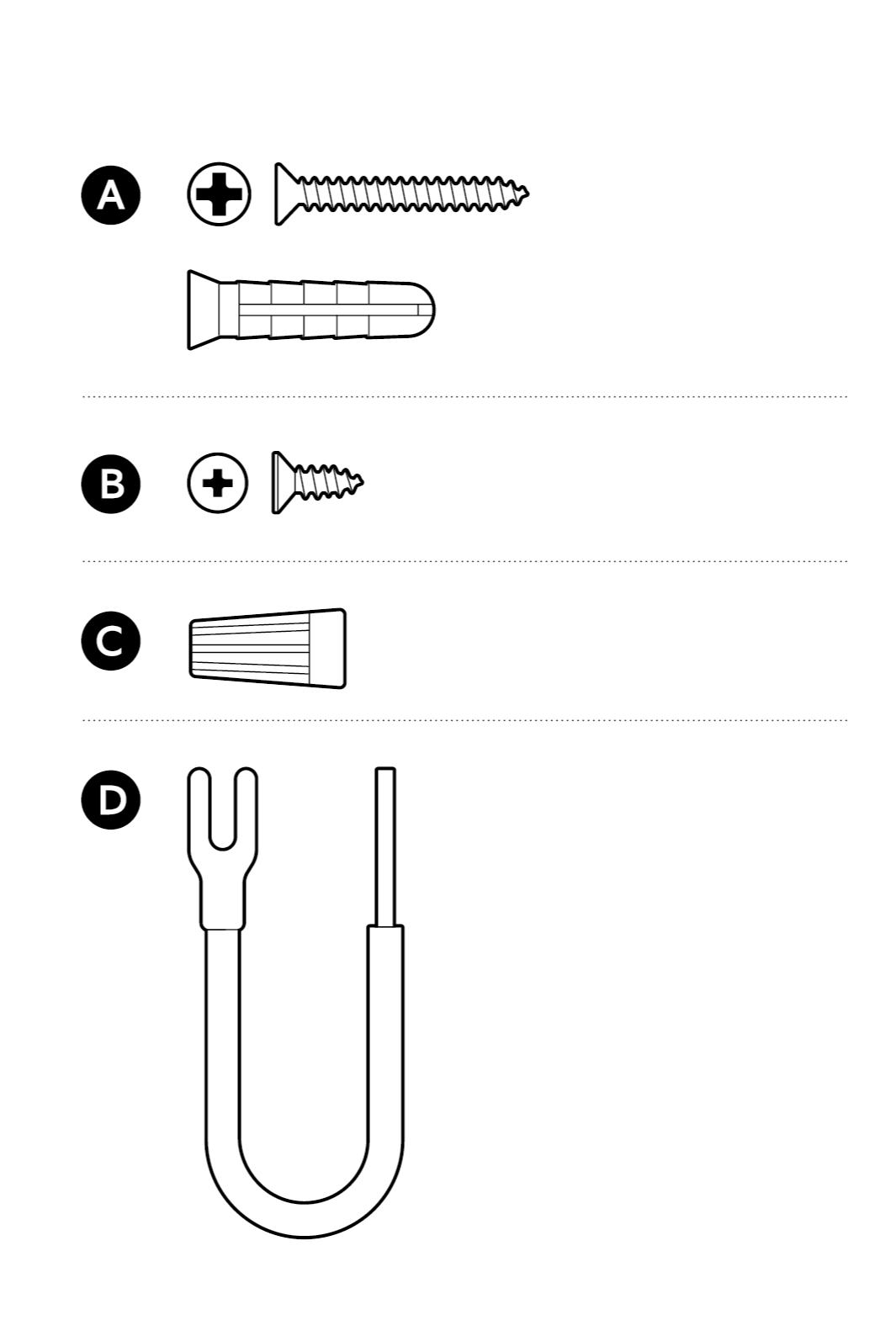

Hardware included

Tools needed

Illustration of a cross point screwdriver needed for installation.Illustration of a power drill to use as an installation tool.

Drill with 6 mm (1/4 in) masonry bit (optional)

See a full list of compatible devices.

1. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

2. Scan the QR code.

Instruction stating to scan the applicable QR code to start a device set up in the Ring App.

3. Remove the protective wrap.

Illustration indicating to remove the protective wrap from the Ring Camera.

Wired Doorbell Plus (2nd Gen) installation

1. Shut off power at the breaker.

NOTE: If you are unsure which breaker to flip, turn off the master breaker or contact an electrician.

Illustration on breaker box with one grey switch showing toggled off.

CAUTION! You’ll be working with electrical wires during the install process. If you encounter damaged or unsafe wiring, or if you are unsure, uncomfortable, or inexperienced, please consult with a licensed electrician.

WARNING! If your home has multiple chimes, you will need to ensure any additional chimes are bypassed by connecting the wires connected to Front and Trans together with a wire nut.

2. Remove your doorbell chime’s cover.

Illustration demonstrating how to remove the cover of an in home internal chime kit.

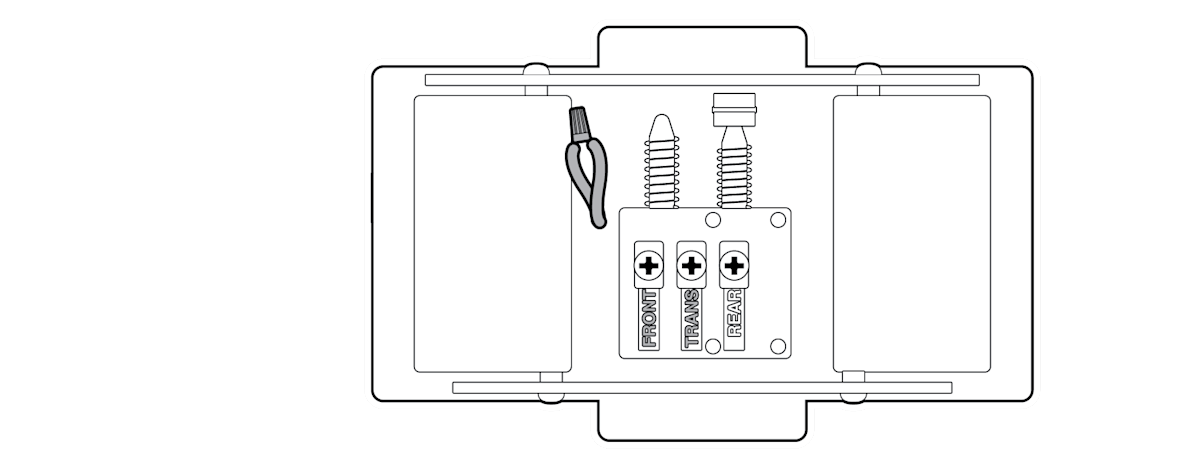

3. Loosen the Front and Trans terminal screws, and disconnect the attached wires.

NOTE: The included Chime Kit Mini must be fitted or the chime must be bypassed by connecting the Front and Trans wires together with an included wire nut. If your home has more than one chime, the additional chimes must be bypassed.

Illustration to show how to disconnect the wires attached to your chime.

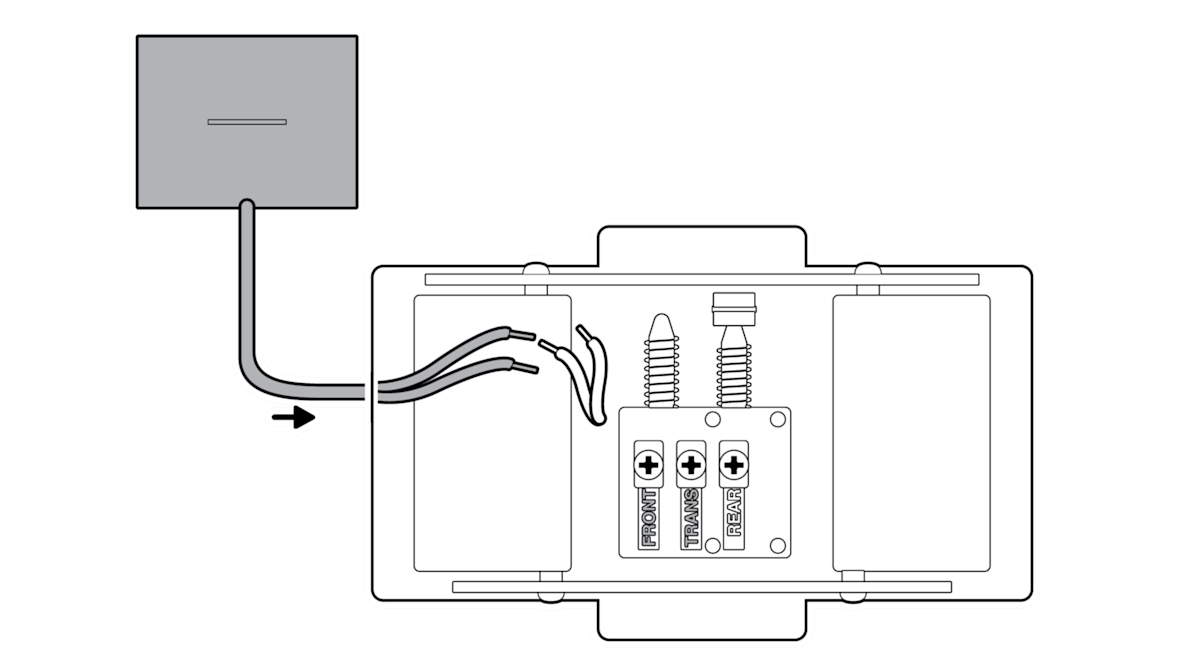

4. Route the Chime Kit Mini’s wires inside your chime.

In home Chime panel diagram showing wiring layout

NOTE: If you’re not connecting the Chime Kit Mini, bypass your chime by connecting the Front and Trans wires with a wire nut.

5. Use the included wire nuts to connect each wire with the included Chime Kit Mini’s wires.

Technical diagram of an in home chime with the Chime Kit mini installated

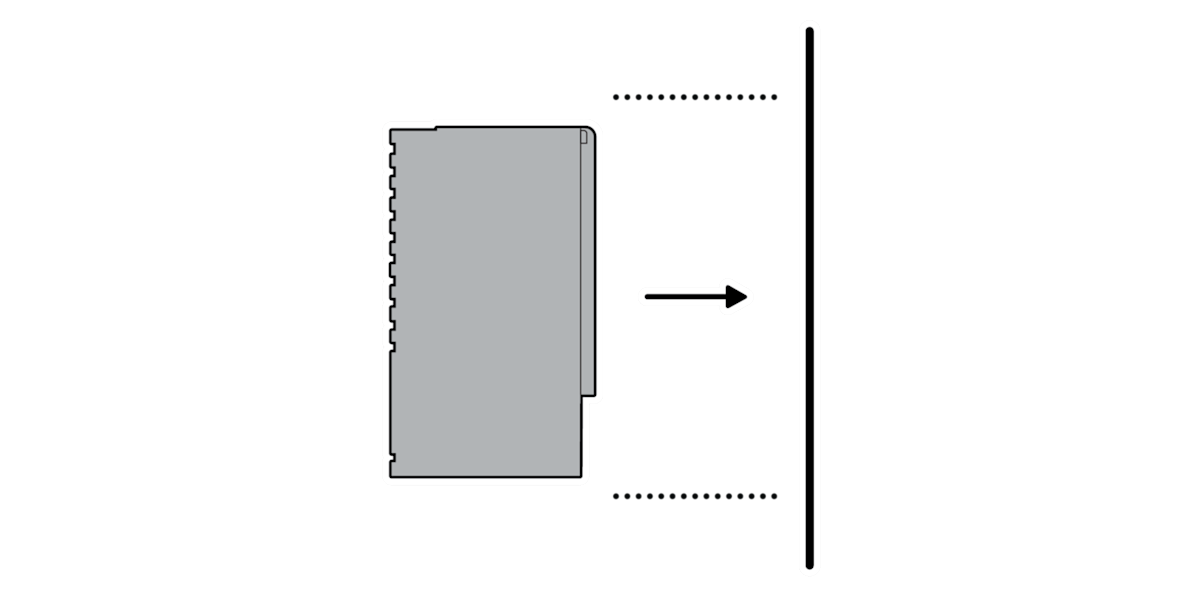

6. Peel the double-sided tape backing on the Chime Kit Mini and hold it against the wall for 30 seconds in your desired install position.

Chime Kit Mini with an arrow pointing to a flat mounting surface.

7. Re-attach your chime’s cover.

Diagram showing an in home chime kit and Chime Kit mini connection with an arrow that indicates the reattachment of the chime cover.

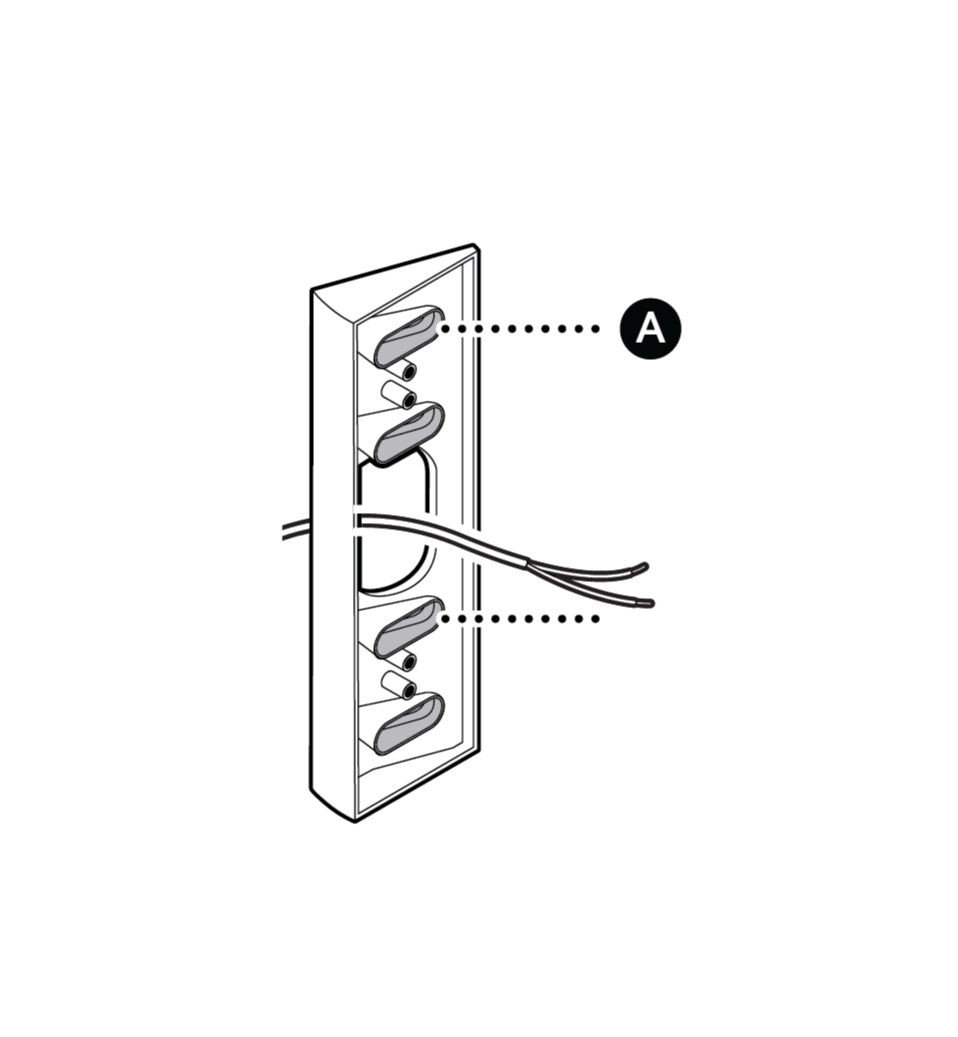

8. (Optional) If using a corner mount, install the mount over your doorbell wires using the large oval holes, ensuring it is facing in your desired viewing direction.

A corner mount being installed over the doorbell wires using screws labelled A to secure.

On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

Diagram showing drill bit and screw installation steps

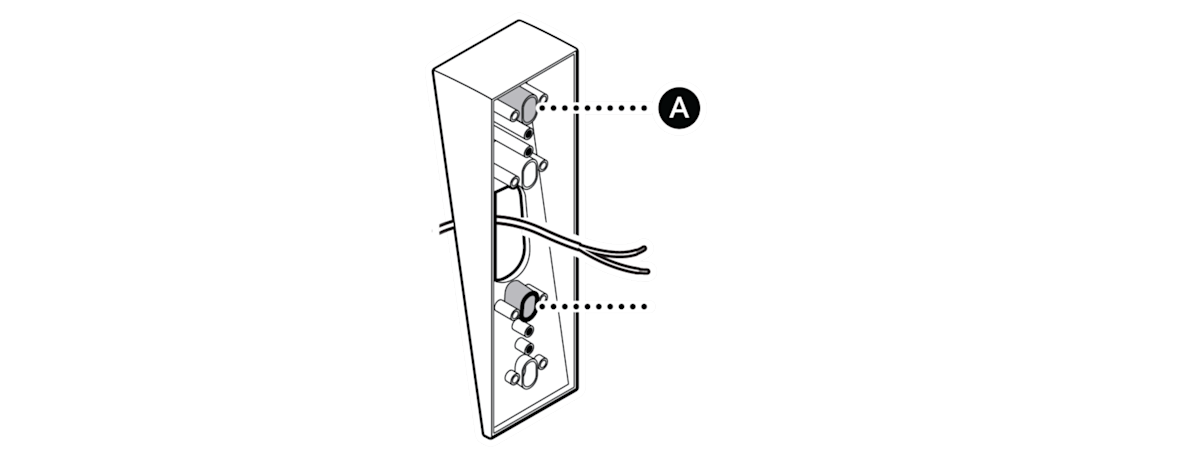

(Optional) If using a wedge mount, install the mount over your doorbell wires using the screws included with your wedge kit, ensuring it is facing down.

Technical diagram of a Wedge Kit showing installation points

On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

Diagram showing drill bit and screw installation steps

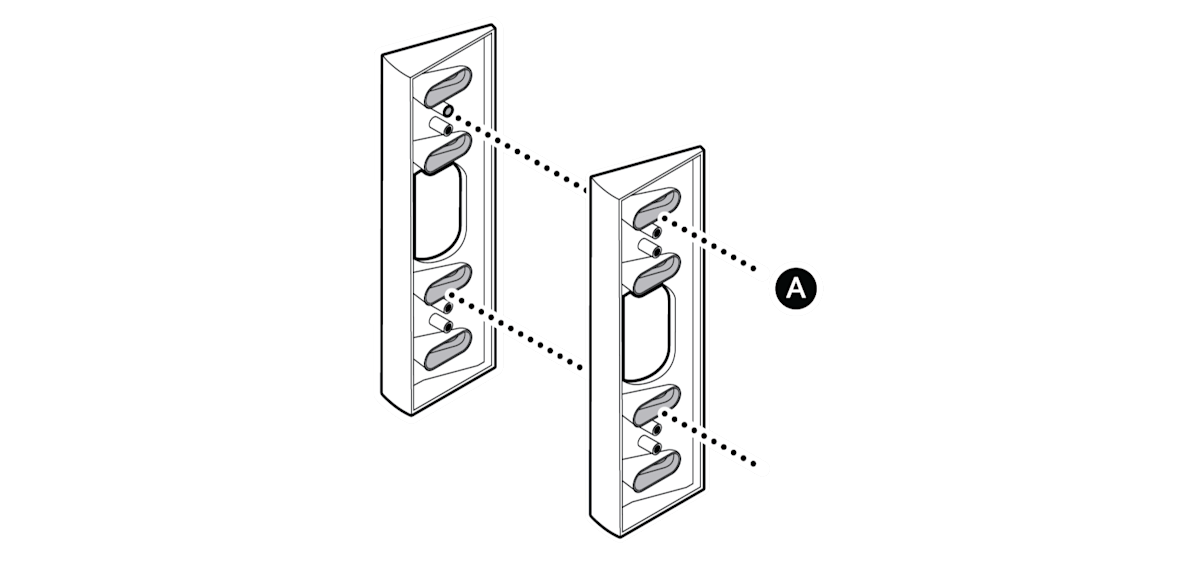

9. (Optional) If installing multiple wedge or corner mounts, insert screws through both mounts to hold them together.

NOTE: We do not recommend more than two.

Diagram showing two corner kits installed atop of one another.

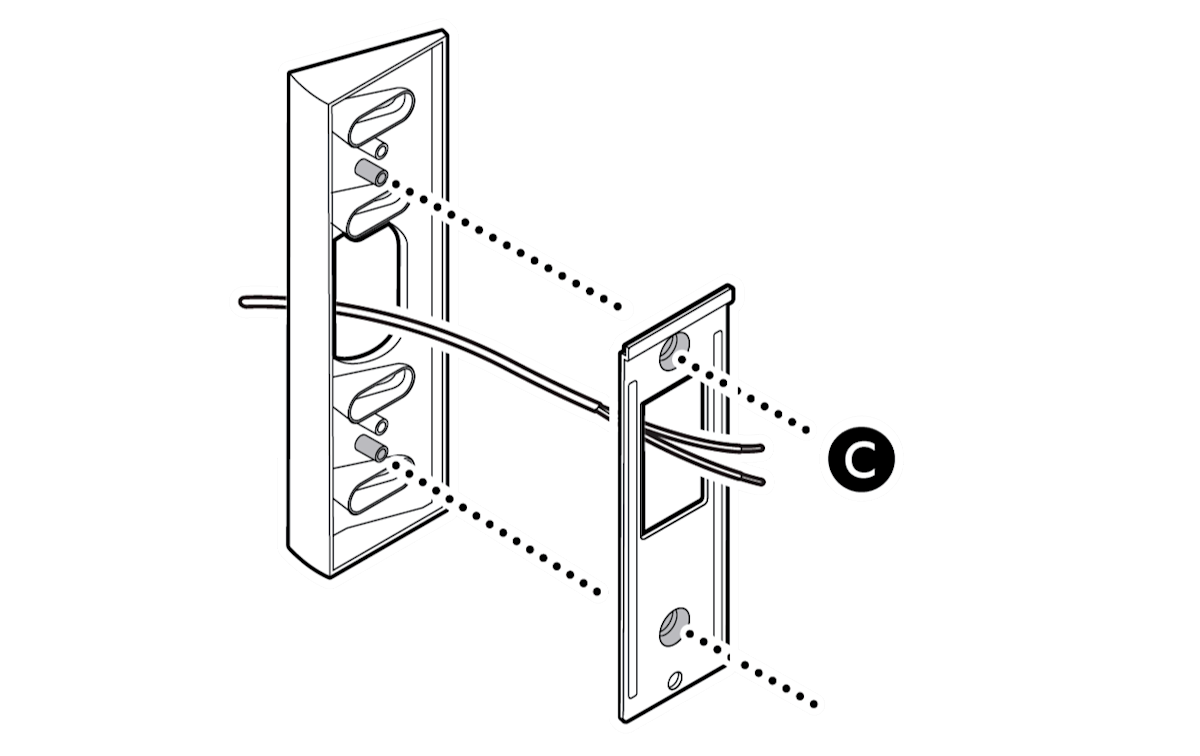

10. Install the mounting bracket on your mount or directly over your doorbell wiring with the included screws.

Technical diagram showing mounting bracket assembly

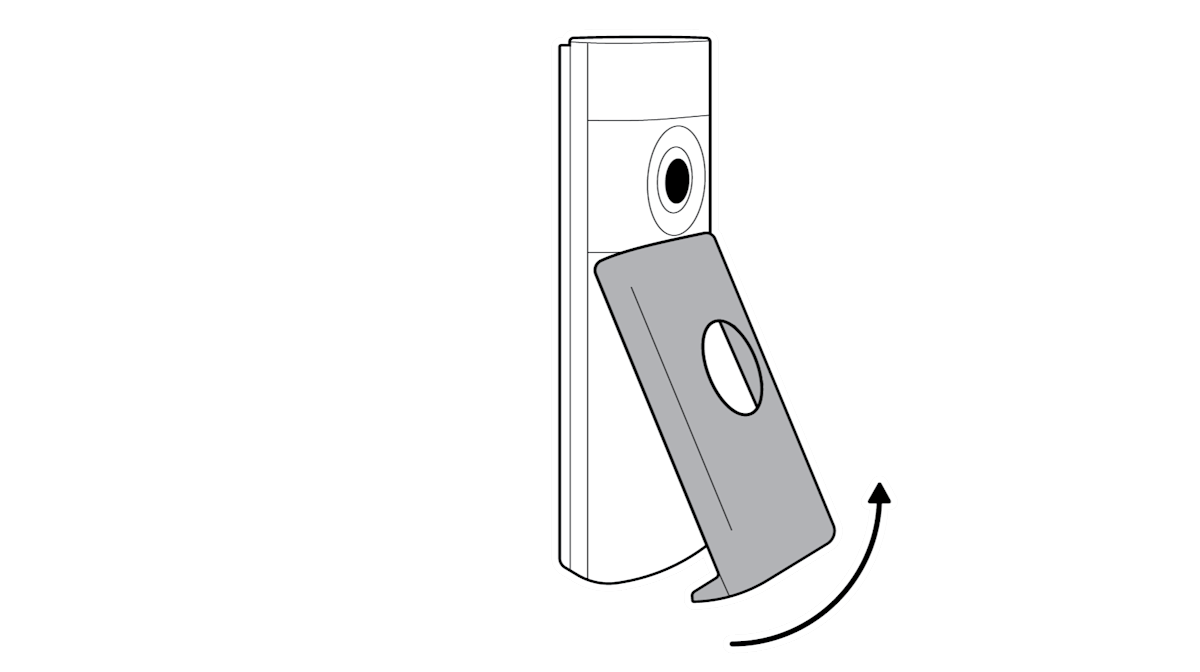

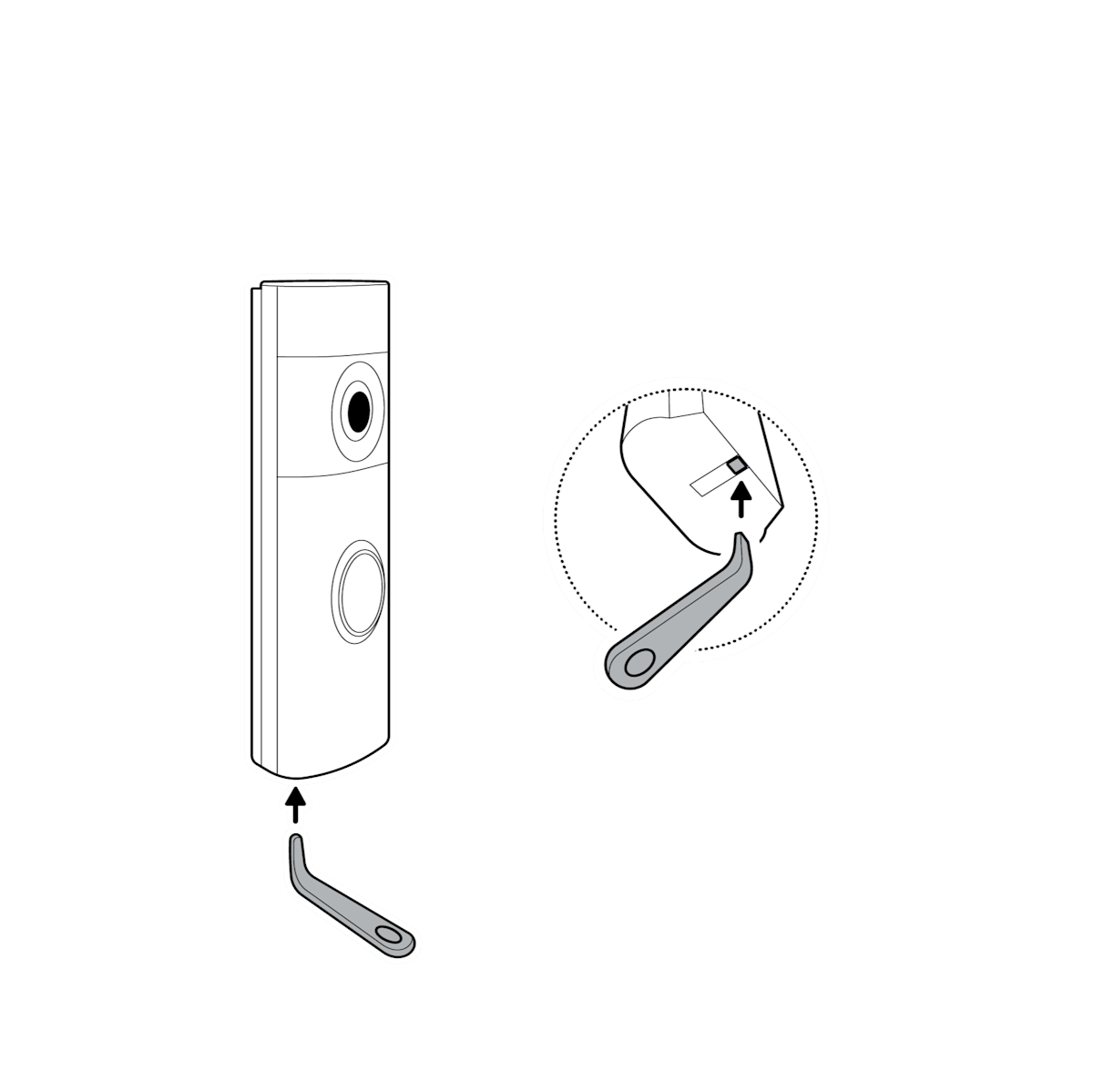

11. Remove your doorbell’s faceplate by inserting the removal tool into the slot at the bottom of your doorbell.

Diagram showing the use of the security tool to remove the faceplateDiagram with arrow pointing up to remove faceplate

12. Attach the included fork connectors to your doorbell wiring with wire nuts.

Line drawing of fork connectors connected with wire connectors

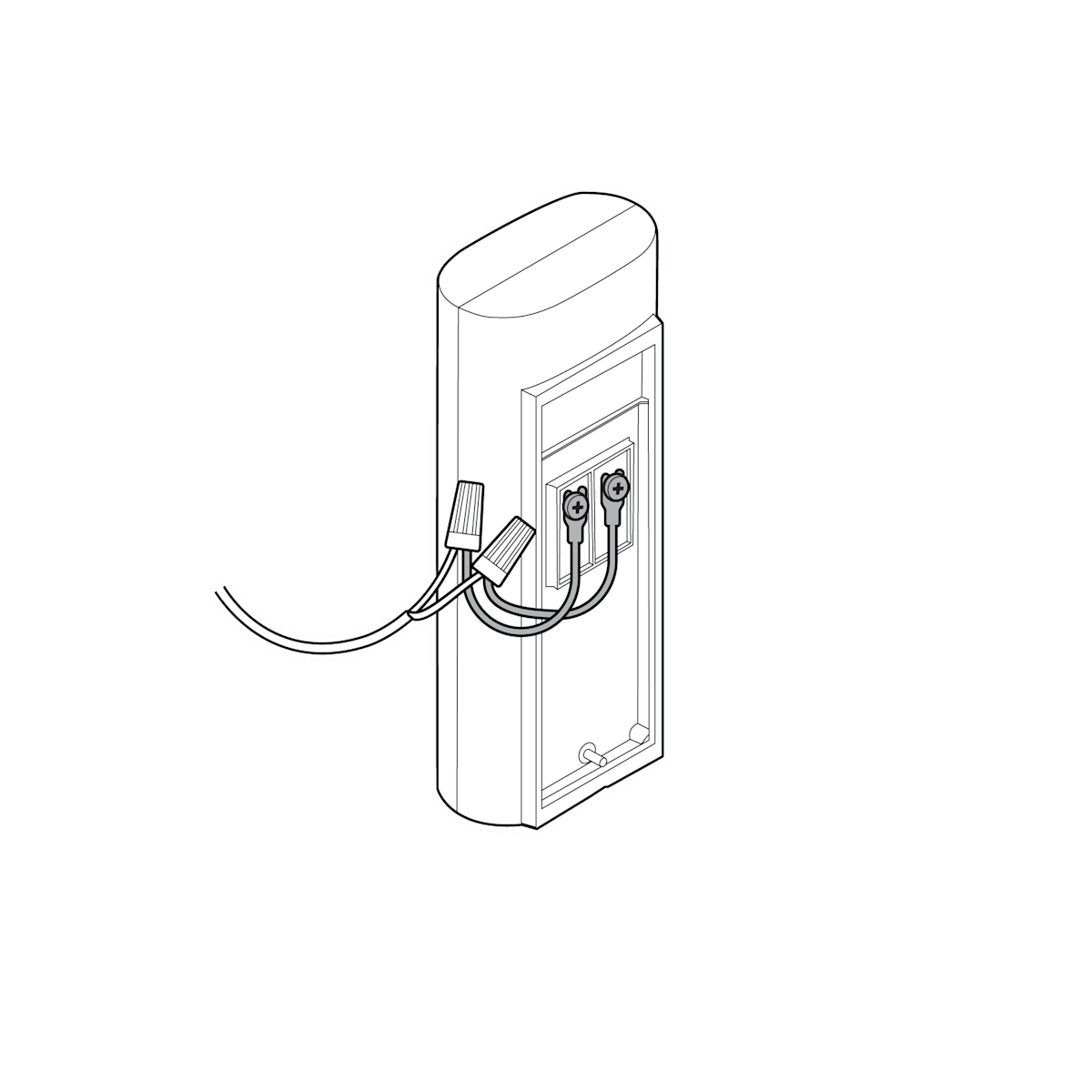

13. Connect the fork connectors to your doorbell’s wire terminals.

Line drawing of a window frame with decorative curved details

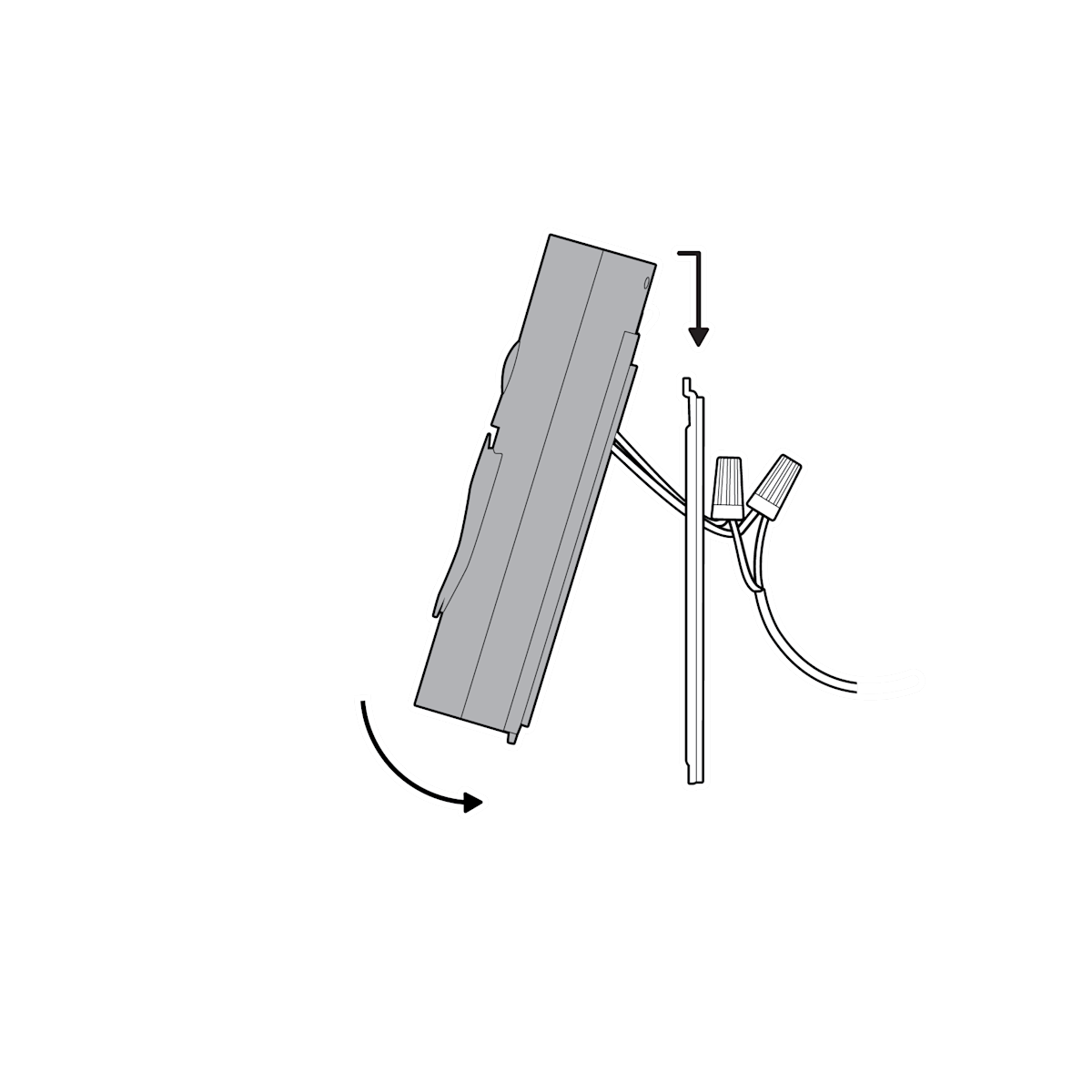

14. Mount your doorbell by hooking it over the bracket and pushing down.

Diagram showing directional arrows to indicate to hook the device and then press down to mount.

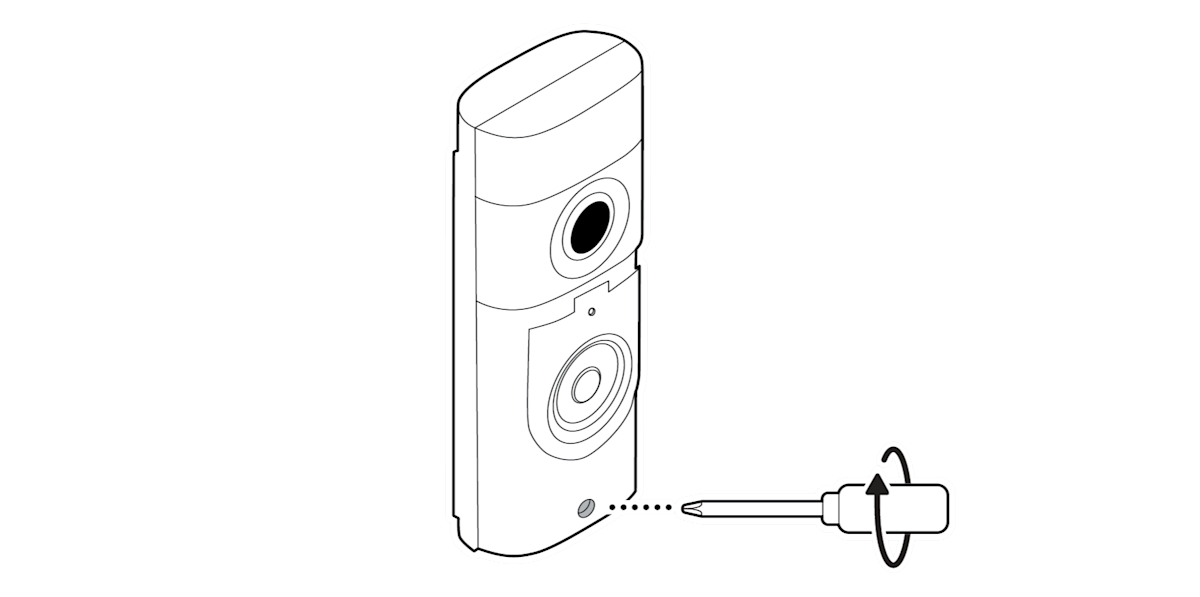

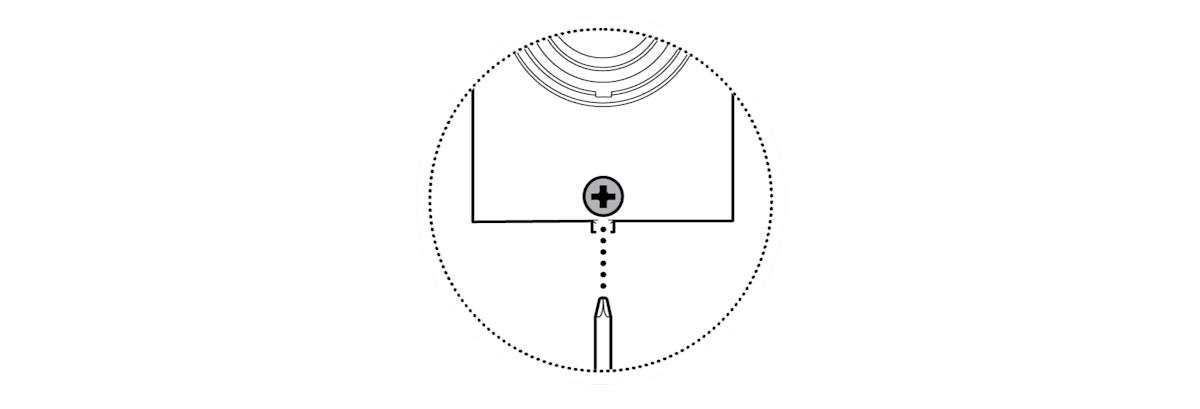

15. Tighten the security screw.

Diagram showing the connection of wires to the doorbell terminalsCircular frame showing a close up of the security screw.

16. Restore power at the breaker.

Simple line drawing of a circuit breaker with power on

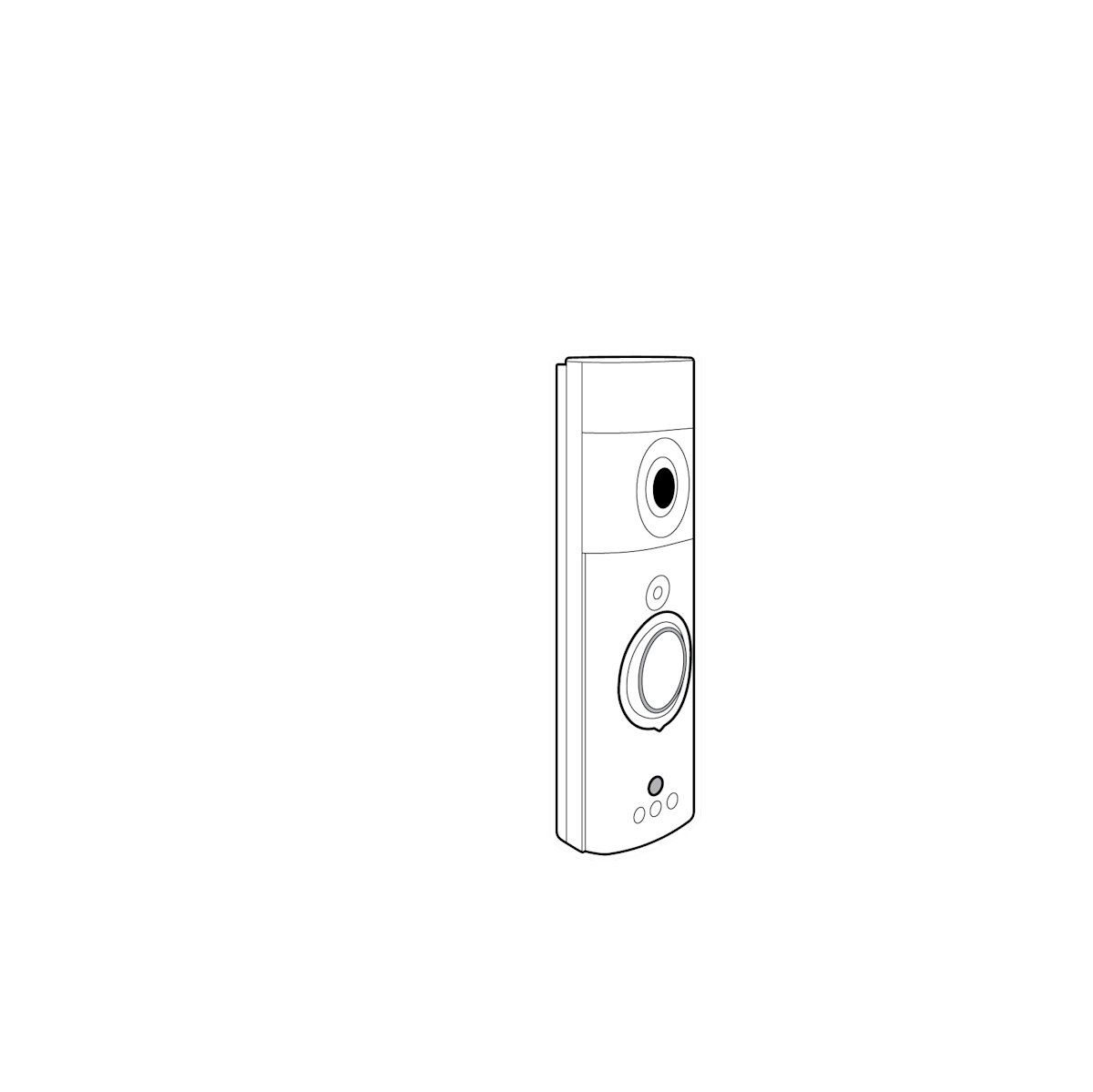

17. Ring your doorbell to ensure everything is properly connected.

Illustration of the Wired Doorbell Plus (2nd Gen)

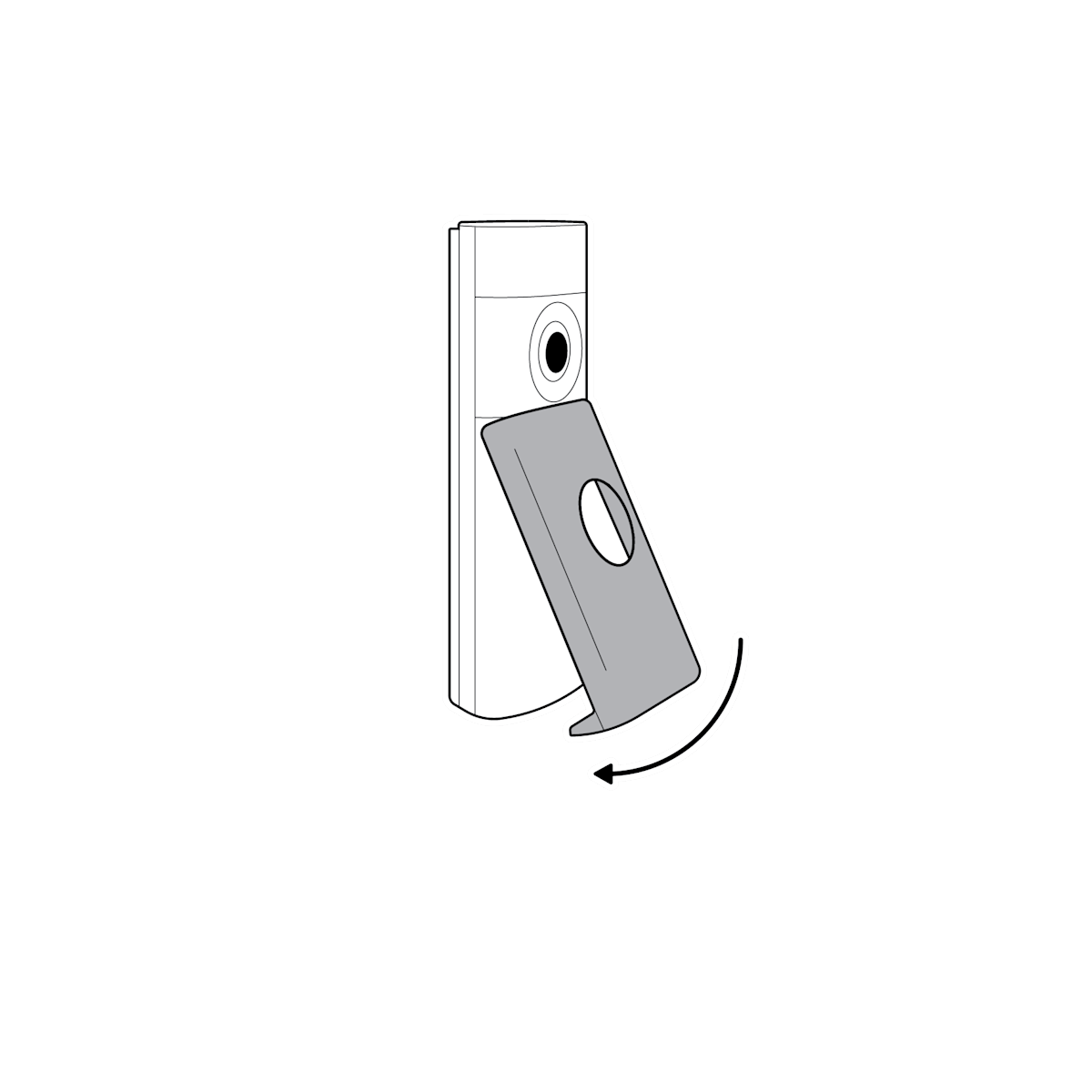

18. Reattach the faceplate.

Diagram with arrow pointing down to replace the faceplate
