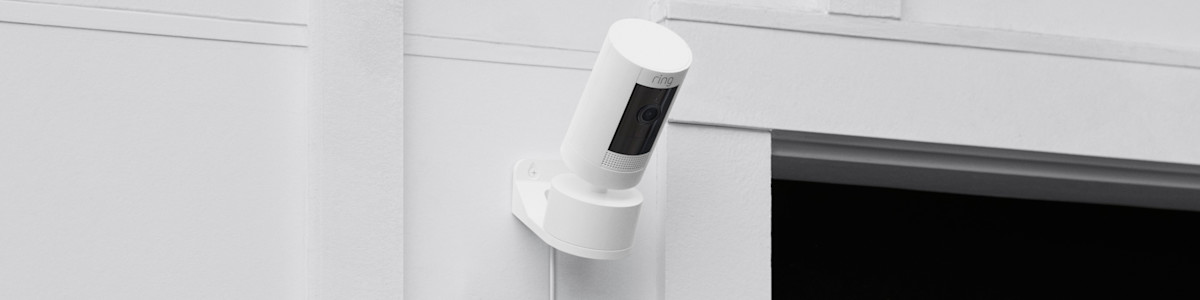

White Ring security camera mounted on exterior wall with the Pant-Tilt Mount.

Installing the Pan-Tilt Mount for Outdoor Cam

Learn how to install the Pan-Tilt Mount for your Outdoor Cam (formerly Stick Up Cam (3rd Gen)) battery, plug-in and solar devices.

Installation manual

View or download the manual for Pant-Tilt Mount.

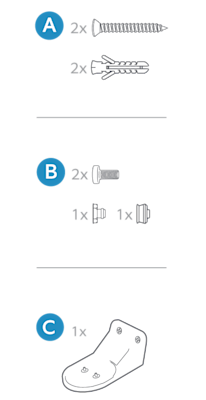

Hardware included:
Mounting screws (A)
Mounting anchors (A)
Security screws (B)
Rubber plugs (B)
Wall mount (C)
Tools needed:
Phillips head screwdriver
Drill with 0.24 in (6 mm) drill bit (optional)
Plug-in adapter (sold separately)
Included wall mounting hardware kit with screws, anchors and brackets.

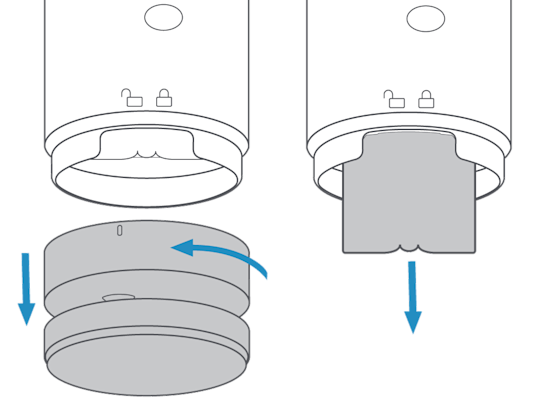

Step 1: Remove the battery

  1. Remove the security screw.
  2. Remove the battery cover by twisting it counter-clockwise, and remove the quick-release battery pack.
A Stick Up Cam with a curved arrow indicating turning the cover counterclockwise to remove it and a downward arrow showing pulling the battery out.

Step 2: Attach the Outdoor Cam to the Pan-Tilt Mount

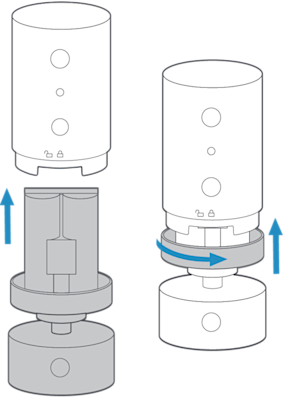

Insert the Pan-Tilt Mount into the battery slot of the Outdoor Cam (formerly Stick Up Cam (3rd Gen)). Then, lift and twist the battery cover off the mount clockwise to close it.

Technical diagram with blue arrows showing how to access the battery compartment for the Pan-tilt mount on the Outdoor Cam

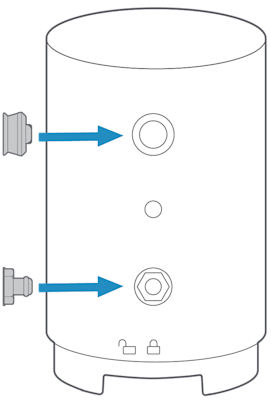

Step 3: Insert the rubber plugs

Insert the two rubber plugs into the back of the Outdoor Cam (formerly Stick Up Cam (3rd Gen)).

Arrows indicating where to insert plugs on back of Outdoor Cam.

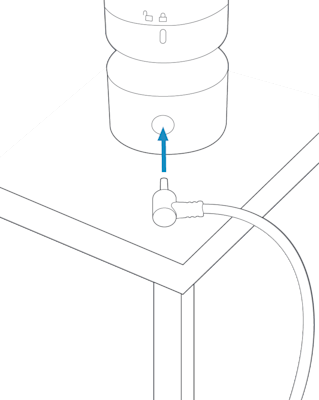

Step 4: Mount on a table or shelf

  1. Place the device on a flat surface.
  2. Plug the power adapter directly into the Pan-Tilt Mount, not the
    Outdoor Cam (formerly Stick Up Cam (3rd Gen))
    .
Plugging power cable into back of Outdoor Pan-Tilt Cam installed on a flat surface.

Step 5: Mount on a wall

1. Install the mounting plate.

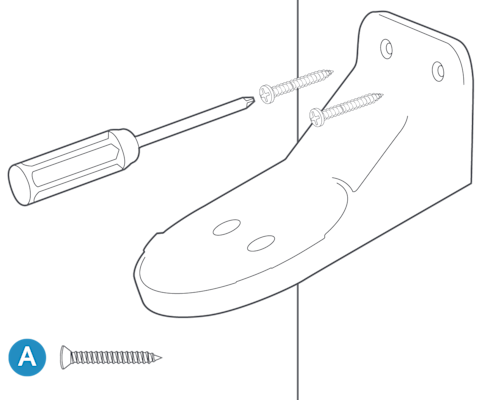

If installing on a wood surface: Screw the mounting plate directly into the wall.

Screwdriver inserting screws into wall mount bracket.

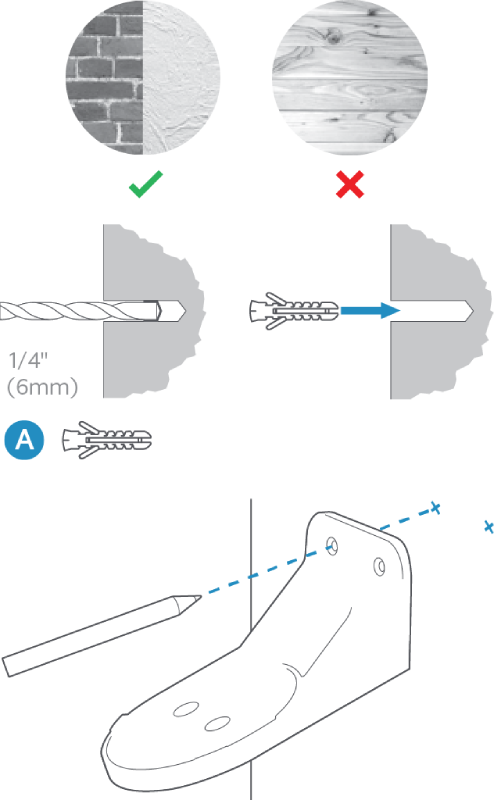

If installing on a masonry (concrete, brick, or stucco) surface: Mark four screw holes using the plate as a guide. Drill pilot holes using a 0.24 in (6 mm) drill bit. Insert the included wall anchors, then drive the four mounting screws through the mounting plate into the wall anchors.

Installation diagram showing correct and incorrect wall anchor placement.

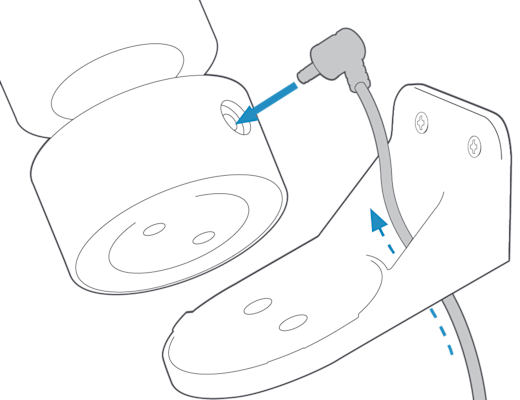

2. Connect the power cable. Feed the power cable through the cut-out in the wall mount. Then, plug it directly into the Pan-Tilt Mount, not the Outdoor Cam (formerly Stick Up Cam (3rd Gen)).

The power cable for the Pan-Tilt mount with an arrow leading it through the hole on the wall mount and into the port on the back of the Stick Up Cam.

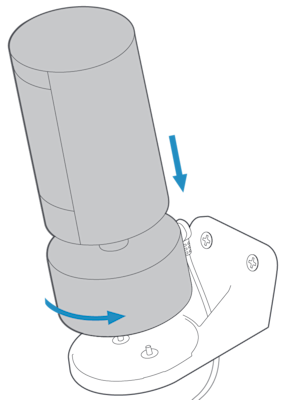

3. Lower the Pan-Tilt onto the wall mount. Rotate the Pan-Tilt Mount so the two holes align with the prongs on the wall mount. Then, lower it onto the wall mount.

Technical diagram with arrows showing how to attach Outdoor Cam to Pan-Tilt Mount.

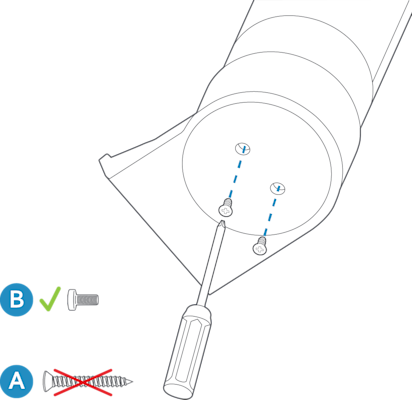

4. Insert security screws into the wall mount. Use the two smaller screws on the bottom of the wall mount to secure the Pan-Tilt Mount to the wall. Do not use the longer mounting screws for this.

Illustration showing the correct short screw and incorrect long screw to attach camera to base.

Step 6: Set up in the Ring app

  2. Test the Pan-Tilt functions in the Ring app.
