Installing Ring Candy Cam

Get step-by-step instructions for your Ring Candy Cam installation.

Download/view the manual for installing Ring Candy Cam.

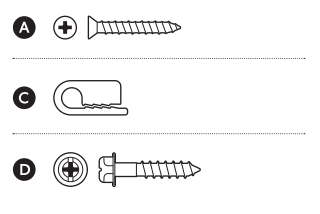

Hardware needed (from Outdoor Cam Pro)

Illustration of two Phillips head screws, one longer (A) and one shorter (D), and one curved mounting clip (C) required for Candy Cam setup.

Tools needed

Illustration of a screw with a cross on the head and a Phillips screwdriver needed for installation.

Phillip's-head screwdriver

Step 1: Camera setup

Refer to your camera's setup guide to set up your camera.

Illustration of the QR code on the back of the device.

Step 2: Mount installation

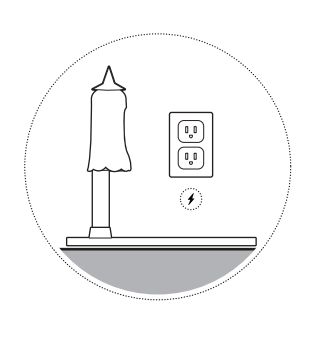

1. Choose a location near an outlet.

Illustration of a wall outlet with a lightning bolt icon below it and a Candy Cam mount and Outdoor Cam with a witch cover on it next to the outlet.

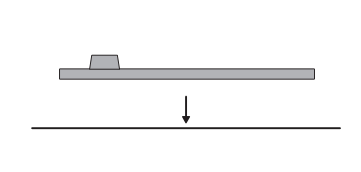

2. Place the base on a sturdy, level surface.

An illustration of Ring Candy Cam base with an arrow below it pointing down toward a horizontal line showing placing it on a level surface.

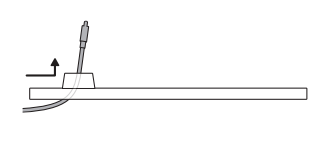

3. Route the power cable through the hole at the bottom of the base.

Illustration of a power cable with an arrow pointing over and up, showing it routing through the opening in Candy Cam's mounting base.

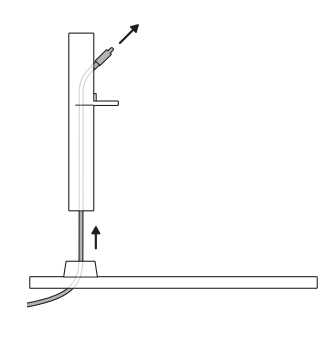

4. Route the cable through the mount arm.

Illustration of a power cable routing up through the Candy Cam mounting arm with an arrow pointing up and away, showing the USB end coming out the top.

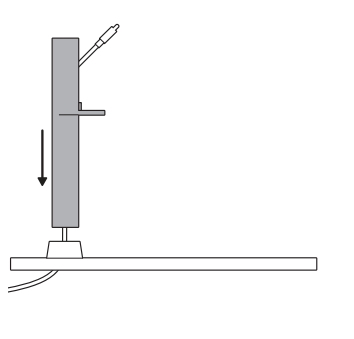

5. Attach the mount arm onto the base.

Illustration of the Candy Cam mounting arm with the USB power cable coming out of the top and an arrow pointing down showing attaching to the base.

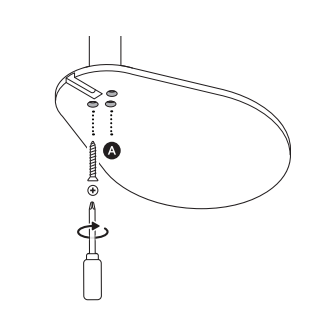

6. Tighten the tapping screws included with your camera to secure.

Illustration of three screws (A) with plus signs, dotted lines leading to holes, and a screwdriver with an arrow circling right showing securing the base.

7. Slide the mounting plate at the bottom of the camera mount in the direction opposite to the UP arrow to remove.

Illustration to show sliding the mounting plate in the direction opposite the up arrow to remove it.

8. Unscrew to detach the camera mount.

Illustration of a screw driver unscrewing the screw to detach the camera mount from the camera.

9. Remove the middle rubber cap on the back of your camera.

Important note: Store the rubber cap in a safe place. Reinsert it when the hole is not in use.

Illustration reminder to remove the middle rubber cap on the back of your camera.

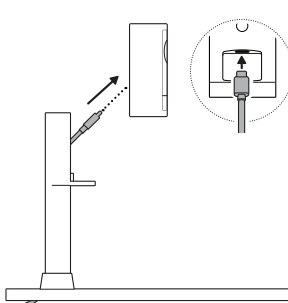

10. Plug in the power cable, ensuring it is fully inserted.

Illustration showing inserting the USB connector into the port on the back of the camera. Zoomed circle shows an arrow pointing to the port opening.

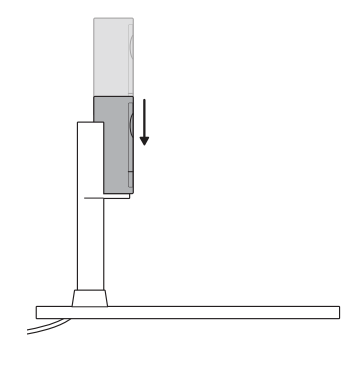

11. Slide your camera into the mount.

An illustration of the Candy Cam mounting bar with Outdoor Cam and an arrow pointing down showing how to slide the camera onto the mount.

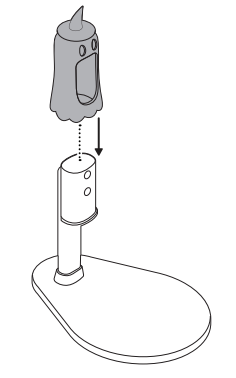

12. Slide the decorative cover over your camera and the mount.

When sliding the cover over the the camera, grab the sides of the cover and slightly tilt the cover back.

Outdoor Cam on the mounting bar with the Candy Cam cover above it and a dotted line and arrow pointing to the camera showing sliding the cover on.

13. Unscrew to remove the screw from the bottom of the camera mount.

Important note: Store the mount in a safe place.

Illustration of the Outdoor Cam mount with a screw and an arrow pointing away from the mount showing remove the screw.

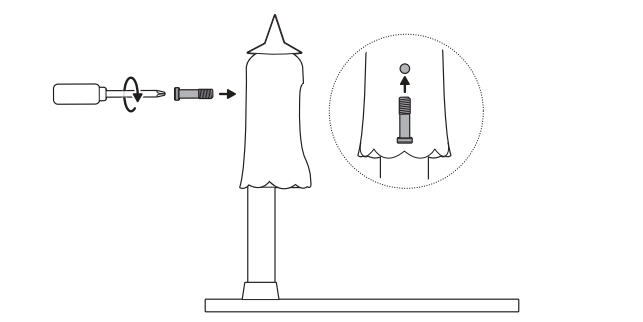

14. Tighten the screw from the camera mount into the back of your camera to secure.

Candy Cam with a screwdriver and screw, pointing to the hole on the camera back, and an arrow showing securing the camera to the mounting bar.

15. Plug the power adapter into an outlet.

Illustration showing the power adapter plugged into a wall outlet.

16. Secure the cord to the ground, wall, railing, or other stationary surface to prevent tripping hazards. Position the cord away from walkways when possible.

Illustration of a power cable on a wall and a dotted line from a screw (D) to a clip (C) showing securing the cable to the wall.

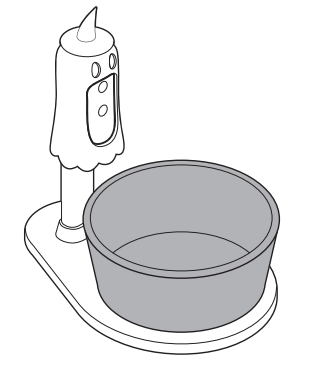

17. Place the candy bowl on the base.

Illustration of the witch Candy Cam on the mounting arm with a grey circular bowl sitting on the oval base in front of the camera.

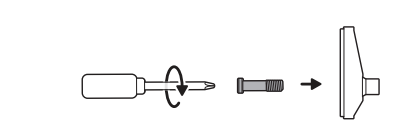

18. When disassembling, reinsert the screw on the back of your camera into the bottom of the camera mount.

Illustration of a screwdriver with an arrow circling clockwise and a screw and arrow pointing toward the base of Outdoor Cam, showing securing the base.
