Installing Smart Light Remote

Get step-by-step installation instructions for your Smart Light Remote.

View or download the user manual for the Smart Light RemoteView or download the user manual for Smart Light Remote (French)View or download the user manual for Smart Light Remote (Spanish)

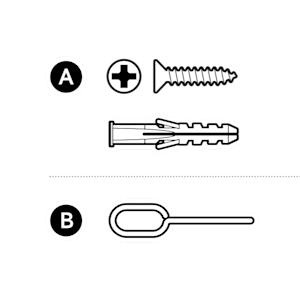

Hardware included

Illustration to show screws, wall plugs and push pin provided with your Smart Light Remote.

Tools needed

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

1. Remove the protective film.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

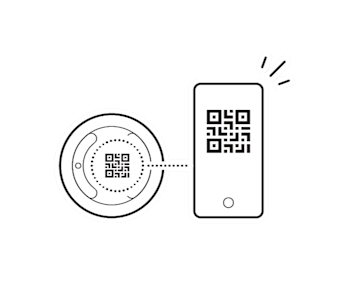

3. Scan the QR code on your device.

Illustration to show the position of the QR code on Smart Light Remote and a phone scanning the code.

4. Follow in-app setup.

Illustration to show an information guide and a mobile phone.

Installation

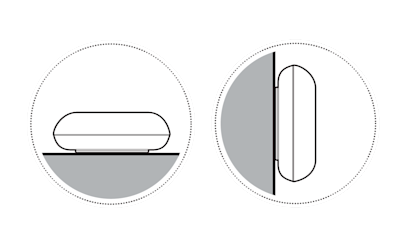

Place your smart light remote in an easily accessible place.

Illustration to show placement of button on a flat surface or wall.

Learn more about Adhesive installation instructions for Ring Alarm Sensors.

Replacing the batteries

WARNING!

  • INGESTION HAZARD: This product contains a button cell or coin battery.
  • DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
  • KEEP new and used batteries OUT OF REACH of CHILDREN.
  • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

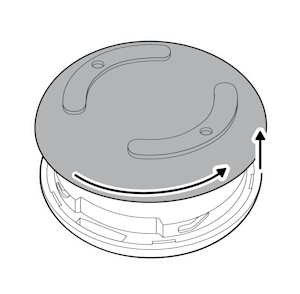

1. Hold your smart light remote between both palms and twist to remove the back cover.

illustration to show how to remove the back cover on the button by twisting it.

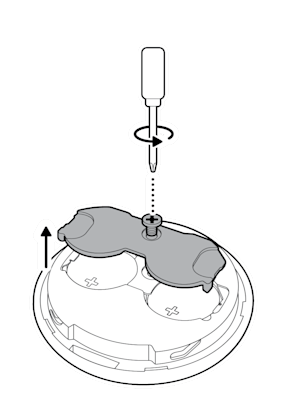

2. Use a Phillips-head screwdriver to remove the battery security plate.

Illustration showing a Phillips-head screwdriver being used to unscrew the screw and remove the battery security plate.

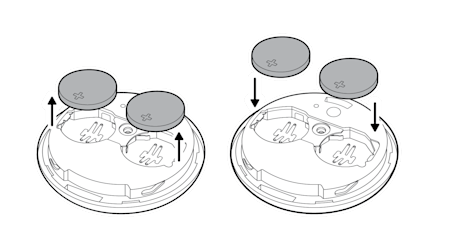

3. Carefully remove the coin cell batteries and replace.

Illustration to show the coin cell batteries being removed and replaced.

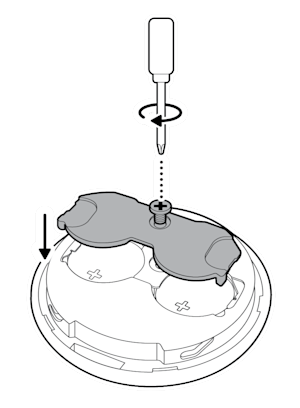

4. Reattach the battery security plate.

Illustration to show how to reattach the battery security plate by tightening the screw with a Phillips-head screwdriver

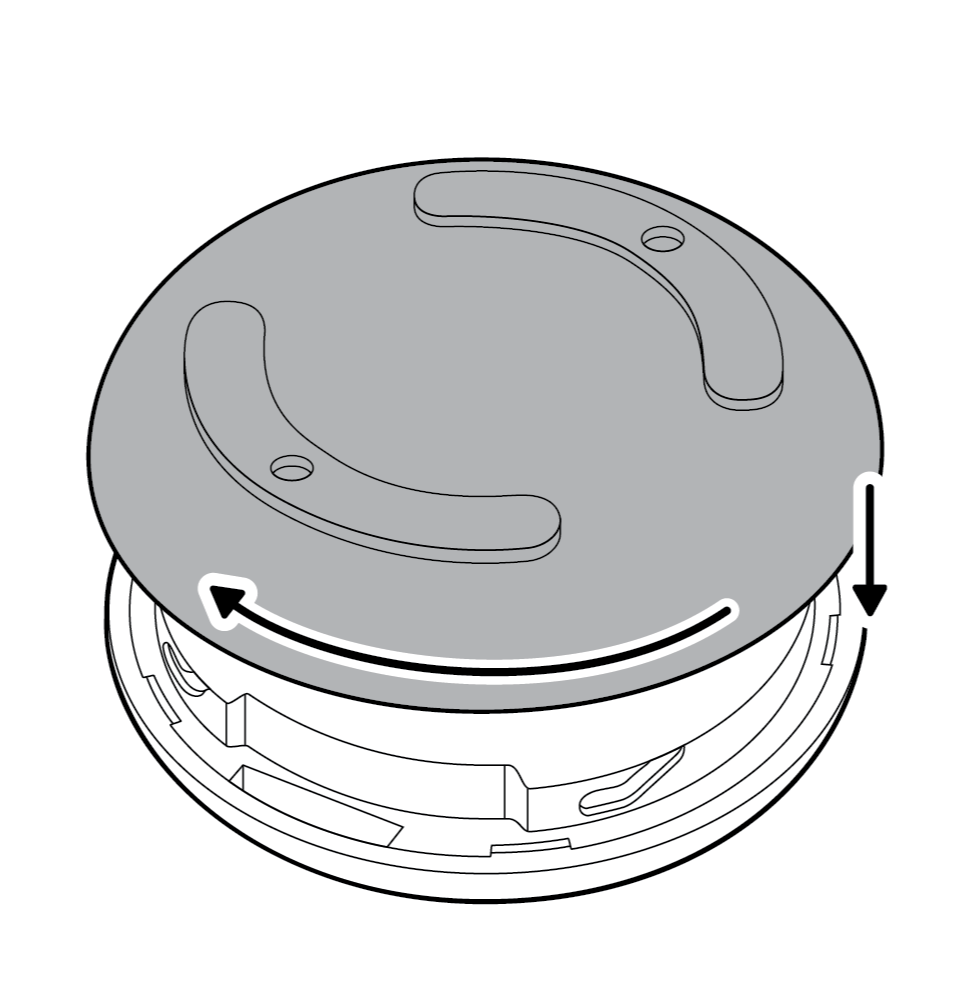

5. Hold your smart light remote and the battery cover between both palms and twist to reattach.

Illustration to show twisting the battery cover back on.

Amazon Sidewalk-enabled device; Amazon Sidewalk connection or Ring Base Station required for use; sold separately. Sidewalk coverage may vary by location. For Amazon Sidewalk information, visit ring.com/sidewalk.
