Installing Spotlight Cam (2nd Gen)

Battery:

Download the user manual for Spotlight Cam Battery (2nd Gen)

Plug-In:

Download the user manual for Spotlight Cam Plug-In (2nd Gen)

Hardware included

Battery:

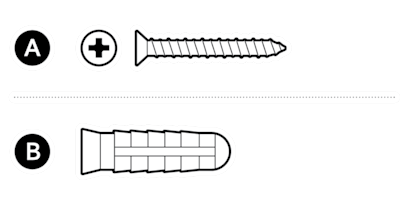

An example of the included screws, labeled A, and washers, labeled B, provided to install the device.

Plug-In:

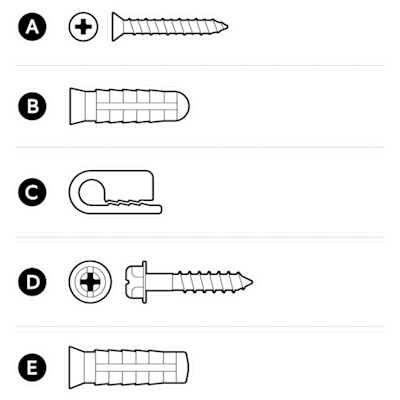

A set of mounting screws, washers, and cable clamps included to install the device.

Tools needed

Illustration of Cross Point Screwdriver.

Phillips-head screwdriver

Illustration of a power drill to use as an installation tool.

Drill with 1/4 in (6 mm) masonry bit (optional)

1.

Download the Ring Always Home app.

Illustration showing to download the Ring App on the mobile device.

2.

Scan the QR code on your device.

Illustration to show a phone scanning a QR code on the device.

3.

Battery: Choose a location.

Plug-in: Choose a location near an outlet.

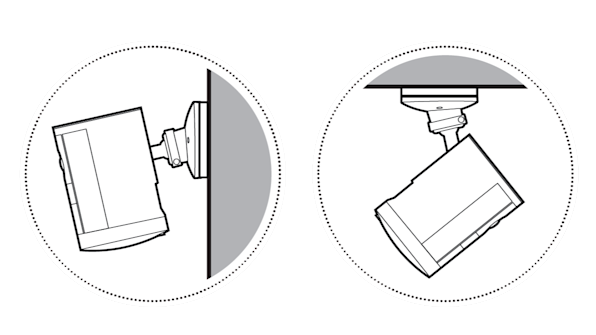

An example of the camera being mounted on a wall or a ceiling.

Wall installation

1.

Slide the mounting plate in the direction opposite to the UP arrow to remove.

A gray camera mounting plate with a white circle behind it and an arrow pointing up on it and two arrows pointing down next to it showing to slide it off.

2.

Use the mounting plate as a guide to mark screw holes on the wall with 5.5 in (14 cm) of space in every direction.

Illustration showing a pencil marking the installation holes using the mounting plate as a guide.

3.

Install the mounting plate with the UP arrow pointing up.

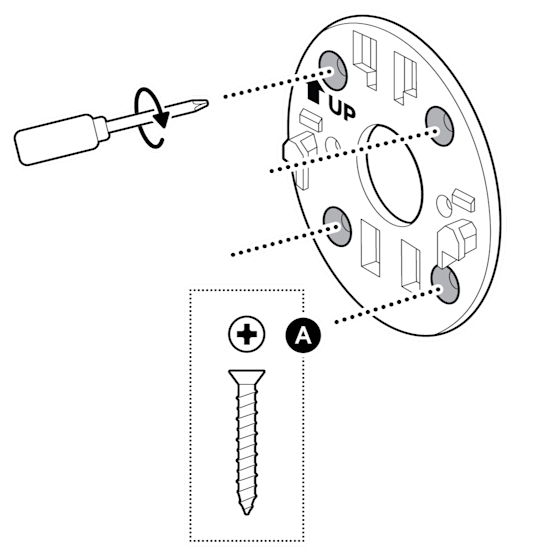

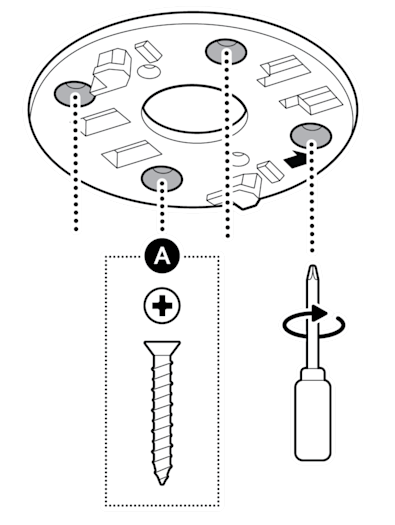

An example of the mounting plate being installed, turning the screwdriver clockwise to tighten the included screws.

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

Illustration to show using a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors for stucco, brick, or concrete, and use just screws for wood installation.

4.

Remove the middle rubber cap on the back of your camera.

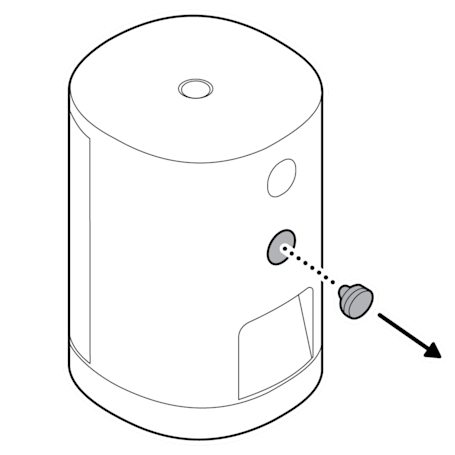

An example of the center rubber cap on the back of the device being pulled out.

5.

Attach the camera mount to the back of your camera with its screw.

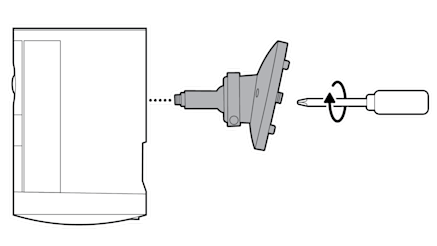

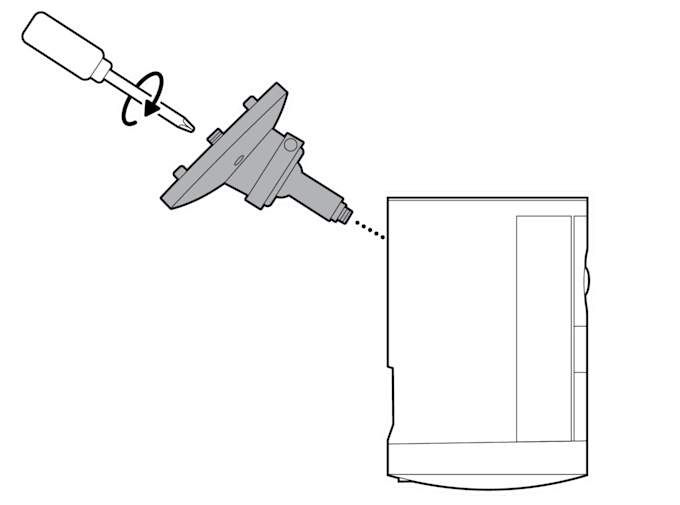

An example of the camera mount being installed on the back of the device by turning the screwdriver clockwise.

6.

Secure your camera to the mounting plate by sliding until you feel a click.

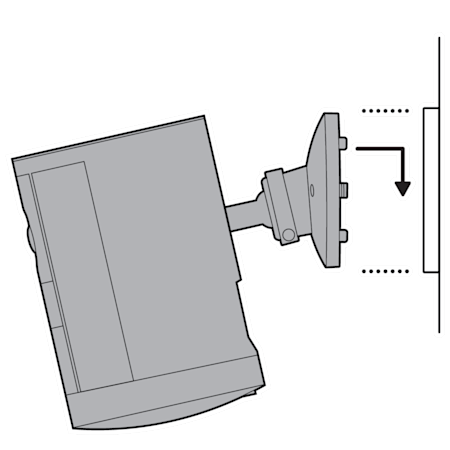

An example of the camera being mounted on a wall by sliding the the camera base down onto the installed wall mount.

7.

Rotate your camera and tighten the security screw.

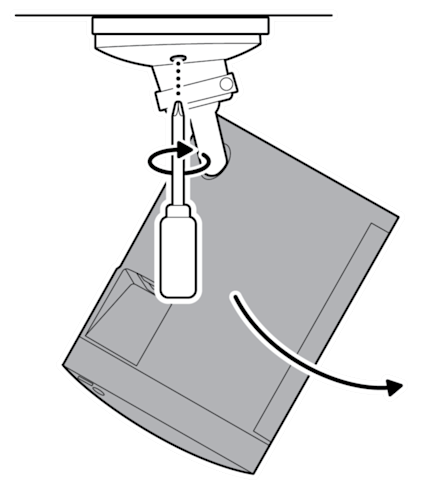

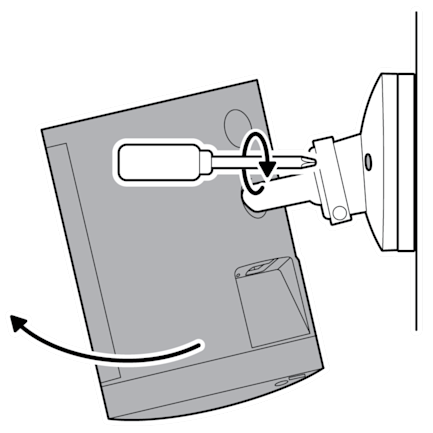

An example of the camera being rotated, then using a screwdriver to tighten the security screw in a clockwise motion.

8.

Adjust your camera's position and tighten the ball joint to secure in place.

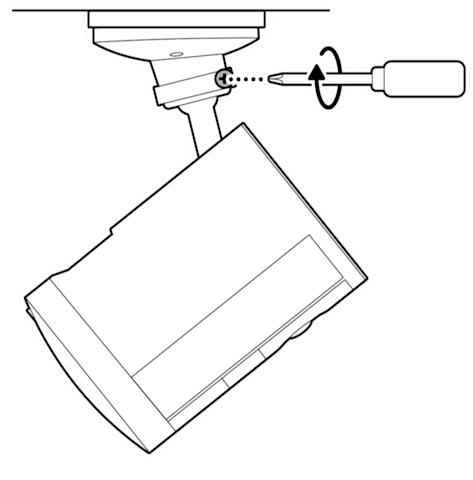

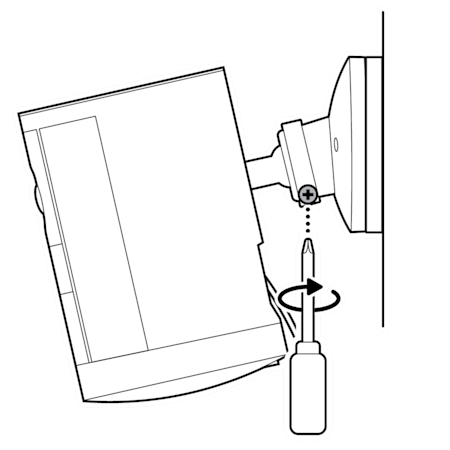

An example of tightening the ball joint on the camera by turning the screw on the ball joint in a clockwise motion with a screwdriver.

Ceiling installation

1.

Slide the mounting plate in the direction opposite to the UP arrow to remove.

2.

Use the mounting plate as a guide to mark screw holes on the ceiling with 5.5 in (14 cm) of space in every direction.

NOTE: For best results, avoid locations with nearby objects that can interfere with your camera's field of view.

3.

Install the mounting plate with the UP arrow pointing toward your desired viewing direction.

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.

4.

Remove the top rubber cap on the back of your camera.

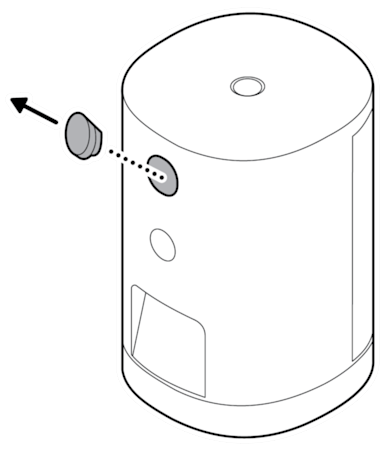

An example of the top rubber cap on the back of the device being pulled out.

5.

Attach the camera mount to the back of your camera with its screw.

6.

Secure your camera to the mounting plate by sliding until you feel a click.

NOTE: Your camera should be in an upright position.

An example of the camera being mounted on a ceiling by sliding the the camera base into the installed wall mount.

7.

Rotate your camera and tighten the security screw.

8.

Adjust your camera's position and tighten the ball joint to secure in place.

Battery setup and installation

1.

Twist the battery cover counterclockwise to open the battery cover.

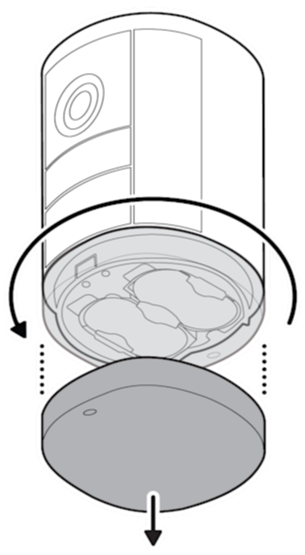

An example of the battery cover on the bottom of the device being turned counter-clockwise and removed.

2.

Click the ejector button to eject the battery housing.

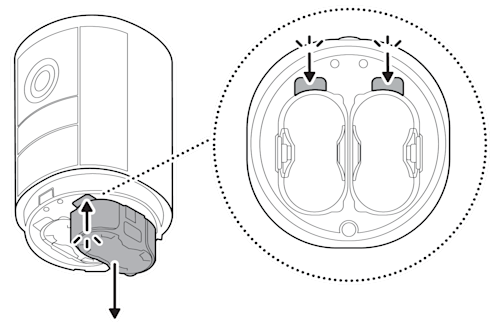

An example of the battery housing being removed from the device by pressing the eject button located on the bottom of the device.

3.

Push the tab to remove the battery.

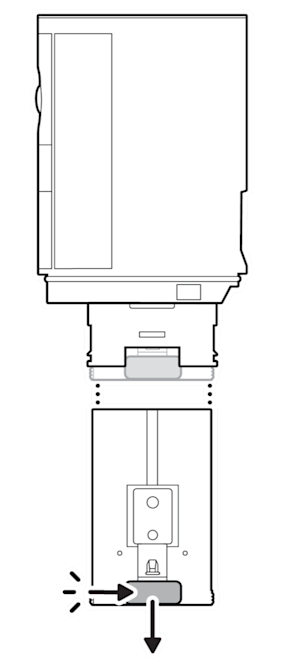

An example of the battery being removed from the device by pressing the tab on the battery and sliding it downward.

4.

Discard the battery insulator and fully charge the battery.

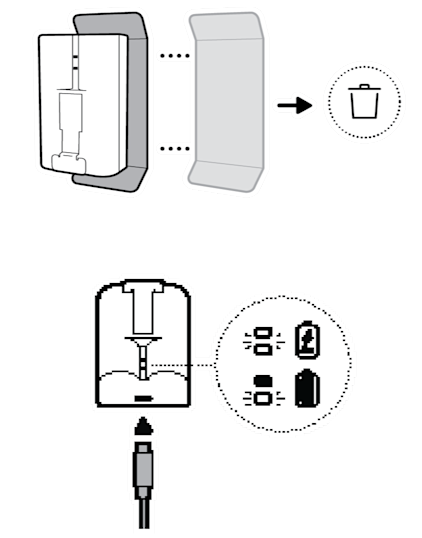

An example of removing the battery from the insulator and charging it with the provided cable.

5.

Insert the battery and twist to close the battery cover to the locked position.

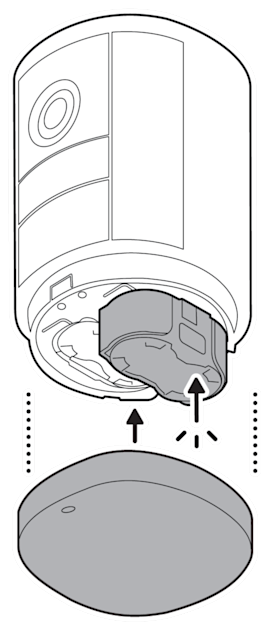

An example of the battery being inserted into the bottom of the device and the battery cover being attached.

6.

Tighten the security screw on the battery cover.

CAUTION! The security screw creates a seal to prevent damage from rain or humidity. Always tighten it when replacing the battery.

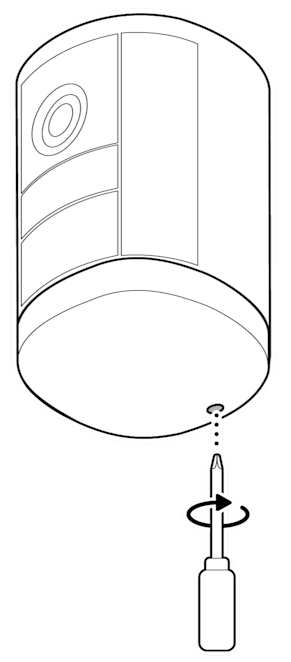

An example of the security screw being installed on the bottom of the device by tightening it clockwise.

Power adapter installation (for Plug-In)

1.

Remove the rubber cap from your camera's power port.

NOTE: Store the rubber cap in a safe place. Reinsert it into the power port when not using the power adapter.

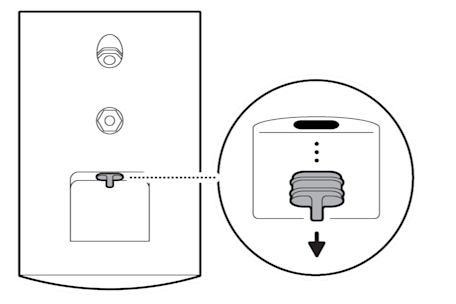

The protective rubber cap being pulled from the power port located on the back of the device near the bottom.

2.

Plug the power cable into your camera, ensuring it is fully inserted.

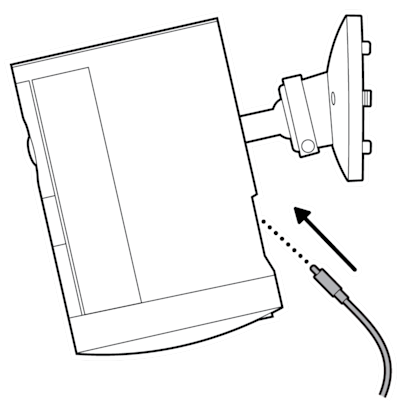

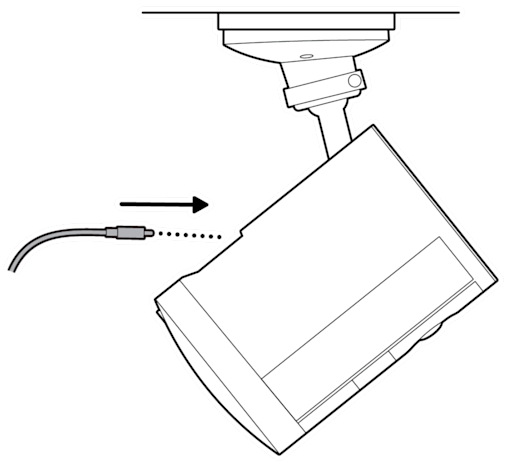

The power cable being plugged into the port located on the lower back end of the device.

3.

Plug the power adapter into an outlet.

An example of the power cable for the device being plugged into an electrical outlet.

4.

Anchor the power cable to the wall or ceiling with the included cable clips.

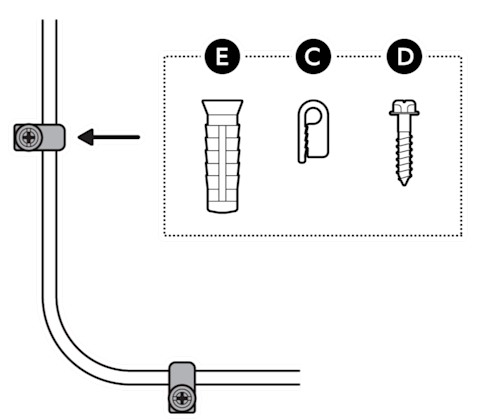

An example of the power cable being secured using the provided cable clamps, screws, and anchors.

5.

Secure the power adapter with the included anchors and screws.

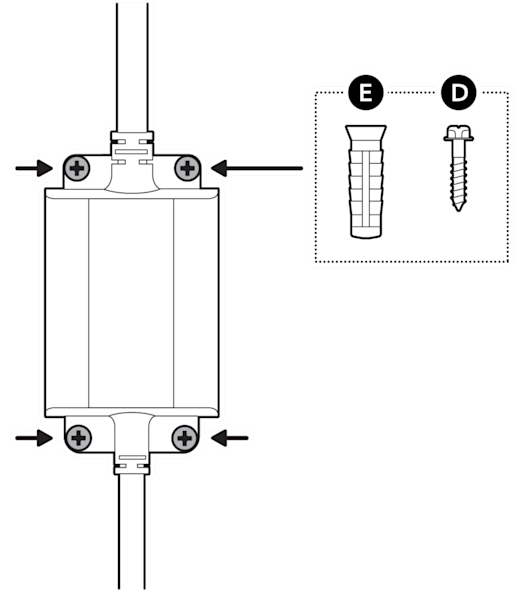

An example of the power adapter being secured to a surface using the included screws and anchors.

On stucco, brick, or concrete, use a 1/4 in (6 mm) masonry bit to drill holes for the included wall anchors.
