Wiring Diagrams for Select Ring Video Doorbells
Learn how to wire your video doorbell with your specific home wiring configuration.
Ring devices supported in this article:
- Video Doorbell (2nd Gen)
- Video Doorbell 3
- Video Doorbell 3 Plus
- Video Doorbell 4
- Battery Doorbell Plus
Additional diagrams for specific home configurations
![1RVD_2chimes_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/2YNoeCJ0bsqU2pTdwNdWkf/2399dc8b53ef1f2f841a827faa07babb/image.jpg?w=601)

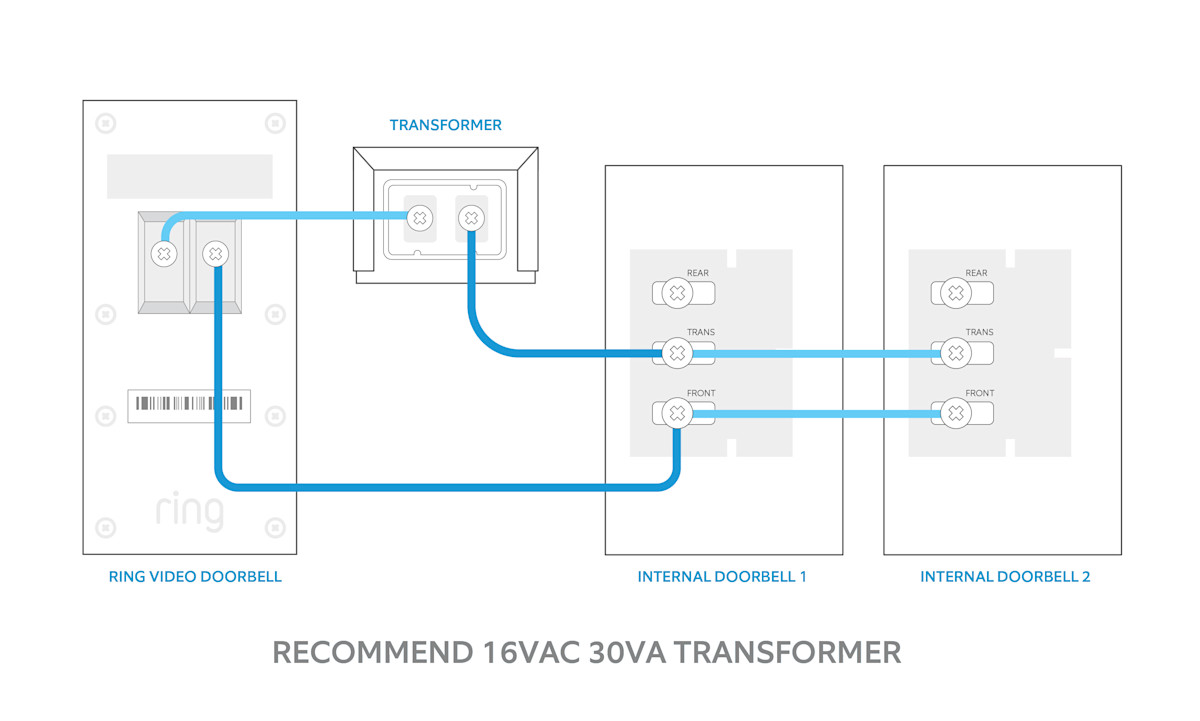

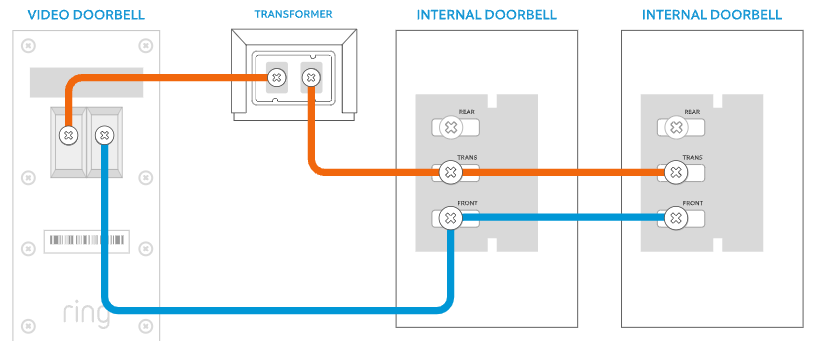

- One Ring doorbell
- Two internal doorbell chimes
![2RVDS_1Chime_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/4czkp6Mm1HbgKg0ysbb7DB/11cae11df947ae8ebfa07bf52374dd6e/image.jpg?w=600)

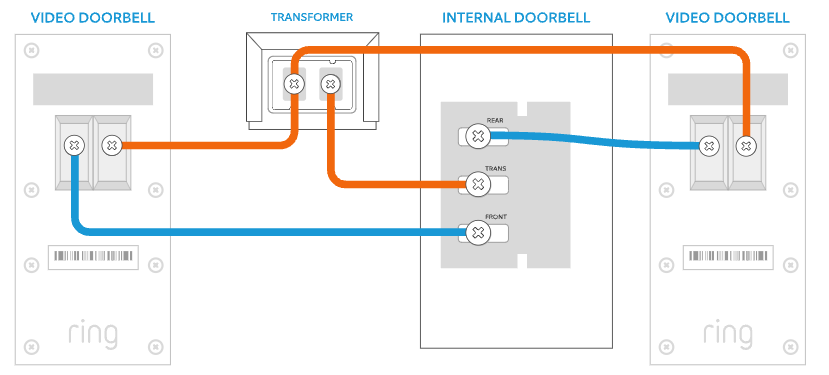

- Two Ring doorbells
- One internal doorbell chime
![1Pro_1RVD_to_1Chime_1Trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/1zsgyxaXDhqvhHSxD3f8oW/c5c084f5a288741bc9e26bec5b2641b0/image.jpg?w=595)

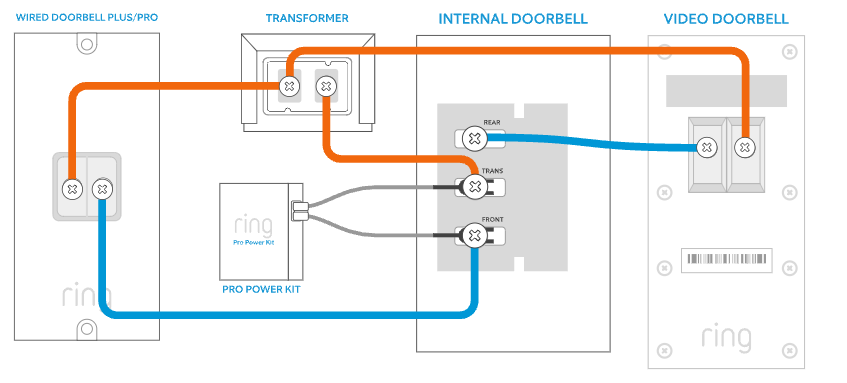

- One Ring doorbell
- One Video Doorbell Pro or Pro 2
- One internal doorbell chime
![1Pro_1RVD_2Chimes_1trans.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/6WFnipORSPCV1s1I4qOSqL/560462b38cb0b0f884ac5f1ead344a90/image.jpg?w=766)

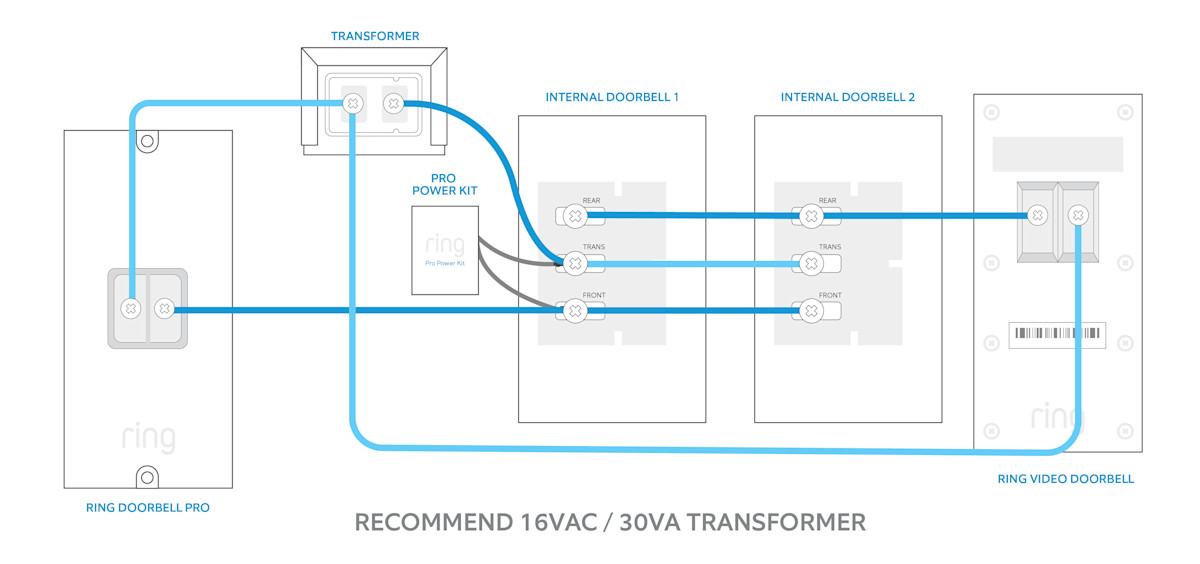

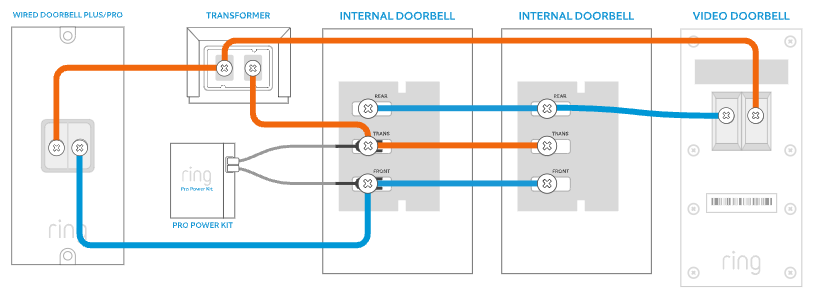

- One Ring doorbell
- One Video Doorbell Pro or Pro 2
- Two internal doorbell chimes
![1_RVD_3_Chimes_1Transformer.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/1l3dnFgljrmTShWOD4pvhr/3055b8d8e3054cfeb283ca0011715377/image.jpg?w=1200)

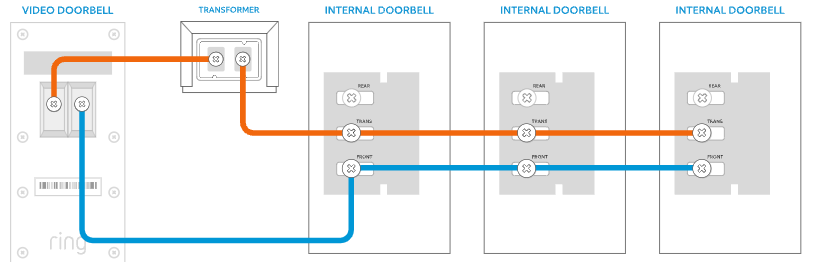

- One Ring doorbell
- Three internal doorbell chimes
- One transformer
![1pro_1rvd_2trans_2chimes-100.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/rKg9x7lnINKG9gUAGJi3i/9d37a959ded23251a14535be6d1ce346/image.jpg?w=1200)

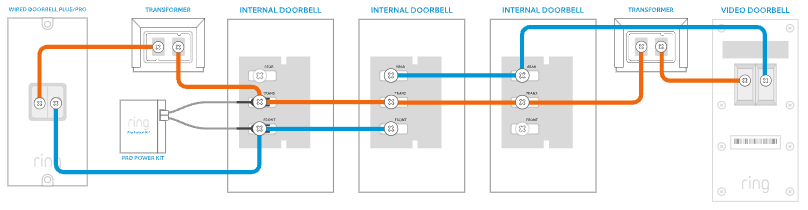

- One Ring doorbell
- One Video Doorbell Pro or Pro 2
- Two transformers
![1RVD_1trans_1chime-100__1_.jpg](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/77zbw4DdWJARN3HzBNKrg7/37f2bdc5f0db3e964ddbb308cd84f49f/image.jpg?w=1076)

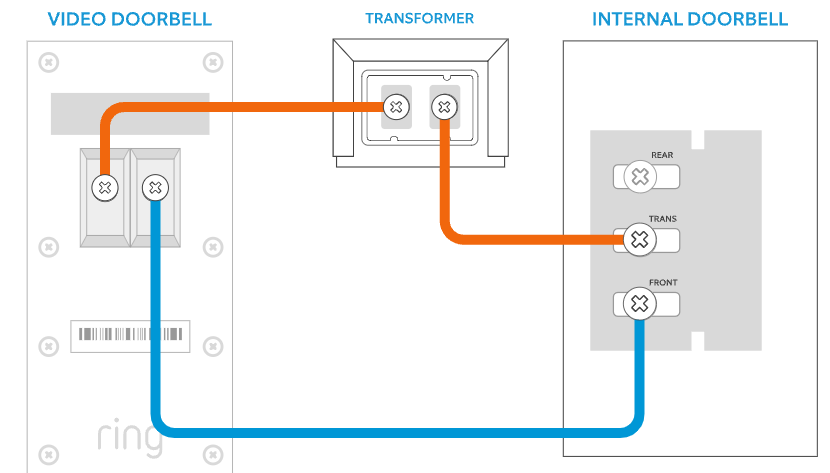

- One Ring doorbell
- One internal doorbell chime
- One transformer
![1_RVD_and_Transformer.png](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/5eykwzEY2joZU4dKI3EHKk/bcab691cb83ff50af8fbab5370dbf3df/image.jpg?w=1200)

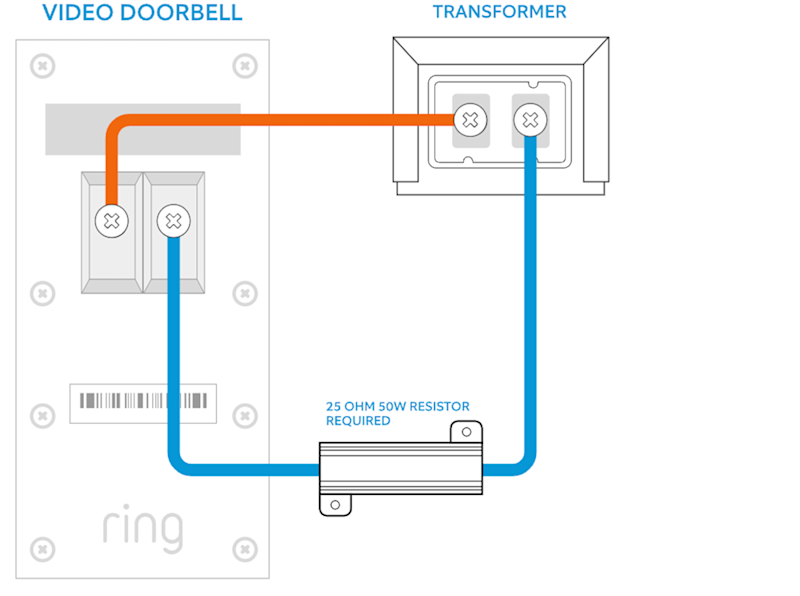

- One Video Doorbell (1st Gen)
- One Video Doorbell 2
- One transformer
