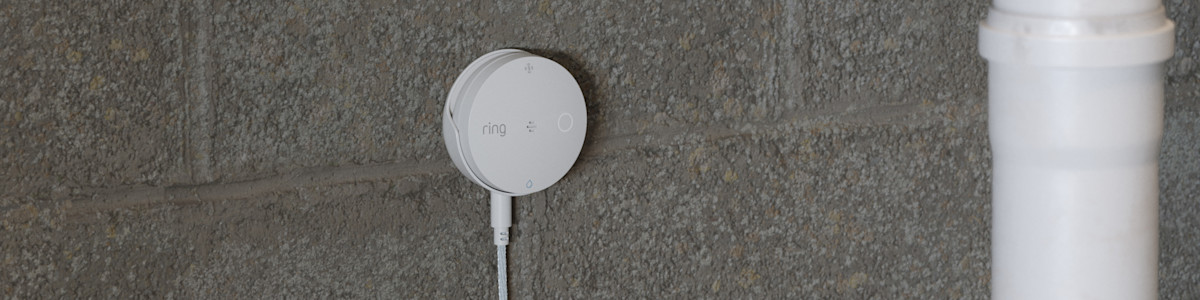

Image showing the Sump Pump Monitor installed in a basement area.

Installing Ring Sump Pump Monitor

View or download the user manual for Sump Pump MonitorView or download the user manual for Sump Pump Monitor (French)View or download the user manual for Sump Pump Monitor (Spanish)

Hardware included:

Illustration of the included installation hardware for the Smoke and CO Listener (2nd Gen).

Tools needed:

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

Illustration of a power drill to use as an installation tool.

Drill with a 1/4 in (6 mm) masonry bit (optional)

1. Remove the protective film.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

3. Scan the QR code on your device.

Instruction stating to scan the applicable QR code to start a device set up in the Ring App.

4. Follow in-app setup.

Illustration to show an information guide and a mobile phone.

Installation

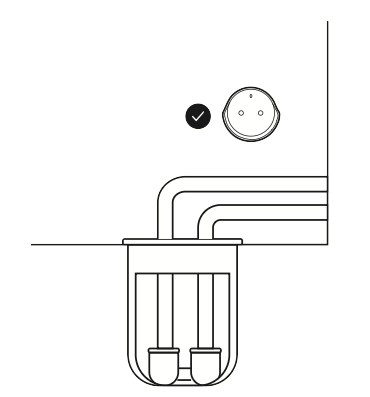

1. Choose a location near leak-prone, hard-to-reach areas.

Illustration showing to place the monitor in a leak prone area.

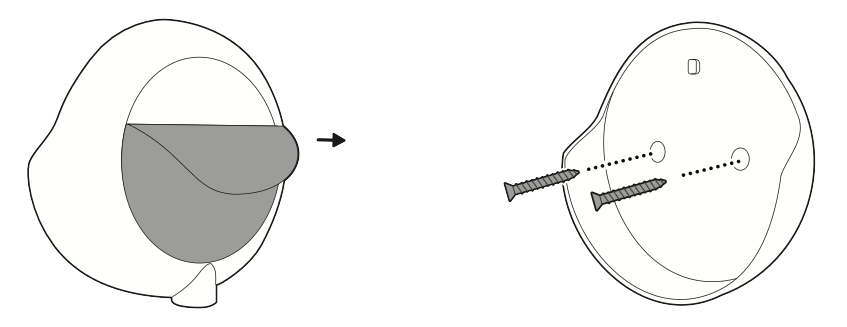

2. (Optional) Install the mounting bracket on the floor or wall with the included screws or adhesive backing.

Illustration showing to install the mounting bracket using adhesive or screws.

On drywall, stucco, brick, or concrete, use a 3/16 (5 mm) masonry bit to drill holes for the included wall anchors.

Illustration showing how to install the wedge or corner kits if on stucco, brick, or concrete.

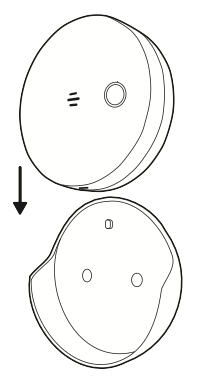

3. Attach your monitor to the mounting bracket by sliding until you hear a click to secure.

NOTE: Ensure the monitor is pointing up.

Illustration showing to insert the monitor into the mounting bracket and slide until you hear a click.

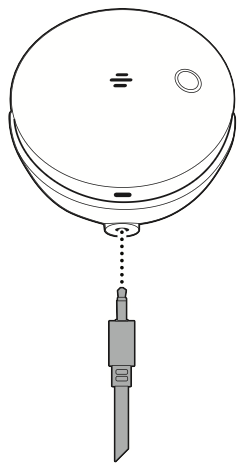

4. Insert the included cable into the hole on the mounting bracket.

Illustration showing to insert the included cable into the hole on the mounting bracket.

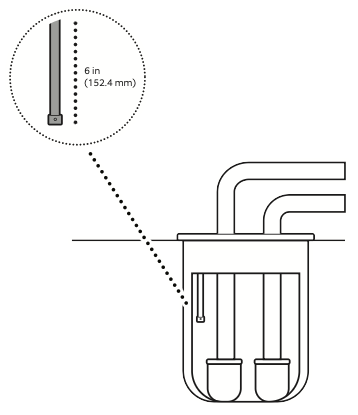

5. Route the other end of the cable over the area where you want to detect water, like a sump pump basin.

Illustration showing how to route the other end of the cable over the area where you want to detect water, like a sump pump basin.
