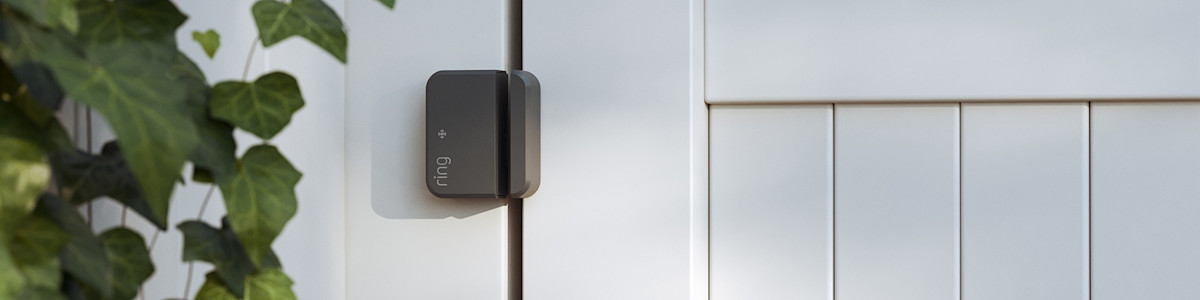

Image of an Outside Door Sensor installed on an external door

Installing Outside Door Sensor

Get step-by-step installation instructions for your Outside Door Sensor.

View or download the user manual for Outside Door SensorView or download the user manual for Outside Door Sensor (French)View or download the user manual for Outside Door Sensor (Spanish)

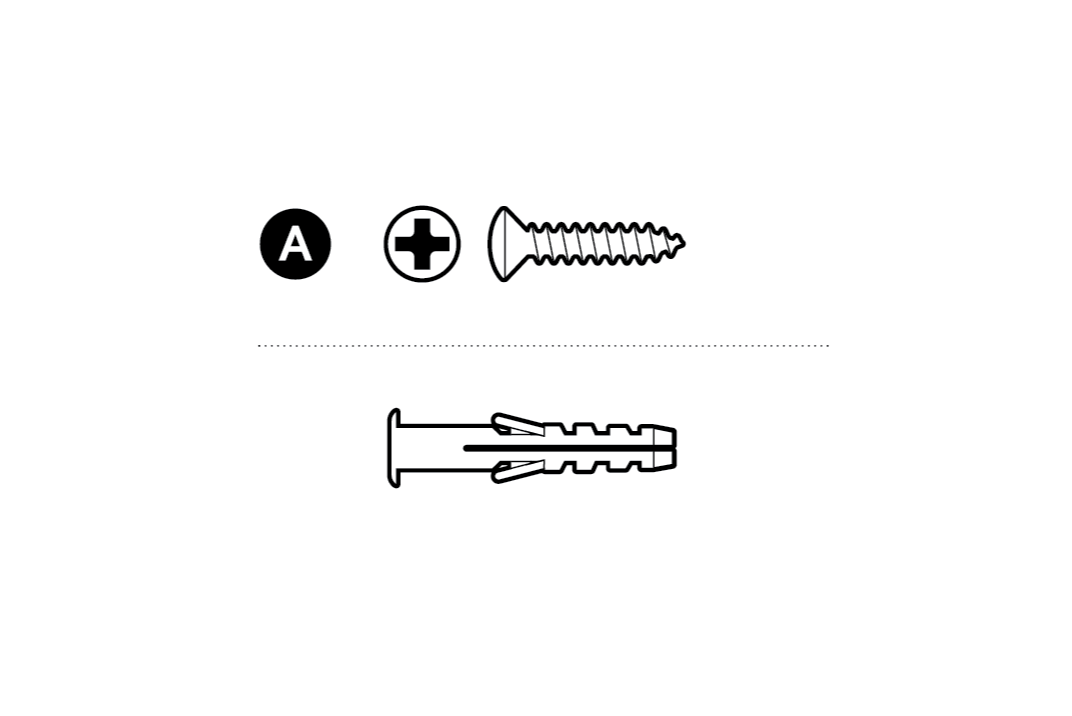

Hardware included

Illustration to show the screws and wall plugs included with your Outside Door Sensor.

Tools included

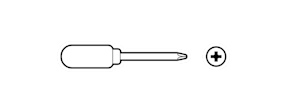

Illustration to show a Phillips head screwdriver

Phillips-head screwdriver

1. Remove the protective wrap.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

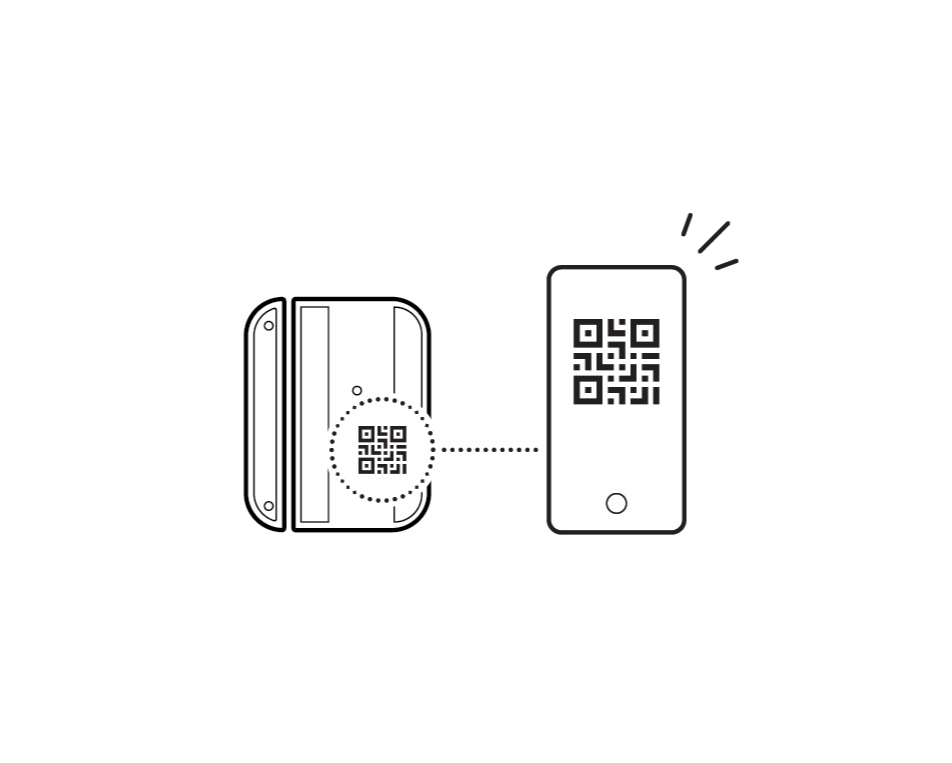

3. Scan the QR code on your device.

Illustration to show the location of the QR code on the Outside Door Sensor.

4. Follow in-app setup.

Illustration to show an information guide and a mobile phone.

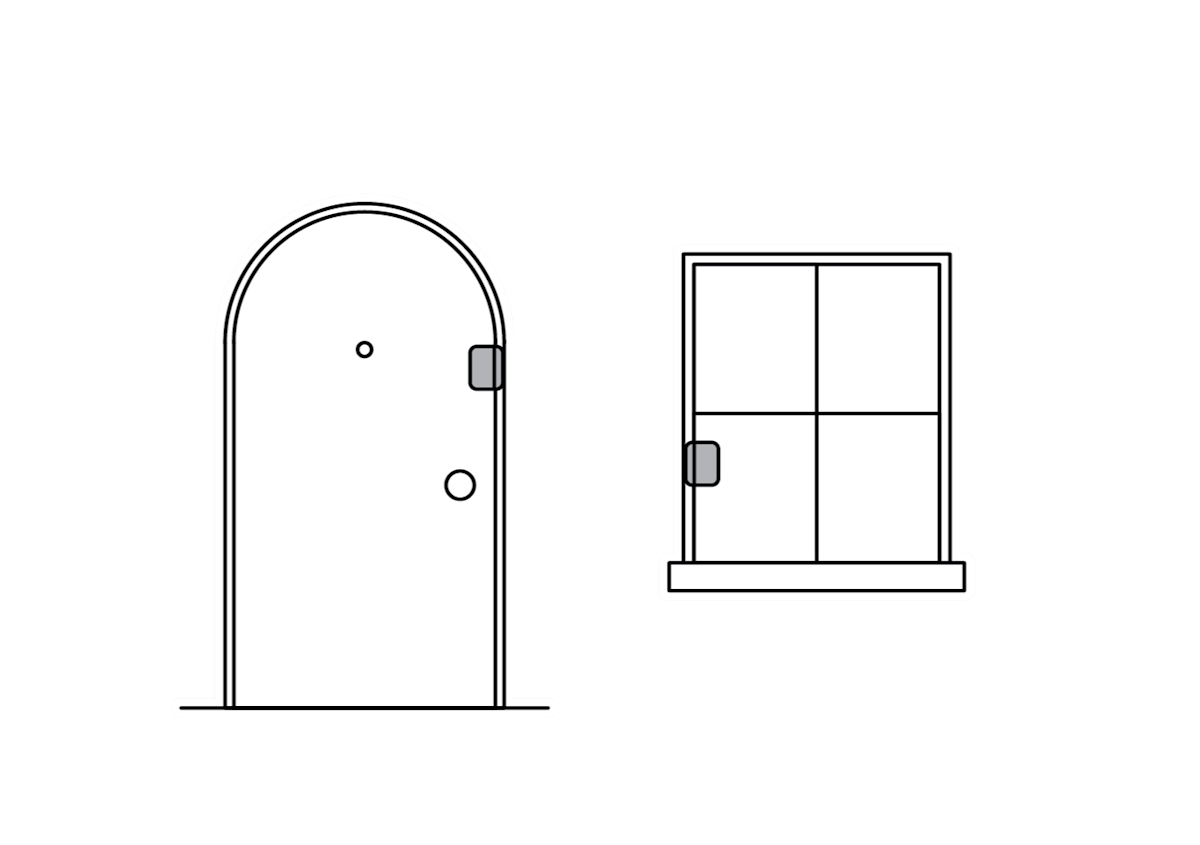

5. Choose a location with a door or window and frame.

Illustration to show possible positions to install an Outside Door Sensor on a window or door frame.

No-drill installation

1. Wipe the area clean and let dry.

Illustration to show a wipe to clean and dry your Window & Door Sensor.

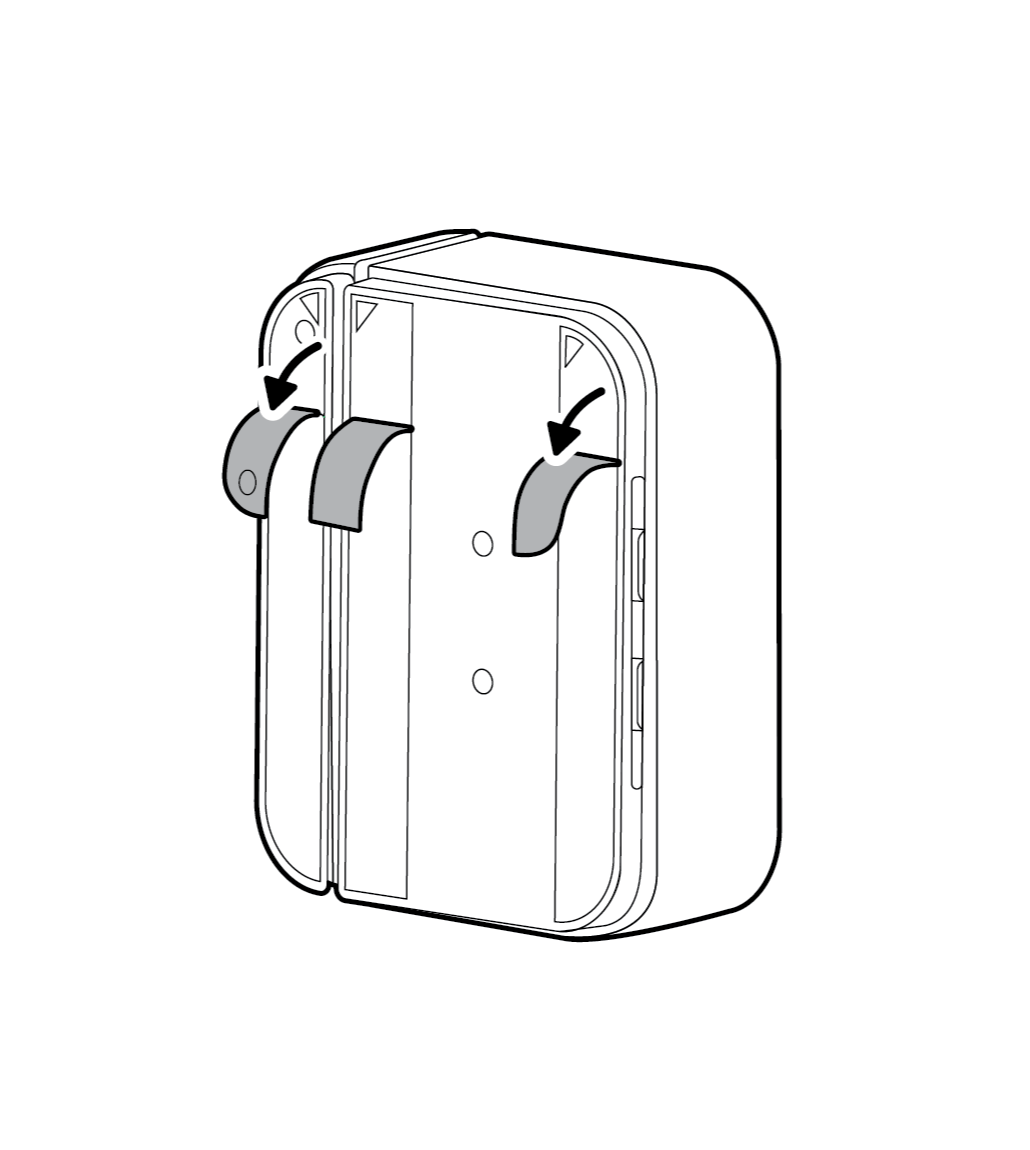

2. Remove the protective strips from the adhesive backing.

Illustration to show the removal of the protective strips from the adhesive backing.

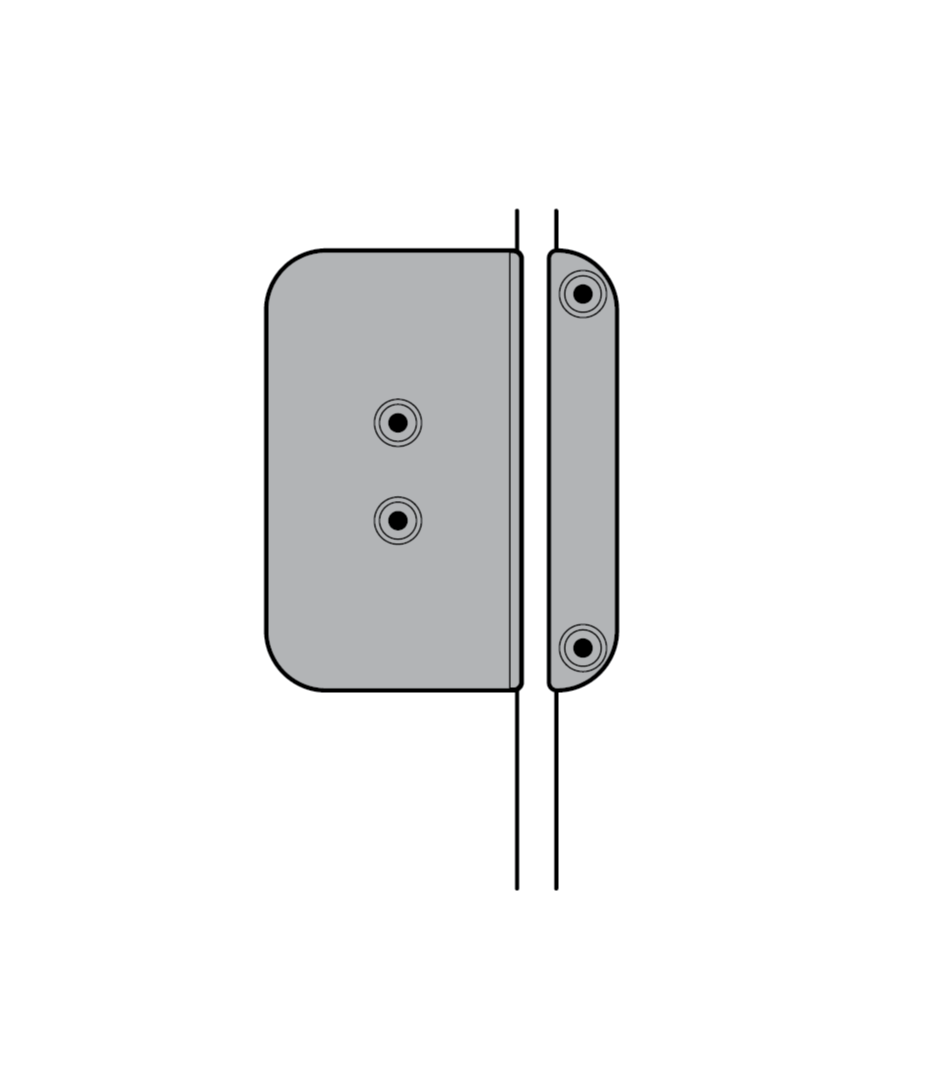

3. Attach the mounting brackets to the door or window and frame.

NOTE: Ensure no more than 1 in (25.4 mm) between sensor and magnet when closed. Leave at least 1/2 in (12.7 mm) of space to open the battery compartment.

Illustration to show mounting brackets on a window or door.

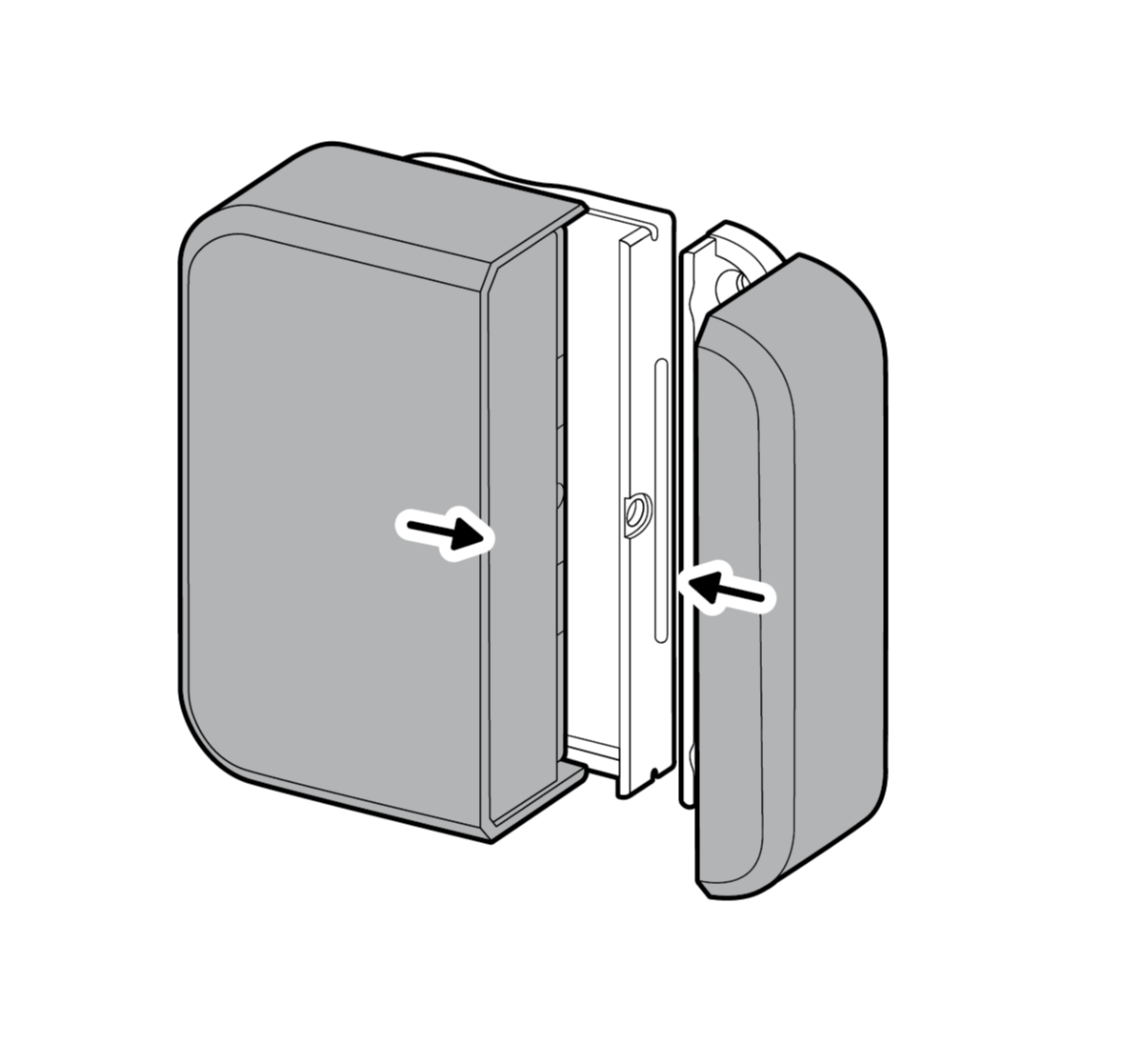

4. Slide the sensor and magnet onto the mounting brackets to secure.

Illustration to show sliding the sensor and magnet onto the mounting bracket.

5. Secure the sensor and magnet in place with the included screwdriver and screw.

Illustration to show securing the sensor to the bracket with the included screwdriver and screw.

Drill installation

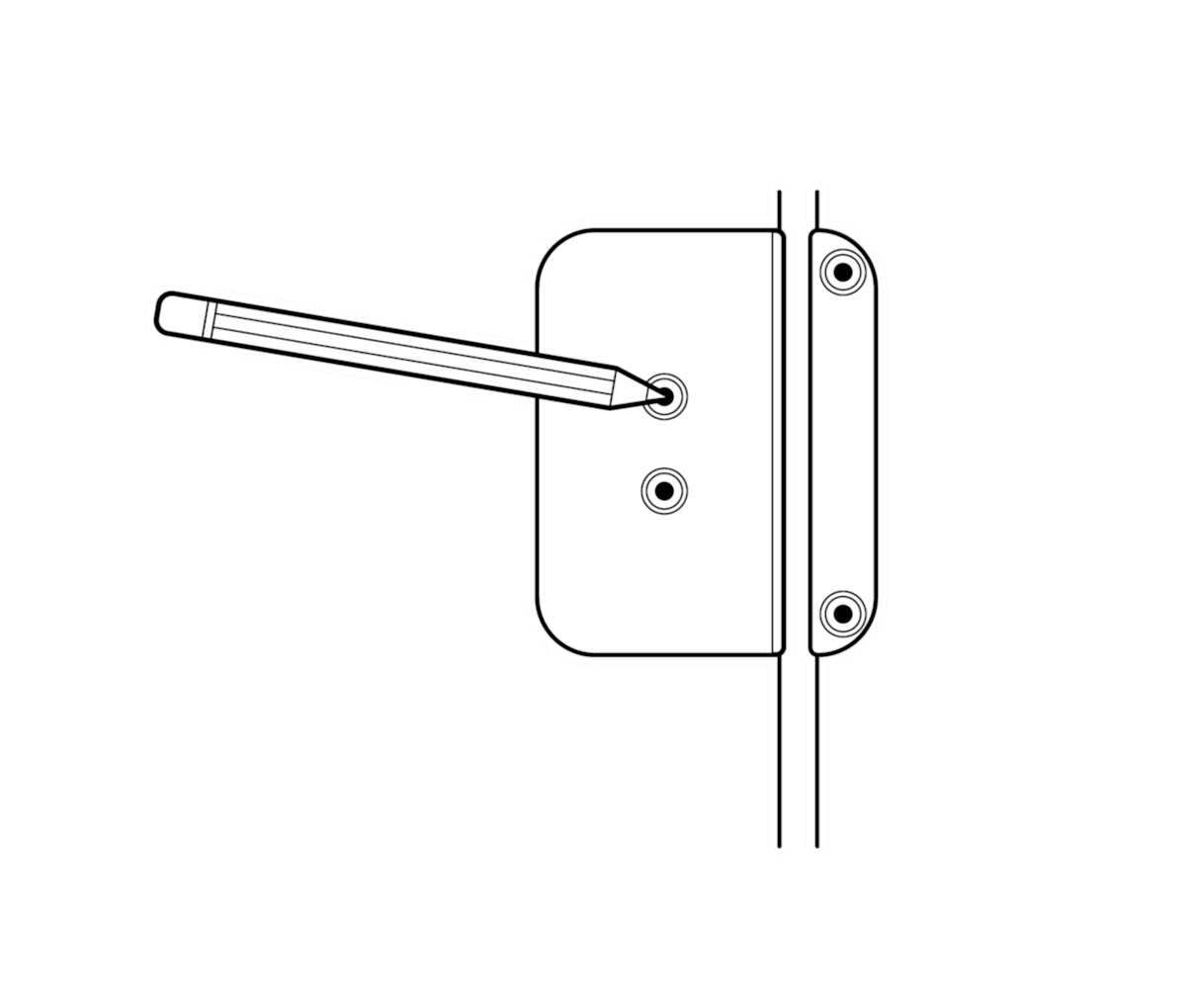

1. Use the mounting brackets as guides to mark screw holes on the door or window and frame.

NOTE: Ensure no more than 1 in (25.4 mm) between sensor and magnet when closed. Leave at least 1/2 in (12.7 mm) of space to open the battery compartment.

Illustration to show marking the screw holes with a pencil, using the mounting brackets as a guide.

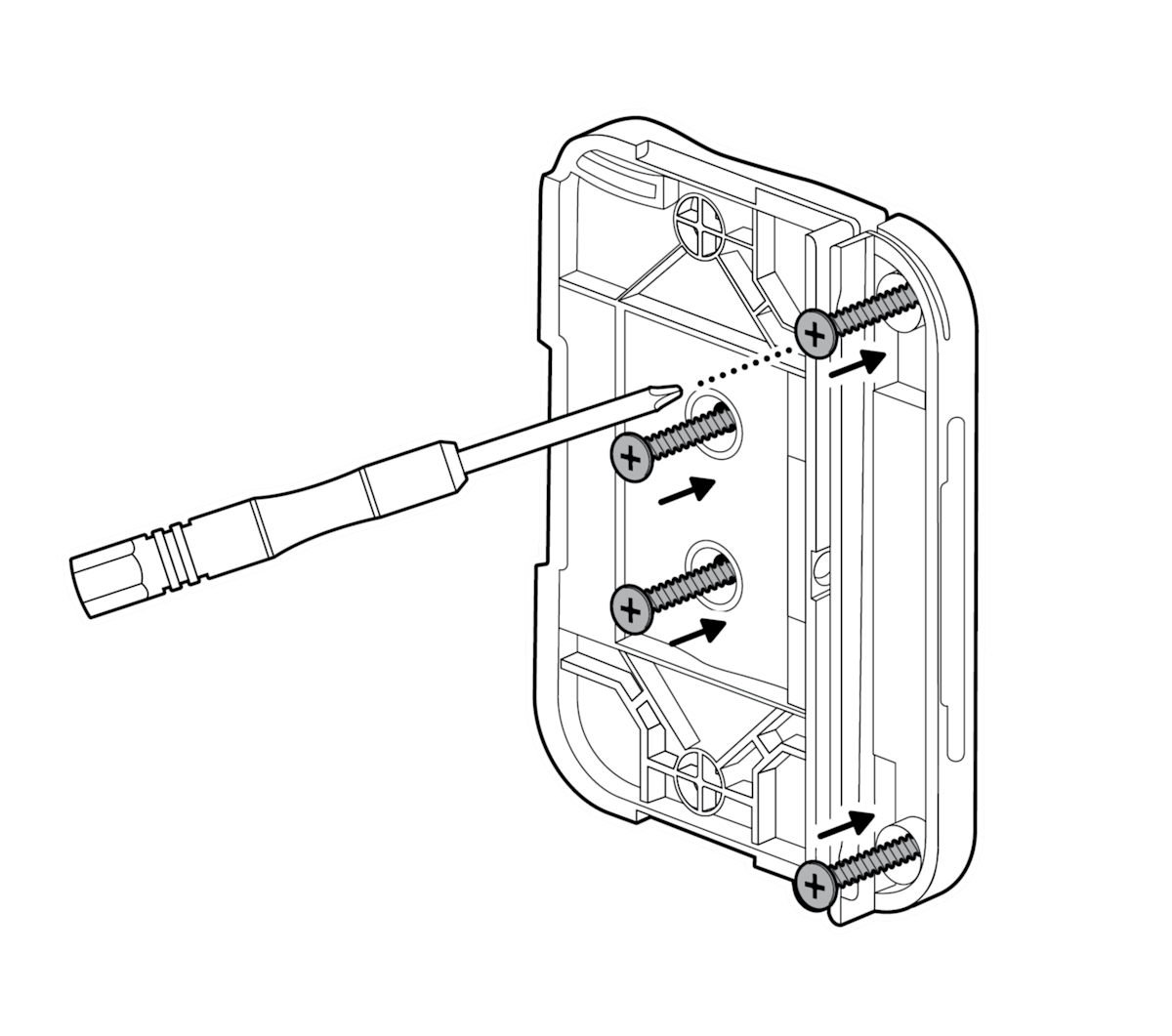

2. Install the mounting brackets.

Illustration to show installing the mounting bracket with the included screws.

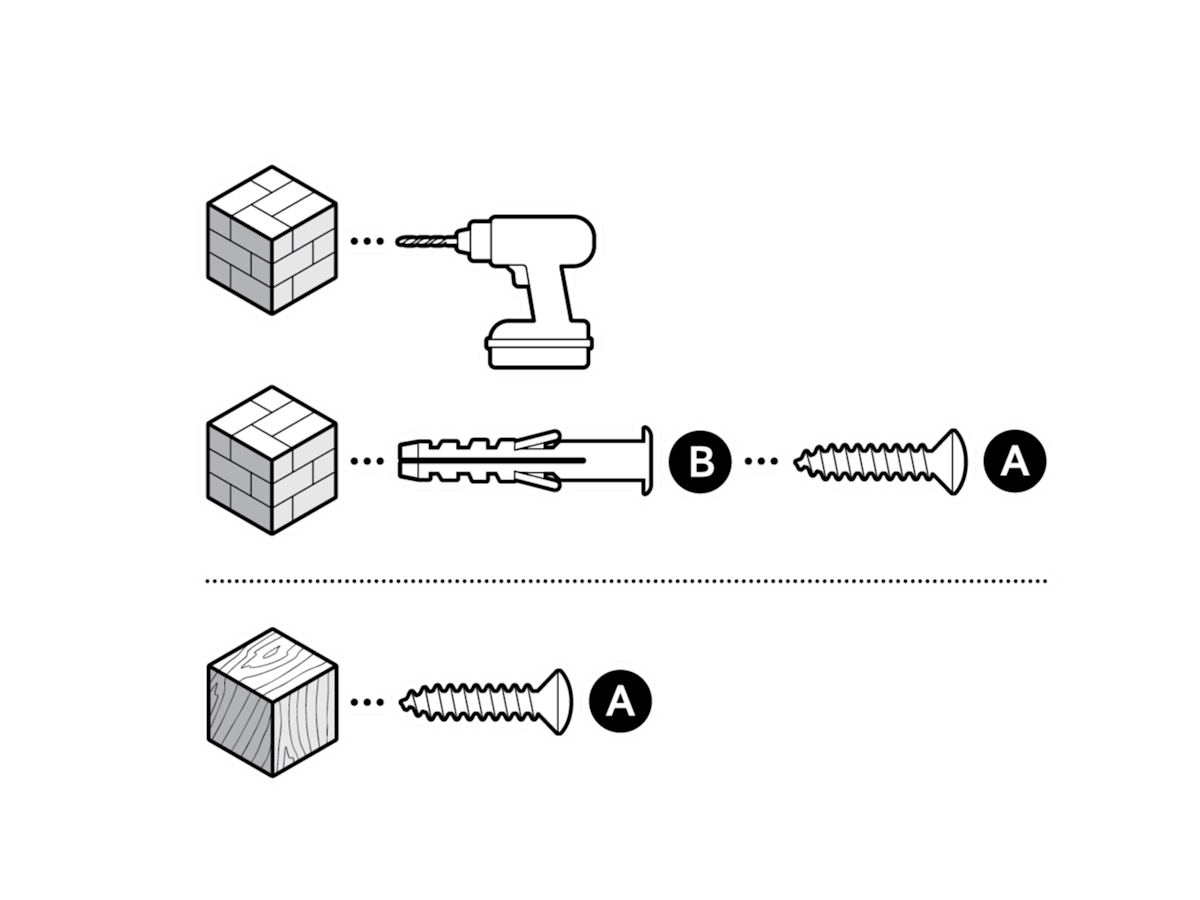

On stucco, brick, or concrete, use a 3/16 in (5 mm) masonry bit to drill holes for the included wall anchors.

Illustration to show using wall anchors and screws for masonry and screws for wood installations.

3. Slide the sensor and magnet onto the mounting brackets to secure.

Illustration to show sliding the sensor and magnet onto the mounting bracket.

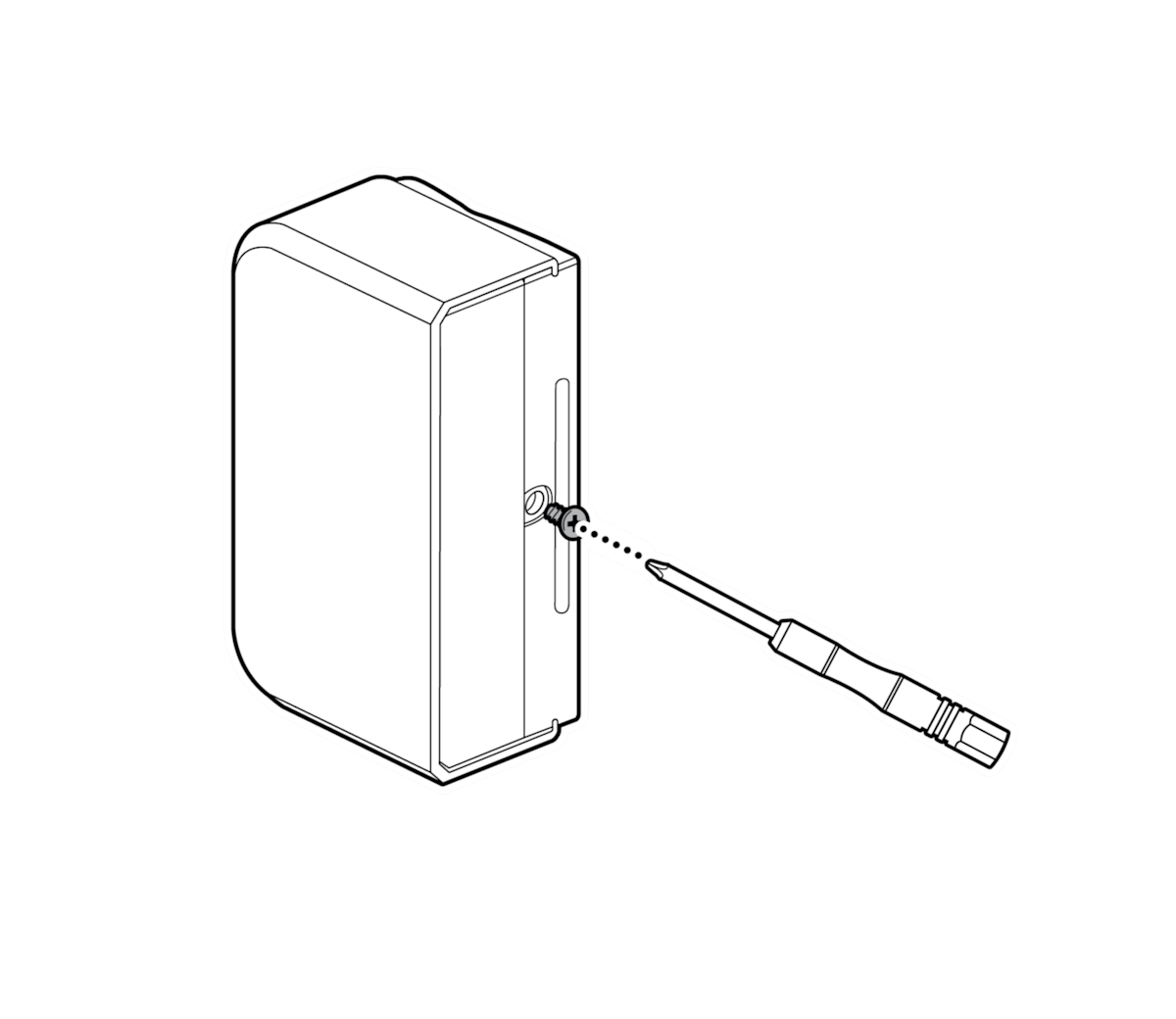

4. Secure the sensor and magnet in place with the included screwdriver and screws.

Illustration to show securing the sensor to the bracket with the included screwdriver and screw.

Amazon Sidewalk-enabled device; requires Amazon Sidewalk coverage for use. Coverage may vary by location. For Amazon Sidewalk information, visit ring.com/sidewalk.
