Installing the Ring Pro Power Kit with your Existing Doorbell

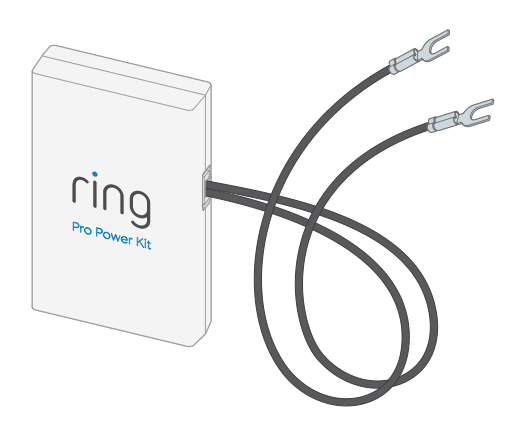

The Pro Power Kit included with your Video Doorbell Pro is a small device that makes sure that enough power is sent to your Ring Doorbell to function. It's required in order for your Ring Doorbell to function properly.
![Ring Pro Power Kit PPK Glory Art Color](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/7CGutntJ4gKdAd9lByQDMr/dc32e4b1597c08c4ce56024400c90b56/image.jpg?w=179)
To install your Pro Power Kit, just follow the instructions below:
Important Notes:
- Before removing or attaching wires to your original bell, be sure that the power is turned off at the breaker box.
- If you're uncomfortable with opening up your original bell box or attaching and detaching wires, consult a licensed electrician.
- to download a PDF of the instruction manual for the Pro Power Kit installation.
Installing the Ring Pro Power Kit
- Remove the cover on your internal bell.

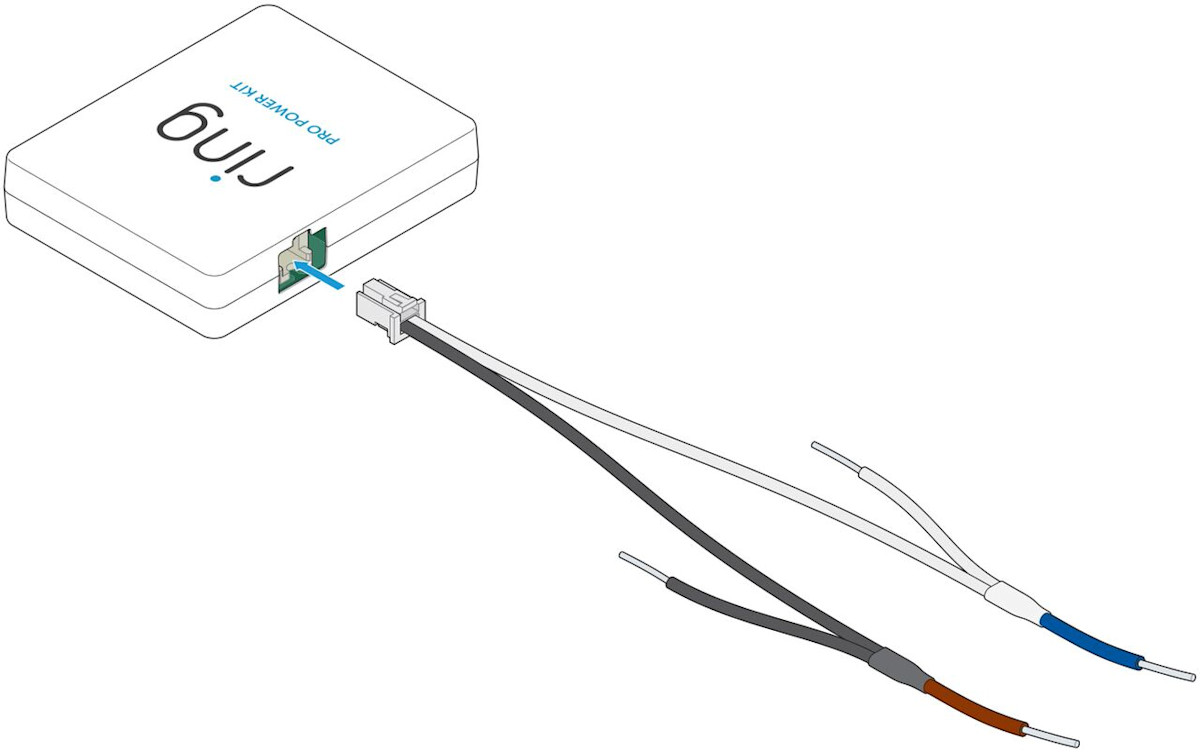

- Connect the wire harness to the Kit.
![Ring Pro Power Kit Installation](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/3HSuvh0l79ZSgd89r7IL9W/d66ebfde17f16d4702a2f5b73c605329/image.jpg?w=407)

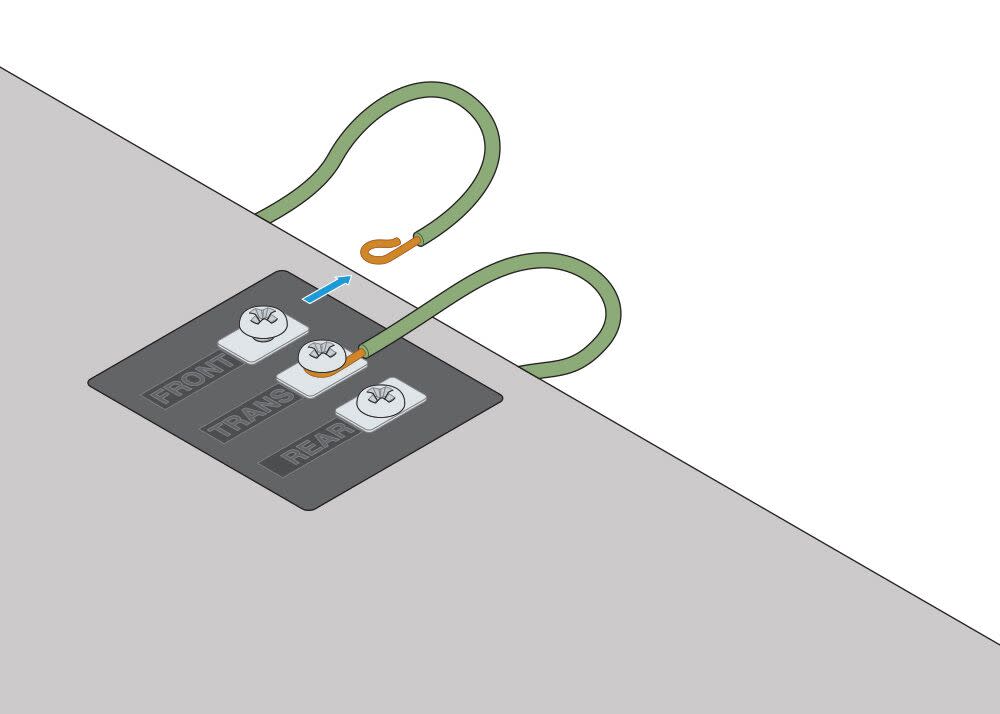

- Disconnect your bell's "Front" wire.
- Look for Wires labeled "Front" and "Transformer."
![Ring Pro Power Kit Wires](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/3TQWjf326nOV4Bpz9TACSg/2395993ae90257132766e78d1f53c582/image.jpg?w=296)

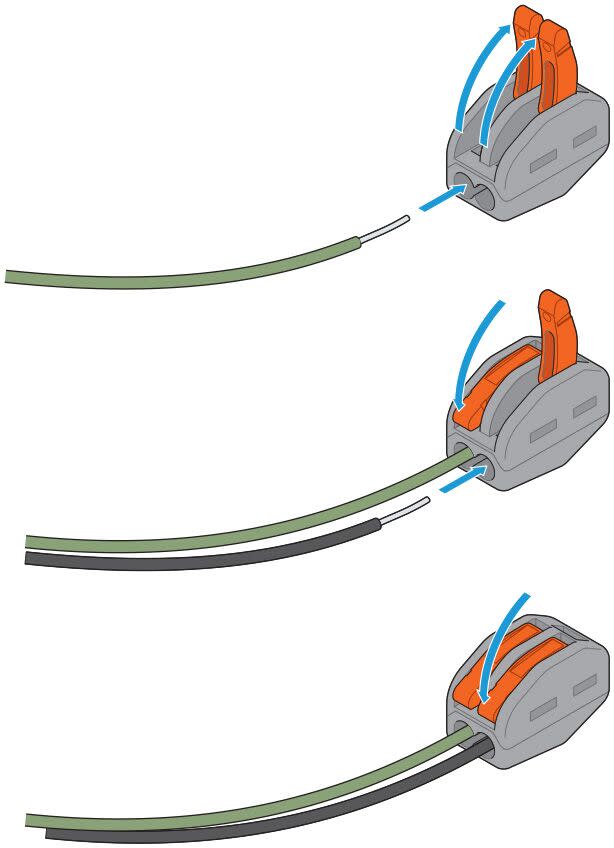

- Use the wire clips to connect the "Front" Wire to the black wire on the the Wire Harness.
- Note that the orange levers are very sturdy and will not break.
![Ring Pro Power Kit Orange Levers](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/cRiwHFoIUi1vEScLM0MLR/b3bfb01b842957642e5f6db2ed7e9796/image.jpg?w=235)

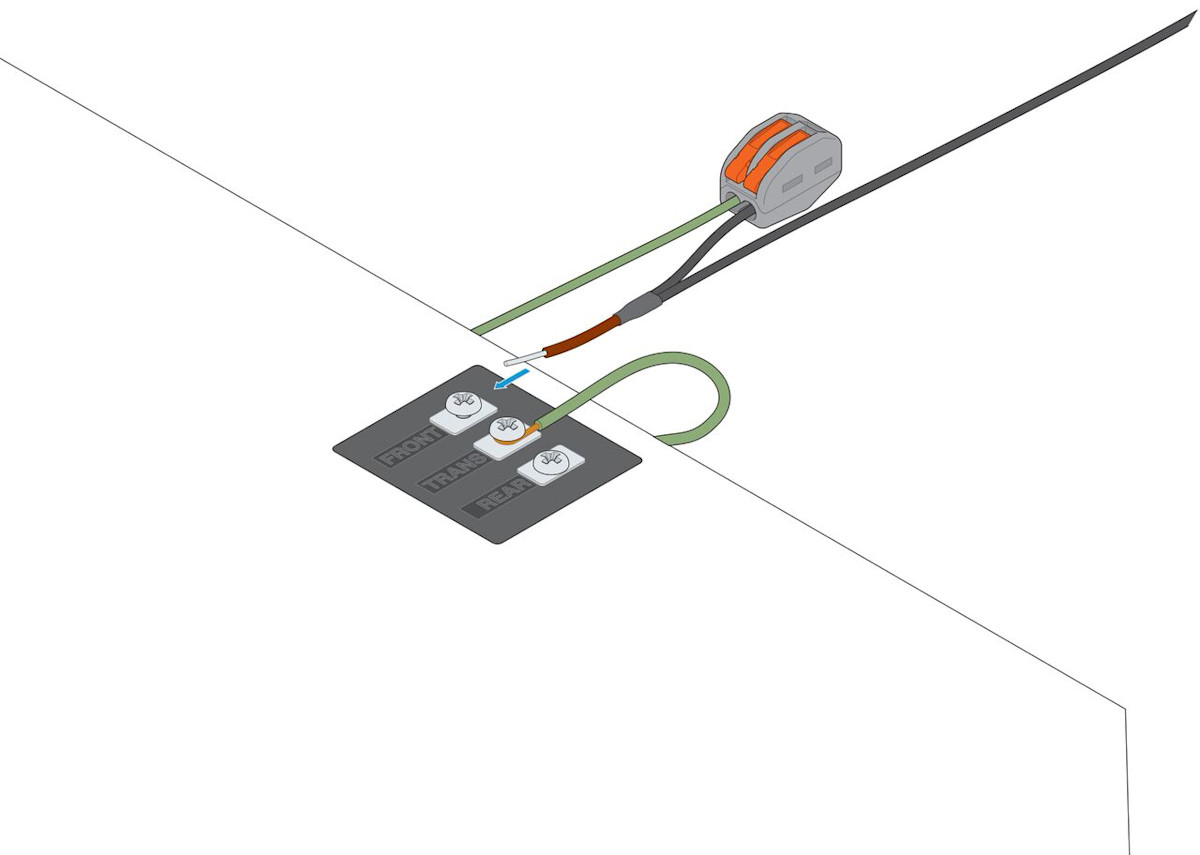

- Connect the brown end of the black wire to the "Front" terminal on your bell.
![Ring Pro Power Kit Wires](https://d1kusojqr3t85q.cloudfront.net/jrz4hnnvdyct/35d3XQTn2jIE398emRicII/29817304cf9faa4abac89c945cb2cafa/image.jpg?w=390)
- Disconnect your doorbell's "Transformer" wire.
- Use the wire clips to connect the "Transformer" wire to the white wire on the Wire Harness.
- Connect the blue end of the white wire to the "Transformer" terminal on your bell.
- Secure the Pro Power Kit inside of your bell, but don't let it get in the way of the moving parts.
- Replace the cover on your bell, turn the power back on at the breaker, and return to the front of your home to perform the in-app setup.
