Installing Ring Smoke & CO Listener (2nd Gen)

Download/view the manual for Ring Smoke & CO Listener (2nd Gen).Download/view the manual for Ring Smoke & CO Listener (2nd Gen) (French).Download/view the manual for Ring Smoke & CO Listener (2nd Gen) (Spanish).

Hardware included:

Illustration of the included installation hardware for the Smoke and CO Listener (2nd Gen).

Tools needed:

Illustration of a cross point screwdriver needed for installation.

Phillips-head screwdriver

Illustration of a power drill to use as an installation tool.

Drill with a 1/4 in (6 mm) masonry bit (optional)

1. Remove the protective film.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring app.

Illustration showing to download the Ring App on the mobile device.

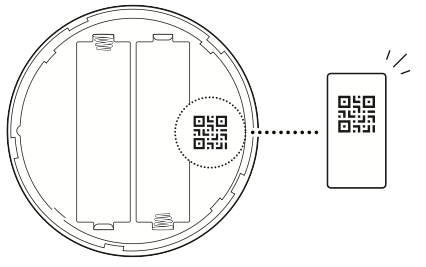

3. Scan the QR code on your device.

Illustration showing to scan the QR Code on your device to setup.

4. Follow in-app setup.

Illustration to show an information guide and a mobile phone.

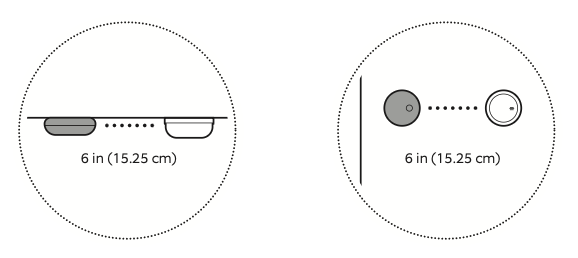

5. Choose a location within 6 in (15.25 cm) of your smoke or CO alarm.

Illustration showing to choose a location within 6 in (15.25 cm) of your smoke or CO alarm to mount your listener.

Installation:

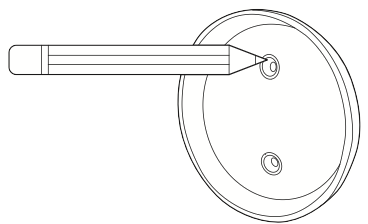

1. Use the mounting bracket as a guide to mark screw holes on the wall or ceiling.

Illustration showing to use the mounting bracket as a guide to mark screw holes on the wall or ceiling.

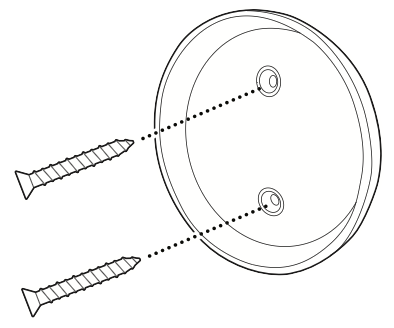

2. Install the mounting bracket with the included screws or the adhesive backing.

Illustration showing to use screw A to install the mounting bracket.

On drywall, stucco, brick, or concrete, use a 3/16 (5 mm) masonry bit to drill holes for the included wall anchors.

Illustration showing how to install the wedge or corner kits if on stucco, brick, or concrete.

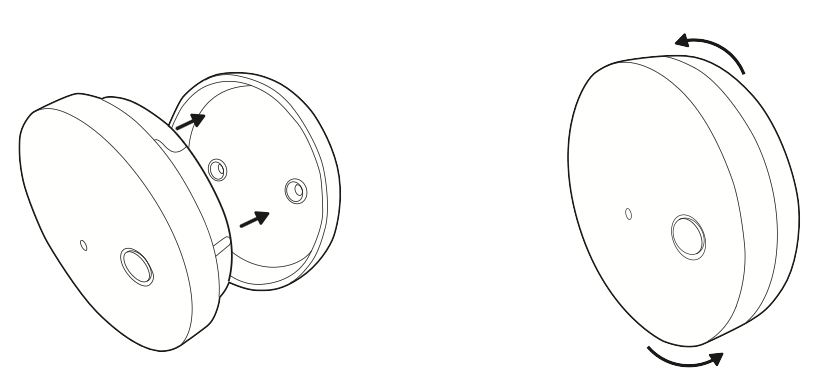

3. Place your Listener on the bracket posts, then slide until you hear a click to secure.

Illustration showing to attach the sensor and slide until you hear a click to secure.
