How to Install Pro Power Kit V2 for Wired Doorbell Plus (formerly Video Doorbell Pro)

Learn how to install the Pro Power Kit V2 for your Wired Doorbell Plus.

Ring Pro Power Kit color illustration.

Important: Your Wired Doorbell Plus requires the Pro Power Kit to function, so be sure to install the Pro Power Kit before installing your doorbell.


1. Turn off the circuit breaker for your internal doorbell.

Switch Off Circuit Breaker

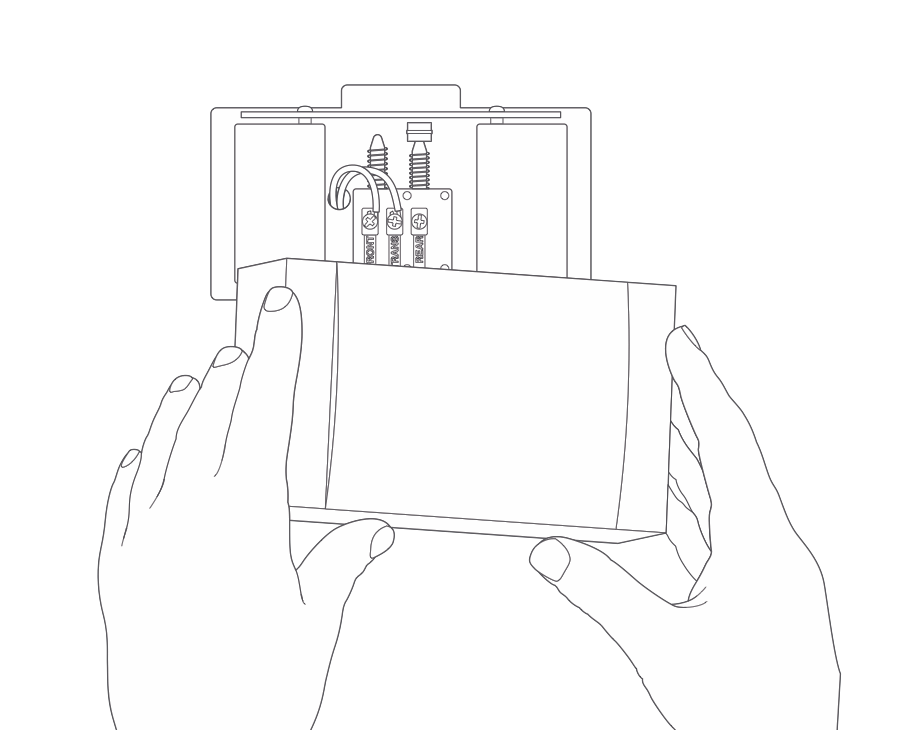

2. Remove the cover from your internal doorbell.

Remove Chime Cover

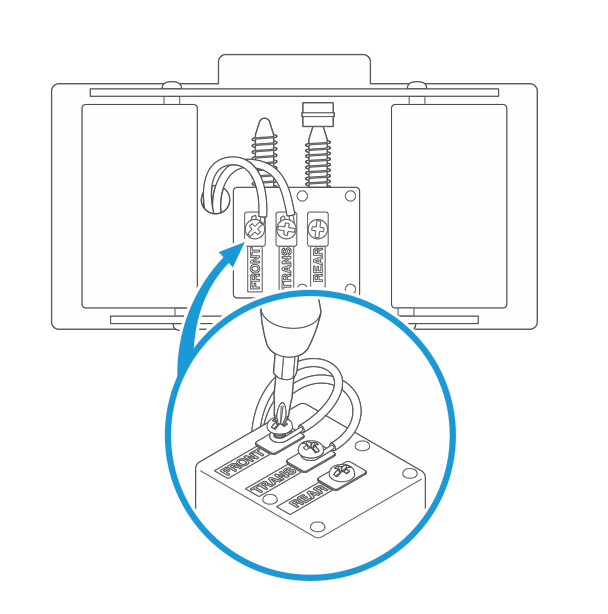

3. Loosen the "Front" and "Trans" terminal screws on your internal doorbell.

Loosen Terminal Screws

4. Connect one wire from the Pro Power Kit to the “Front” terminal, and the other wire to the “Transformer” terminal, leaving the existing doorbell wires in place. Then, re-tighten the screws. It doesn't matter which Pro Power Kit wire goes to each terminal.

Connect Pro Power Kit

5. Position the Pro Power Kit within your internal doorbell, away from any moving parts. Use the adhesive on the back of the Pro Power Kit to fix it in place, if desired.

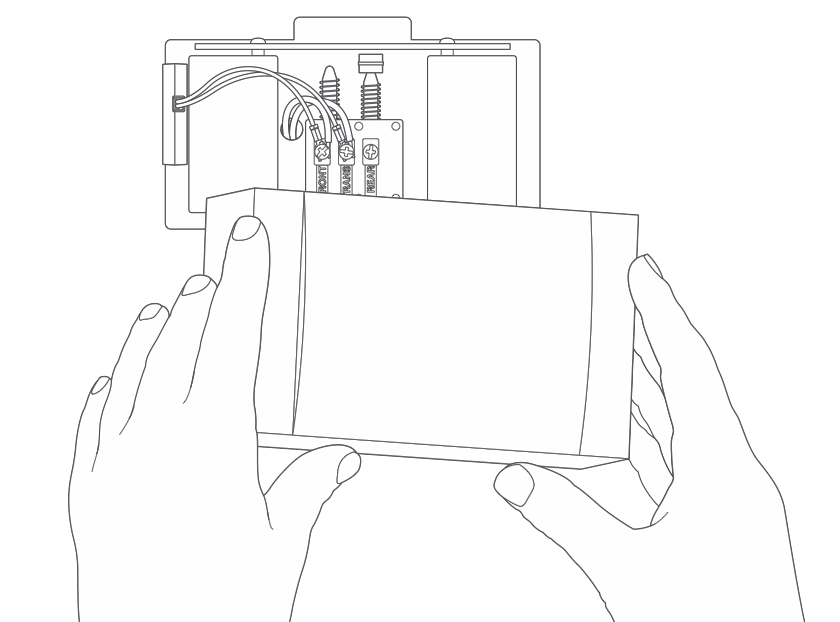

Replace Chime Cover

6. Replace the cover on your internal doorbell.

Now that the Pro Power Kit is installed, you're ready to install your Ring Wired Doorbell Plus.
