Understanding Stick Up Cam (3rd Gen) Flashing Light Patterns

Get in the know about LED flashing light patterns for your Stick Up Cam (3rd Gen) including battery, plug-in and solar power types to ensure they're working at their best. Light patterns shown in the chart below may be different if your security camera is offline. Learn how to reconnect your camera to wifi in the Ring app.

Not sure what model doorbell or security camera you have? Learn more here.

Activity
Flashing Light Pattern
Flashing Light Image
Camera is idle
LEDs off.

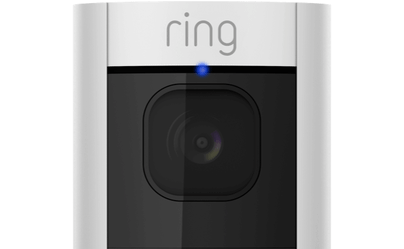

Camera is in Setup mode
Slow blinking pattern, blue light.
Camera is starting up
Solid light, blue.
Firmware update in progress
Light blinks on and off, then is on for two seconds, blue.
Camera is recording
Solid light, blue.
Two-way talk/speaker enabled
Very slow, pulsing light, blue.
Alarm/siren is sounding
Fast blinking light, red/blue.
Setup is successful
Light blinks on for five seconds, blue.
Setup has failed, incorrect password
Light flashes on and off, red.

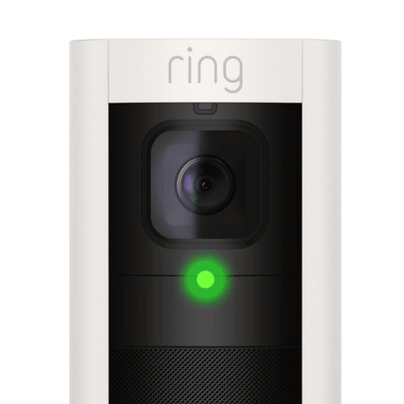

Setup failed to connect to wifi
Light flashes on/off, red/blue.
Camera is booting up
Solid light until bootup is complete, blue.

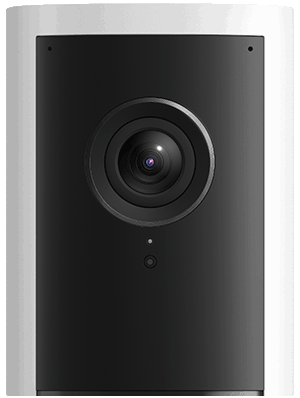

Factory restore
Light blinks on and off for five seconds then reboot, red.

Last updated 5 months ago
