Installing Battery Doorbell Pro (2nd Gen)
Download the user manual for Battery Doorbell Pro (2nd Gen) (English, Français, Deutsch, Italiano, Español, Nederlands, Svenska, Dansk, Suomi, Norsk, عربي)Safety and Compliance for the Battery Doorbell Pro (2nd Gen)

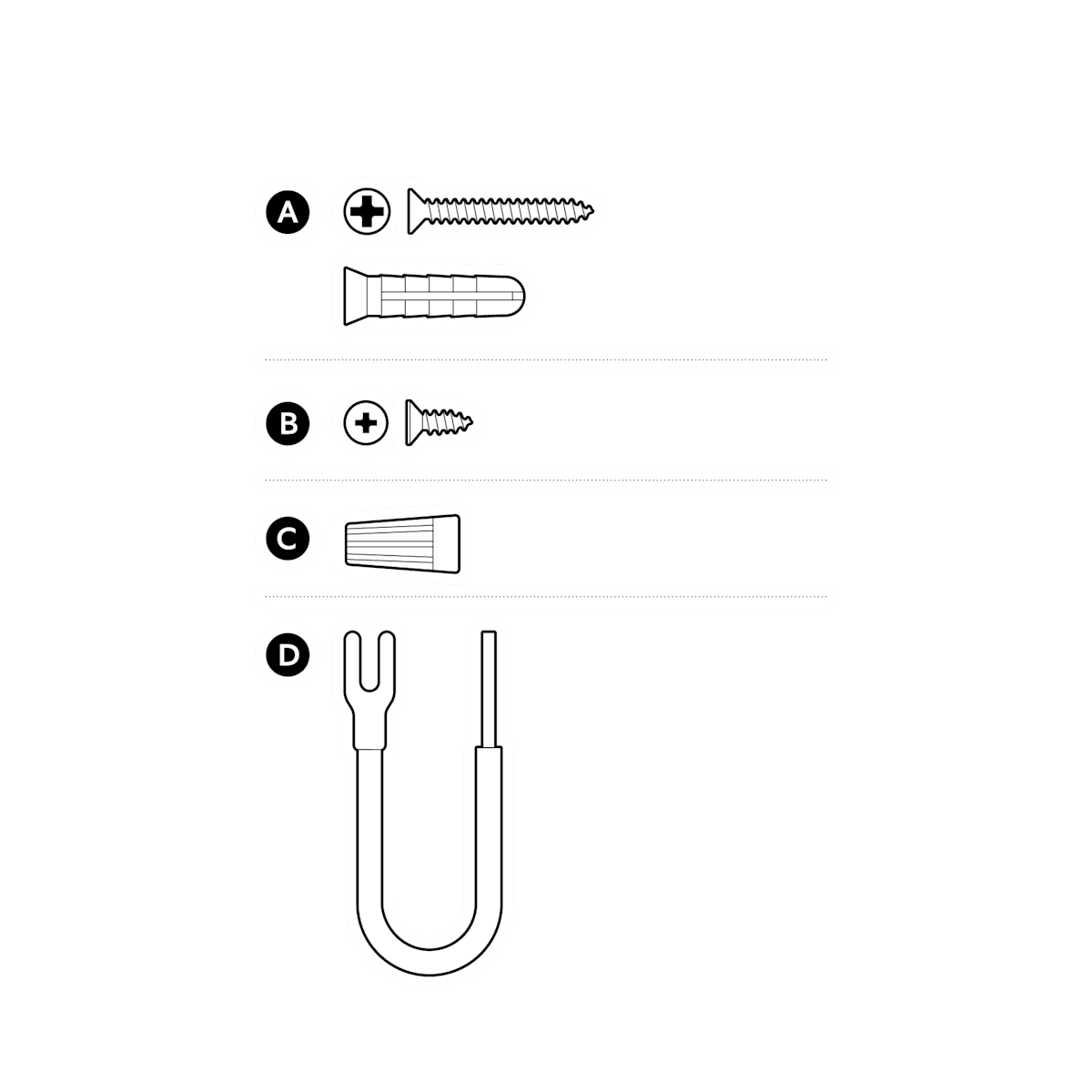

Hardware included
Tools included

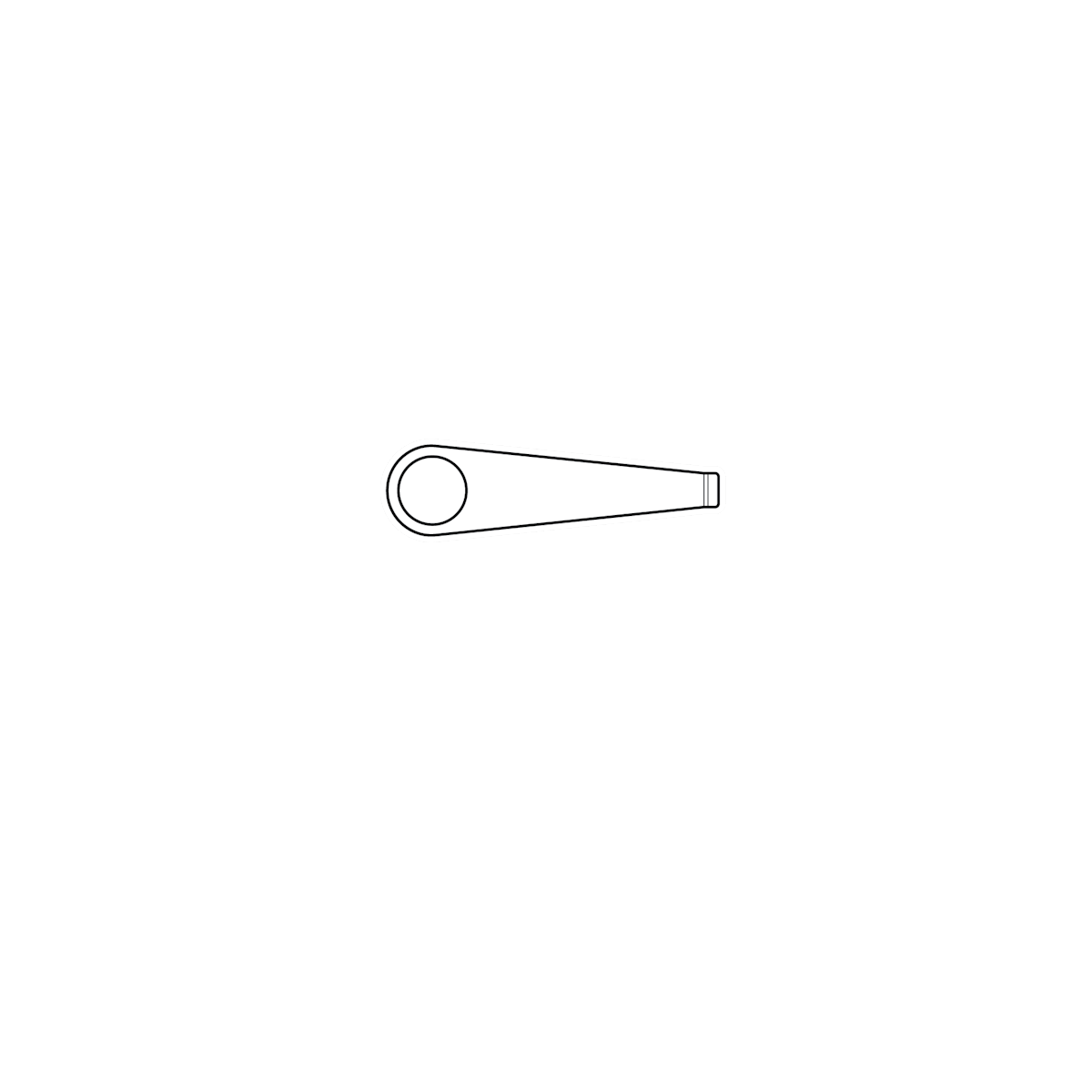

Removal tool
Tools needed

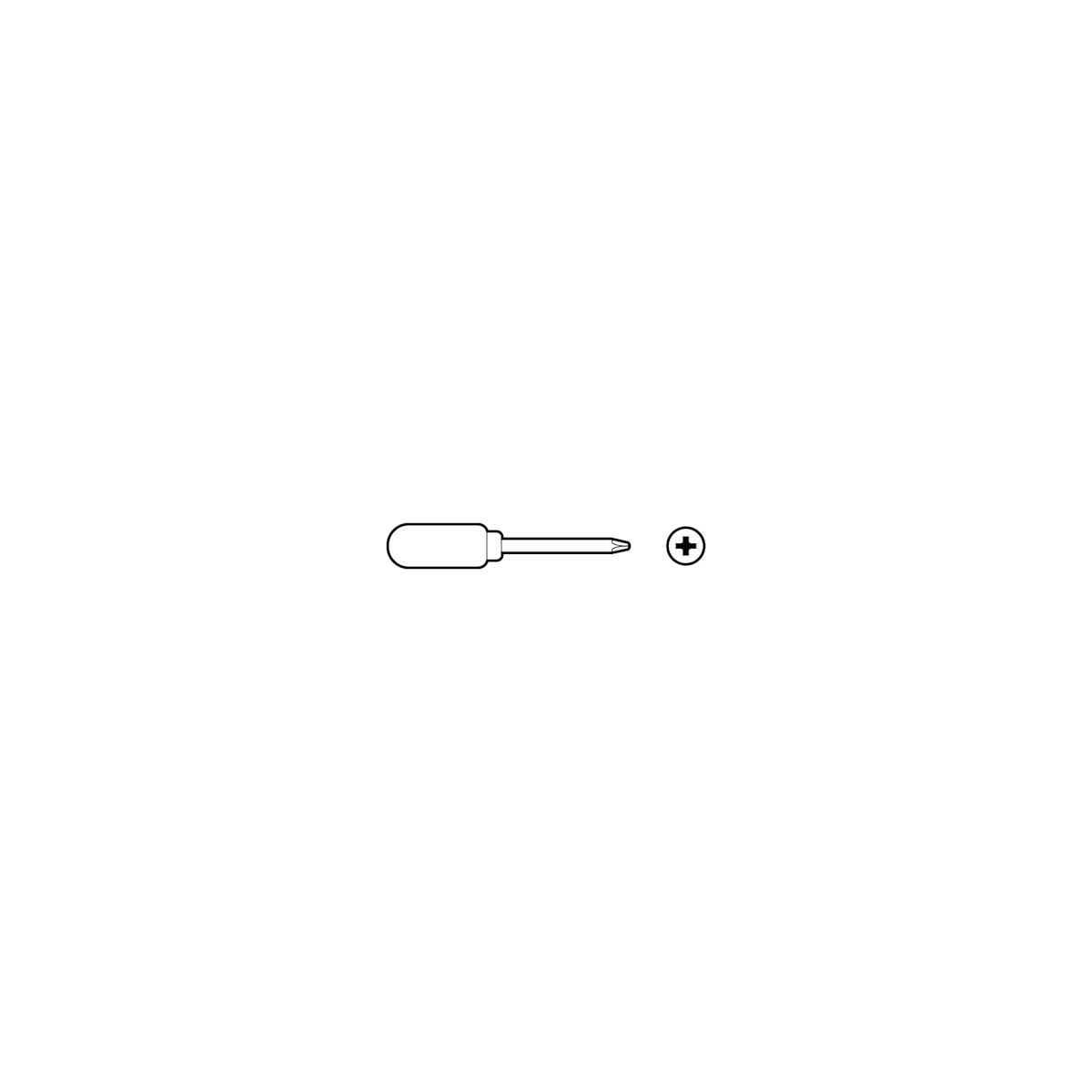

Phillips-head screwdriver
Drill with a 6 mm masonry bit (optional)
1. Remove the protective wrap.

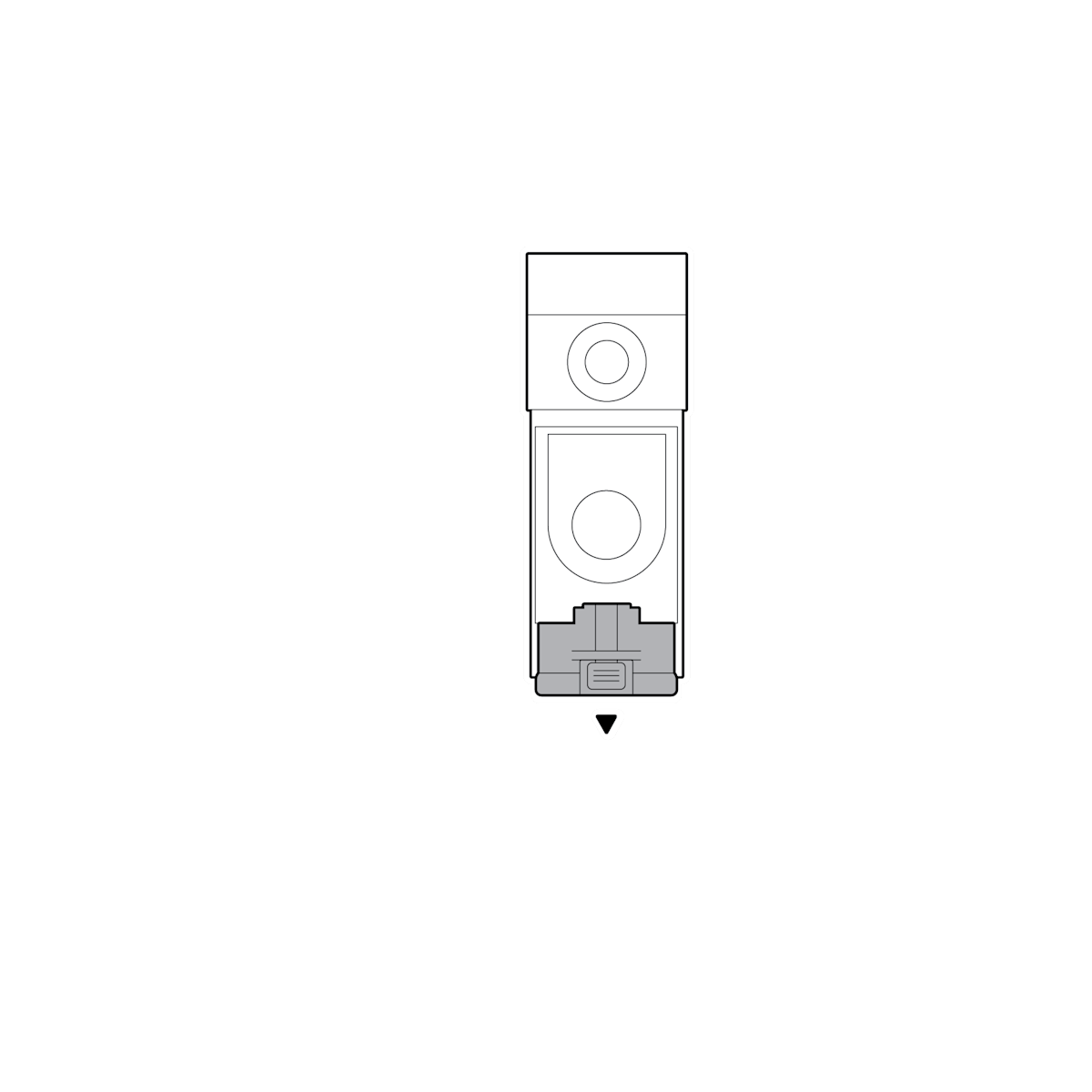

3. Remove the battery.

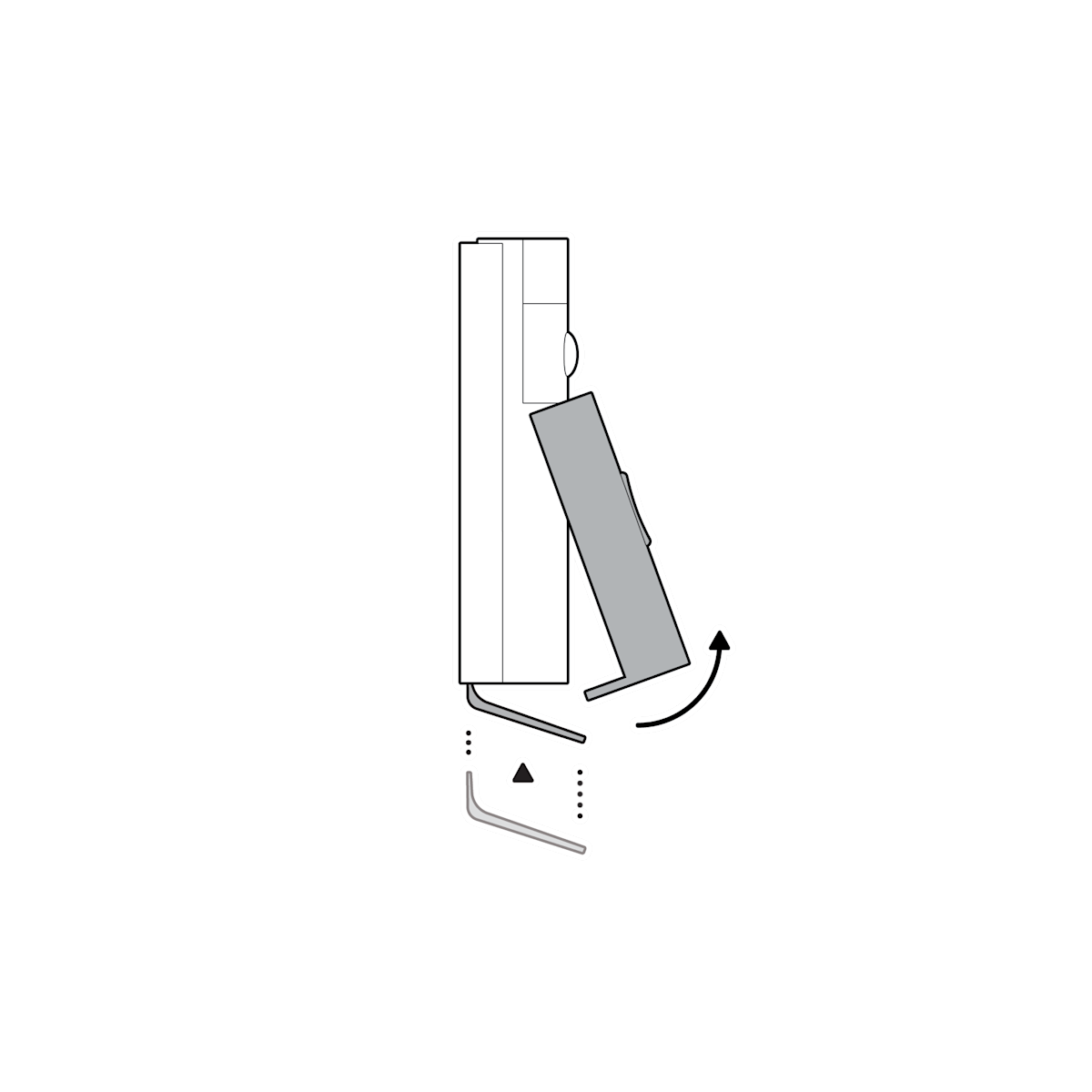

2. Insert the removal tool into the slot at the bottom of your doorbell to remove the faceplate.

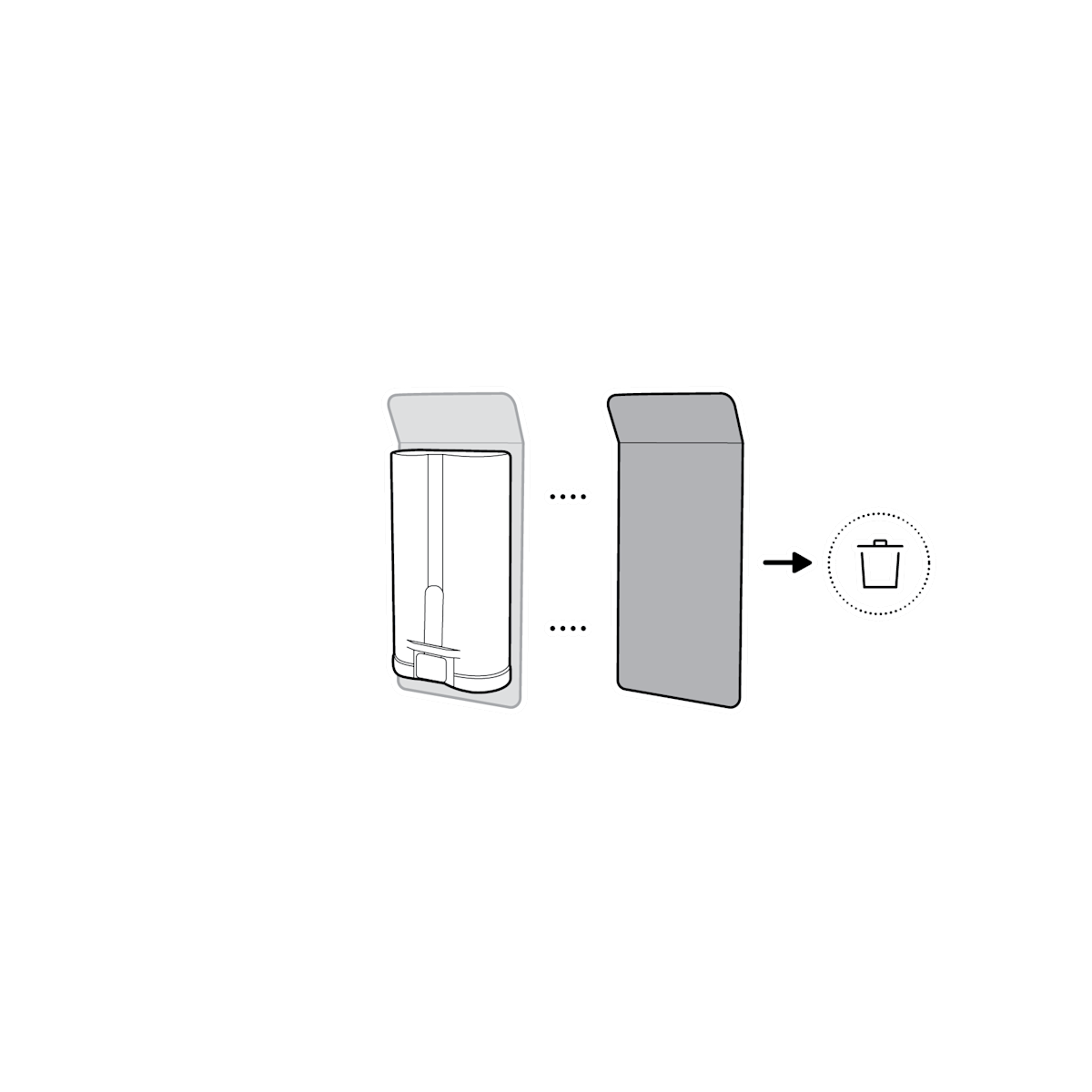

4. Discard the battery packaging and insulator.

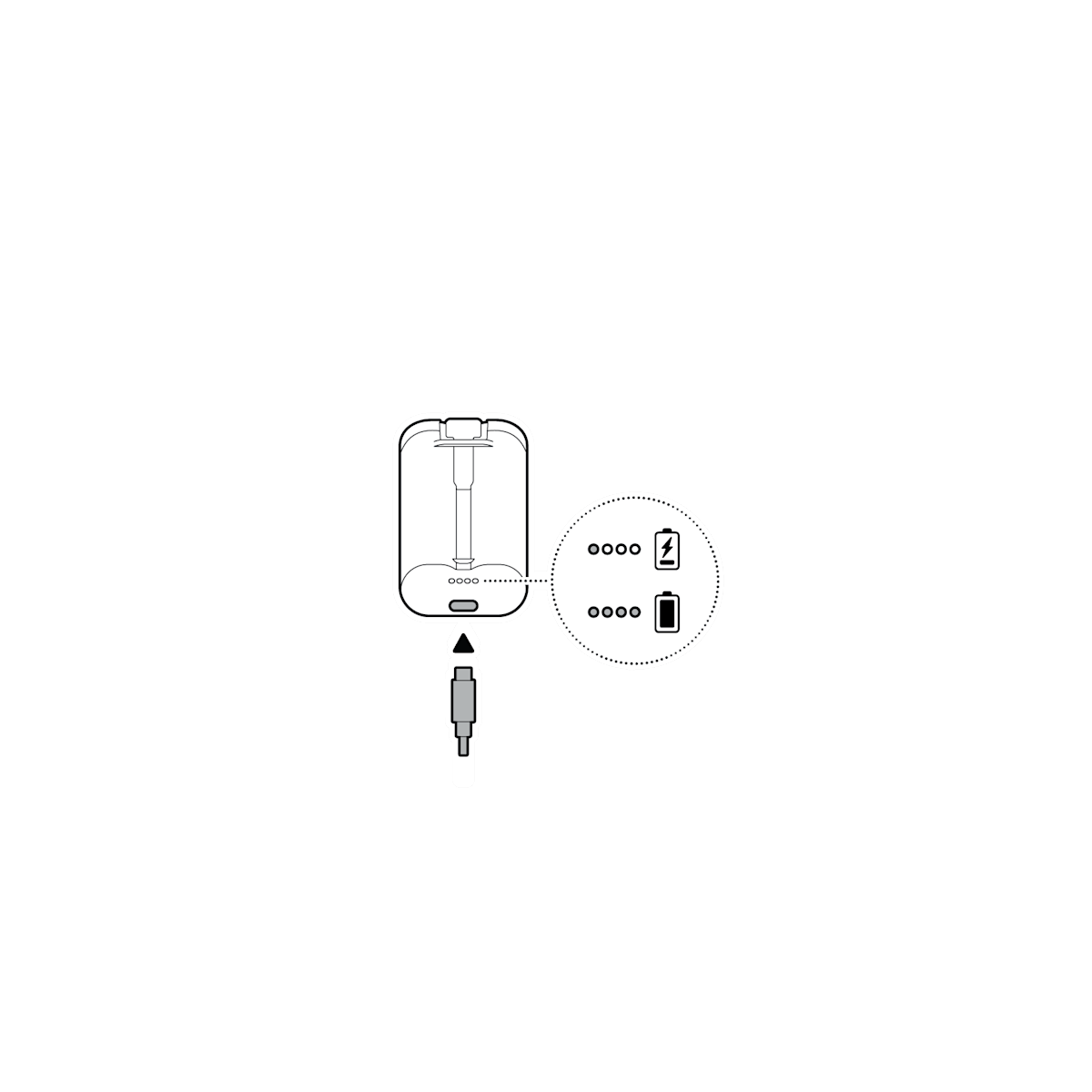

5. Fully charge the battery.

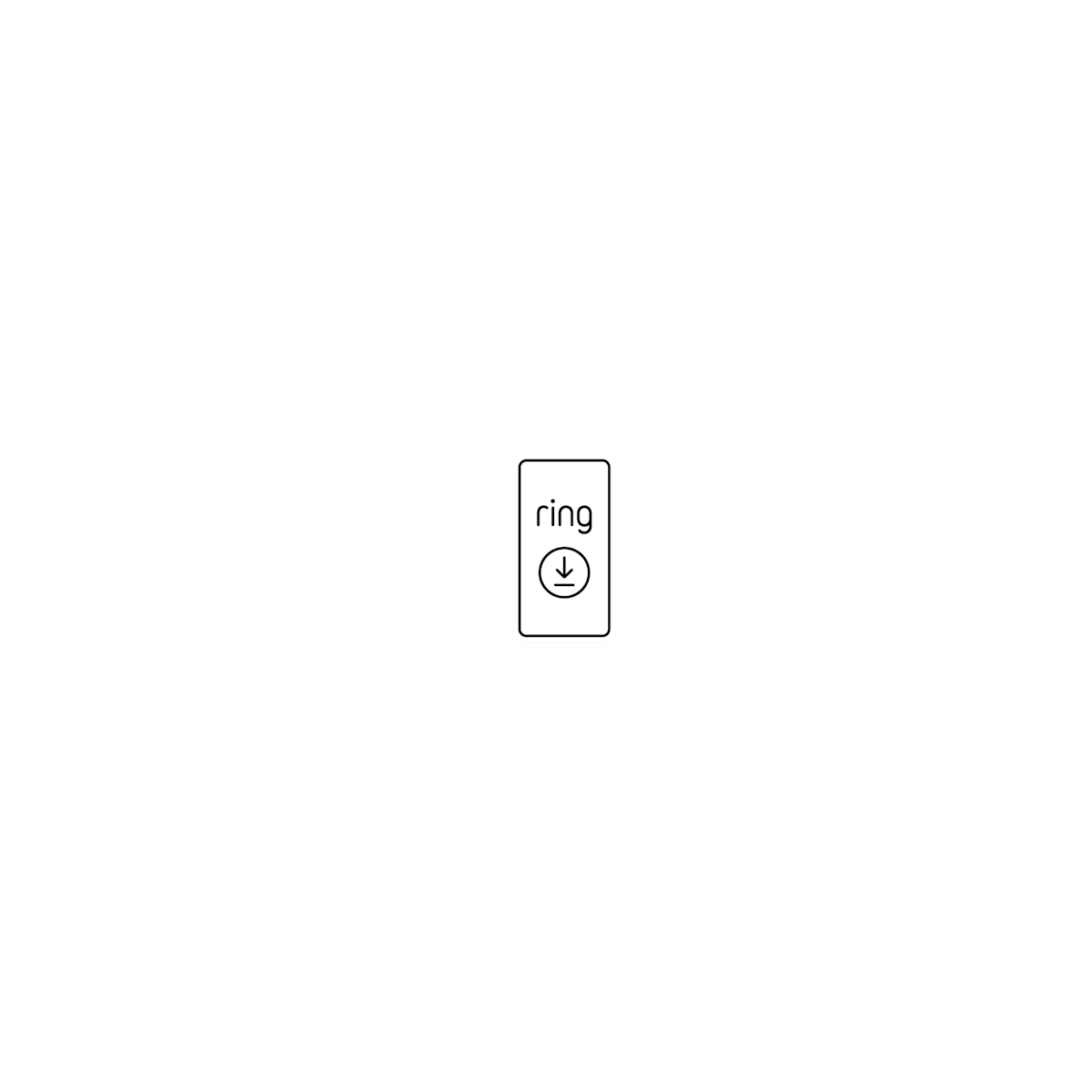

6. Download the Ring app.

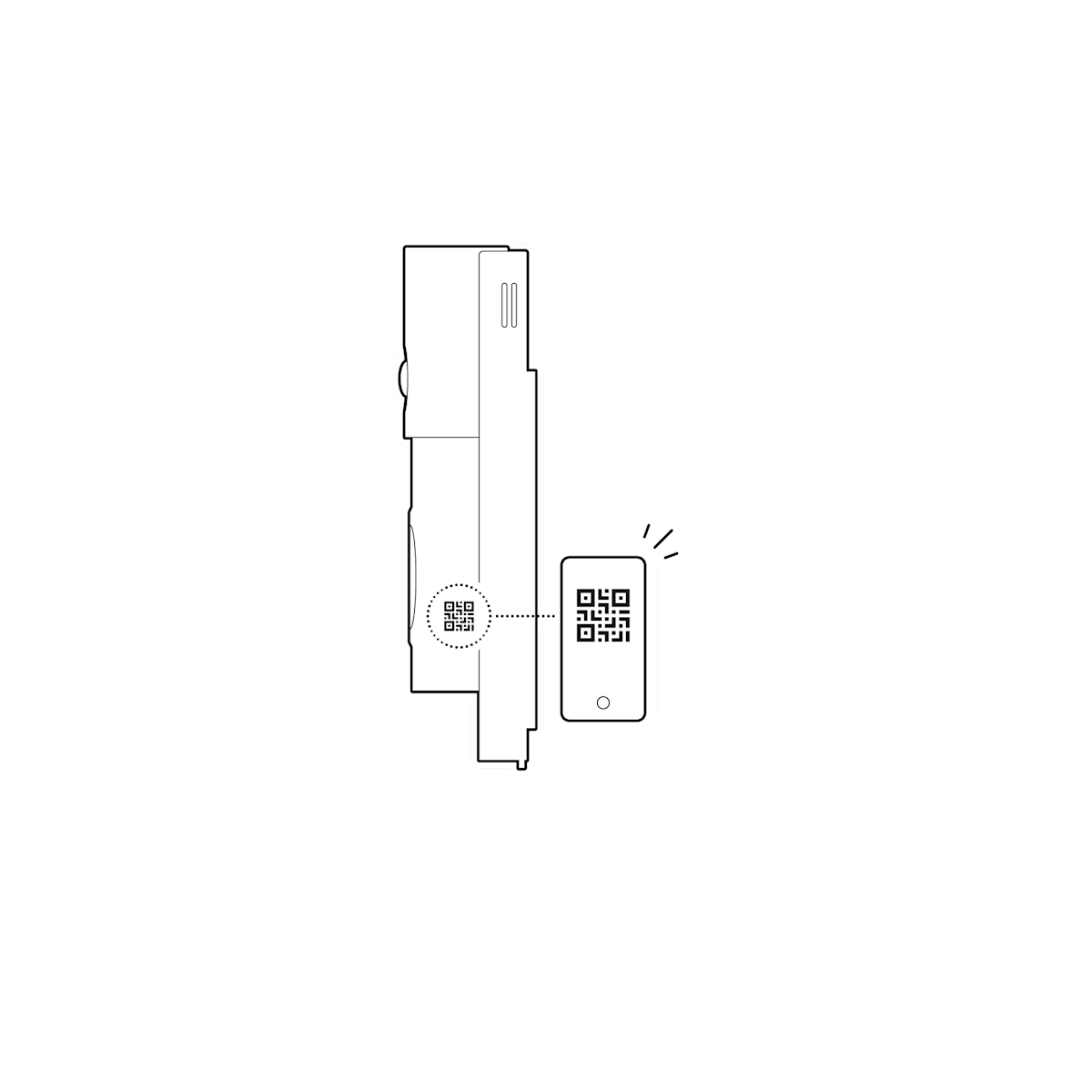

7. Scan the QR code on your device.
Installation without an existing chime

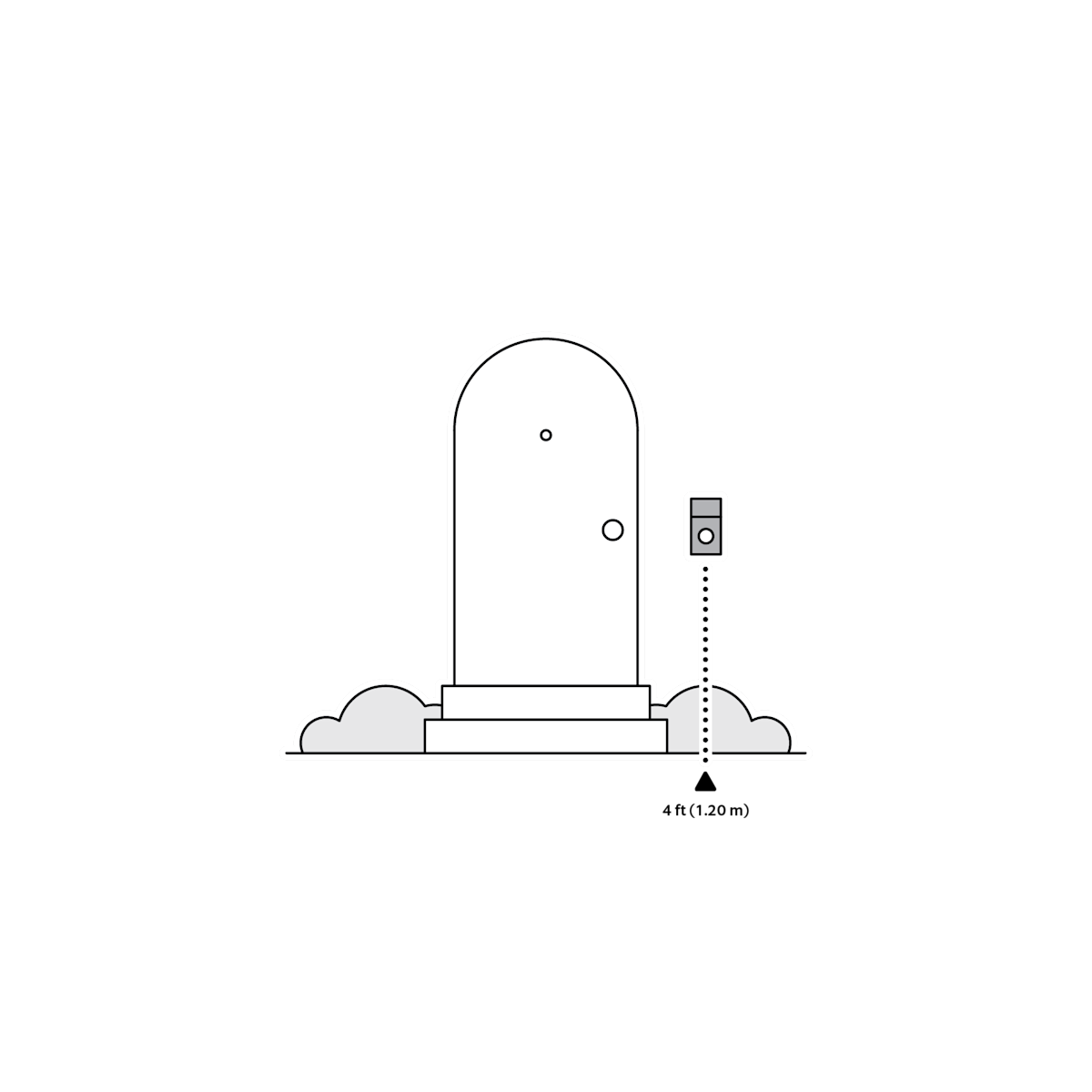

1. Choose a location for your doorbell.

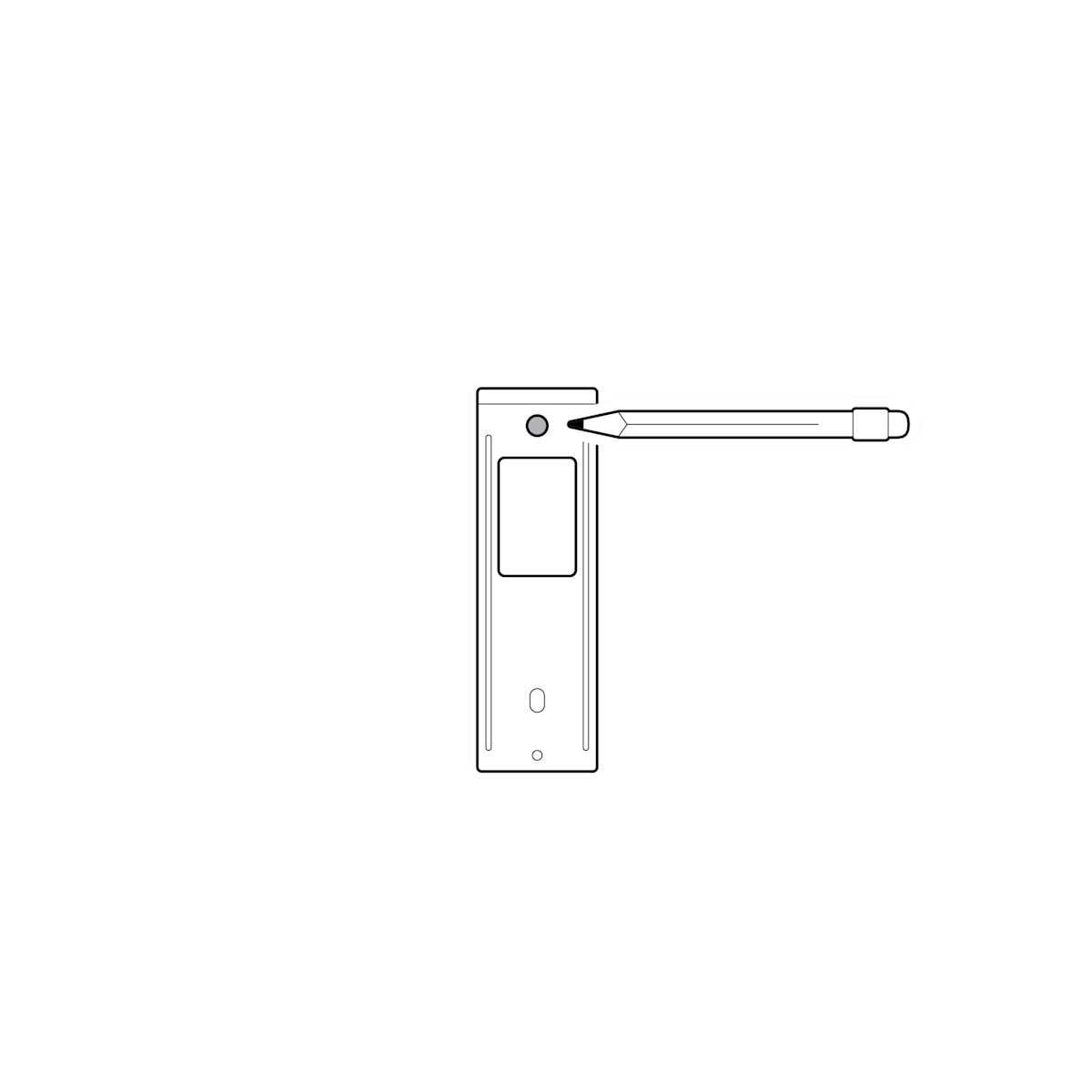

2. Use the mounting bracket as a guide to mark screw holes on the wall.

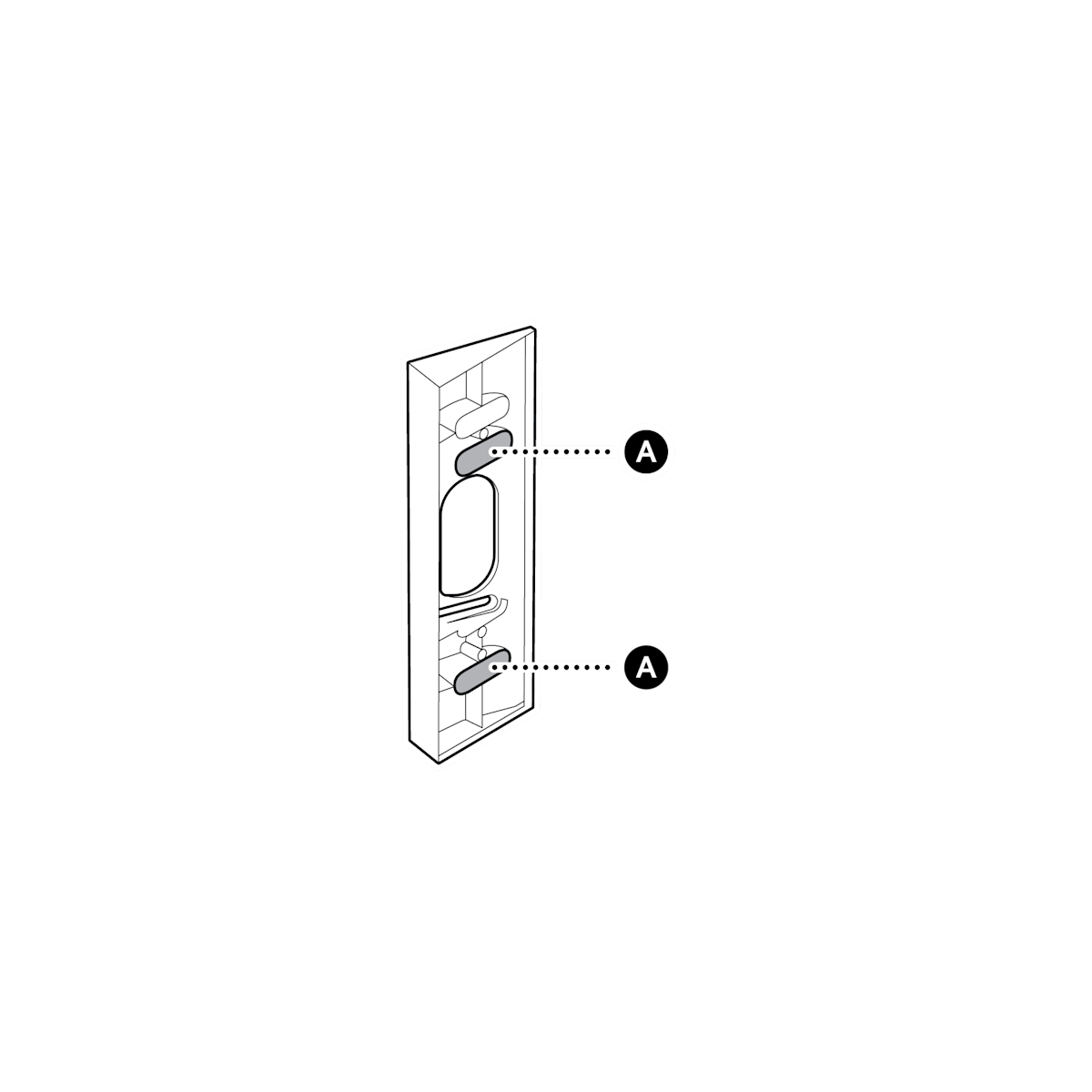

3. (Optional) If using a corner mount, install the mount on the mounting surface using the bottom holes in the top and bottom sections, ensuring it is facing in your desired viewing direction.

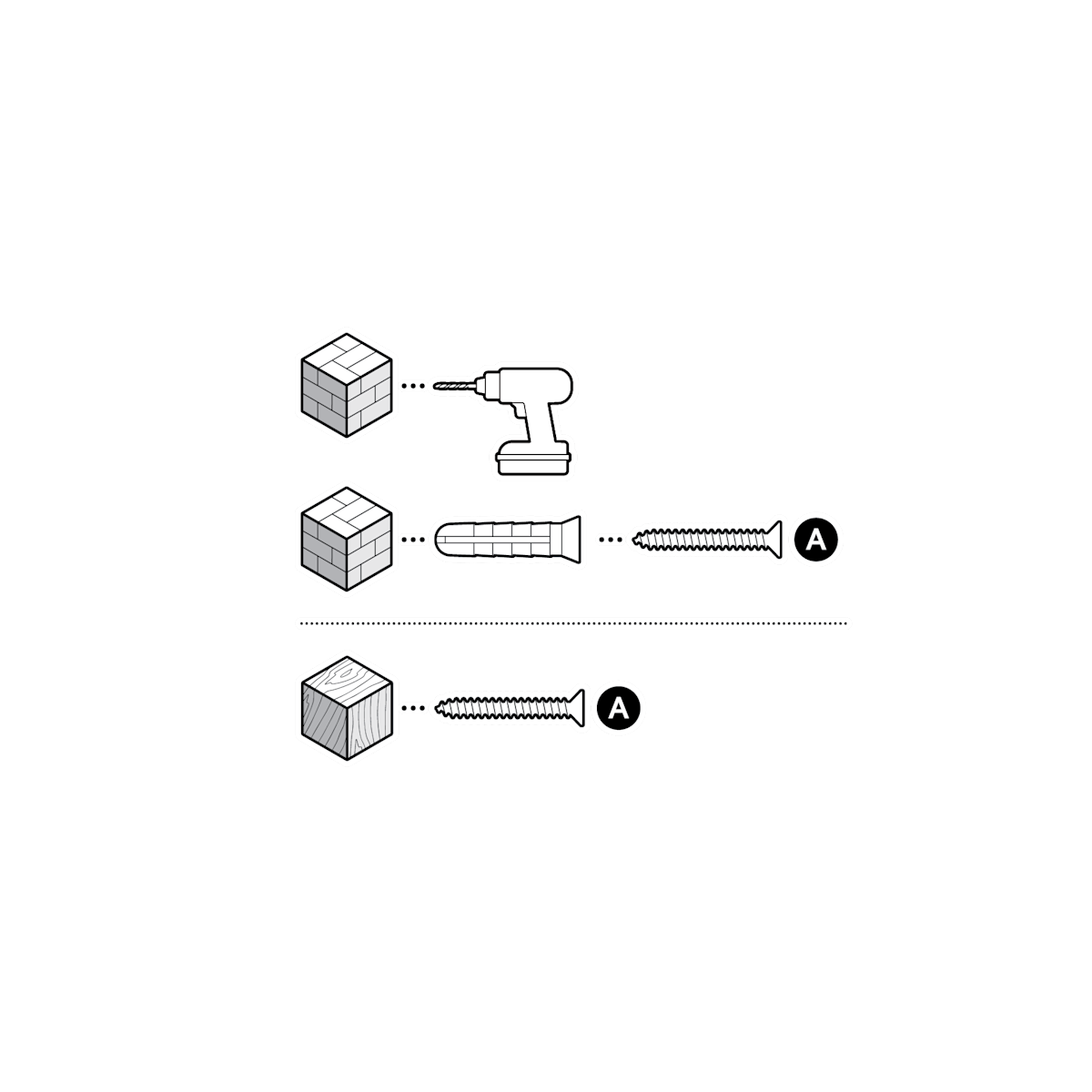

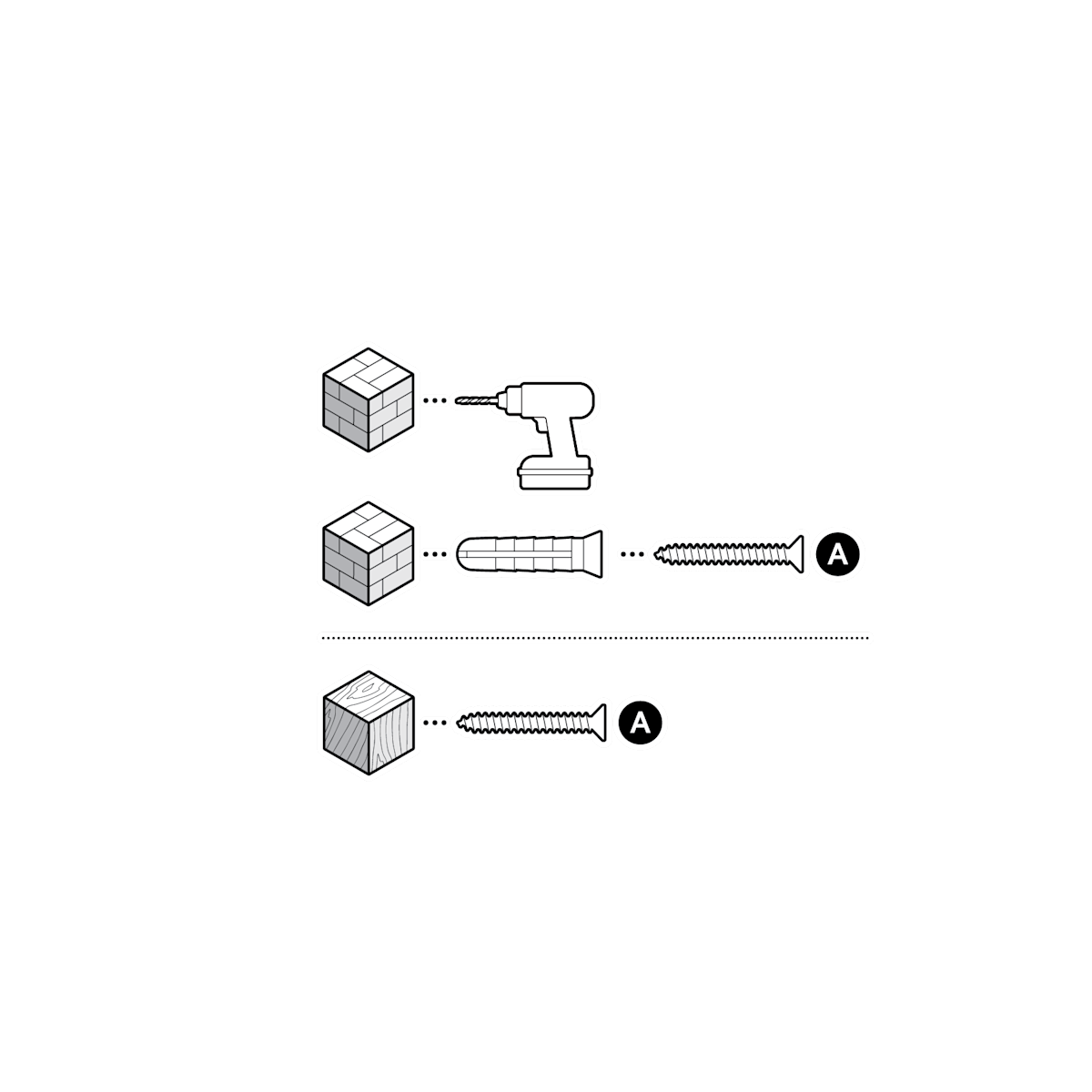

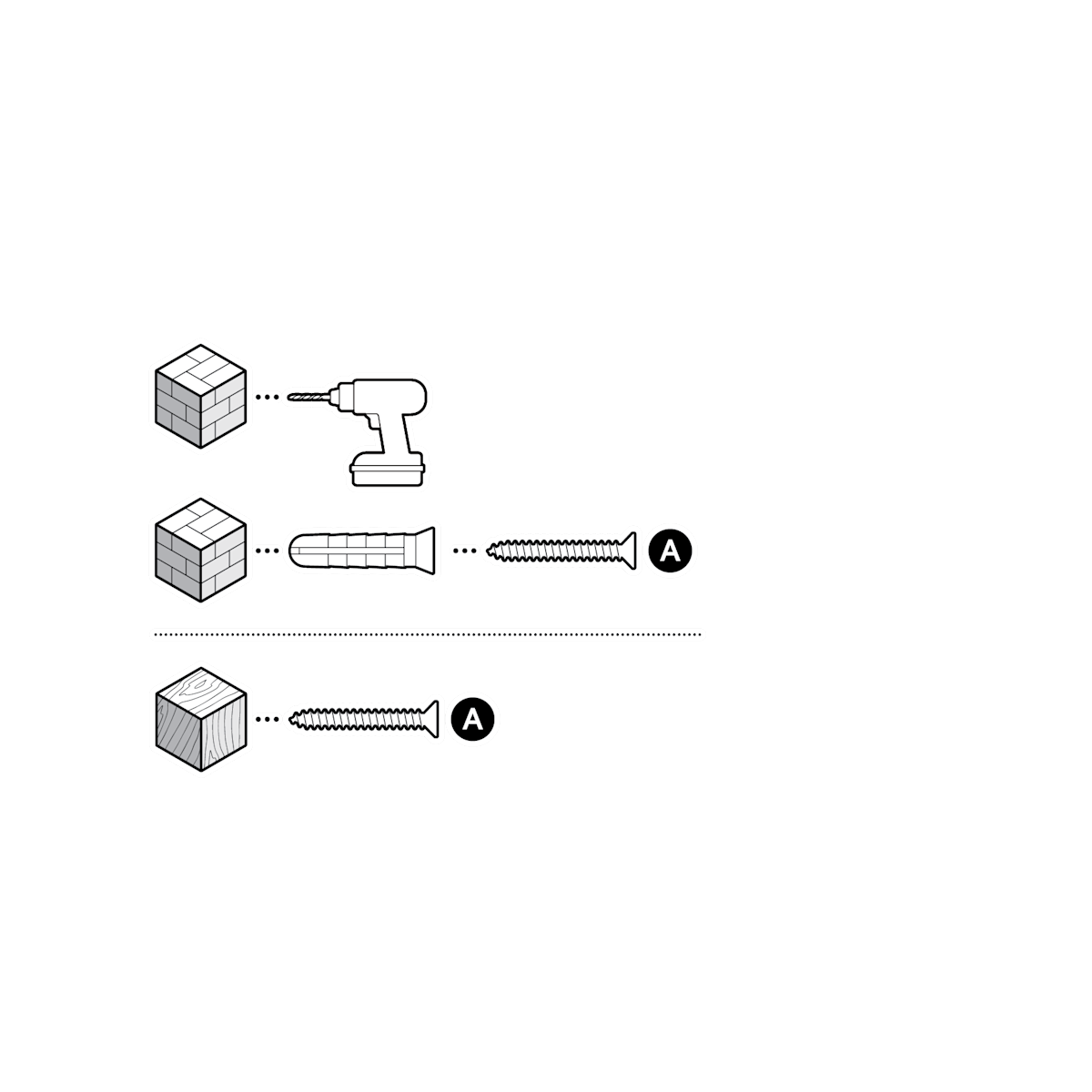

On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

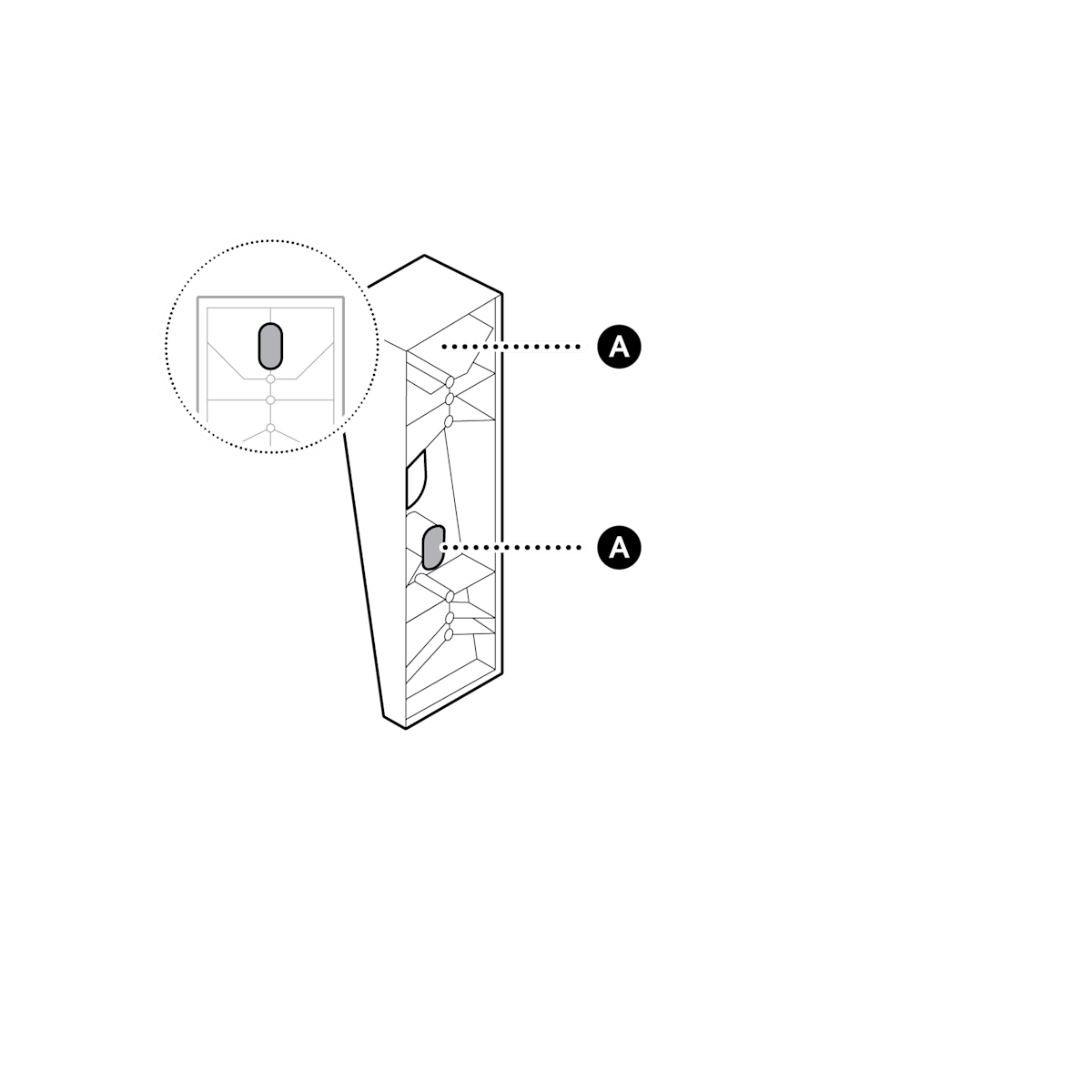

(Optional) If using a wedge mount, install the mount on the mounting surface using the screws included with your wedge kit, ensuring it is facing down.
On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

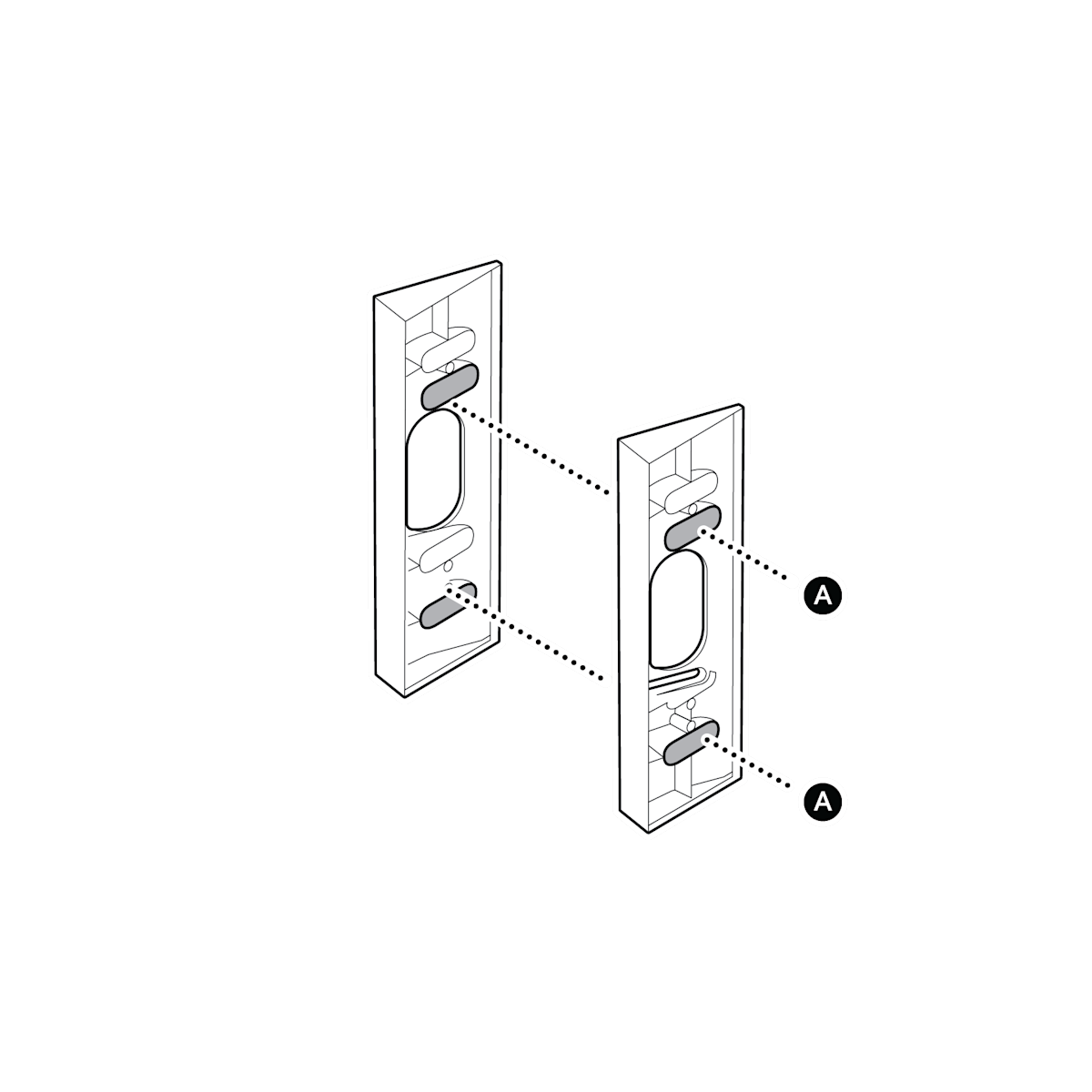

4. (Optional) If installing multiple wedge or corner mounts, insert screws through both mounts to hold them together.
NOTE: We do not recommend more than two.

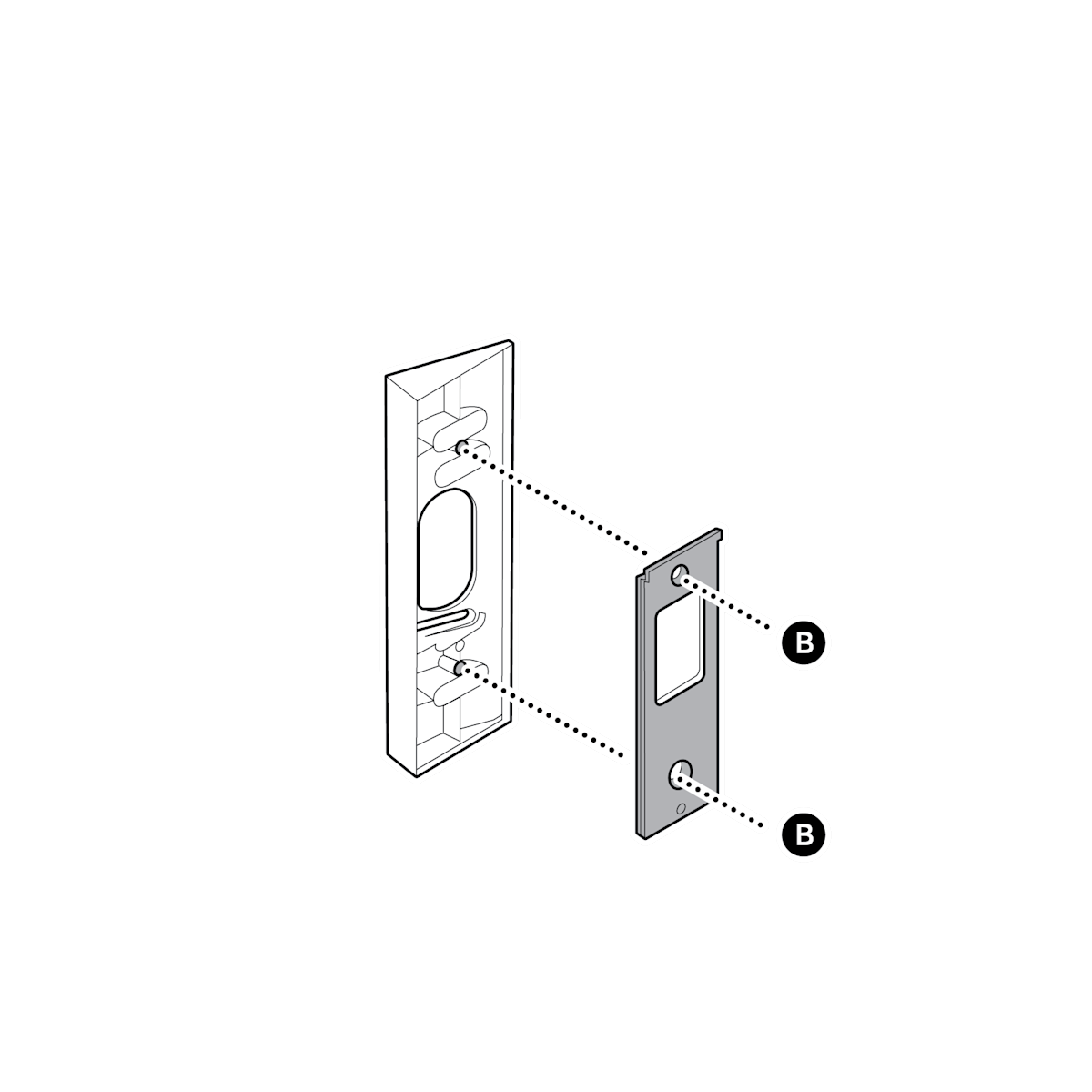

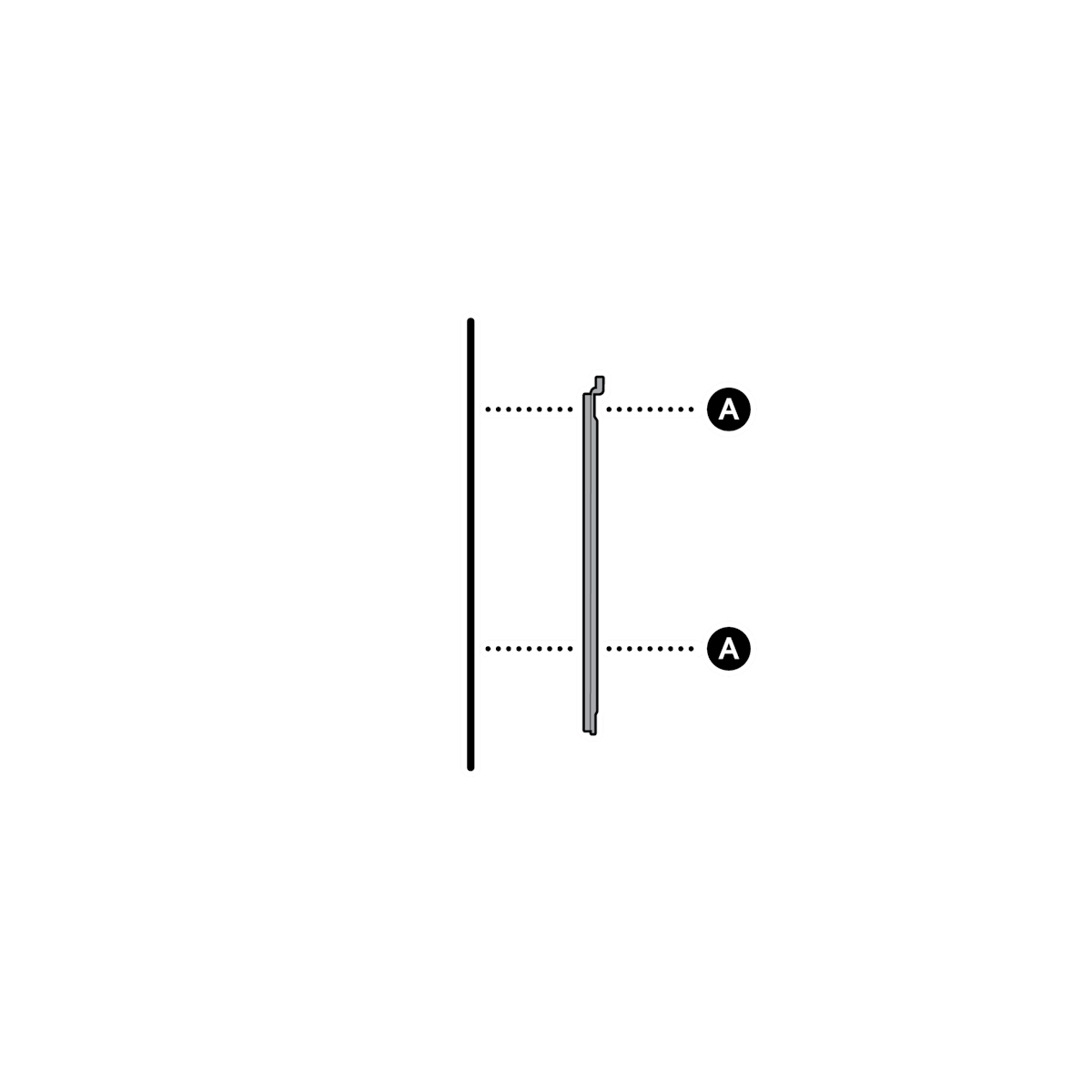

5. Install the mounting bracket on your mount or directly on the mounting surface with the included screws.
On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

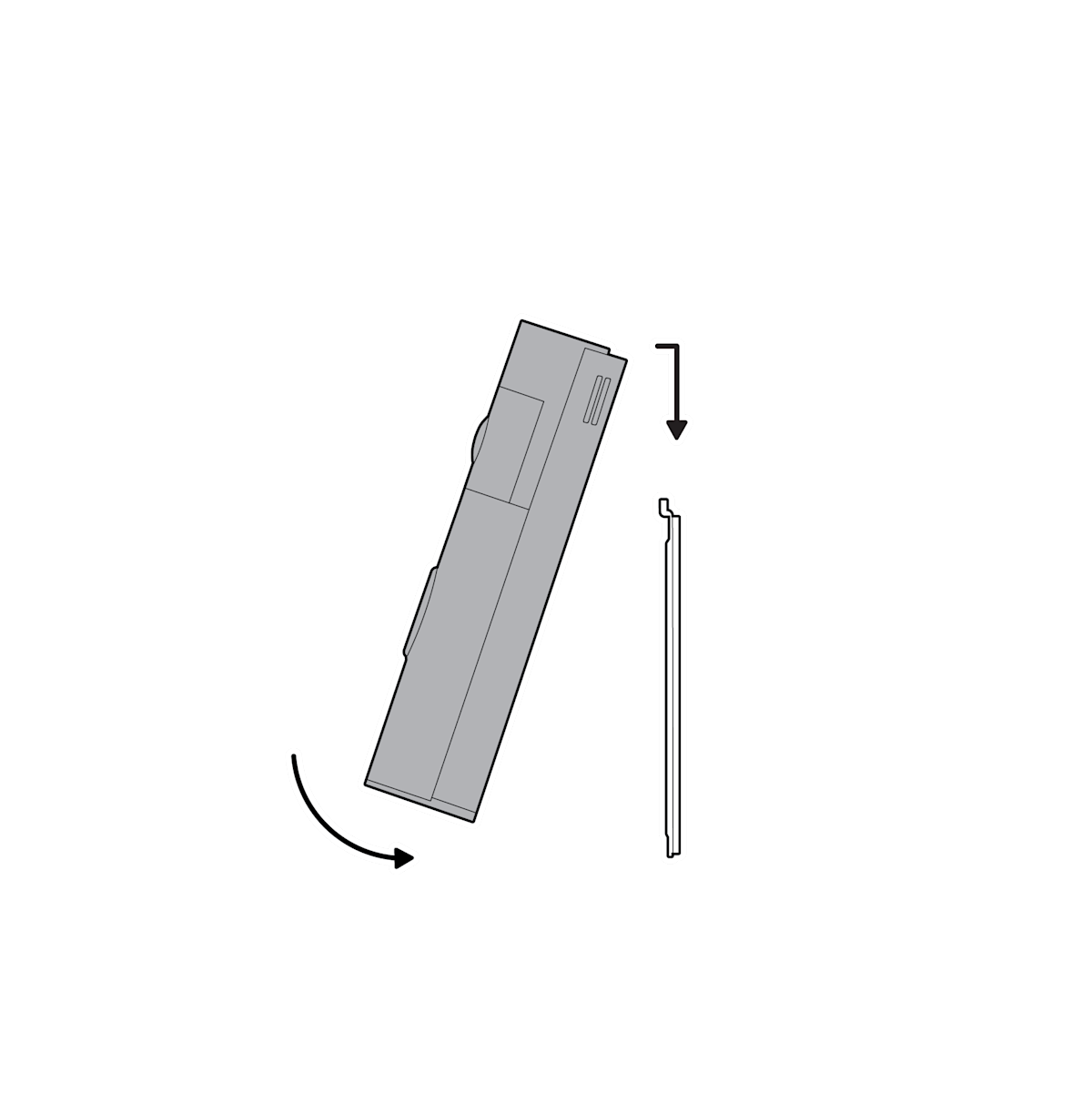

6. Mount your doorbell by hooking it over the bracket.

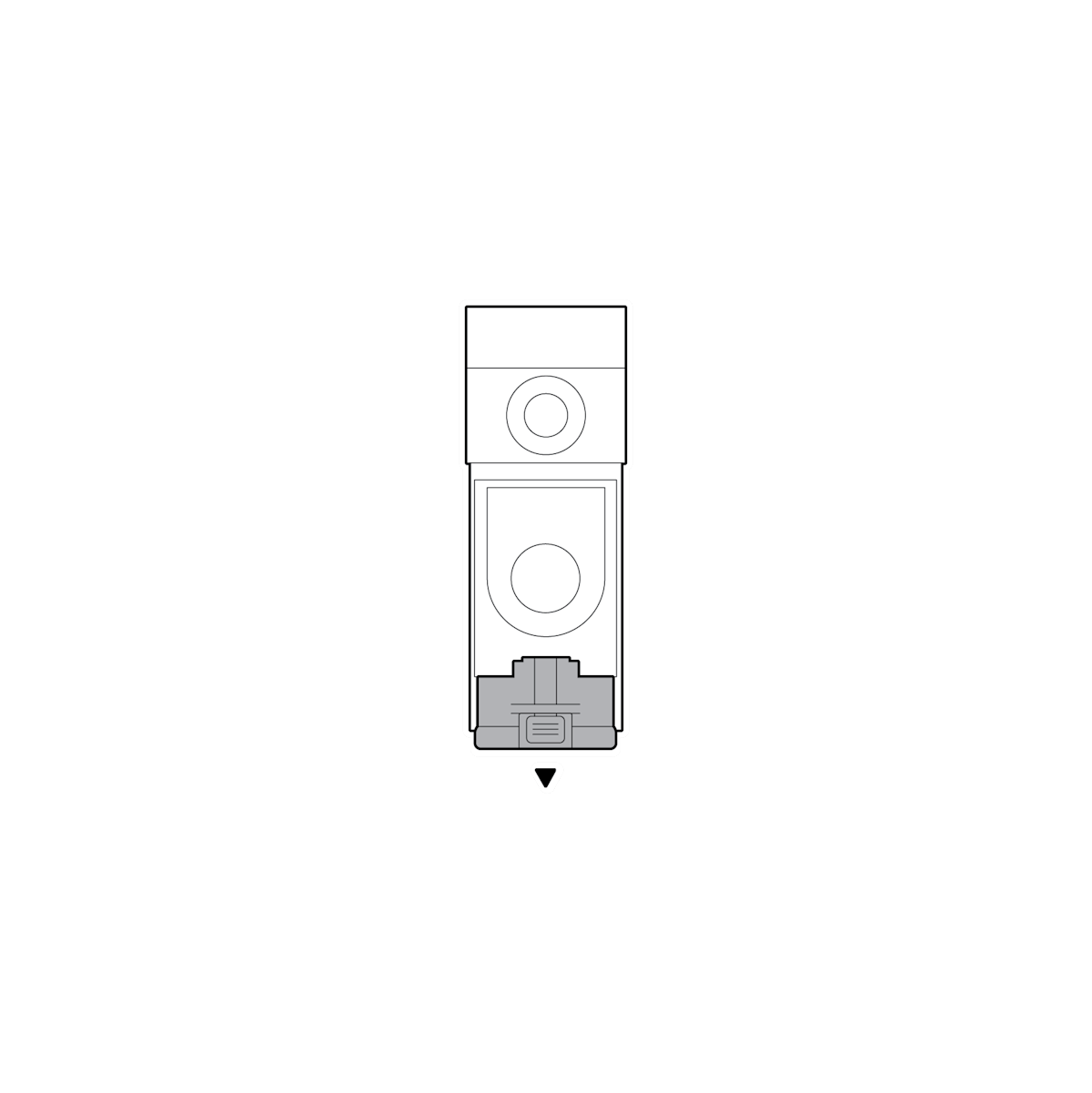

7. Remove the battery to identify the security screw.

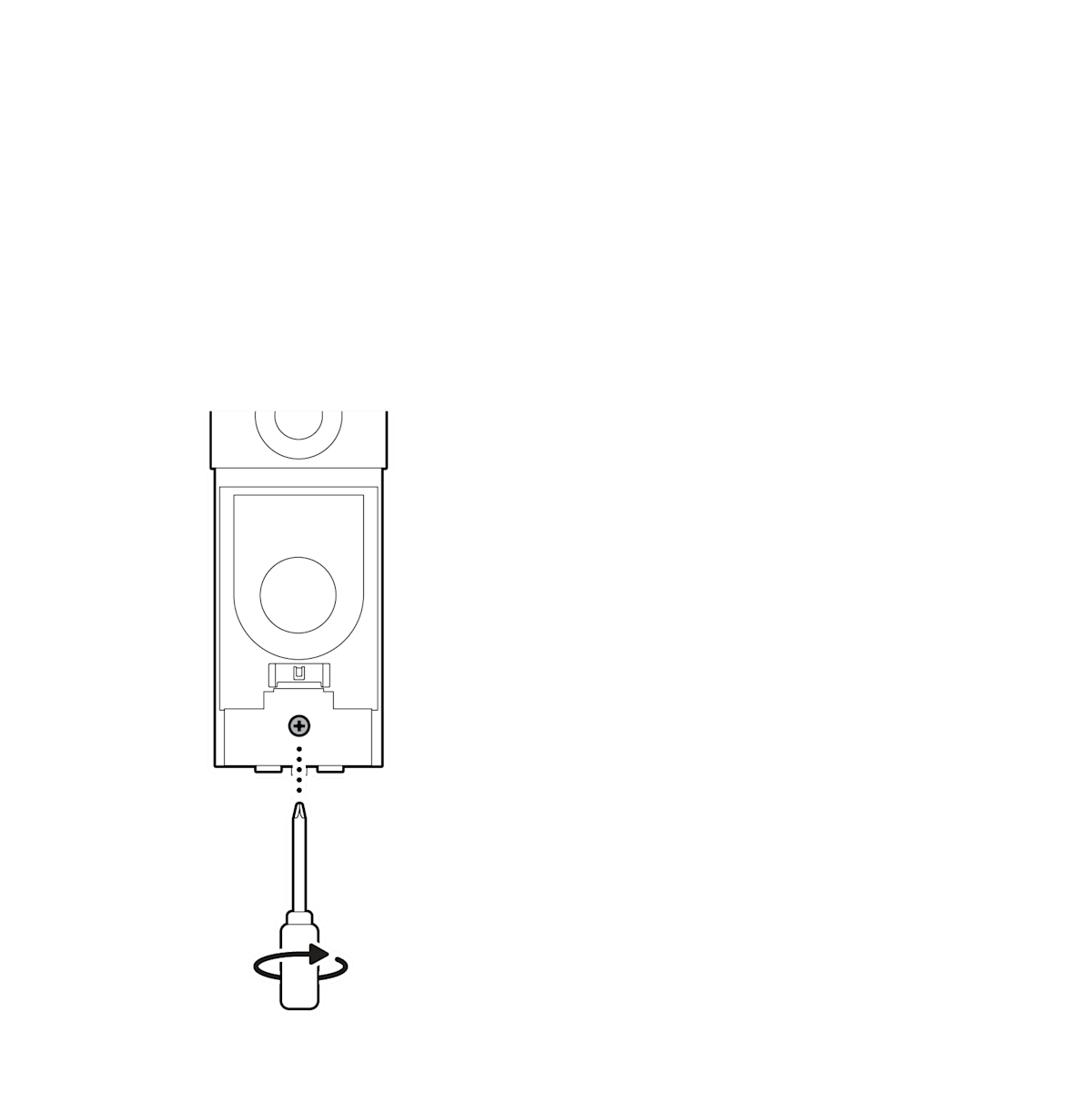

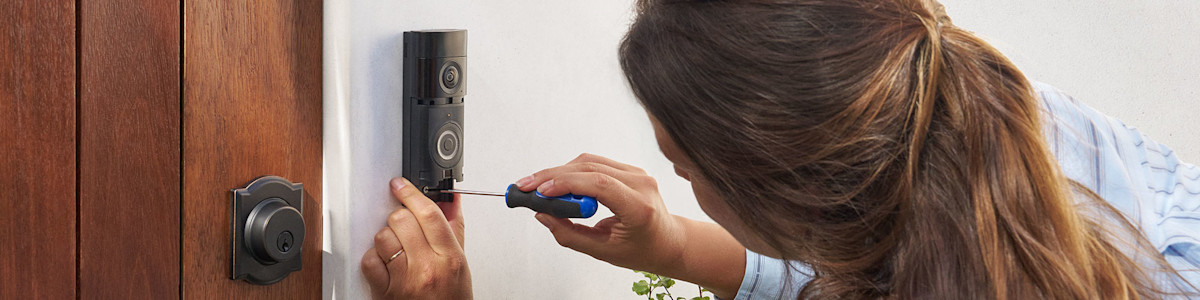

8. Tighten the security screw.

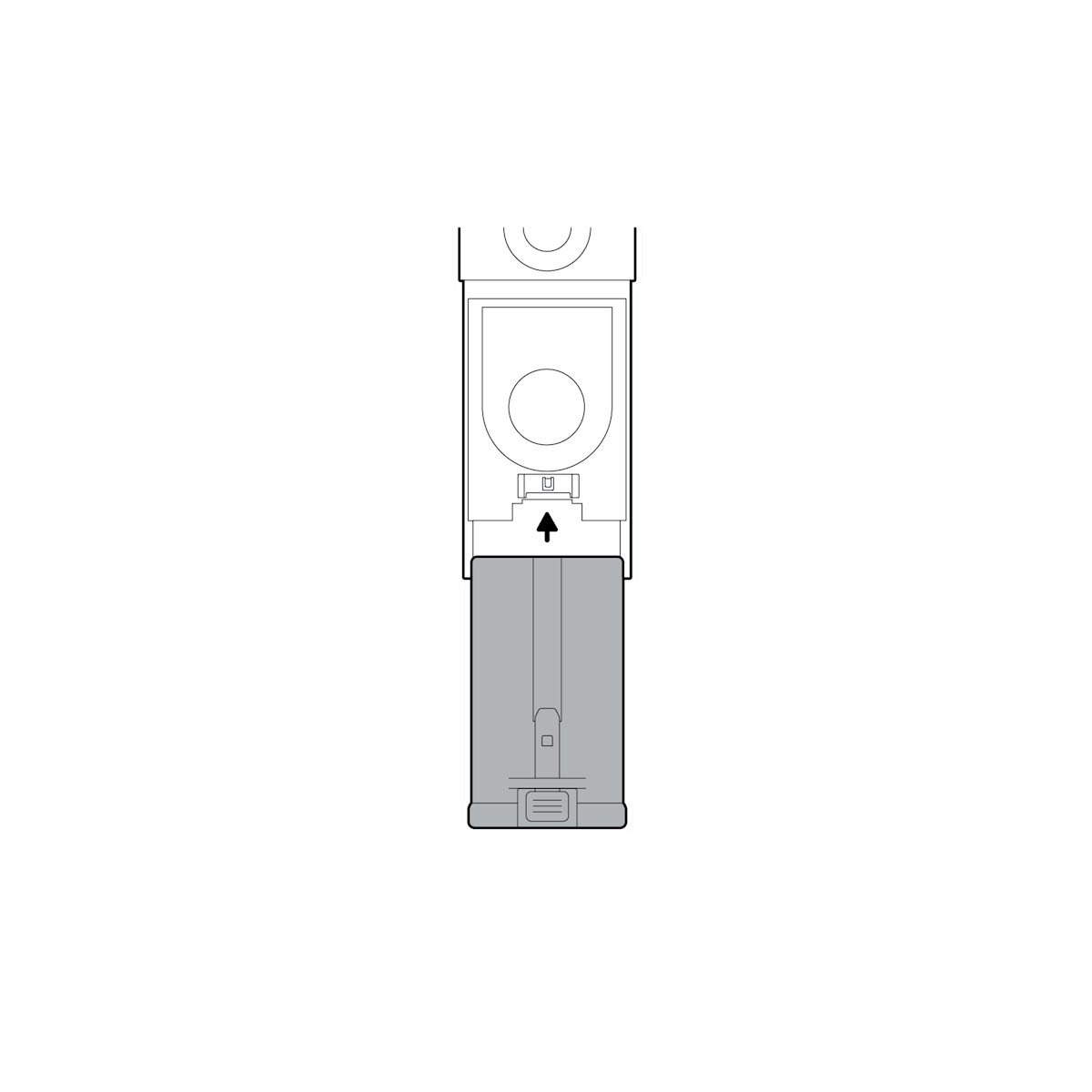

9. Reinsert the battery.

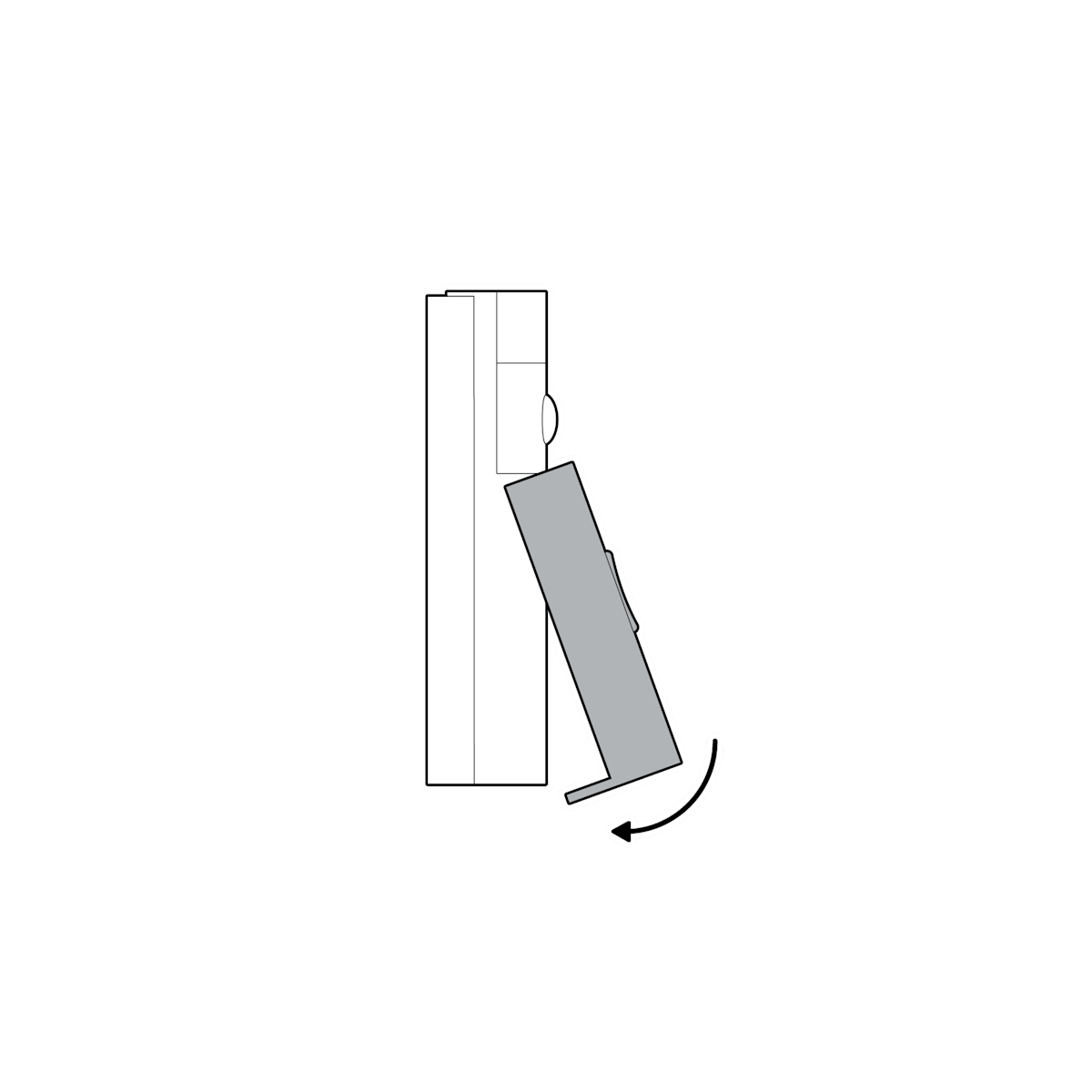

10. Reattach the faceplate by pressing until you hear a click.
Installation with an existing chime

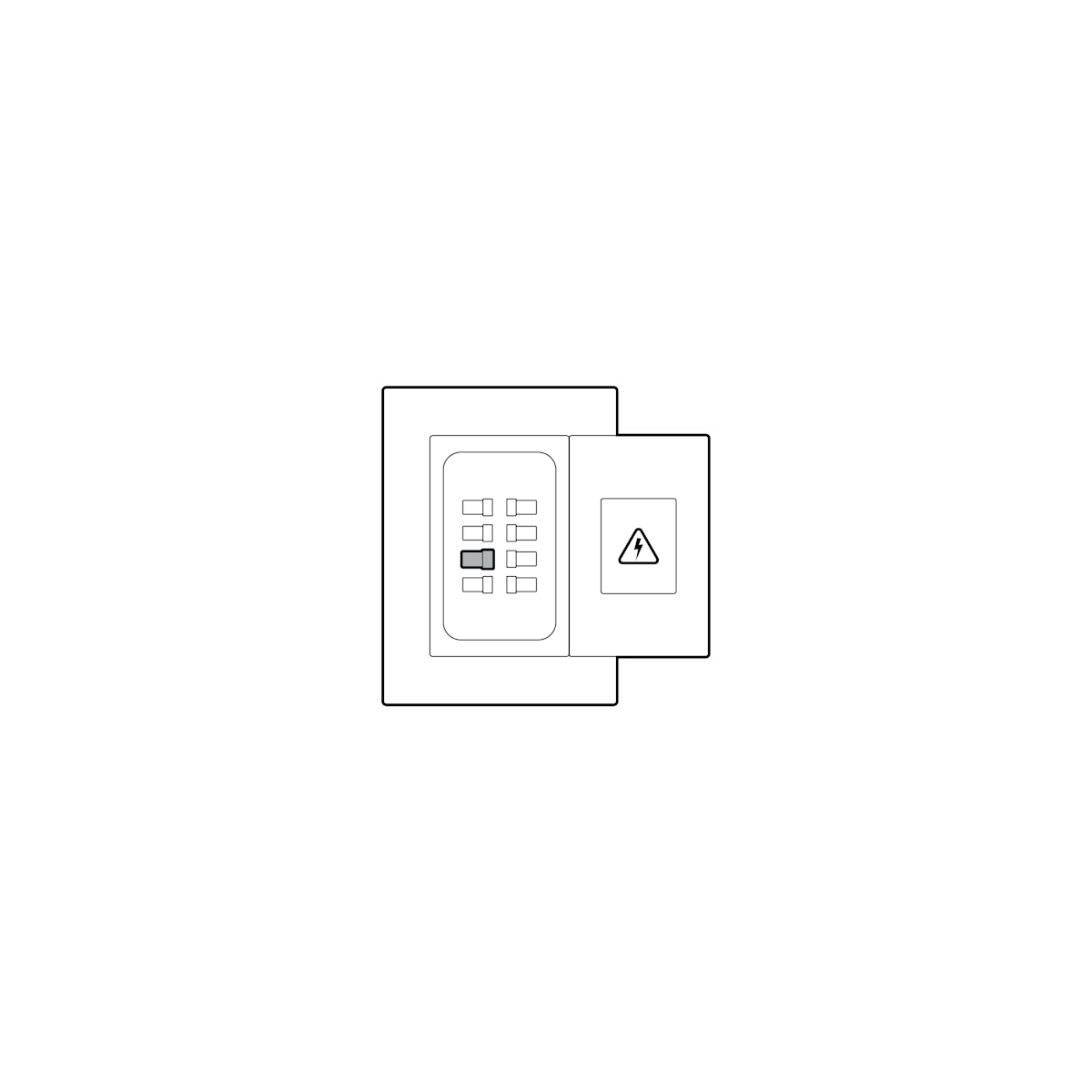

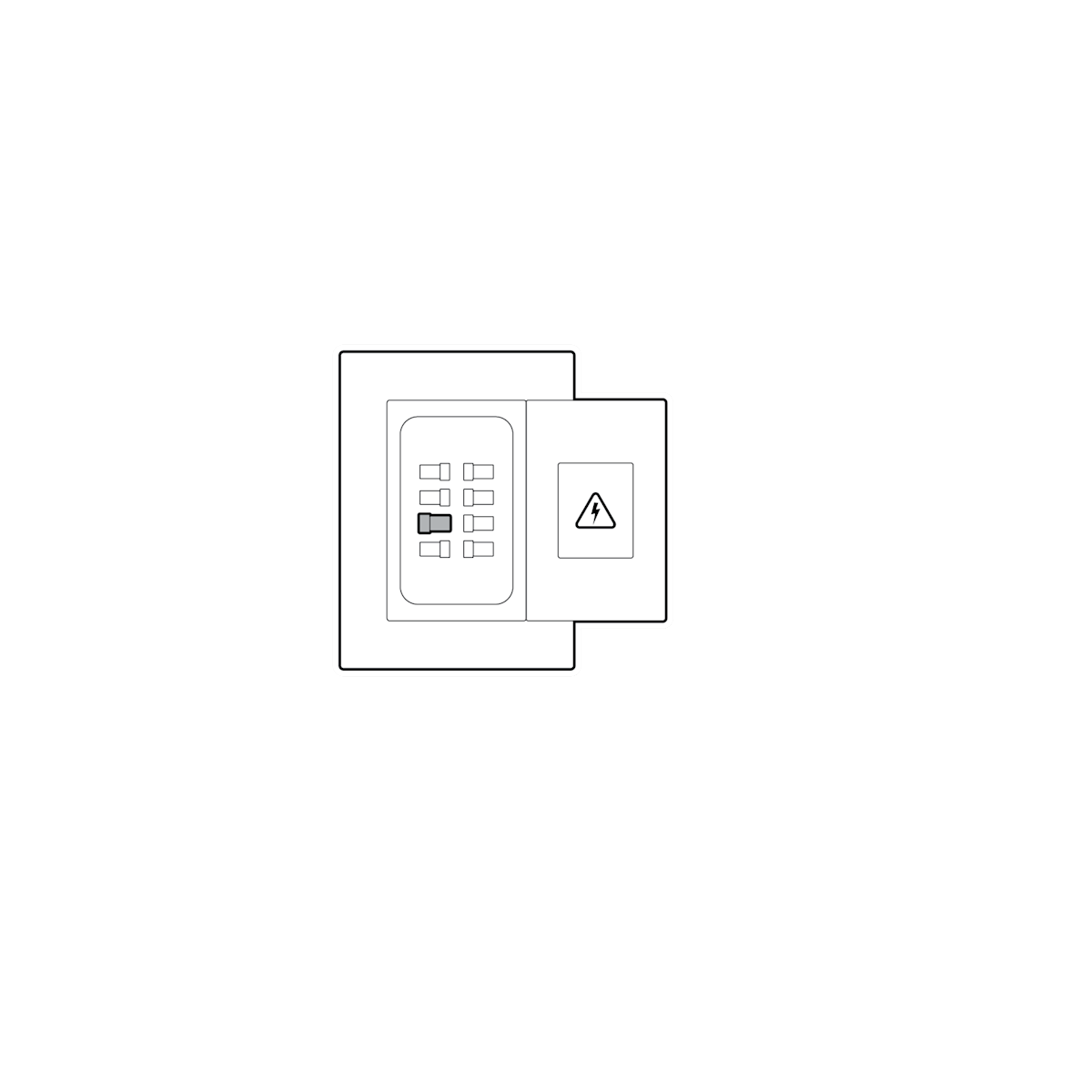

1. Shut off power at the breaker.
NOTE: If you are unsure which breaker to flip, turn off the master breaker or contact a licensed electrician.
CAUTION! You’ll be working with electrical wires during the install process. If you are uncomfortable or inexperienced, consult with a licensed electrician.
WARNING! If your home has multiple chimes, you will need to ensure any additional chimes are bypassed by connecting the wires connected to Front and Trans together with a wire nut.
2. Locate your existing doorbell and remove, if necessary.

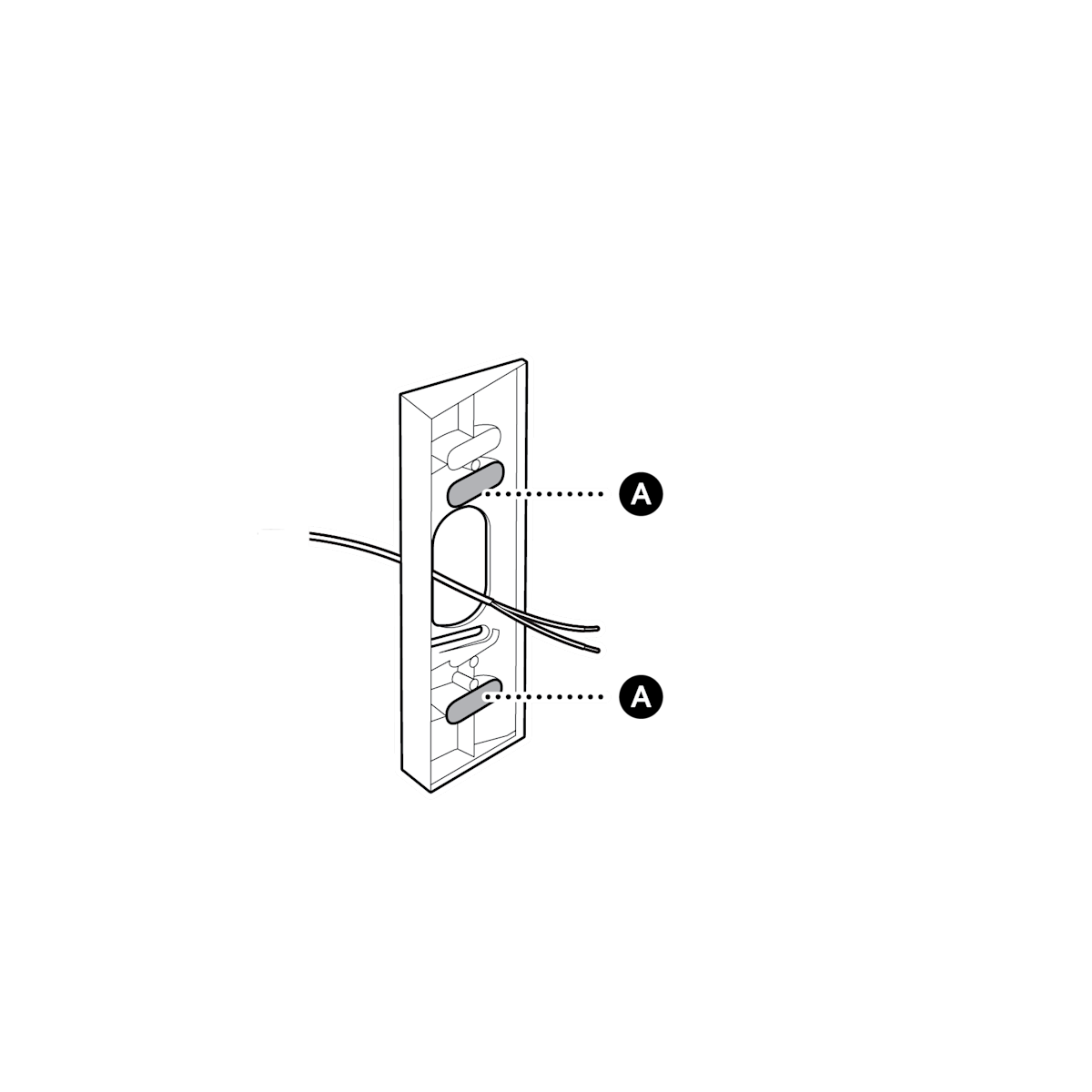

3. (Optional) If using a corner mount, install the mount over your doorbell wires using the bottom holes in the top and bottom sections, ensuring it is facing in your desired viewing direction.
On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

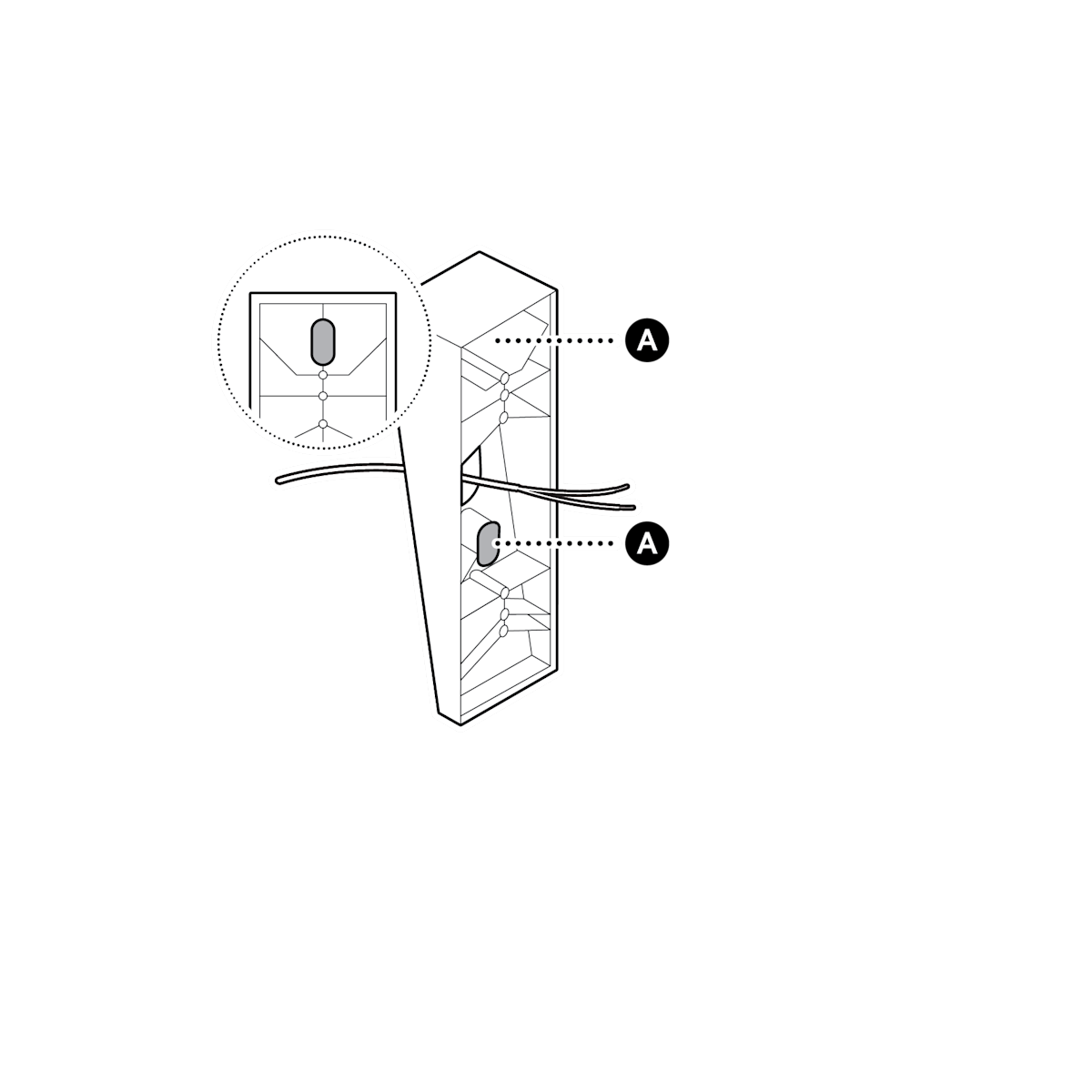

(Optional) If using a wedge mount, install the mount over your doorbell wires using the screws included with your wedge kit, ensuring it is facing down.
On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.
4. (Optional) If installing multiple wedge or corner mounts, insert screws through both mounts to hold them together.
NOTE: We do not recommend more than two. On stucco, brick, or concrete, use a 6 mm (1/4 in) masonry bit to drill holes for the included wall anchors.

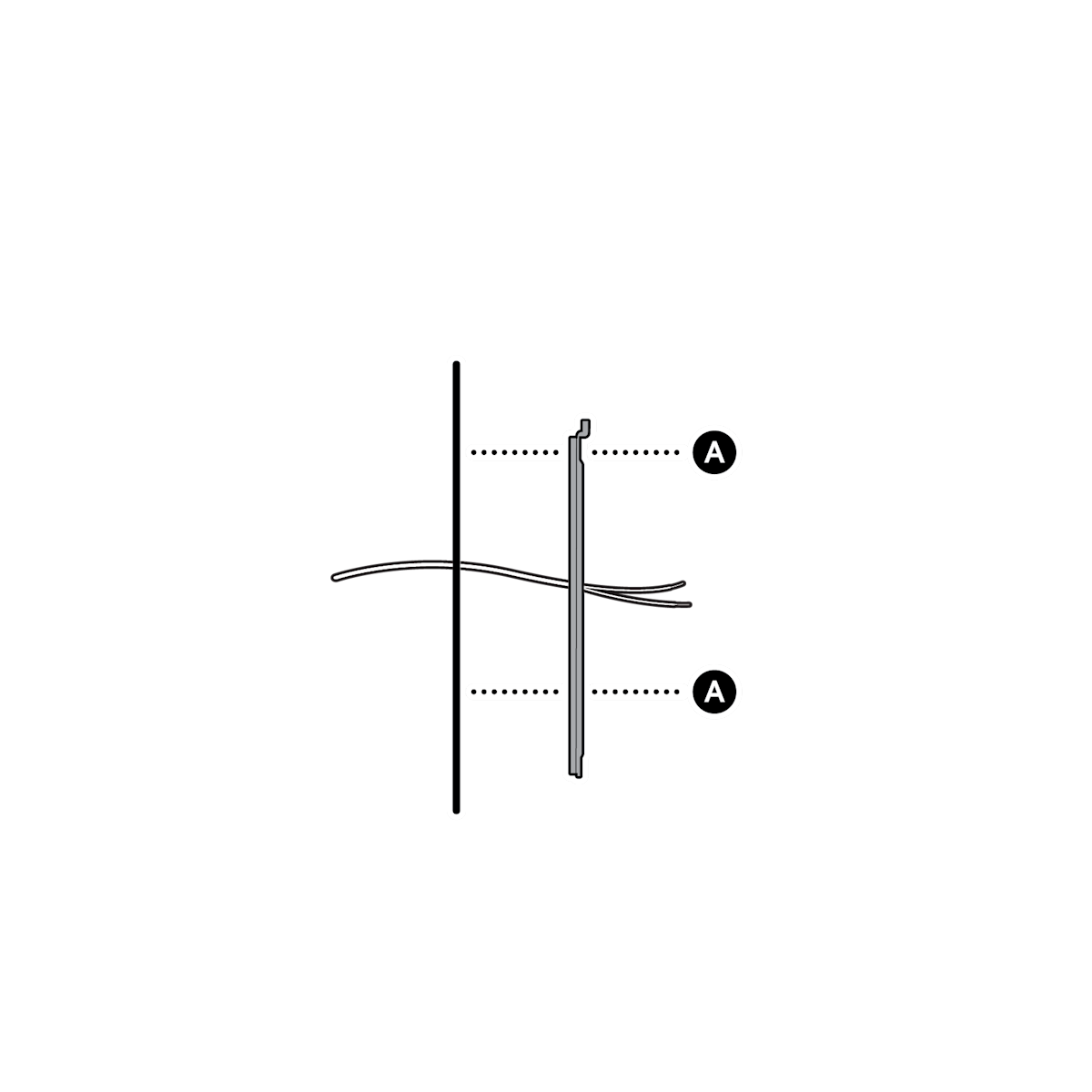

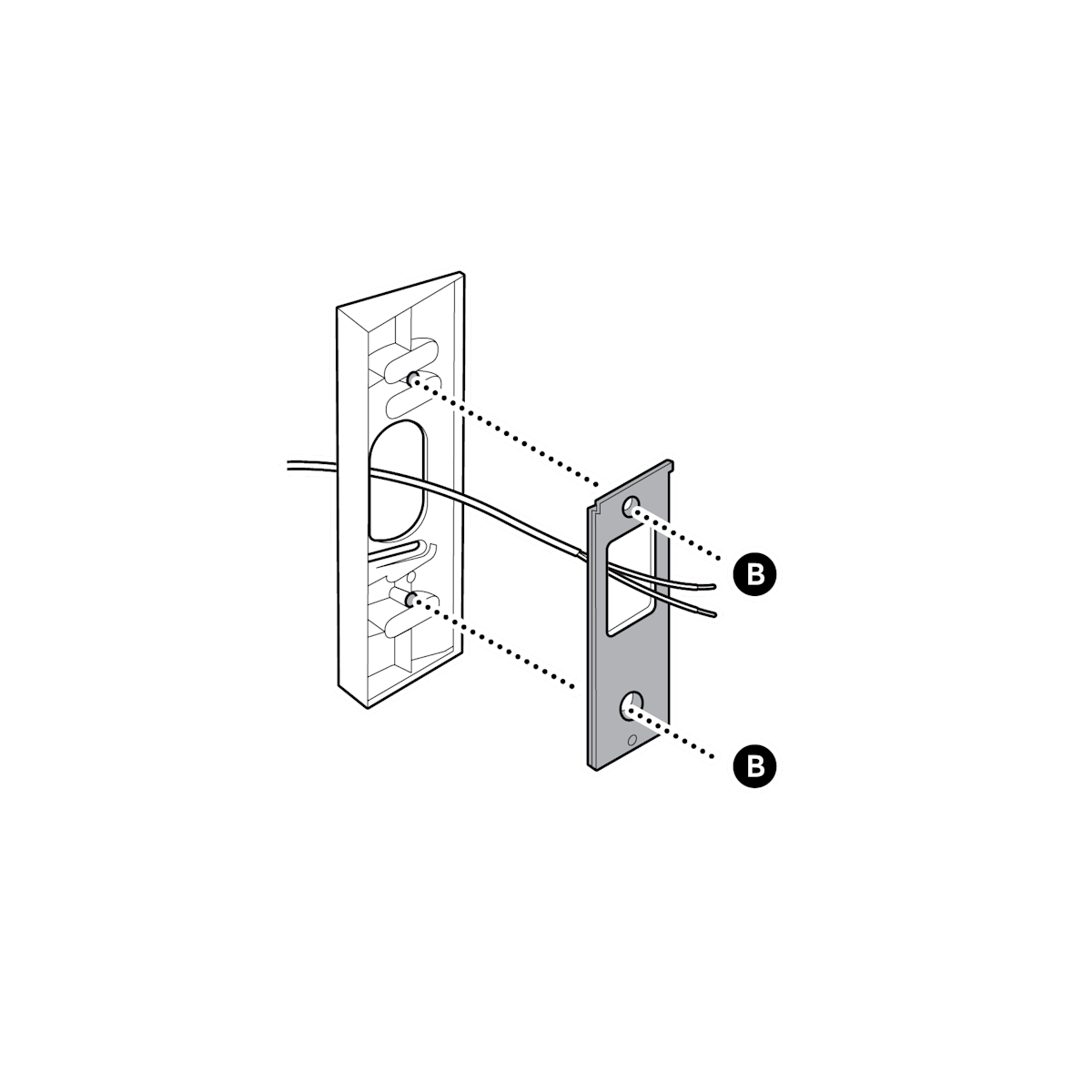

5. Install the mounting bracket on your mount or directly over the doorbell wiring with the included screws.

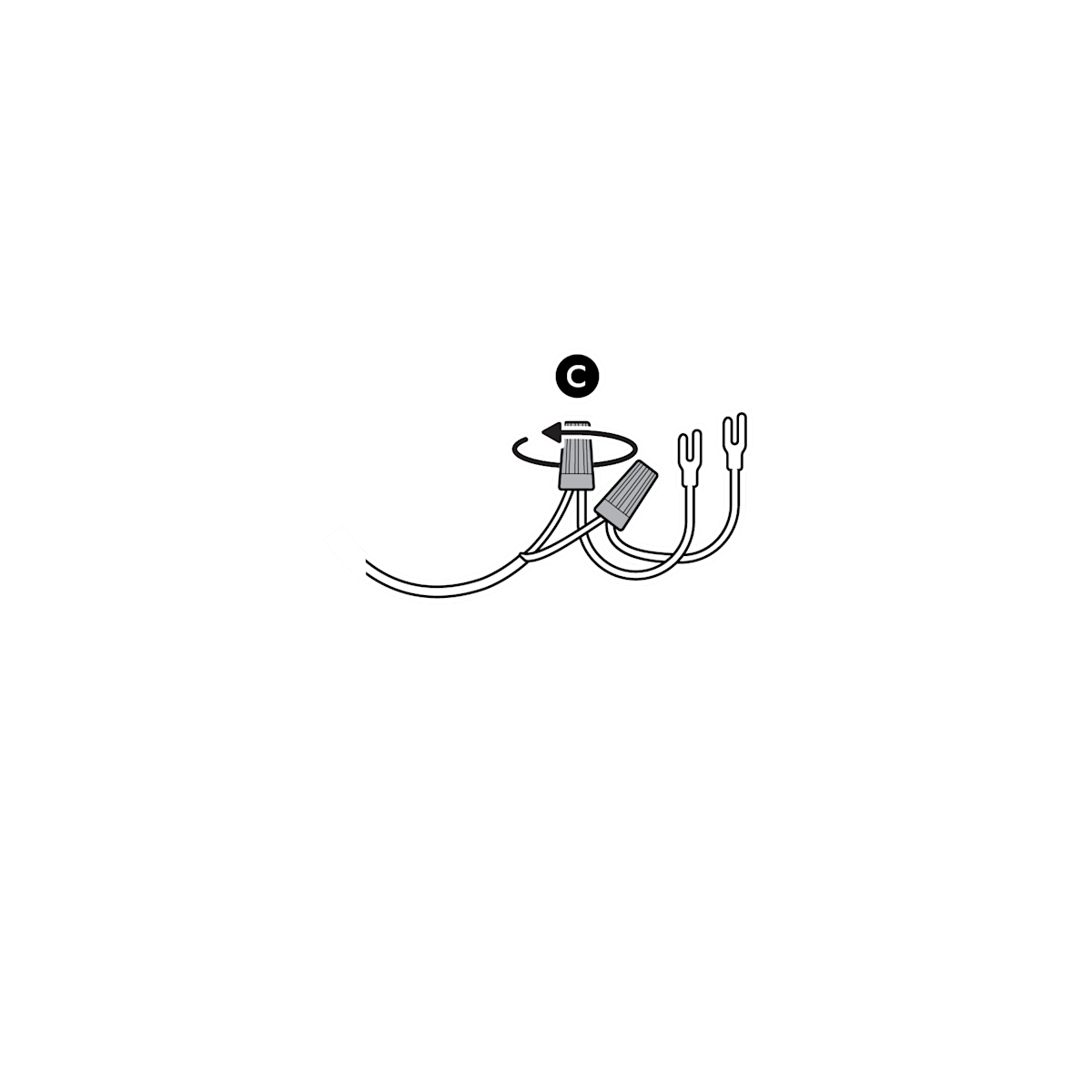

6. (Optional) Attach the included fork connector extenders to the doorbell wiring with wire nuts.

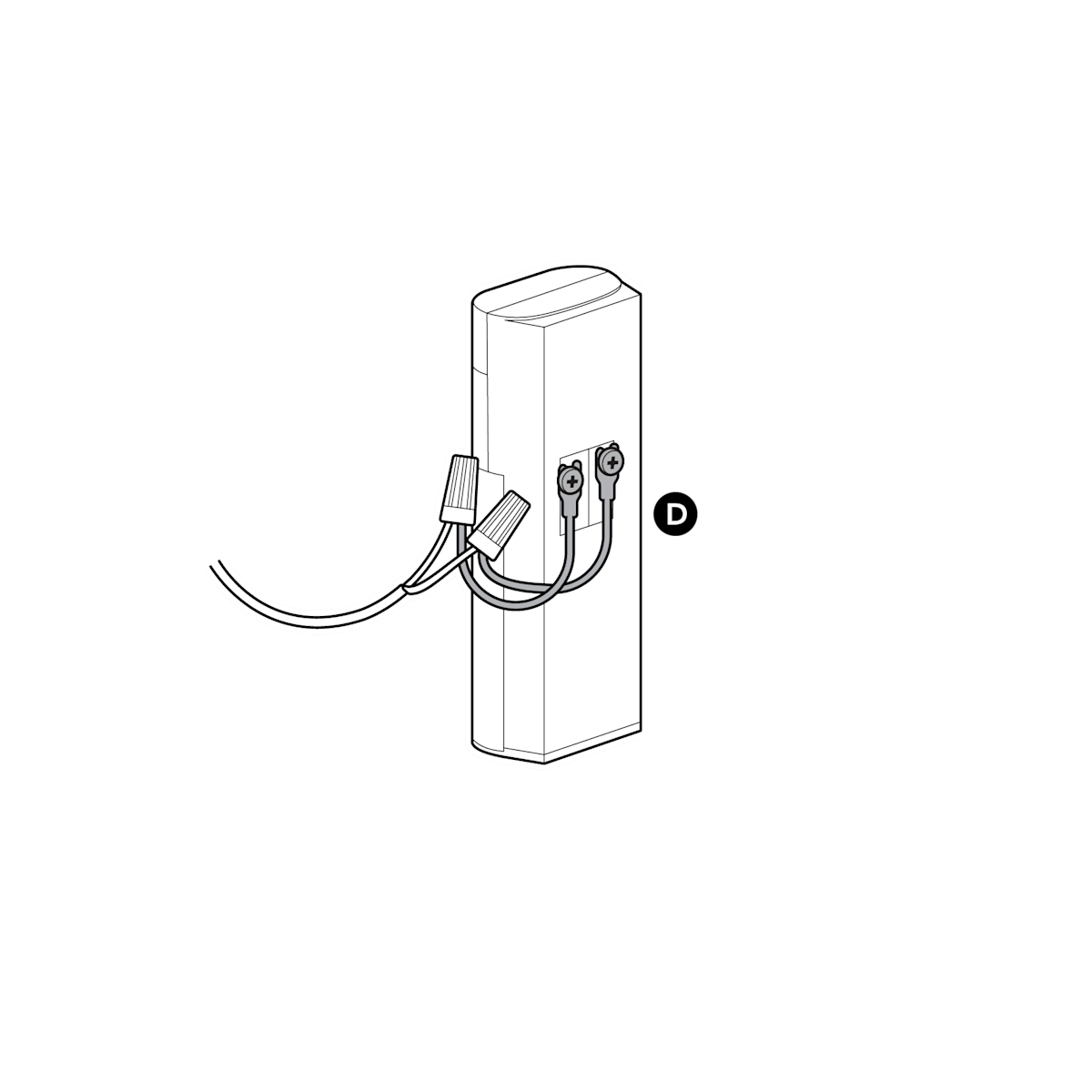

7. Connect the doorbell wiring or fork connector extenders to your doorbell’s wire terminals.

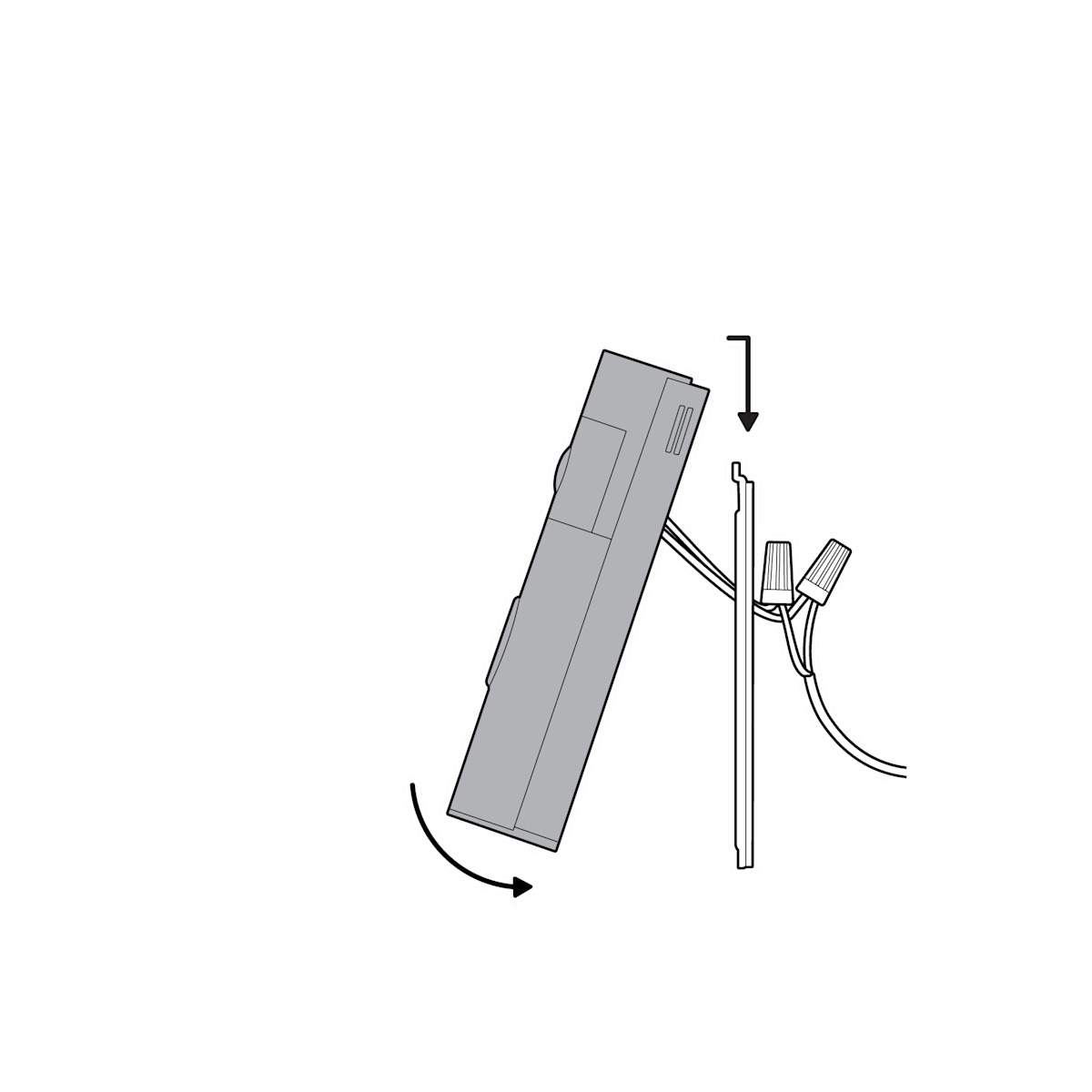

8. Mount your doorbell by hooking it over the bracket.
9. Remove the battery to identify the security screw.
10. Tighten the security screw.
11. Reinsert the battery.
12. Reattach the faceplate by pressing until you hear a click.
13. Restore power at the breaker.
