Installing Floodlight Cam (2nd Gen)

Safety and compliance information for Floodlight Cam (2nd Gen)

Download the user manual for Floodlight Cam (2nd Gen)Download the user manual for Floodlight Cam (2nd Gen) (Dansk)Download the user manual for Floodlight Cam (2nd Gen) (Svenska)Download the user manual for Floodlight Cam (2nd Gen) (Norsk)Download the user manual for Floodlight Cam (2nd Gen) (Suomi)

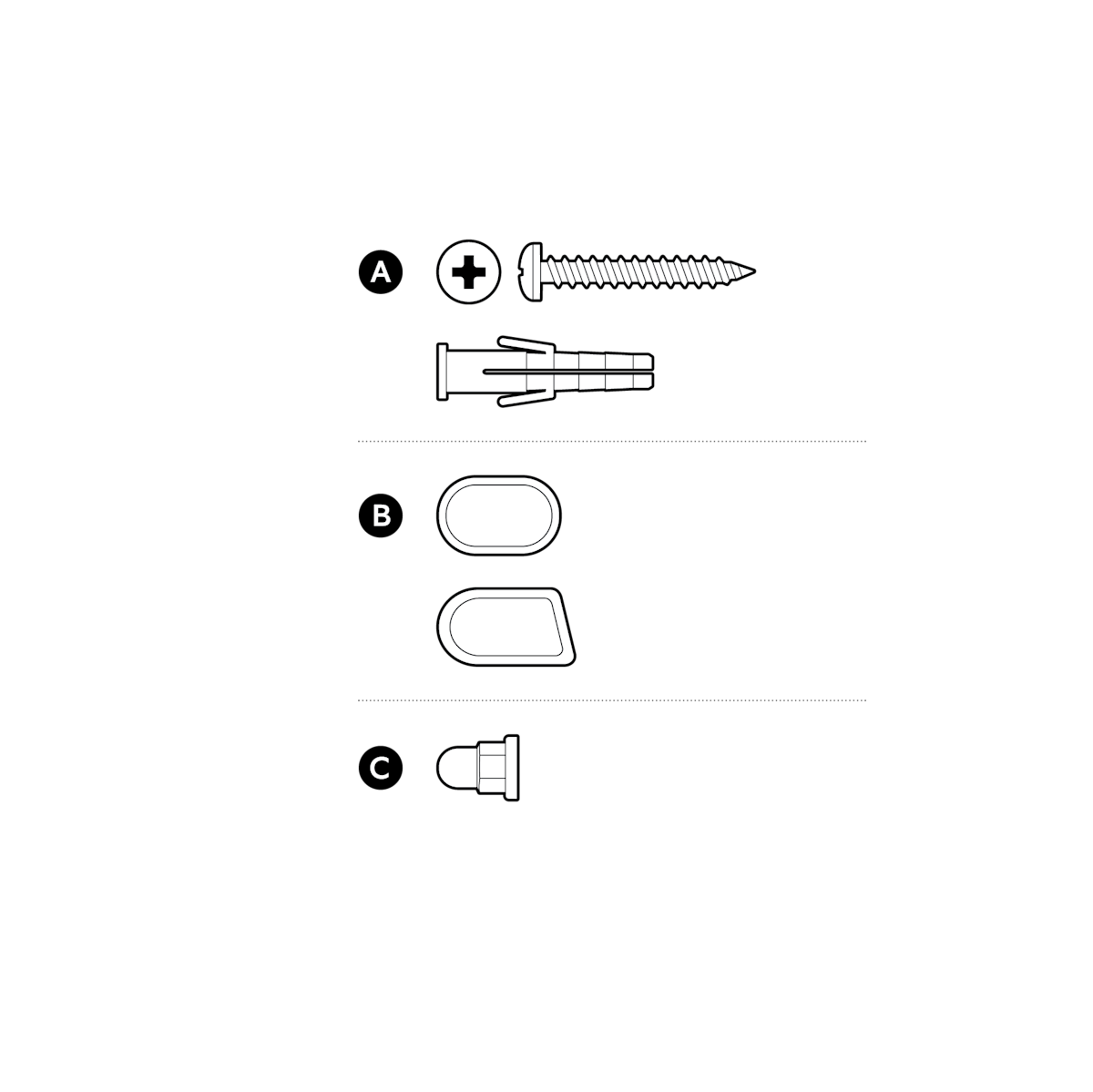

Hardware included

Illustration of the screws and wall plugs included with Floodlight Cam (2nd Gen).

Tools included

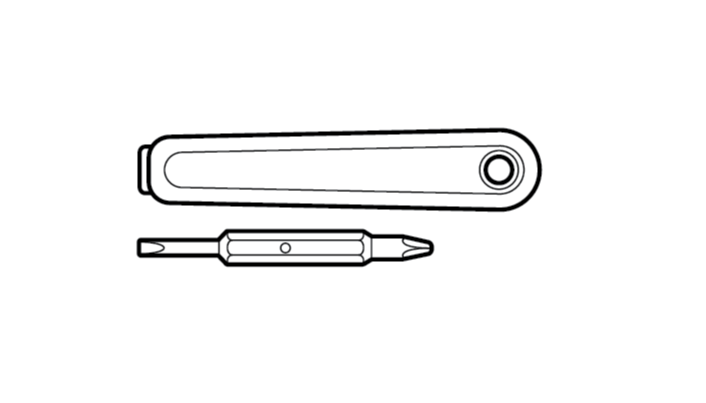

Phillips and flathead screwdriver included with Floodlight Cam (2nd Gen)

Screwdriver

Tools needed

Illustration of a battery powered drill, recommended for installation.

Drill with a 6 mm masonry bit (optional)

Line drawing of a Caulk Gun

Caulk gun

WARNING: Risk of electrical shock. Disconnect power at the fuse or circuit breaker before installing.

CAUTION: Risk of fire. Do not install near combustible or flammable surfaces.

NOTE: Your Floodlight Cam must be installed on a 4-inch round UL-listed weatherproof electrical box.

This manual is for informational purposes only. Working with electricity can be dangerous unless proper safety precautions are taken. If you are not comfortable or are inexperienced with the processes and tools described in this manual, we recommend that you hire a licensed electrician.

1. Remove the protective wrap from the camera lens.

Illustration indicating to remove the protective wrap from the Ring Camera.

2. Download the Ring Always Home app.

Illustration showing to download the Ring App on the mobile device.

3. Scan the QR code on your device.

Illustration to show a phone scanning a QR code on the device.

WARNING! Professional installation recommended.

4. Shut off power at the consumer unit.

NOTE: If you are unsure which breaker to flip, turn off the master breaker or contact a licensed electrician.

Verify that the supply voltage is correct. Connect fixture to a 100 to 240 VAC 50/60Hz power source.

Do not connect this light fixture to a dimmer switch or timer.

Illustration showing to shut off power at the breaker prior to installation.

Wall installation

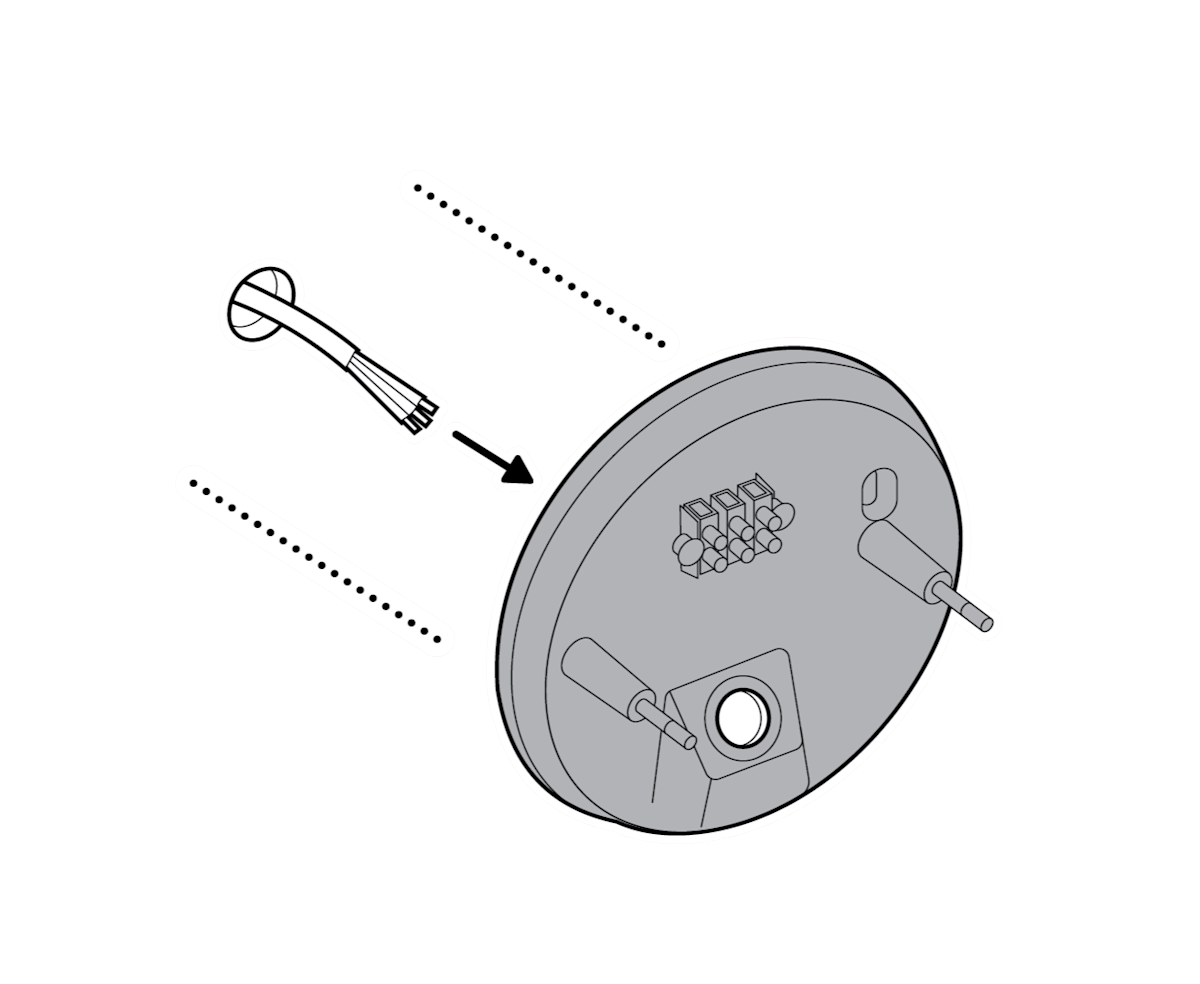

1. Remove your existing floodlight and disconnect the wires.

Illustration to show removal of the existing floodlight and disconnect the wires.

On stucco, brick, or concrete, use a 6 mm masonry bit to drill holes for the included wall anchors.

Illustration to show the use of wall plugs and screws with stucco, brick, or concrete and screws with wood.

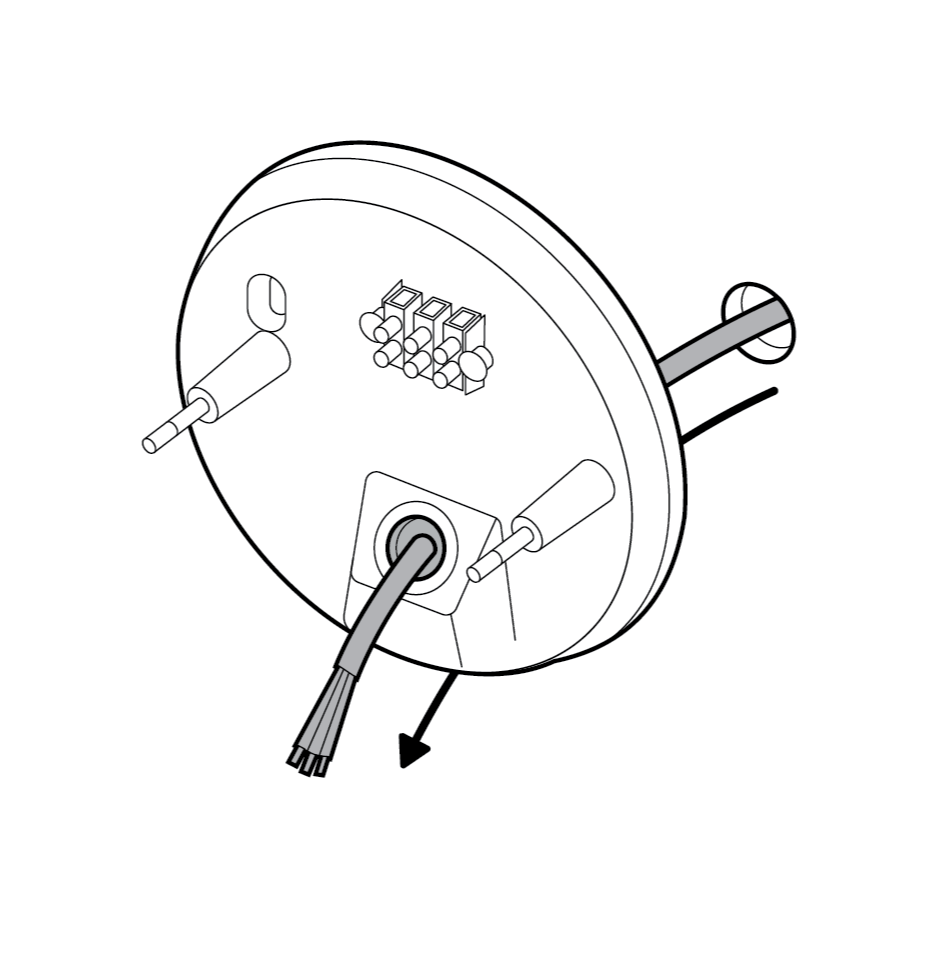

2. Feed the wires through the mounting plate.

Illustrations to show feeding the wires through the mounting plate.

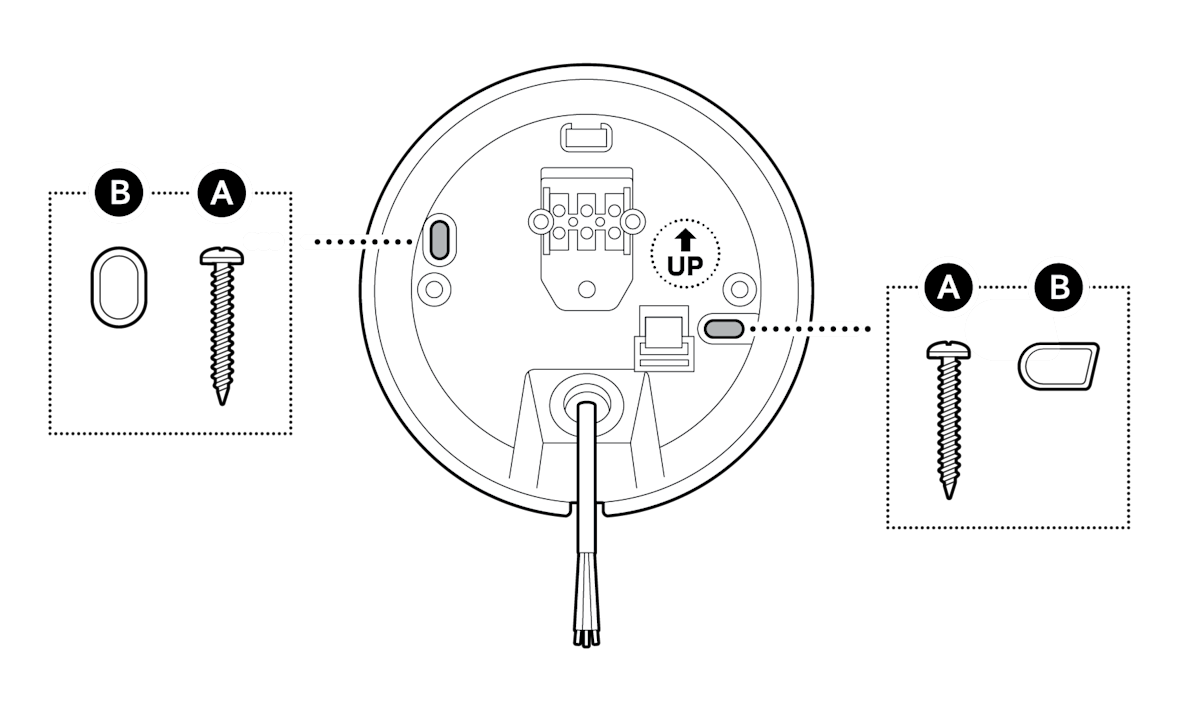

3. Install the mounting plate with the UP arrow pointing up.

NOTE: Use the included screwdriver, washers, and screws.

Illustration to show installing the mounting plate with the UP arrow pointing up.

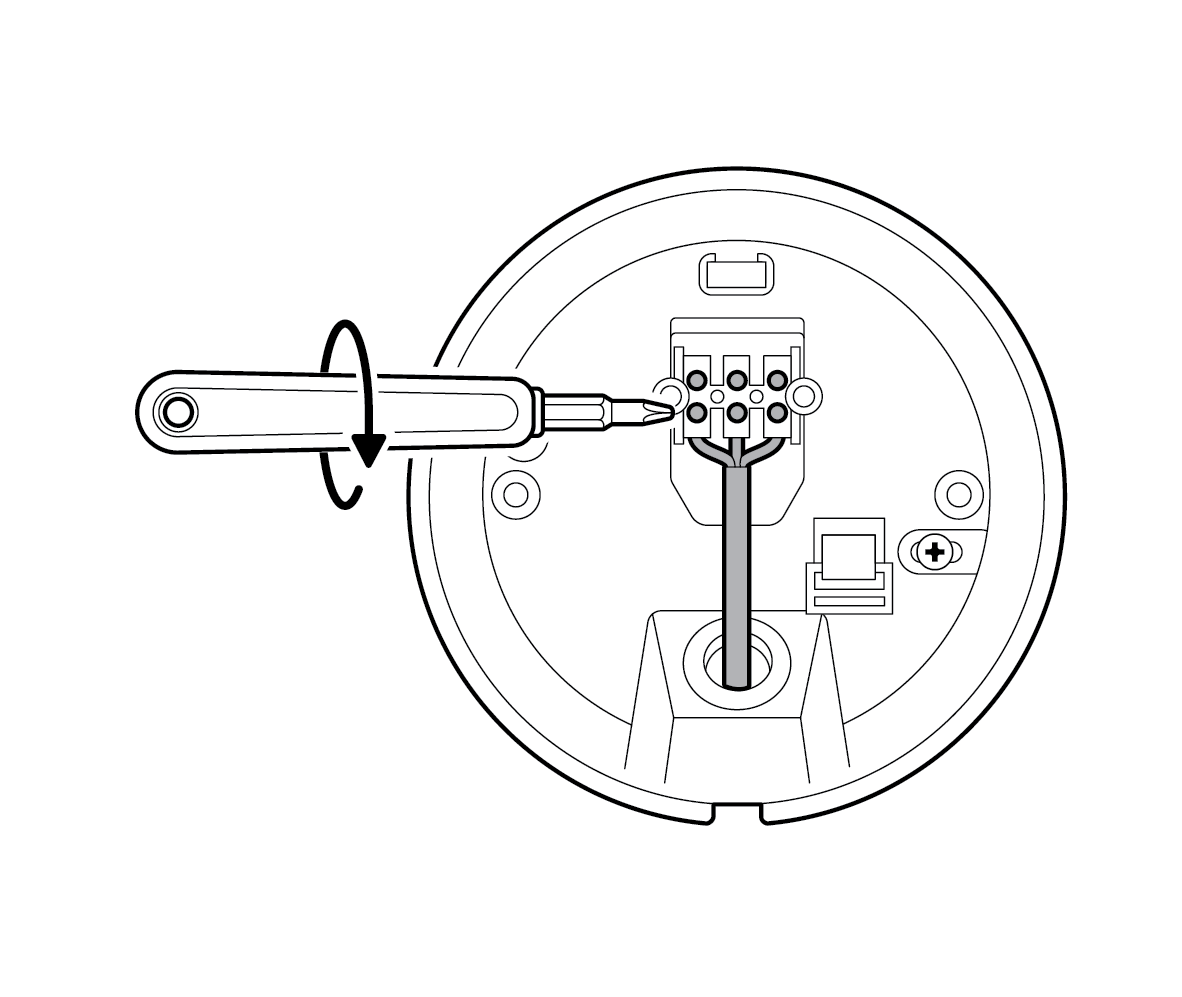

4. Connect the wires to the terminal block with a screwdriver.

NOTE: Gently tug on the wires to ensure they are securely connected.

Illustration to show connecting the wires to the terminal block with a screwdriver.

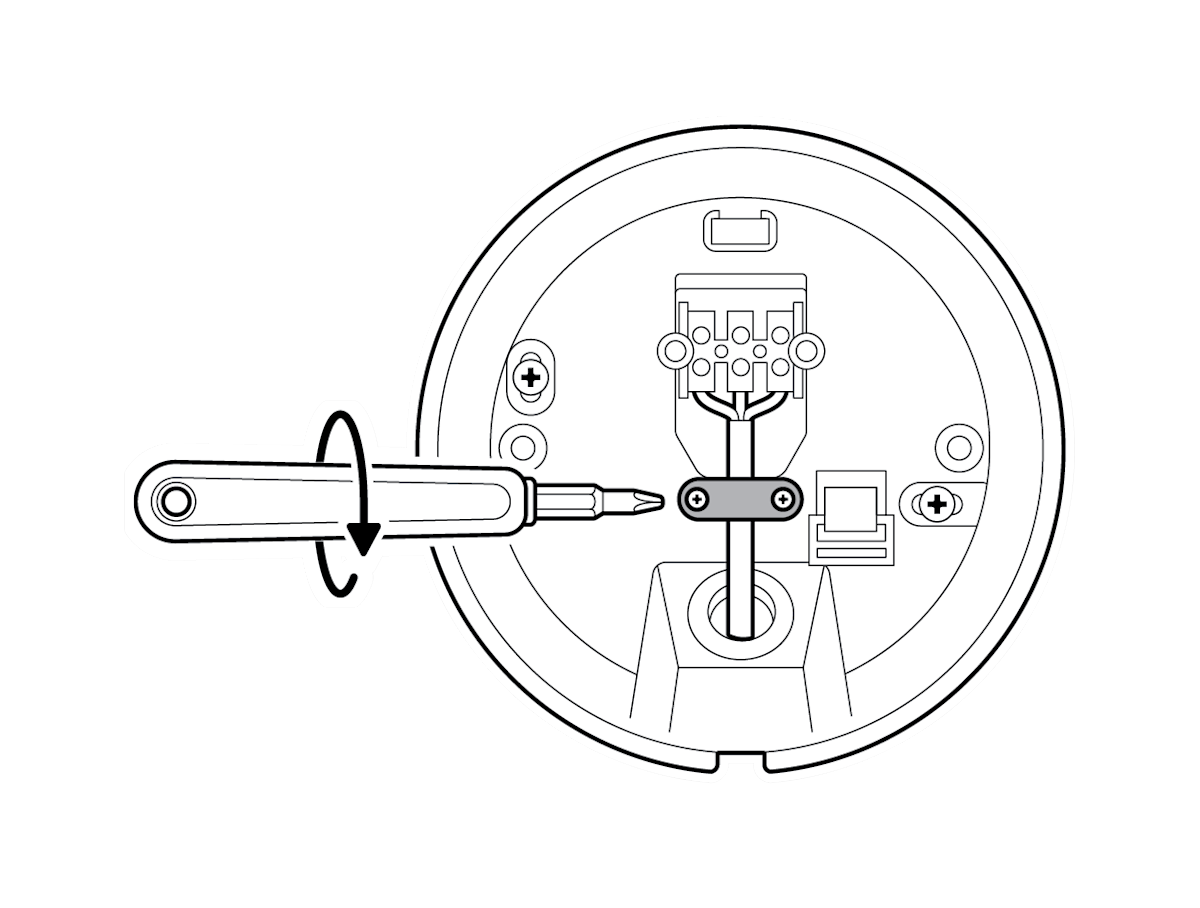

5. Attach the pressing plate over the wire insulation and not over the individual wires.

CAUTION! Risk of fire. Follow the standard electrical code in your country. Consult a qualified electrician in your area if you are unsure or uncomfortable in performing the installation.

Illustration to show attaching the pressing plate over the wire insulation and not over the individual wires.

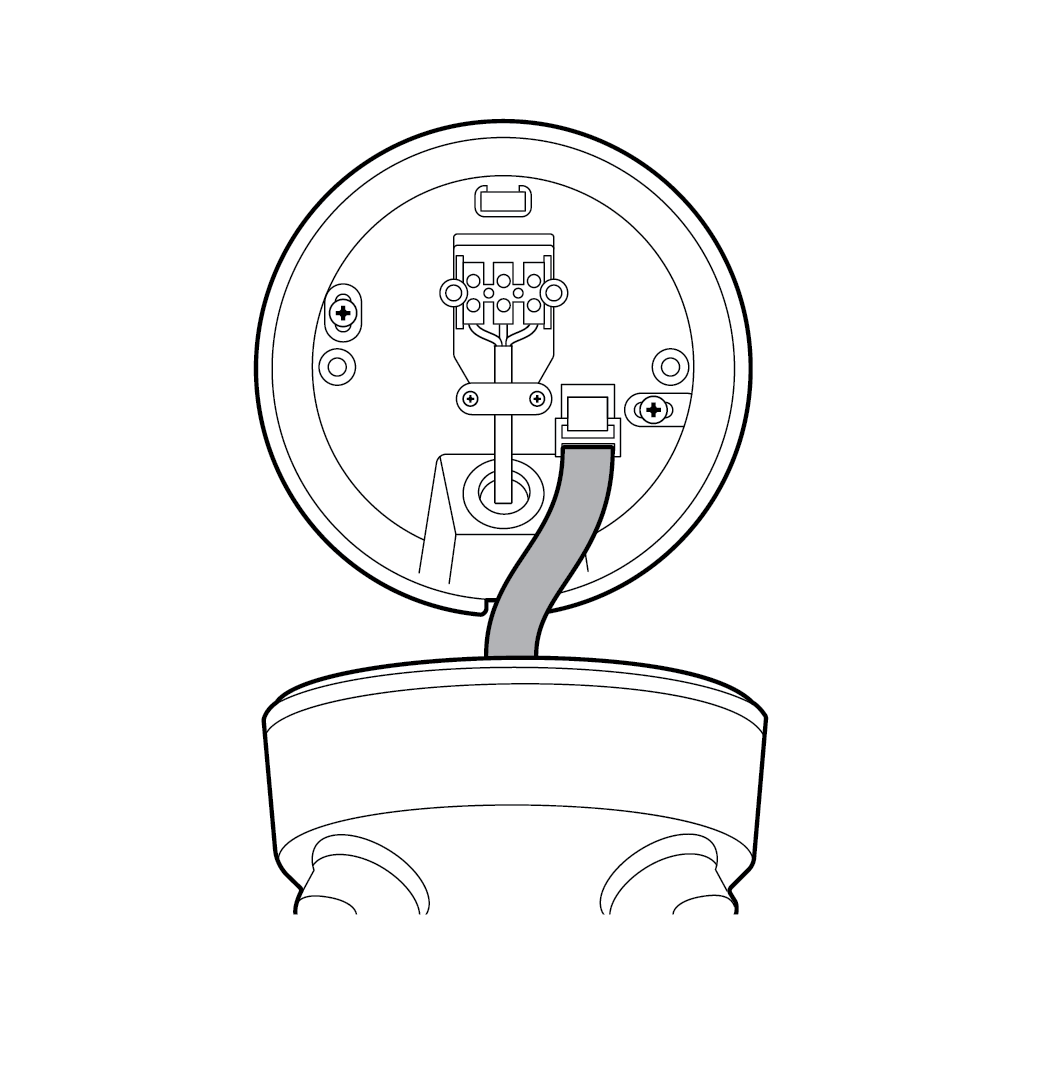

6. Use the nylon strap on the back of your camera fixture to hook it onto the mounting plate.

NOTE: Ensure the buckle and hook are secure before releasing.

Illustration to show using the nylon strap on the back of your camera fixture to hook it onto the mounting plate.

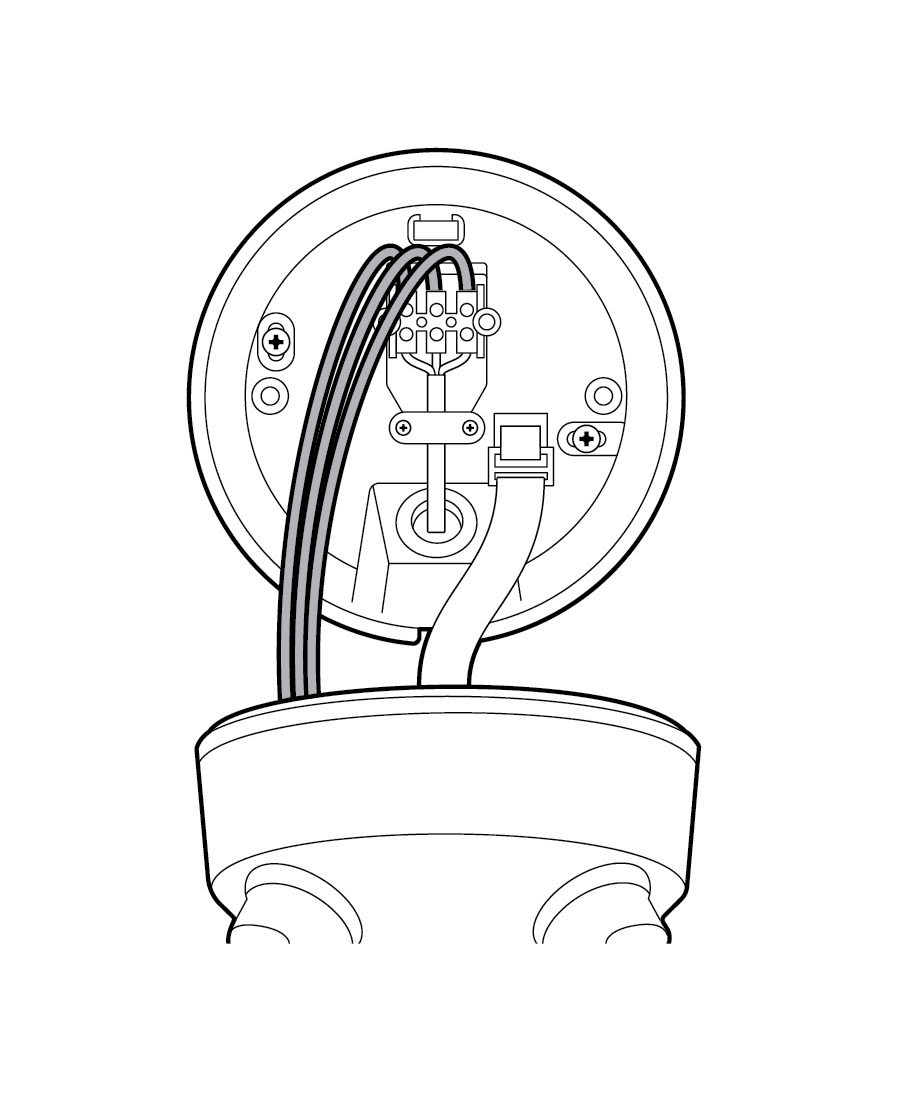

7. Connect the wires from your camera to the terminal block.

NOTE: Gently tug on the wires to ensure they are securely connected. Properly ground fixture. Always follow code standards when installing wired connections.

Illustration to show connecting the wires from the camera to the terminal block.

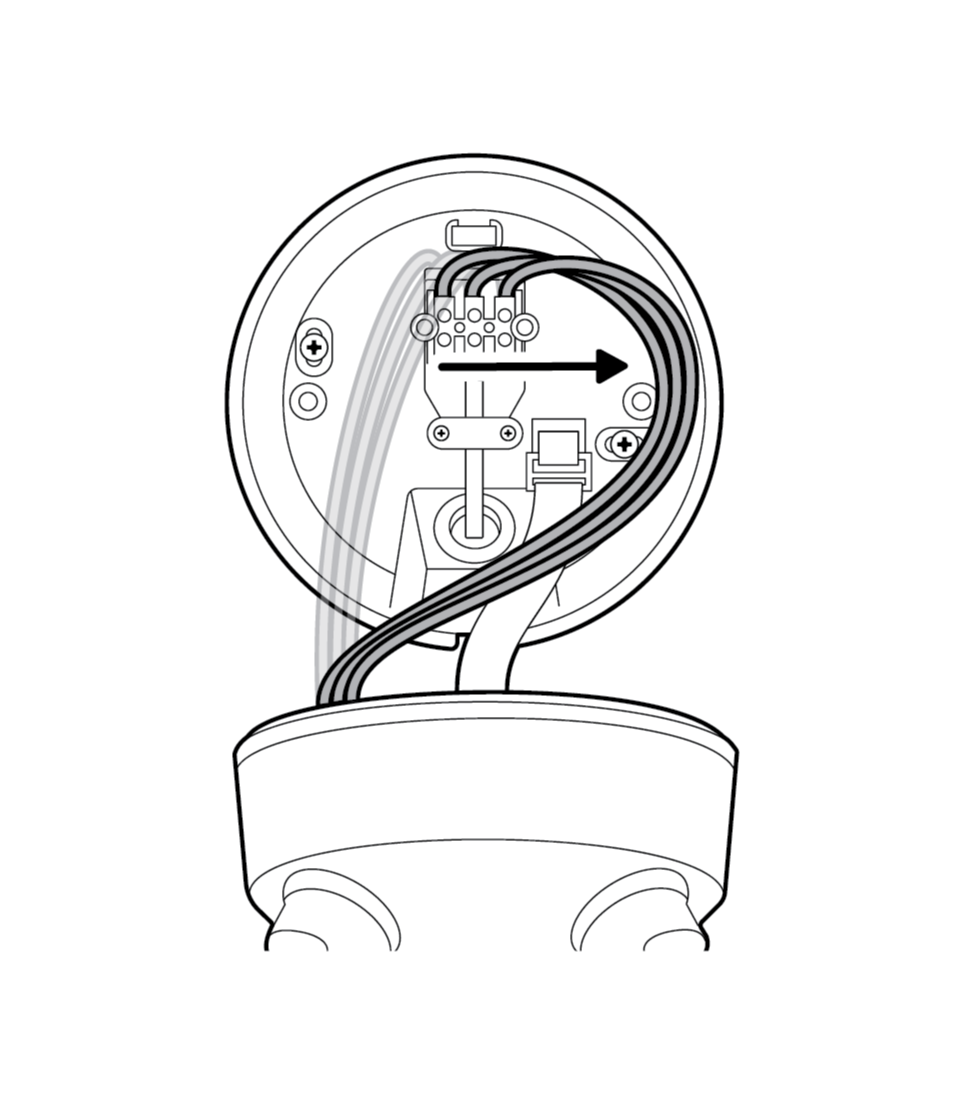

8. Route the wires from your camera fixture along the right side of the mounting plate.

Illustration to show routing the wires from your camera fixture along the right side of the mounting plate.

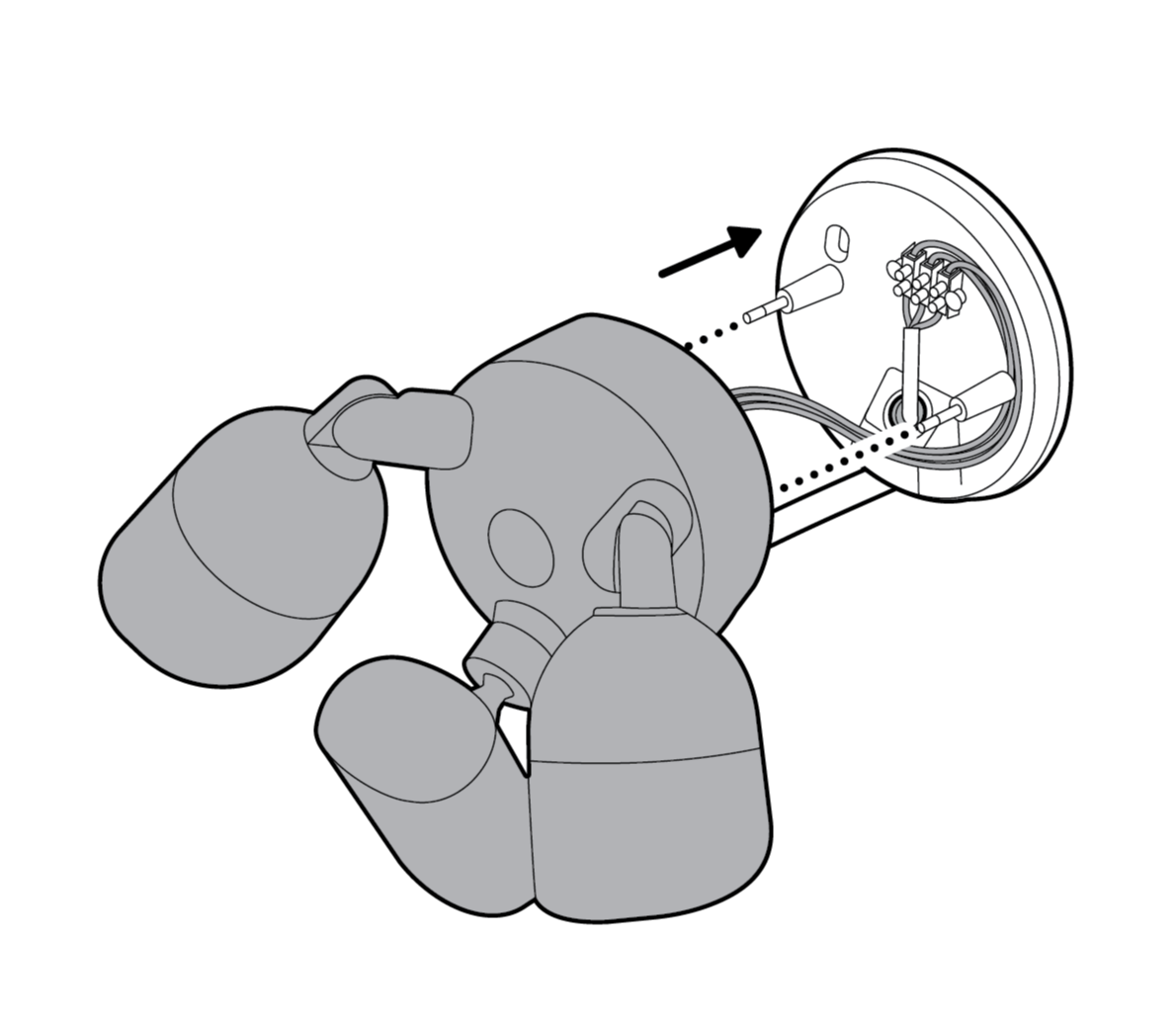

9. Slide the camera fixture onto the mounting plate and attach using the included hex nuts.

Illustration to show sliding the camera fixture onto the mounting plate and attach using the included hex nuts.

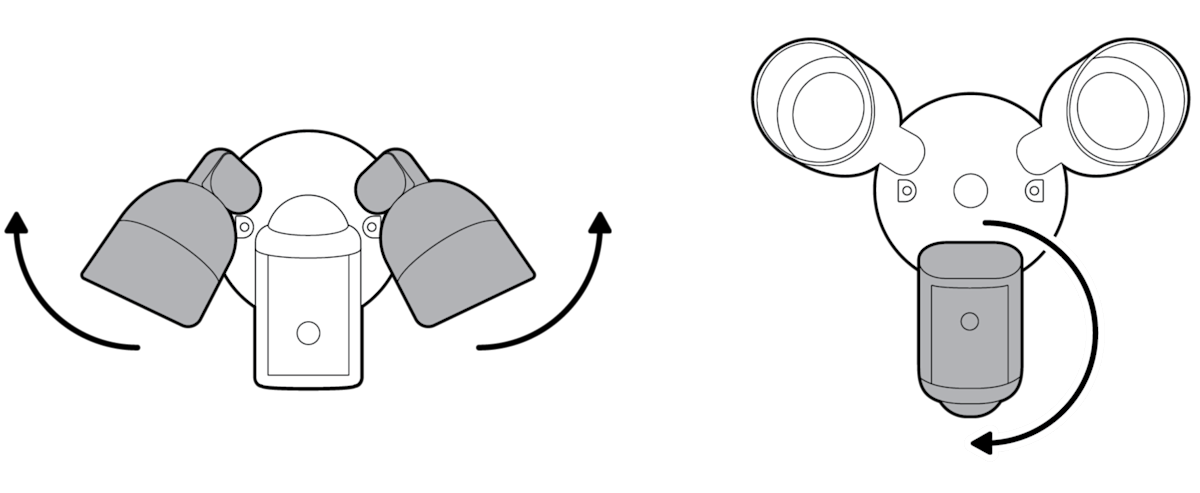

10. Rotate the lights out of the way, then rotate your camera clockwise.

Illustration to show rotating the lights out of the way, then your rotate camera clockwise.

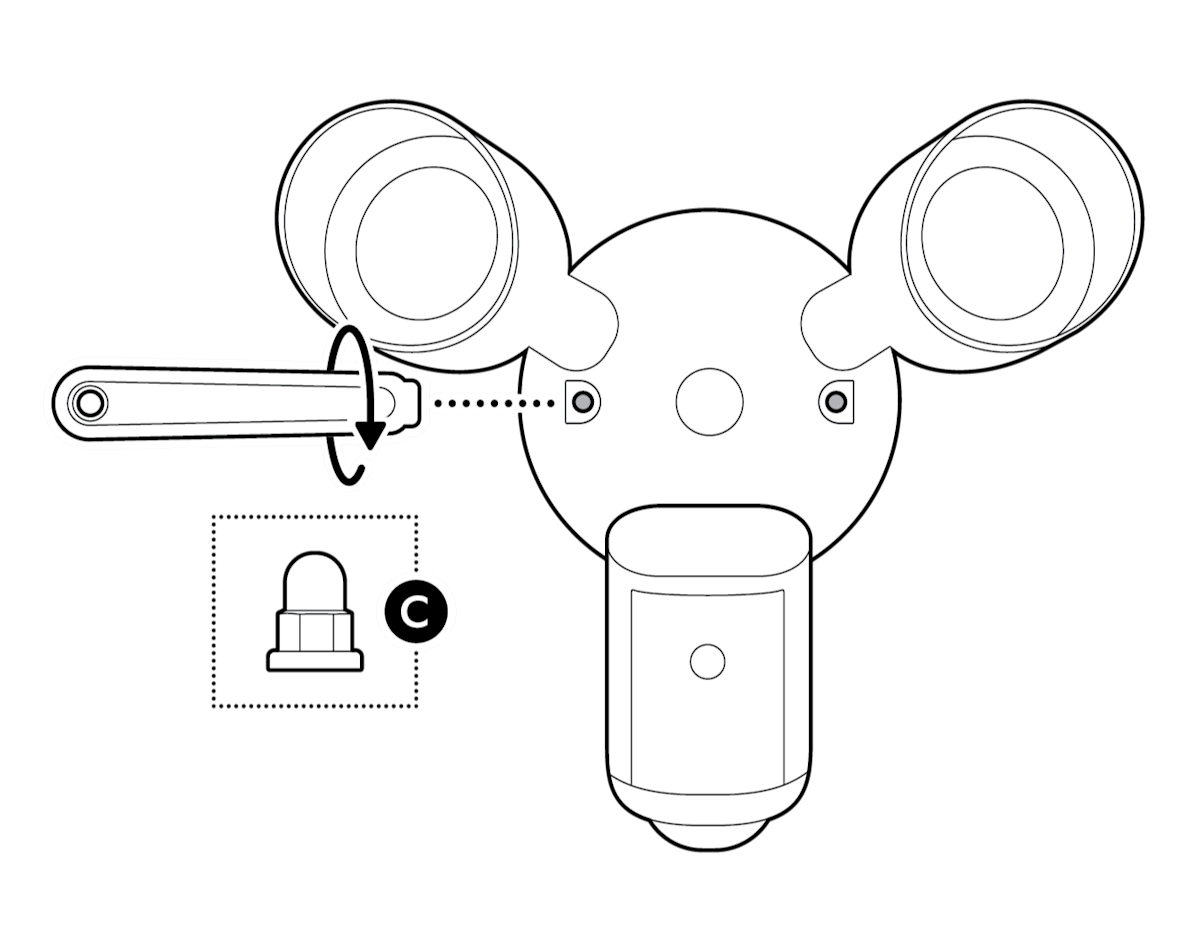

11. Remove the shank from the included screwdriver and use the handle to tighten the hex nuts. Then, cover with the included hex nut caps.

Illustration to show removal of the shank from the included screwdriver, using the handle to tighten the hex nuts.

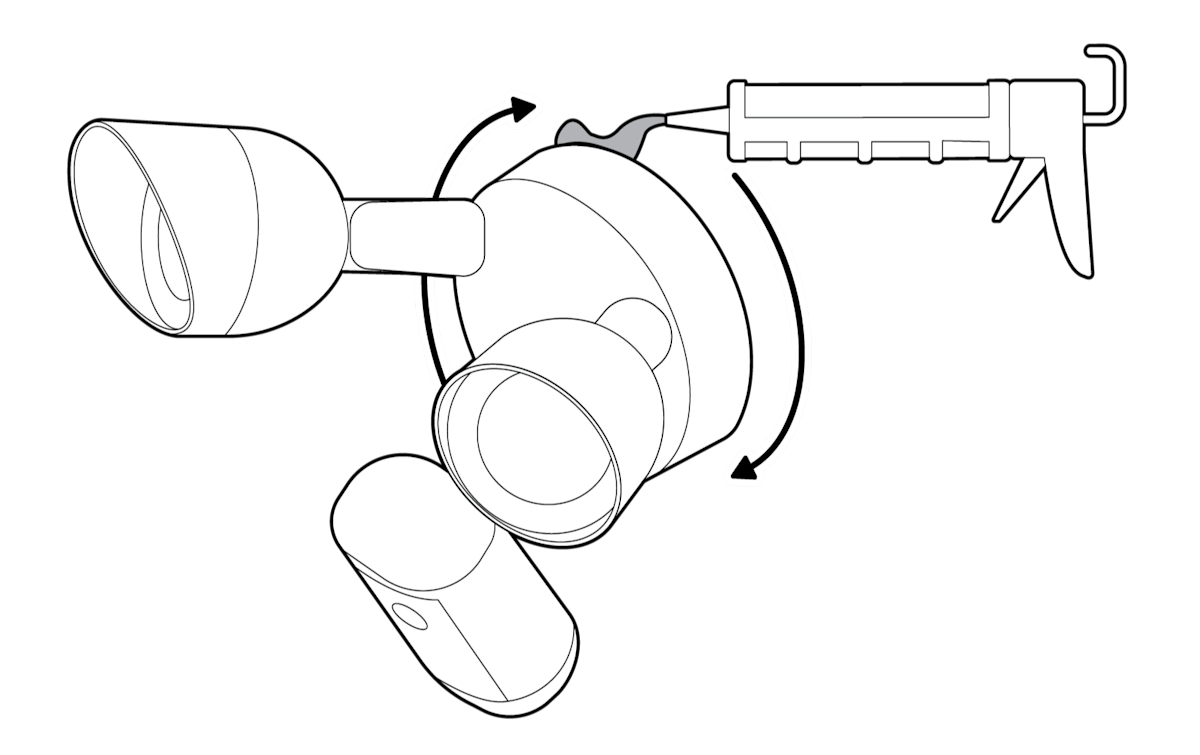

12. Apply a weatherproof silicone caulk or sealant around the perimeter of the lighting fixture to seal any gaps between the lighting fixture and the mounting surface.

Illustration to show applying weatherproof silicone caulk or sealant around the perimeter of the lighting fixture to seal any gaps between the lighting fixture and the mounting surface.

13. Restore power at the consumer unit.

Simple line drawing of a circuit breaker with power on
